(25 PCS) ML4870CS5 High Current Boost Regulator with Load Disconnect SOIC-8
Tax included.

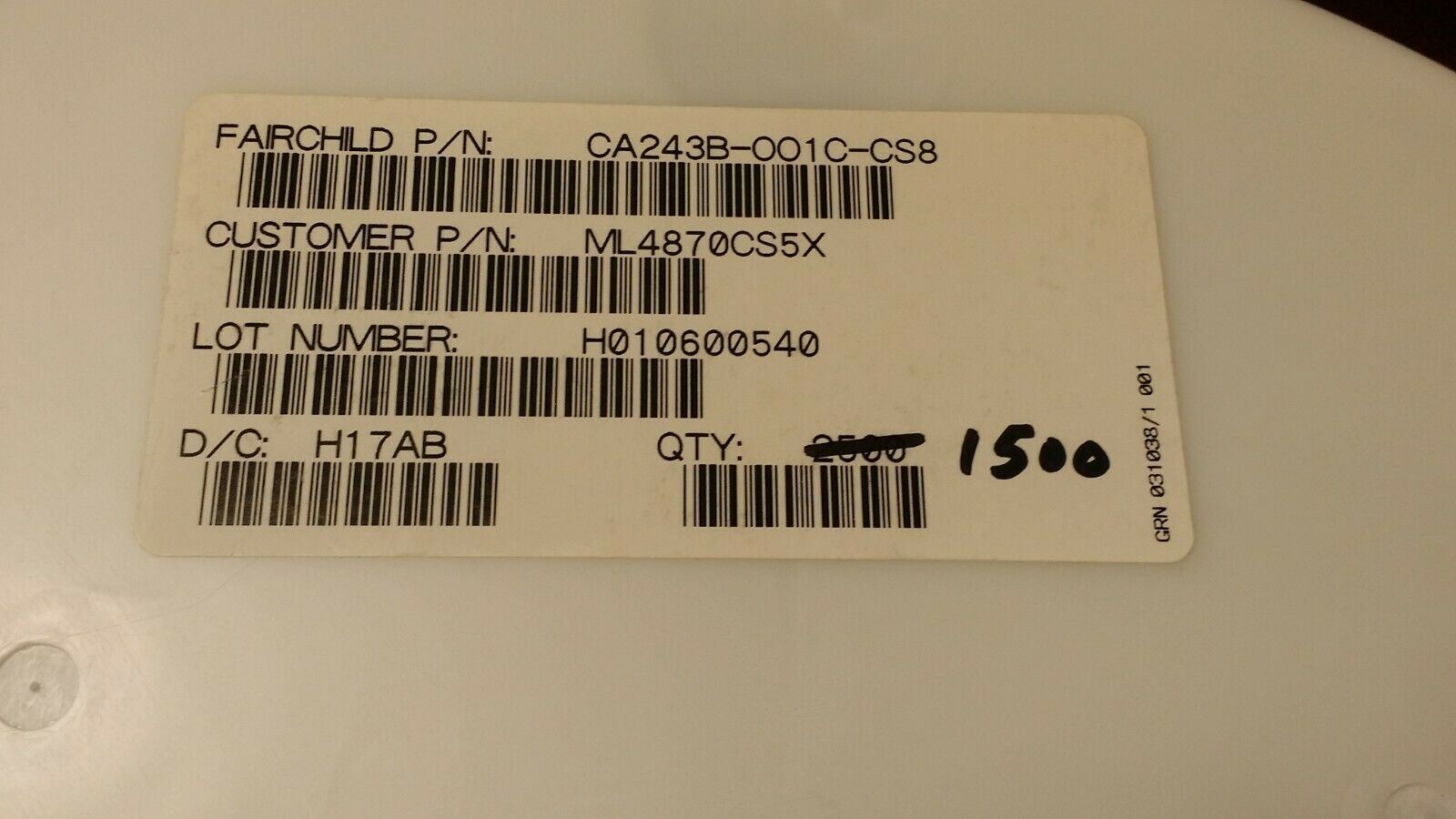

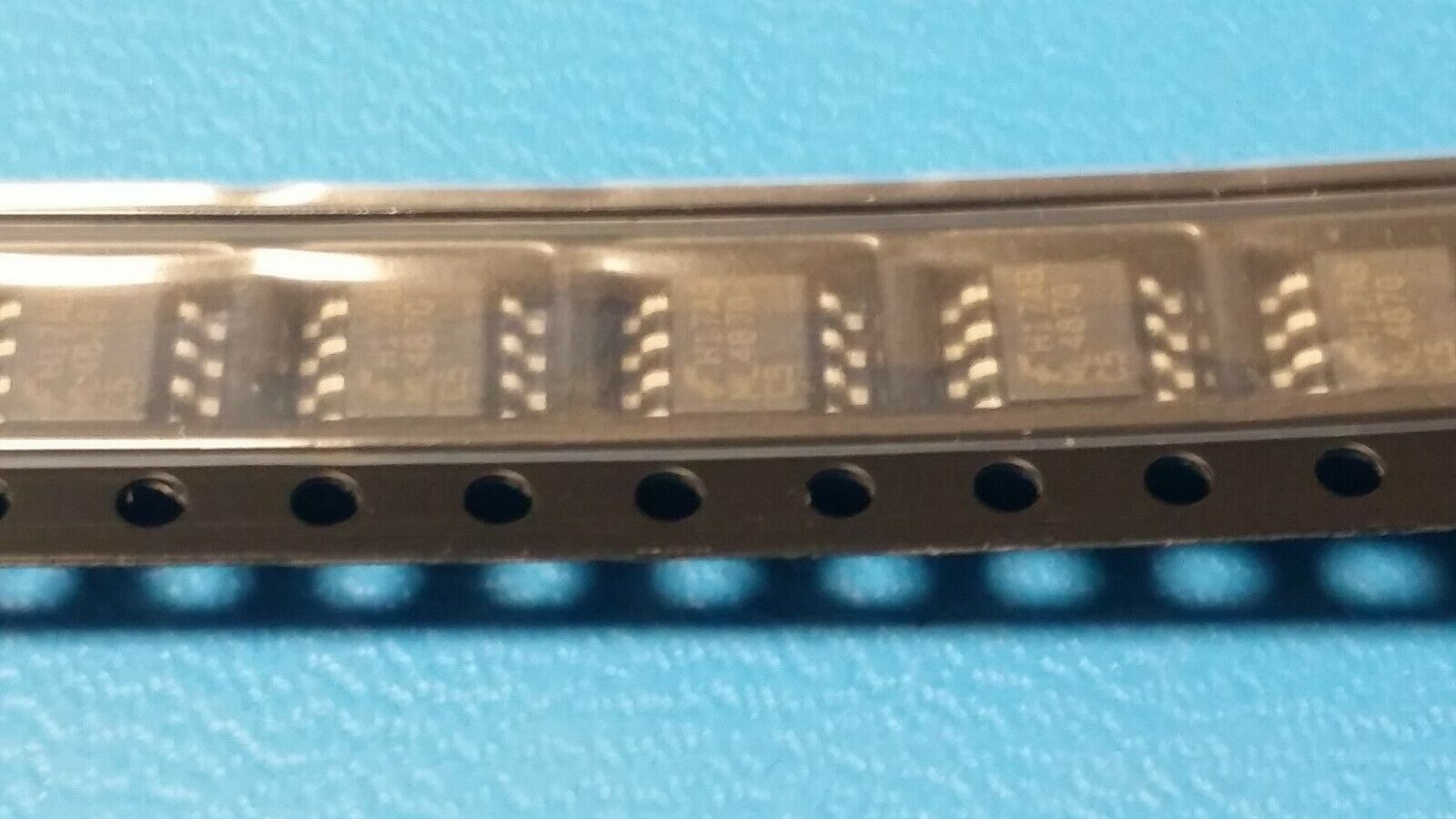

THIS LISTING IS FOR (25 PCS) OF ML4870CS5 BY FSC
High Current Boost Regulator with Load Disconnect SOIC-8
Part #: ML4870CS-5
Part Category: Other Semiconductors
Manufacturer: Fairchild Semiconductor
Description: Switching Regulator, Current-mode, 0.4A, 200kHz Switching Freq-Max, CMOS, PDSO8
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE FREQUENCY MODULATION
Input Voltage-Nom 2.4 V
Input Voltage-Min 1.8 V
Input Voltage-Max 4.85 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Current-Max 0.4 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Sub Category Switching Regulator or Controllers
Surface Mount YES
Switcher Configuration BOOST
Switching Frequency-Max 200.0 kHz
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 4.9 mm
Width 3.9 mm
