(25 PCS) MC74F280D MOT Parity Generator/Checker 9-Bit SOIC-14
Tax included.

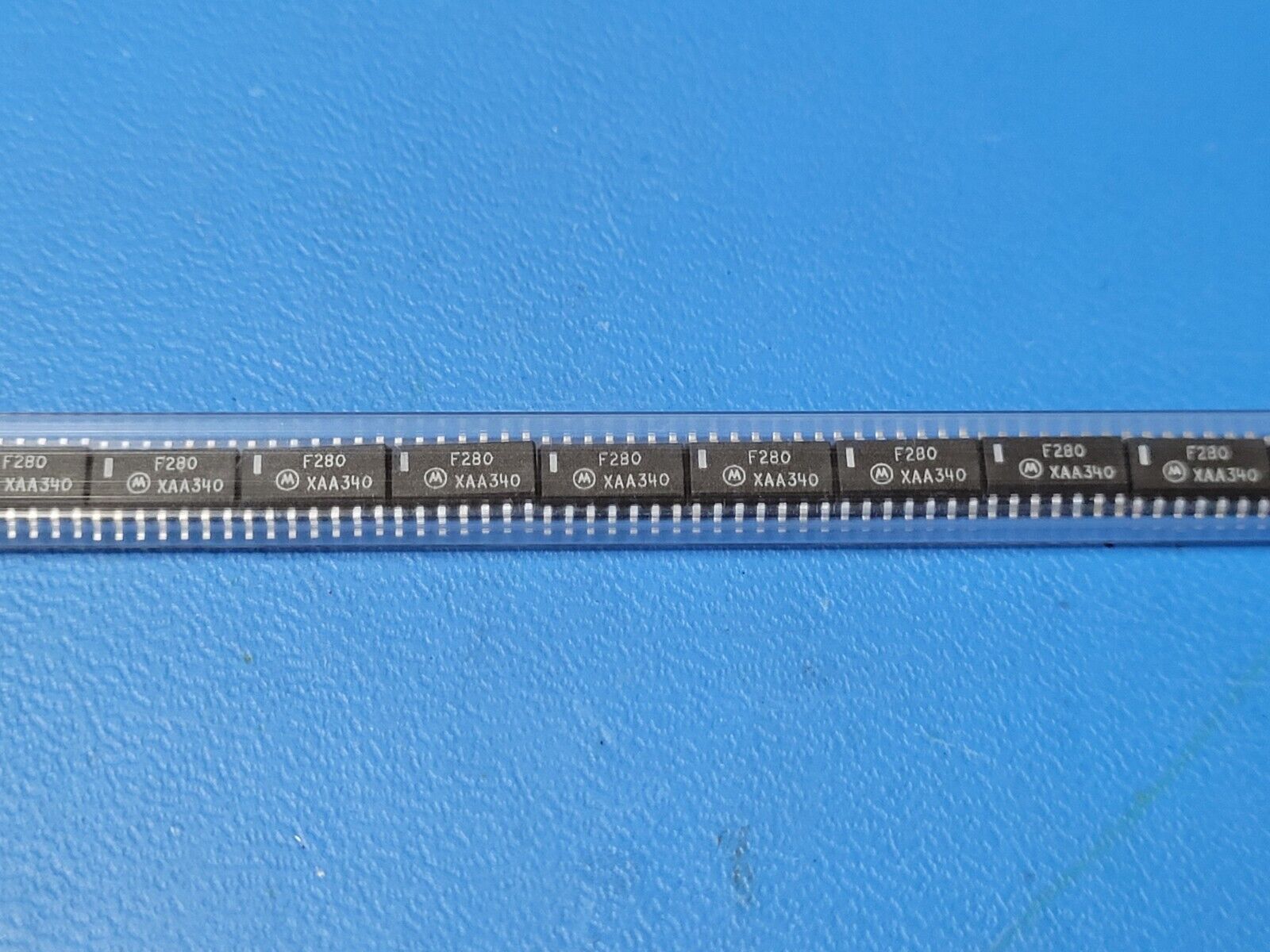

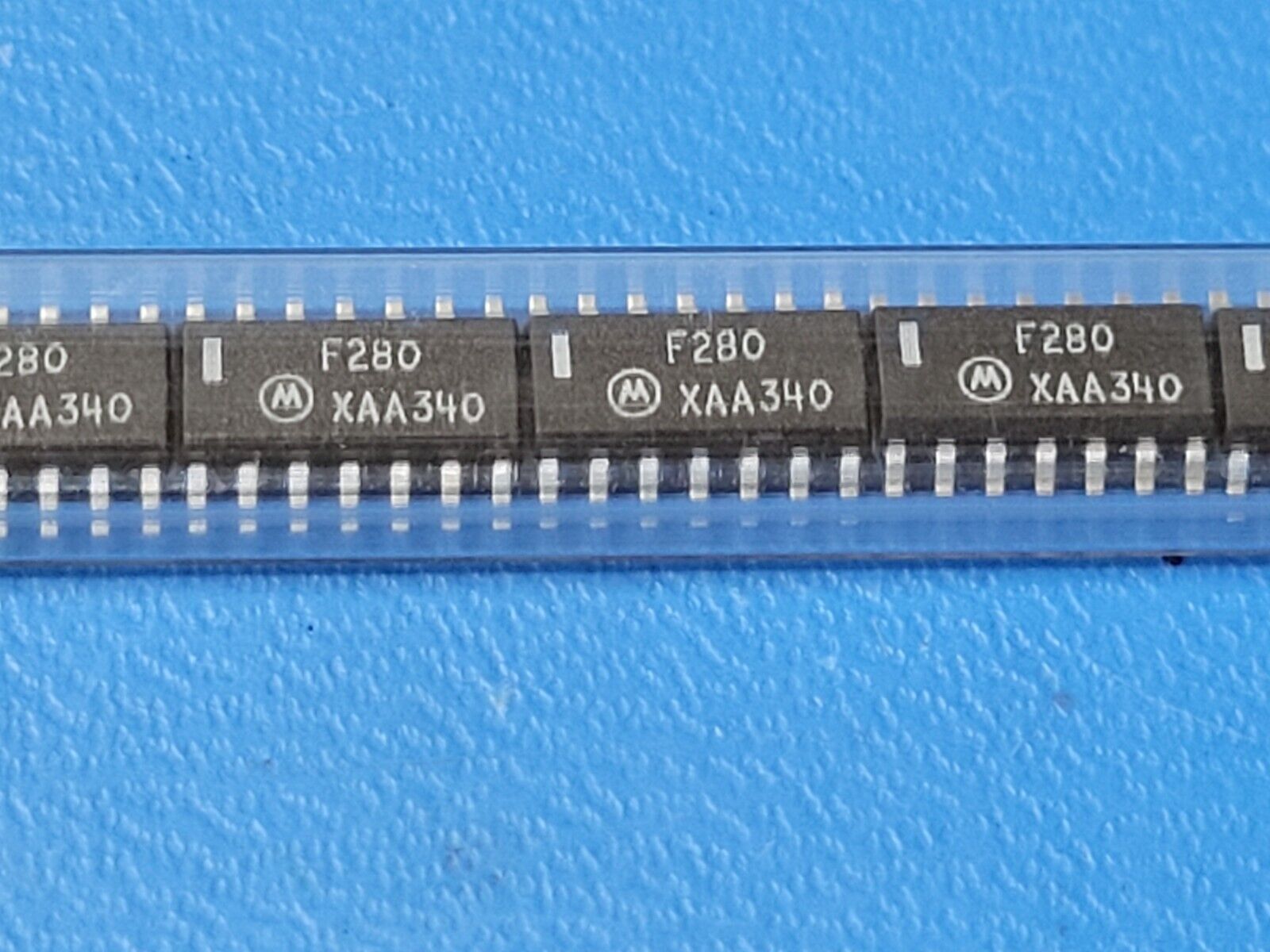

THIS IS FOR (25 PCS) OF MC74F280D BY MOT
Parity Generator/Checker 9-Bit SOIC-14
Part #: MC74F280D
Part Category: Logic ICs
Manufacturer: Motorola Solutions, Inc.
Description: Parity Generator/Checker, F/FAST Series, 9-Bit, Complementary Output, TTL, PDSO14
Mfr Package Description SOIC-14
Status Discontinued
Logic IC Type PARITY GENERATOR/CHECKER
Sub Category Arithmetic Circuits
Family F/FAST
JESD-30 Code R-PDSO-G14
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Number of Bits 9
Number of Functions 1
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Power Supply Current-Max (ICC) 38.0 mA
Propagation Delay (tpd) 17.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 8.65 mm
Width 3.9 mm
Additional Feature ODD/EVEN PARITY GENERATOR
