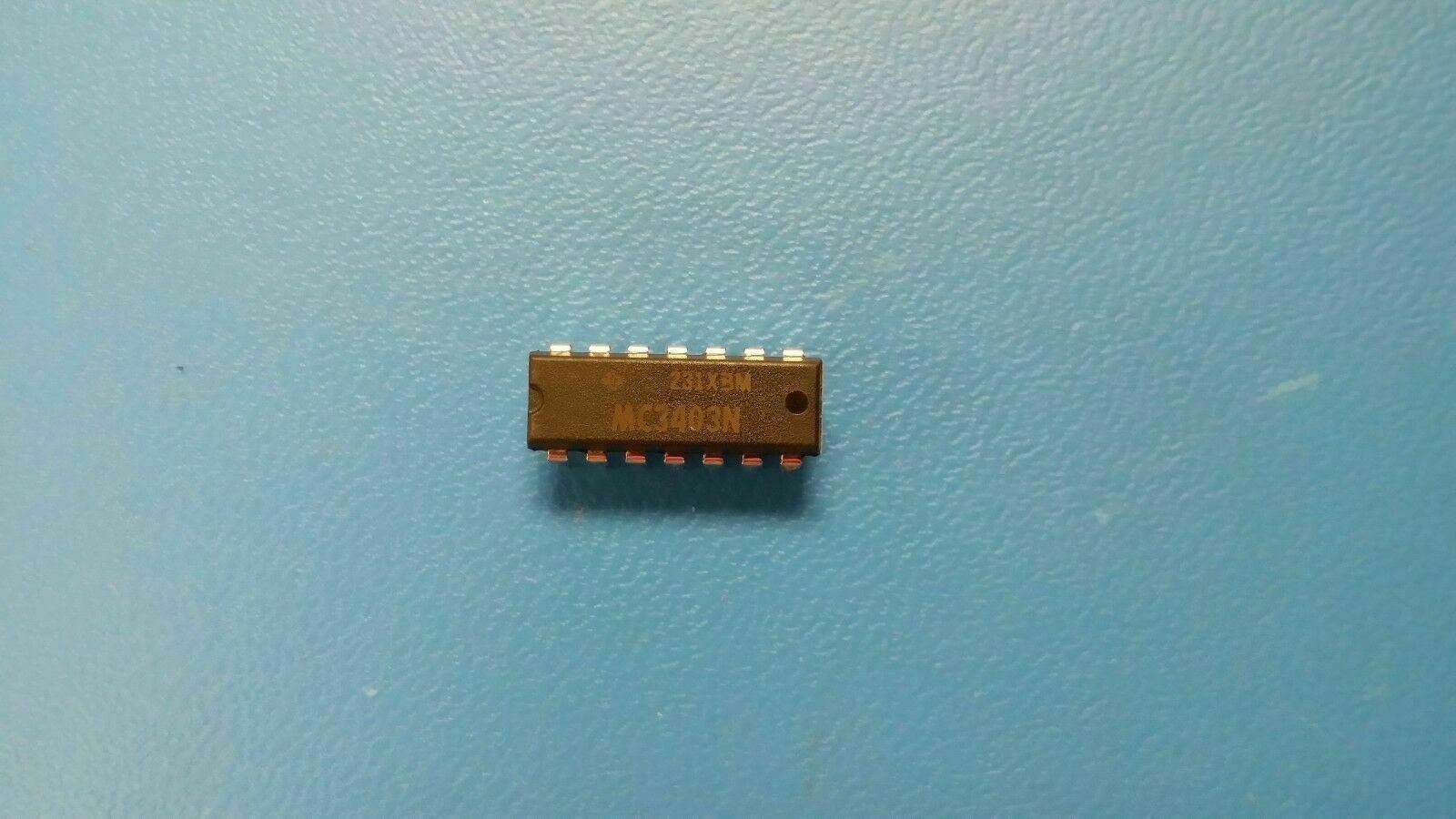

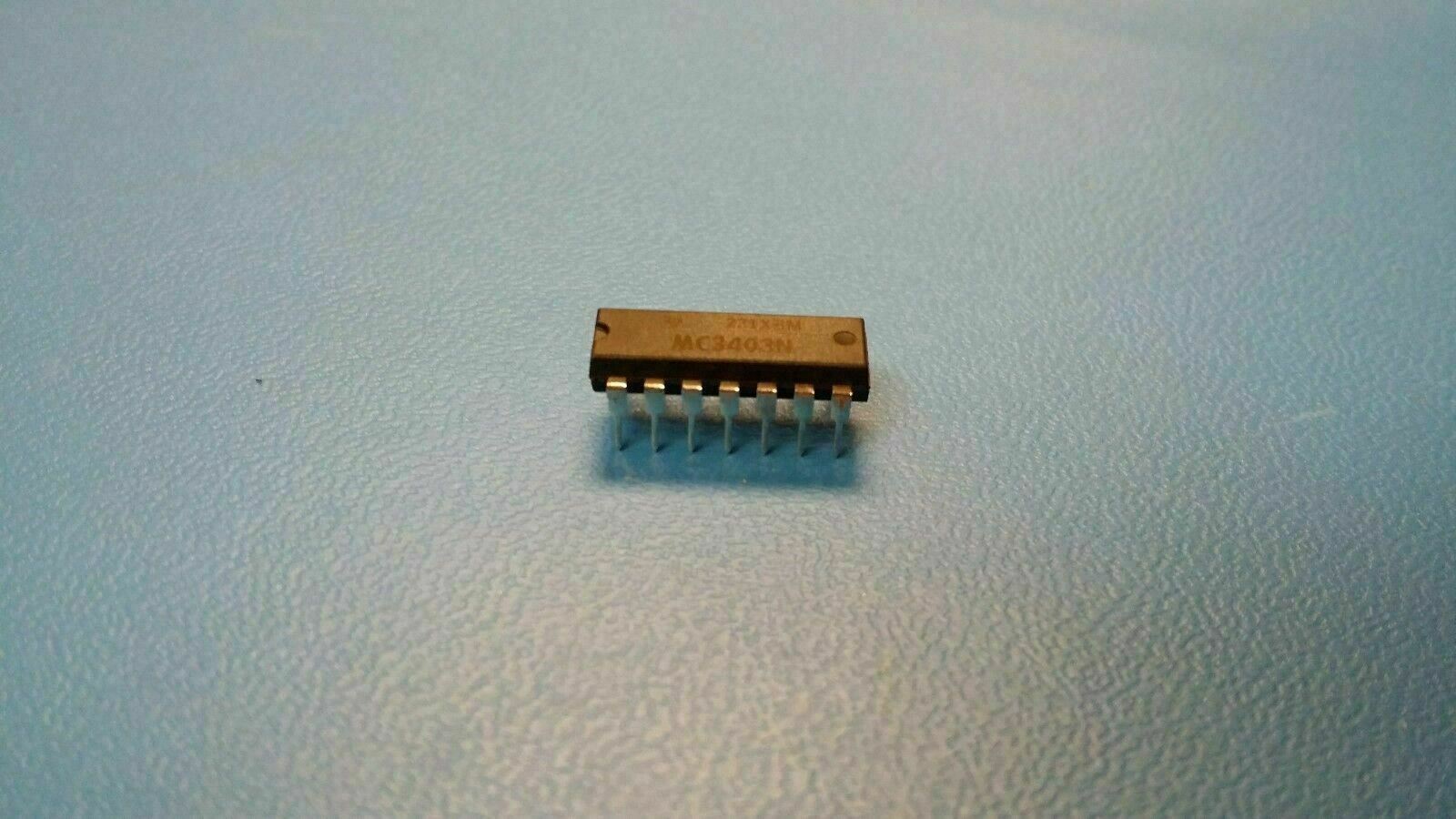

(25 PCS) MC3403N TI Op Amps Quad Low Power ±15V/30V 14-Pin PDIP
(25 PCS) MC3403N TI Op Amps Quad Low Power ±15V/30V 14-Pin PDIP

(25 PCS) MC3403N TI Op Amps Quad Low Power ±15V/30V 14-Pin PDIP

Tax included.
Only 152 left!
THIS LISTING IS FOR (25 PCS) OF MC3403N BY TI
Op Amps Quad Low Power  ±15V/30V 14-Pin PDIP

Product Category: Operational Amplifiers - Op Amps
Manufacturer: Texas Instruments
RoHS: NO
Mounting Style: Through Hole
Package / Case: PDIP-14
Supply Voltage - Max: 30 V
Output Current per Channel: 30 mA
Number of Channels: 4 Channel
GBP - Gain Bandwidth Product: 1 MHz
SR - Slew Rate: 0.6 V/us
CMRR - Common Mode Rejection Ratio: 70 dB
Ib - Input Bias Current: 500 nA
Vos - Input Offset Voltage: 10 mV
Supply Voltage - Min: 5 V
Operating Supply Current: 7 mA
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: 0 C
Shutdown: No Shutdown
Series: MC3403
Packaging: Tube
Amplifier Type: Low Power Amplifier
Brand: Texas Instruments
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
Height: 4.57 mm
Length: 19.3 mm
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: +/- 2.5 V
Operating Supply Voltage: 5 V to 30 V, +/- 2.5 V to +/- 15 V
Product: Operational Amplifiers


Supply Type: Single, Dual
Technology: Bipolar
Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 2 V
Voltage Gain dB: 106.02 dB
Width: 6.35 mm
