(25 PCS) LT1121ACS8 LIN TECH LDO Regulator Pos 3.75V to 30V 0.15A 8-Pin SOIC
Tax included.

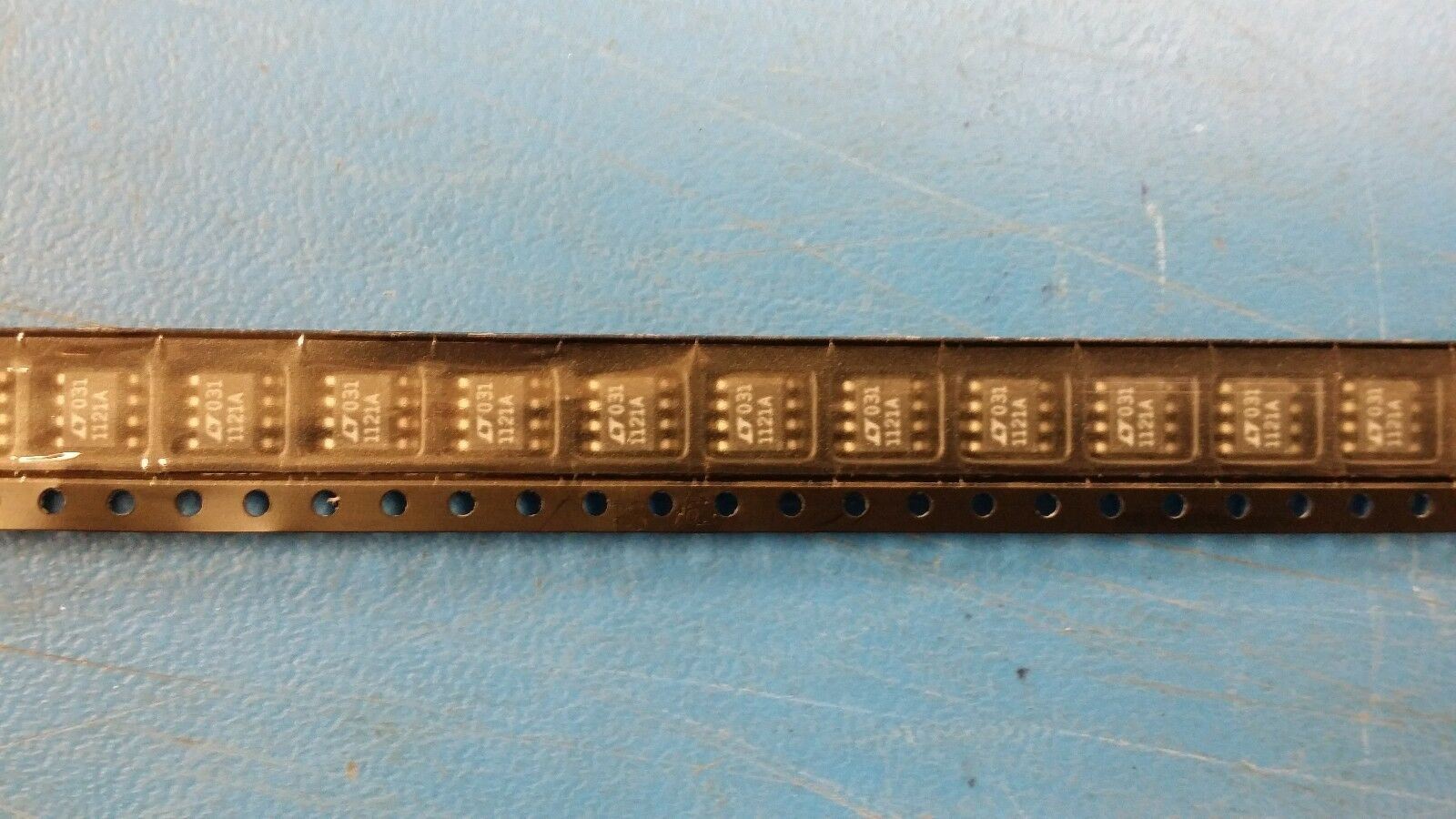

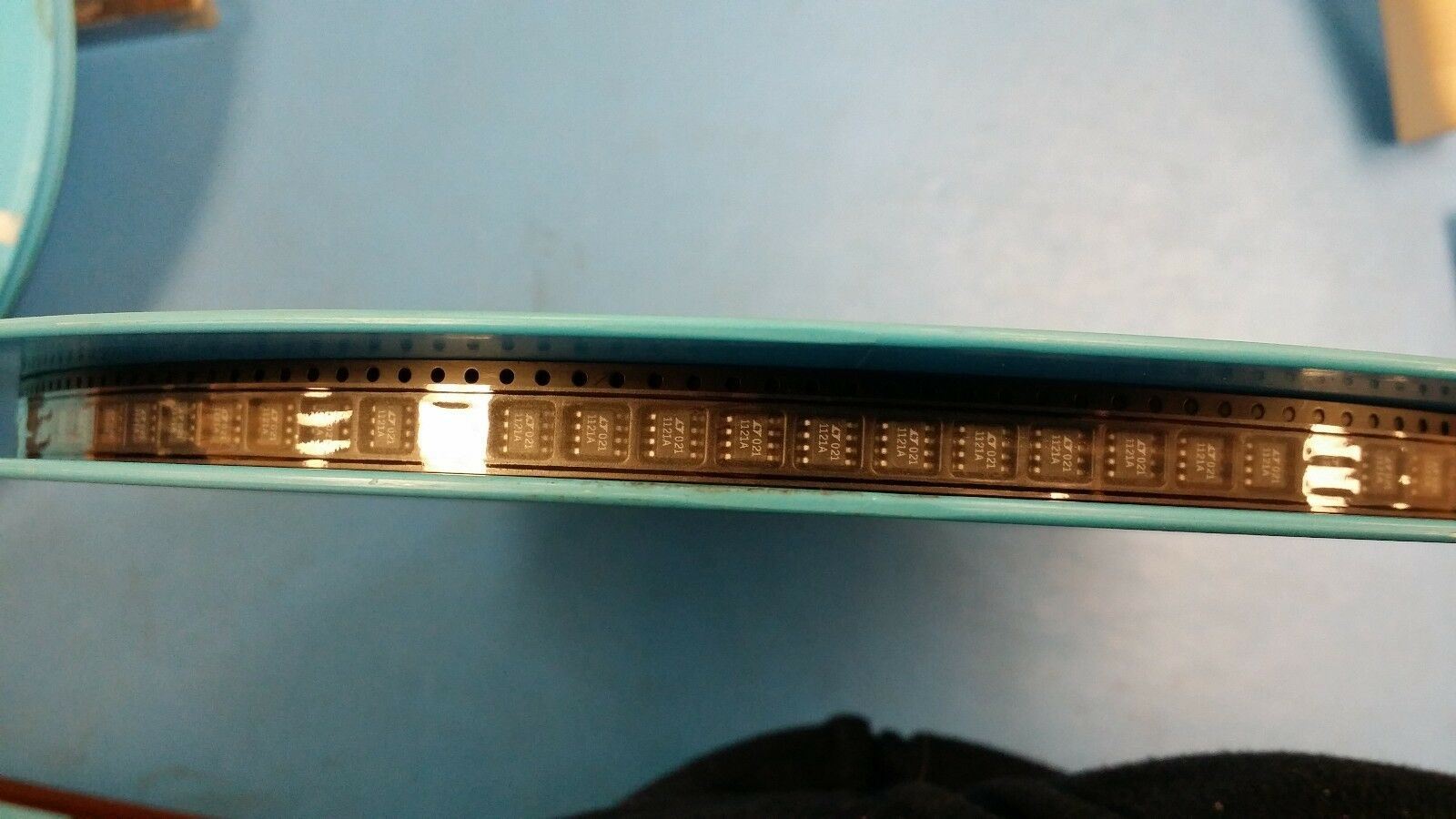

THIS LISTING IS FOR (25 PCS) OF LT1121ACS8 BY LINEAR TECHNOLOGY
LDO Regulator Pos 3.75V to 30V 0.15A 8-Pin SOIC
Manufacturer: Linear Technology Corporation
Description: 3.8 V-30V ADJUSTABLE POSITIVE LDO REGULATOR, 0.7V DROPOUT, PDSO8
LDO Regulator Pos 3.75V to 30V 0.15A 8-Pin SOIC

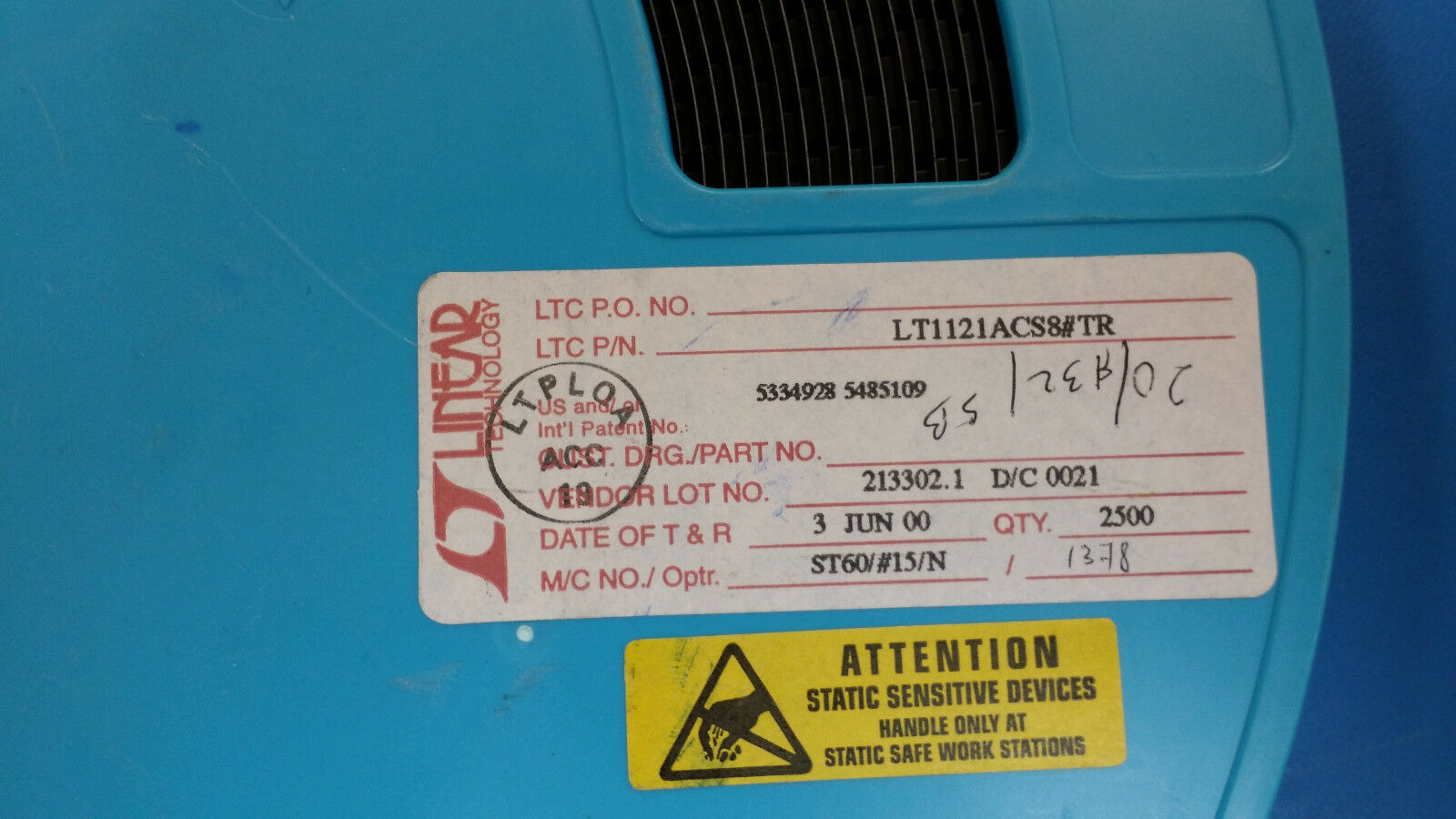

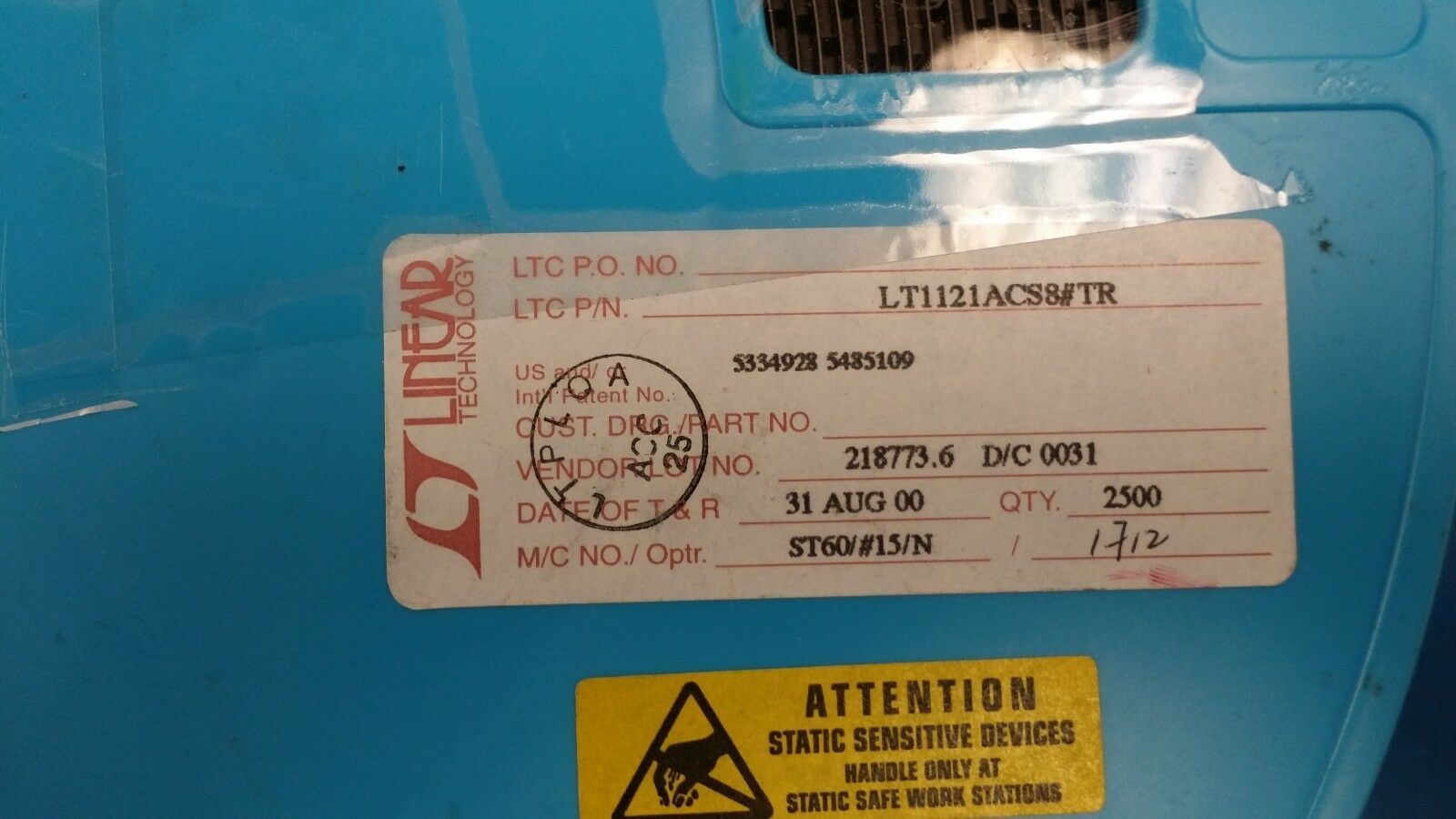

Part #: LT1121ACS8#TR
Part Category: RegulatorsManufacturer: Linear Technology Corporation
Description: 3.8 V-30V ADJUSTABLE POSITIVE LDO REGULATOR, 0.7V DROPOUT, PDSO8
| Mfr Package Description | 0.150 INCH, PLASTIC, SOP-8 |
| REACH Compliant | Yes |
| Status | Active |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Adjustability | ADJUSTABLE |
| Dropout Voltage1-Nom | 0.4200 V |
| Dropout Voltage1-Max | 0.7000 V |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 8 |
| Operating Temperature, TJ-Min | 0.0 Cel |
| Operating Temperature, TJ-Max | 125 Cel |
| Output Current1-Max | 0.1500 A |
| Output Voltage1-Min | 3.8 V |
| Output Voltage1-Max | 30 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 235 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | Other Regulators |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 20 |
| Length | 4.9 mm |
| Width | 3.9 mm |
