(25 PCS) LQW15AN7N5G80D MURATA Fixed Inductors 0402 7.5nH 1700mA +/-2% ROHS
(25 PCS) LQW15AN7N5G80D MURATA Fixed Inductors 0402 7.5nH 1700mA +/-2% ROHS
(25 PCS) LQW15AN7N5G80D MURATA Fixed Inductors 0402 7.5nH 1700mA +/-2% ROHS
(25 PCS) LQW15AN7N5G80D MURATA Fixed Inductors 0402 7.5nH 1700mA +/-2% ROHS

(25 PCS) LQW15AN7N5G80D MURATA Fixed Inductors 0402 7.5nH 1700mA +/-2% ROHS

Tax included.
Only 287 left!

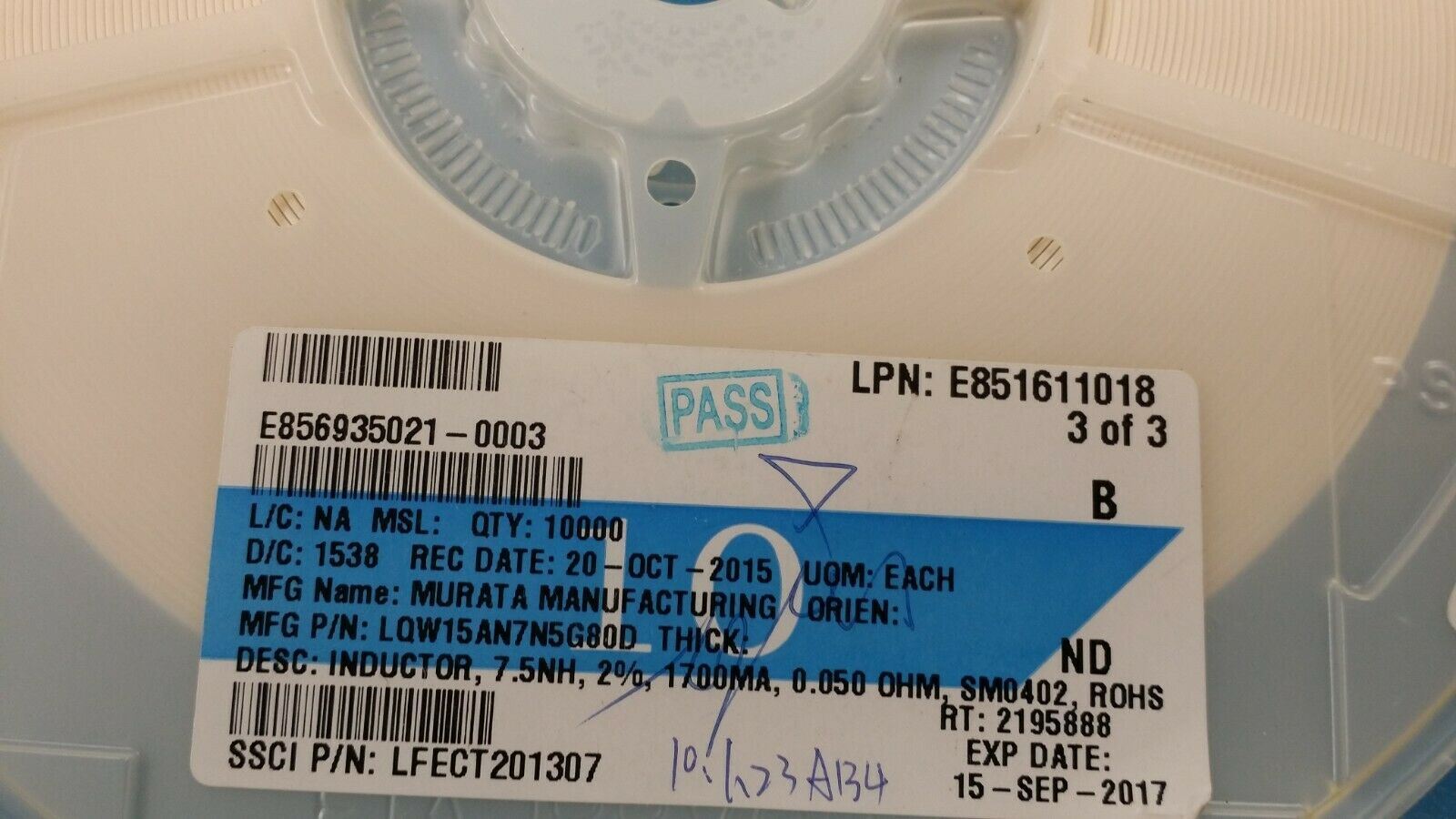

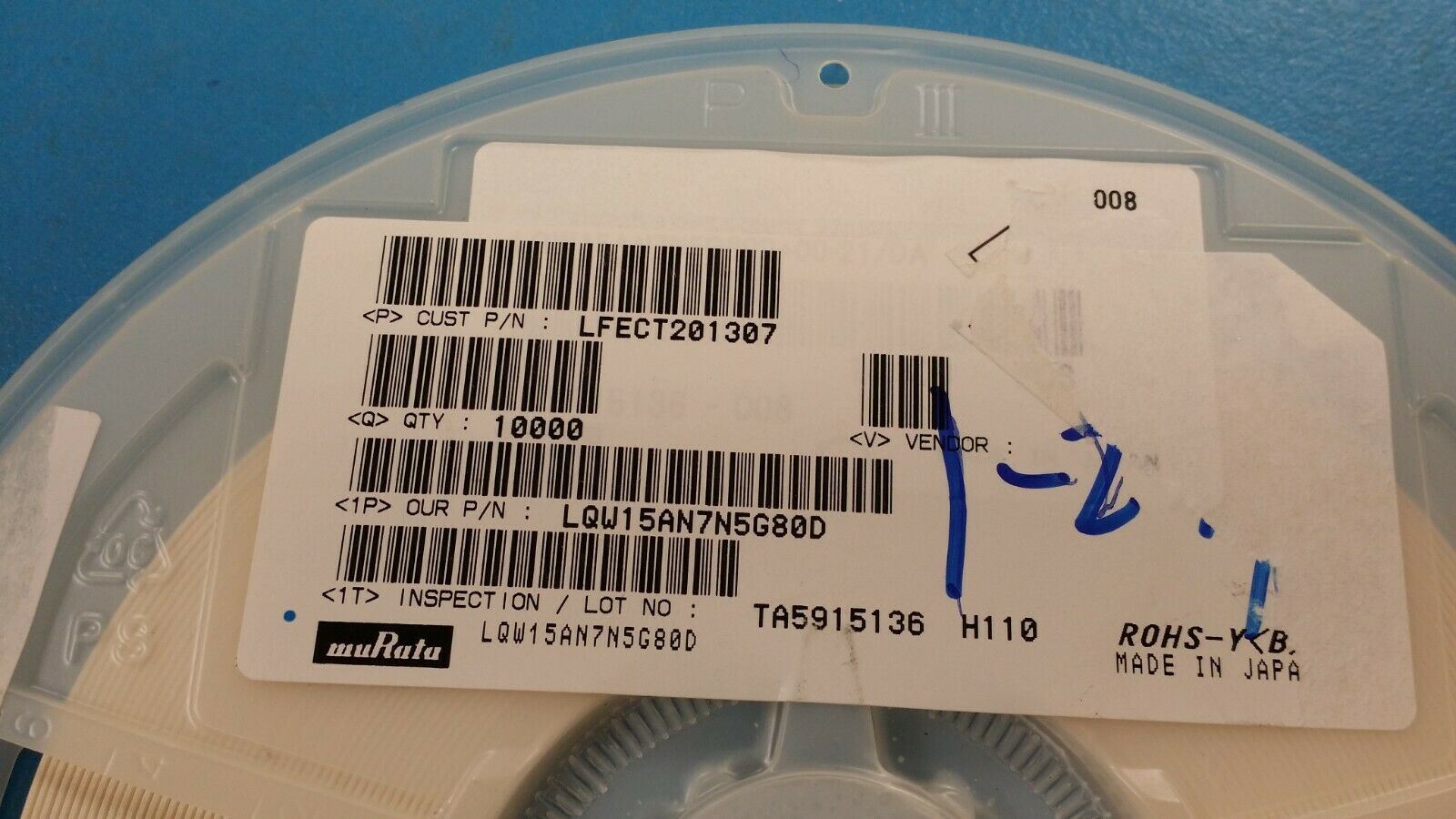

THIS LISTING IS FOR (25 PCS) OF LQW15AN7N5G80D BY MURATA
Fixed Inductors 0402 7.5nH 1700mA +/-2% ROHS

Manufacturer Murata Electronics
Series LQW15

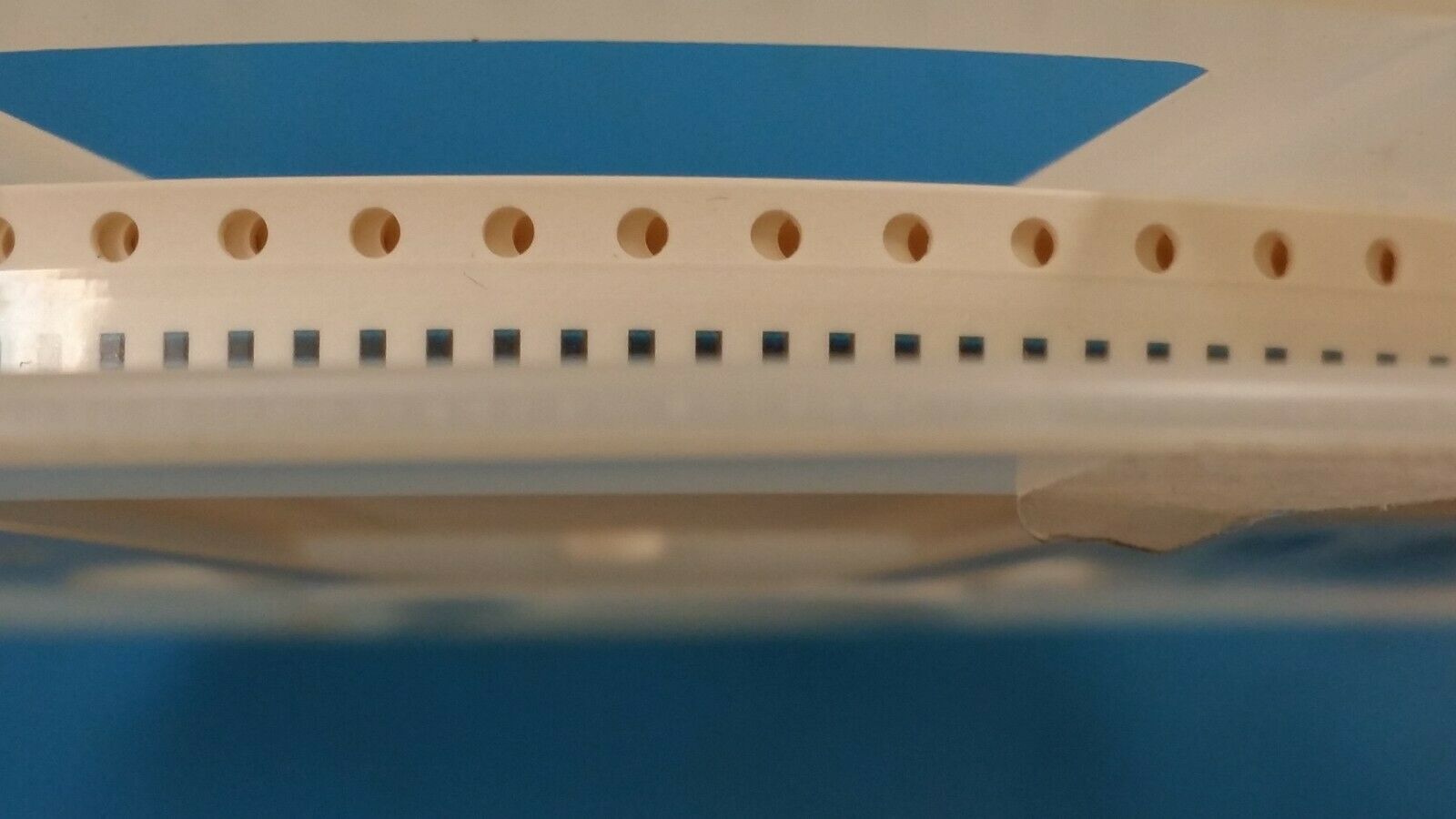

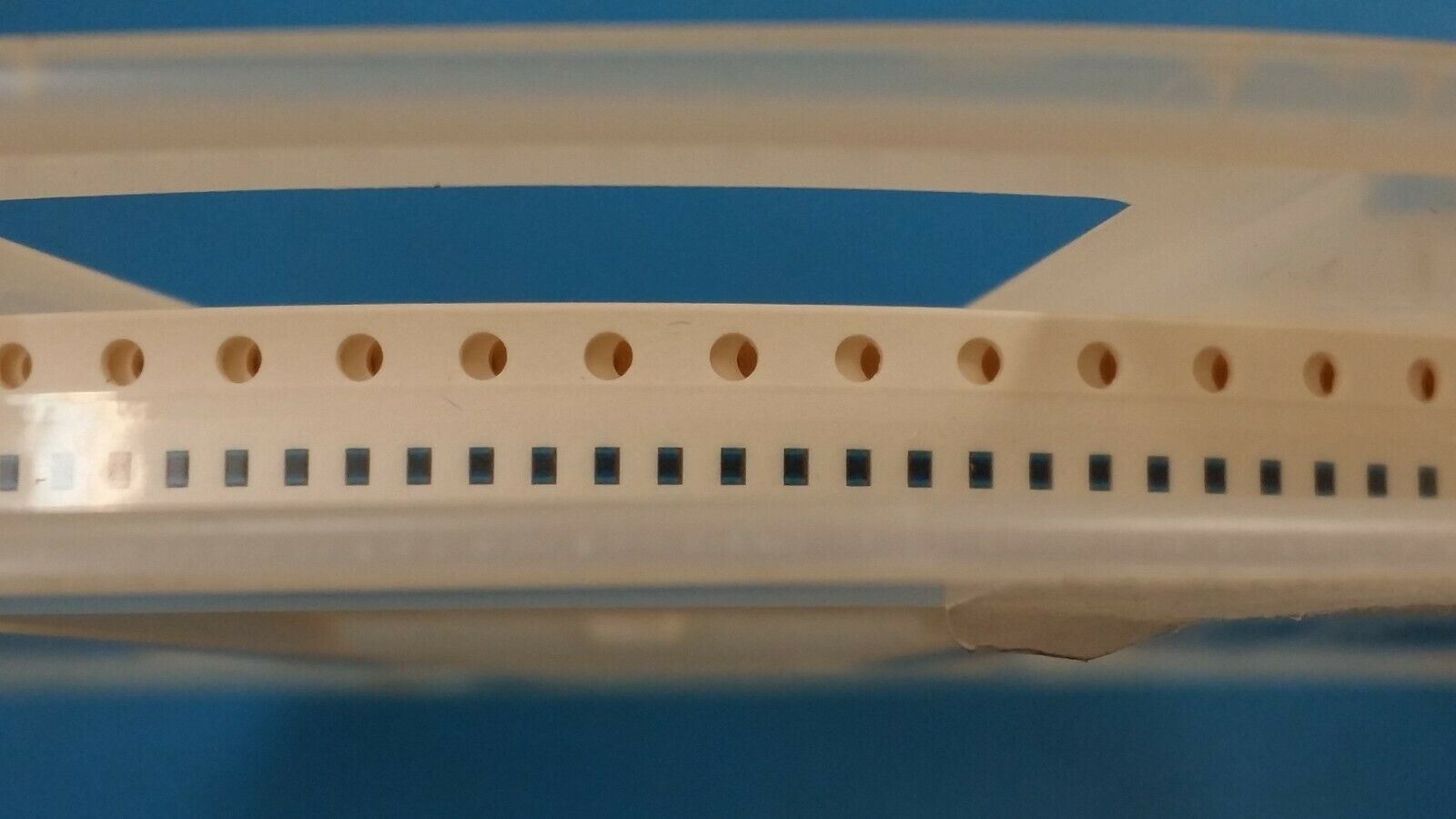

Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core -
Inductance 7.5nH
Tolerance ±2%
Current Rating (Amps) 1.7A
Current - Saturation -
Shielding Unshielded
DC Resistance (DCR) 50mOhm Max
Q @ Freq 35 @ 250MHz
Frequency - Self Resonant 7GHz
Ratings -
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 100MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package -
Size / Dimension 0.039" L x 0.024" W (1.00mm x 0.60mm)
Height - Seated (Max) 0.024" (0.60mm)
