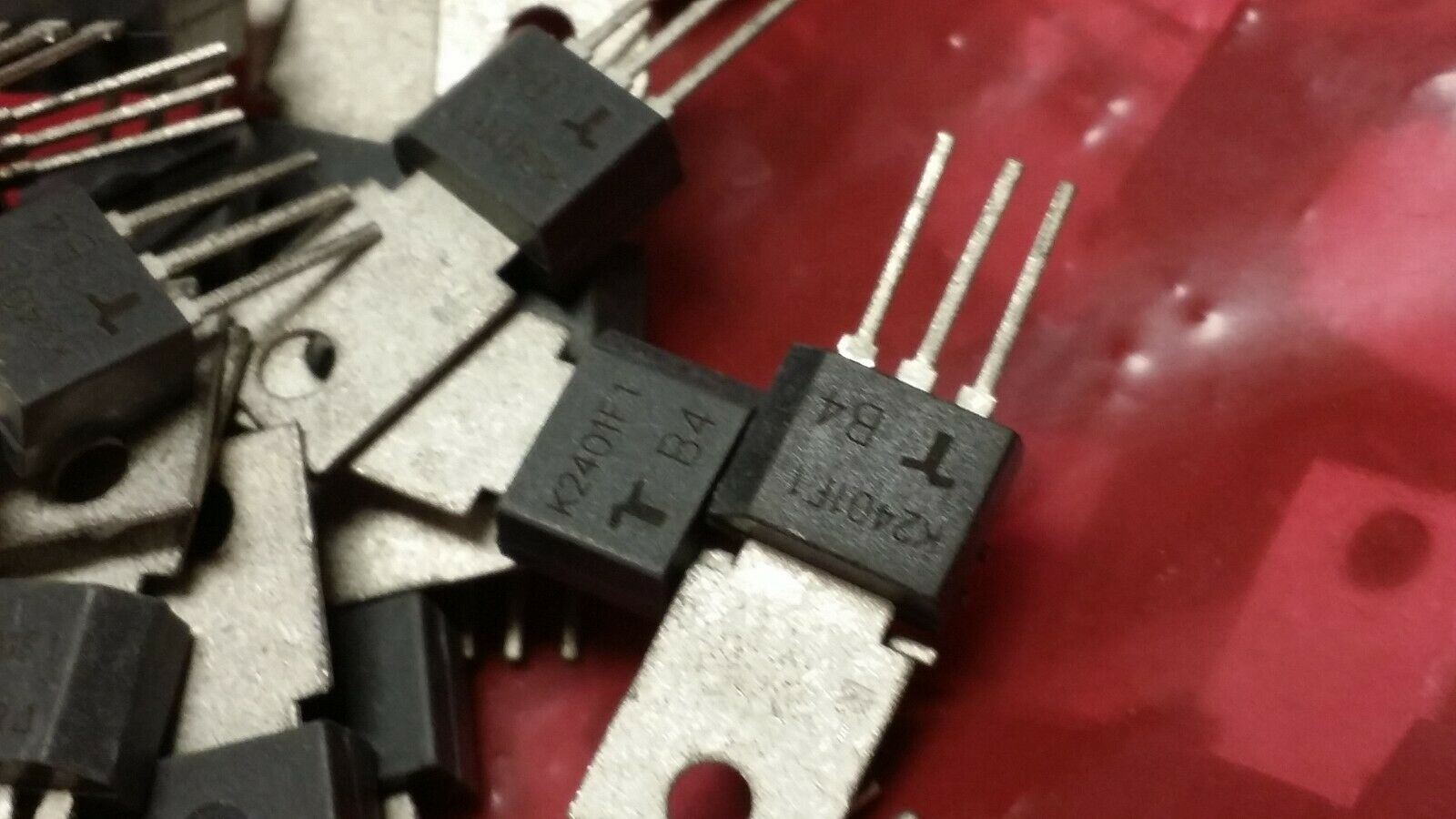

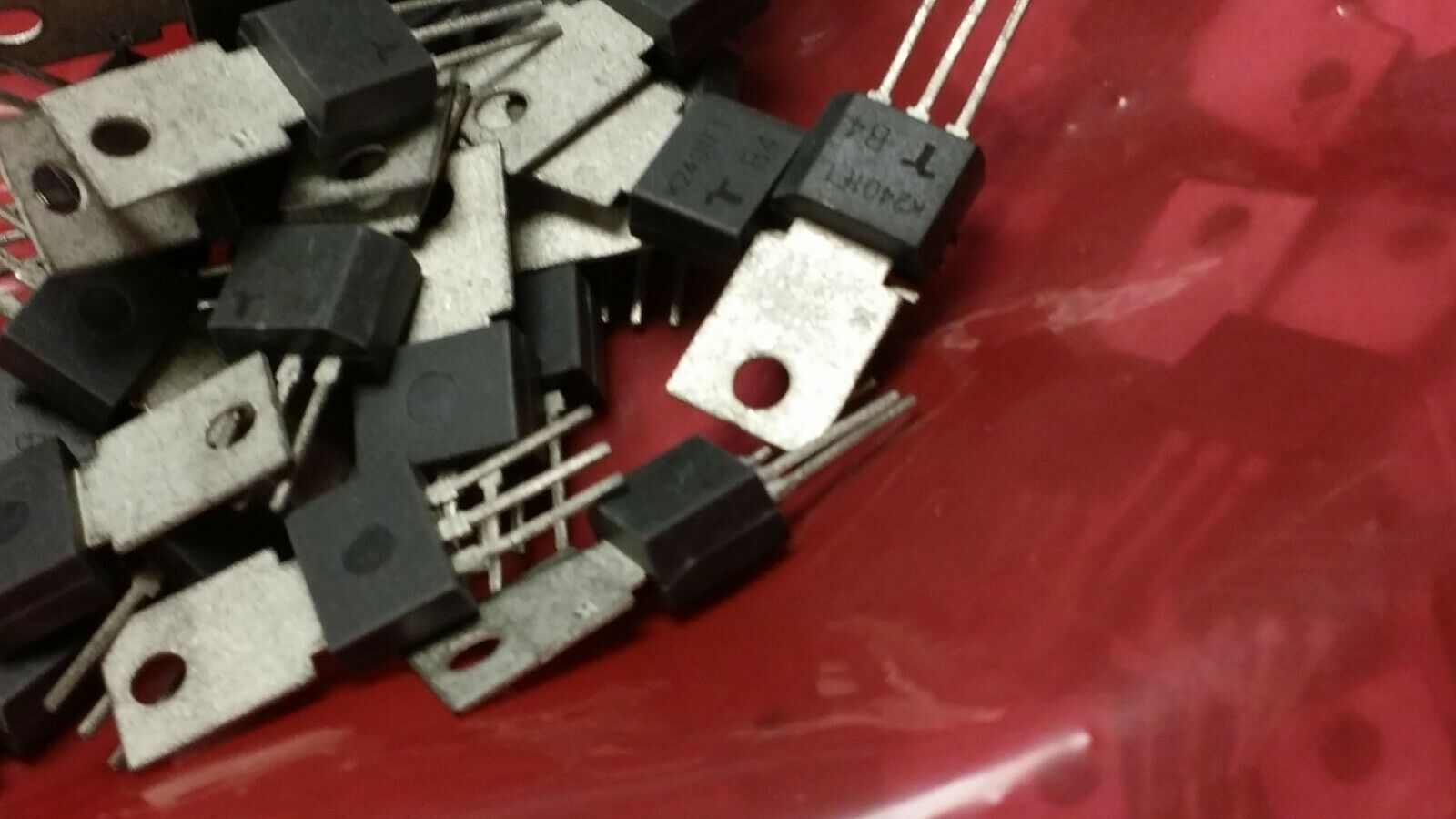

(25 PCS) K2401F1 LITTELFUSE Sidacs 240V TO202 Sidac 3-Pulse
Tax included.
THIS LISTING IS FOR (25 PCS) OF K2401F1 BY LITTELFUSE
Sidacs 240V TO202 Sidac 3-Pulse
Manufacturer: Littelfuse
Product Category: Sidacs
RoHS: No
Breakover Voltage VBO: 220 V to 250 V
Breakover Current IBO Max: 10 uA
Non Repetitive On-State Current: 16.7 A, 20 A
Rated Repetitive Off-State Voltage VDRM: 190 V
Off-State Leakage Current @ VDRM IDRM: 5 uA
Holding Current Ih Max: 150 mA
On-State Voltage: 3.3 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package / Case: TO-202-3
Packaging: Bulk
Current Rating: 1 A
Brand: Littelfuse
On-State RMS Current - It RMS: 1 A
Product Type: Sidacs
Subcategory: Thyristors
