(25 PCS) JM38510/08101BCA SIGNETICS NAND Gate 2-Element 4-IN Bipolar 14-Pin CDIP
Tax included.
THIS LISTING IS FOR (25 PCS) OF JM38510/08101BCA BY SIGNETICS
NAND Gate 2-Element 4-IN Bipolar 14-Pin CDIP

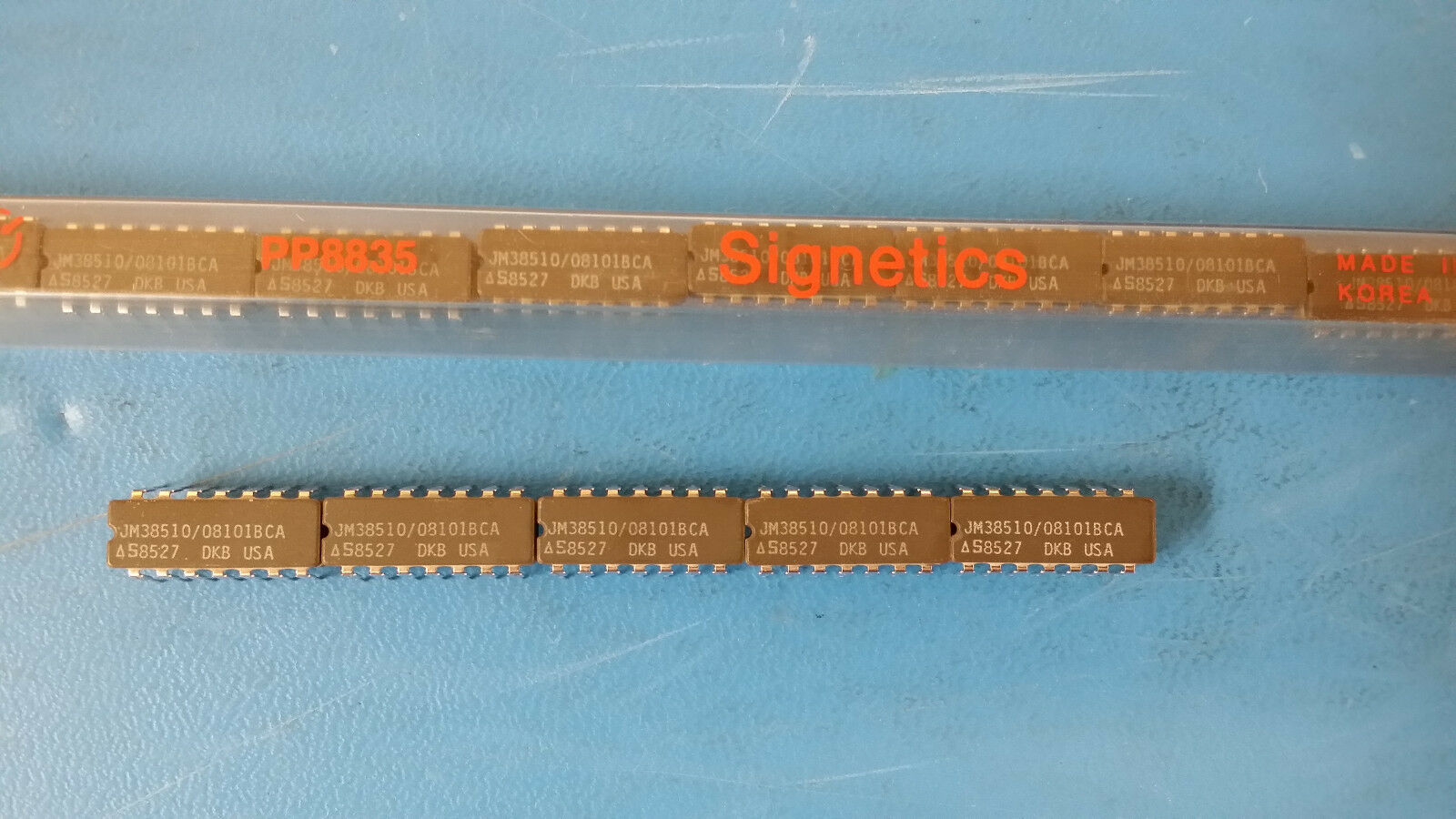

(THE PICTURE SHOWS 5 PCS, BUT THIS LISTING IS FOR 25 PCS NOT 5PCS)
Manufacturer: SIGNETICS SEMICONDUCTOR
Description: S SERIES, DUAL 4-INPUT NAND GATE, CDIP14
Mfr Package Description
NAND Gate 2-Element 4-IN Bipolar 14-Pin CDIP
(THE PICTURE SHOWS 5 PCS, BUT THIS LISTING IS FOR 25 PCS NOT 5PCS)
Part #: JM38510/08101BCA
Part Category: Logic ICsManufacturer: SIGNETICS SEMICONDUCTOR
Description: S SERIES, DUAL 4-INPUT NAND GATE, CDIP14
Mfr Package Description
| HERMETIC SEALED, CERAMIC, DIP-14 | |
| REACH Compliant | Yes |
| Status | Active |
| Logic IC Type | NAND GATE |
| Family | S |
| JESD-30 Code | R-GDIP-T14 |
| Number of Functions | 2 |
| Number of Inputs | 4.0 |
| Number of Terminals | 14 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Propagation Delay (tpd) | 6.5 ns |
| Qualification Status | Not Qualified |
| Screening Level | MIL-M-38510 Class B |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 19.94 mm |
| Width | 7.62 mm |
| Additional Feature | IOL = 60MA @ VOL = 0.5V; IOH = 3MA @ VOH = 2.5V; LG-MAX |
