(25 PCS) IHLP2525CZER2R2M01 VISHAY Fixed Inductors 2.2uH 20%
Tax included.

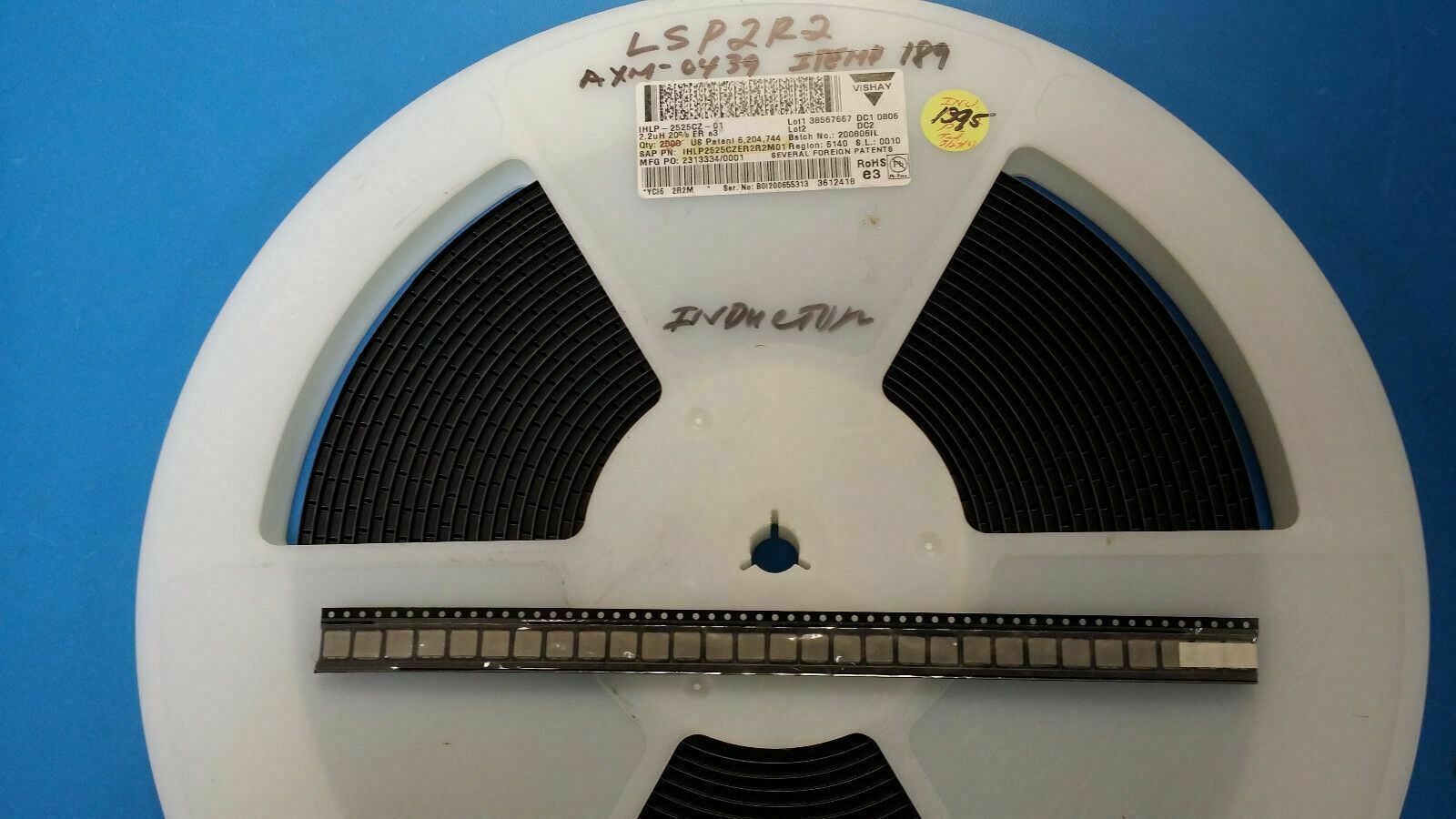

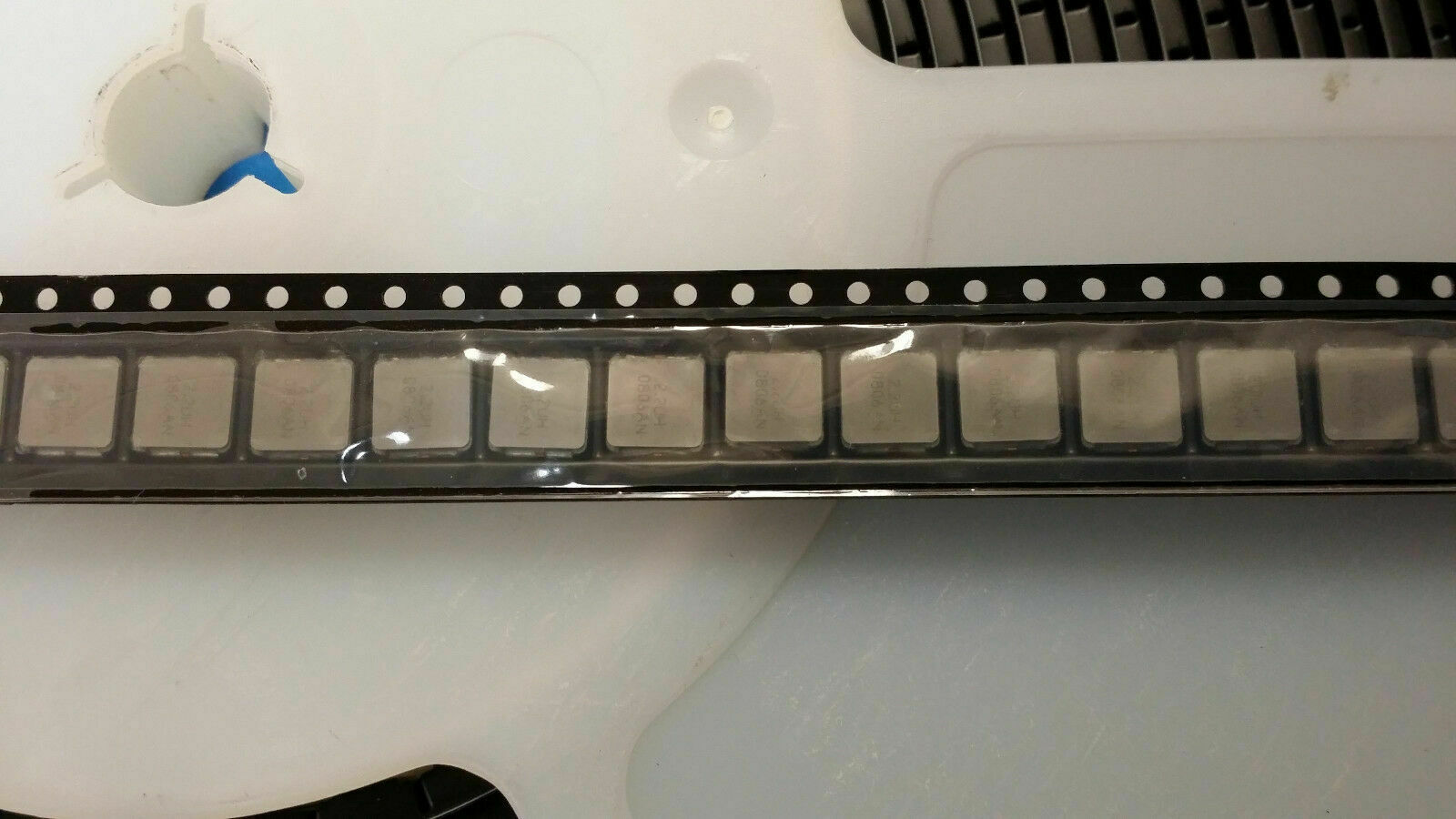

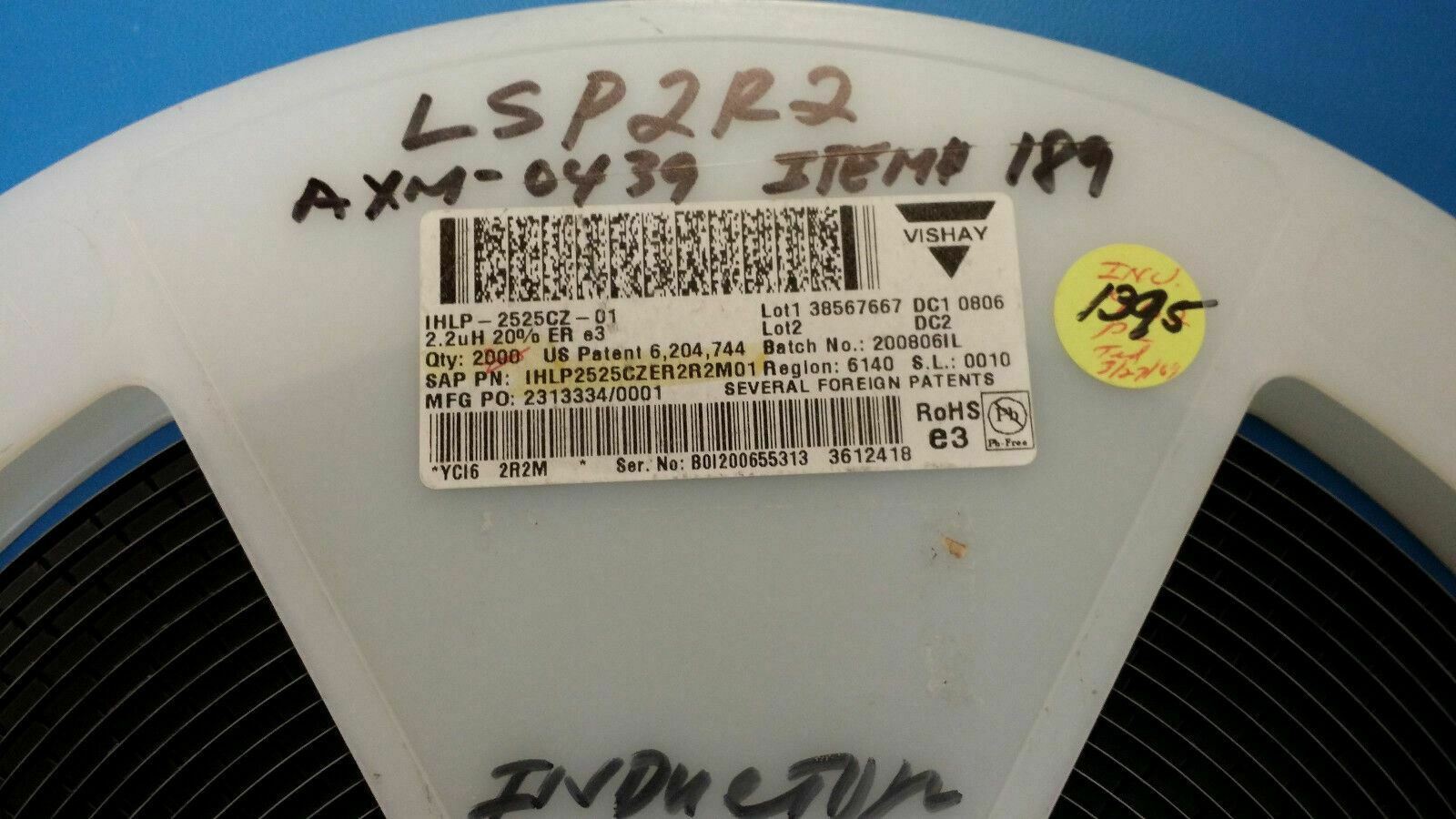

THIS LISTING IS FOR (25 PCS) OF IHLP2525CZER2R2M01 BY VISHAY Fixed Inductors 2.2uH 20%
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 8A 20mOhm DCR 2525 T/R
Inductor Power Shielded Wirewound 2.2uH 20% 100KHz 8A 20mOhm DCR 2525 T/R
IHLP2525CZER2R2M01 Part Details & Parametric
| EU RoHS |
Compliant
|
| Type | Power |
| Technology | Wirewound |
| Protection Style | Shielded |
| Inductance (H) | 2.2u |
| Tolerance | 20% |
| Test Frequency (Hz) | 100K |
| Maximum DC Current (A) | 8(Typ) |
| Maximum DC Resistance (Ohm) | 20m |
| Case Size | 2525 |
| Product Length (mm) | 7.24 |
| Product Depth (mm) | 6.72 |
| Product Height (mm) | 3 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Special Features | High Current |
| Packaging | Tape and Reel |
