(25 PCS) IDT71V433S11PF IDT Cache SRAM 3.3V 1M-Bit 32K x 32 11ns 100-Pin TQFP
(25 PCS) IDT71V433S11PF IDT Cache SRAM 3.3V 1M-Bit 32K x 32 11ns 100-Pin TQFP
(25 PCS) IDT71V433S11PF IDT Cache SRAM 3.3V 1M-Bit 32K x 32 11ns 100-Pin TQFP

(25 PCS) IDT71V433S11PF IDT Cache SRAM 3.3V 1M-Bit 32K x 32 11ns 100-Pin TQFP

Tax included.
Only 100 left!
THIS LISTING IS FOR (25 PCS) OF IDT71V433S11PF BY IDT
Cache SRAM 3.3V 1M-Bit 32K x 32 11ns 100-Pin TQFP

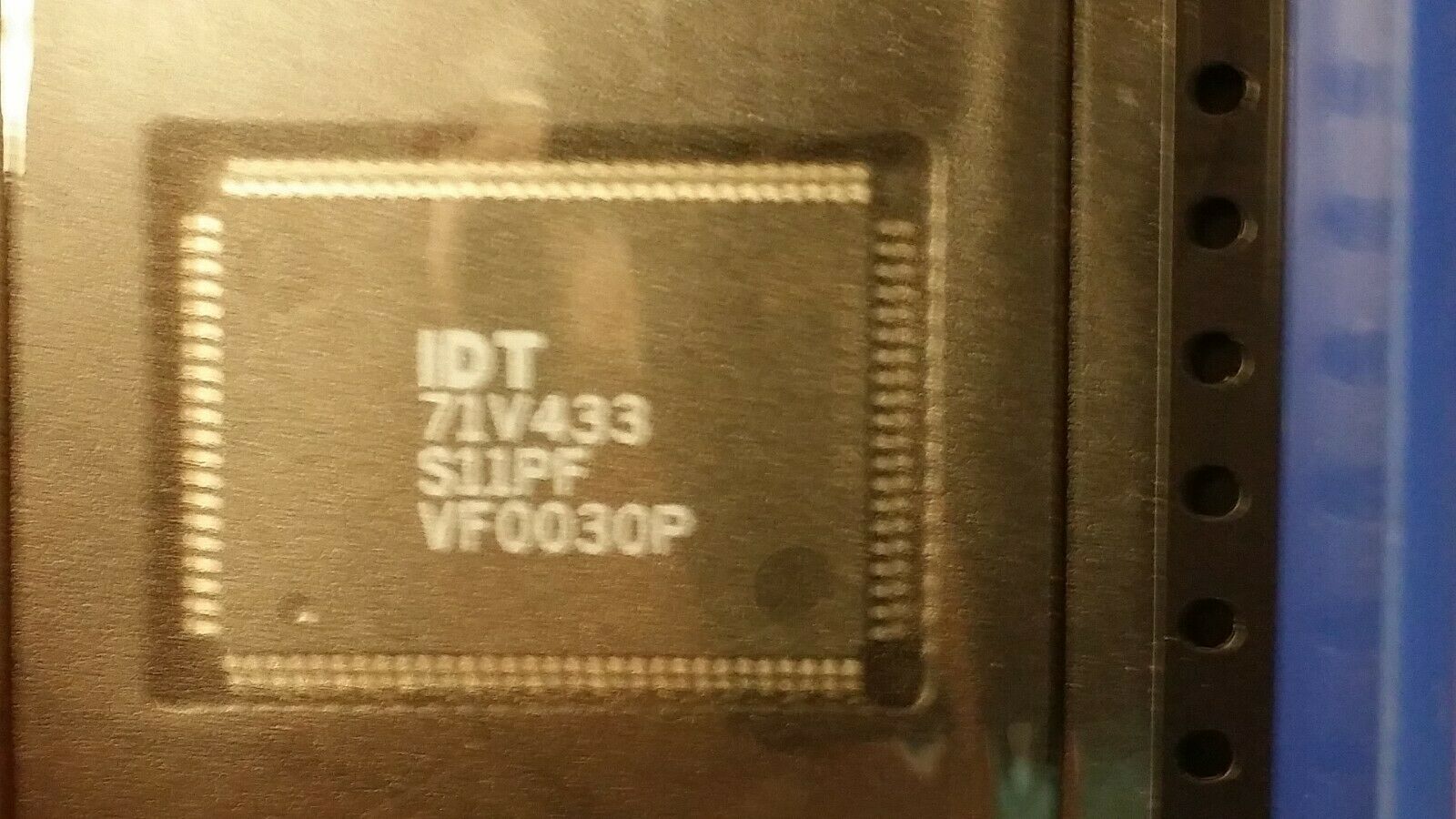

Part #: IDT71V433S11PF
Part Category: Memory ICs
Manufacturer: Integrated Device Technology
Description: Cache SRAM, 32KX32, 11ns, CMOS, PQFP100

Mfr Package Description 14 X 20 MM, 1.40 MM HEIGHT, PLASTIC, TQFP-100
Status Discontinued
Sub Category SRAMs
Access Time-Max 11.0  ns
I/O Type COMMON
JESD-30 Code R-PQFP-G100
JESD-609 Code e0
Memory Density 1048576.0  bit
Memory IC Type CACHE SRAM
Memory Width 32
Moisture Sensitivity Level 3
Number of Functions 1
Number of Ports 1
Number of Terminals 100
Number of Words 32768.0  words
Number of Words Code 32K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 32KX32
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP100,.63X.87
Package Shape RECTANGULAR
Package Style FLATPACK, LOW PROFILE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 1.6  mm
Standby Current-Max 0.015  Amp
Standby Voltage-Min 3.14  V
Supply Current-Max 0.22  Amp
Supply Voltage-Nom (Vsup) 3.3  V
Supply Voltage-Min (Vsup) 3.135  V
Supply Voltage-Max (Vsup) 3.63  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.65  mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 20.0  mm
Width 14.0  mm
Additional Feature ALSO REQUIRES 3V I/O SUPPLY
