(25 PCS) IDC2512ER100M VISHAY FIXED IND 10UH 1.1A 160 MOHM SMD ROHS
Tax included.

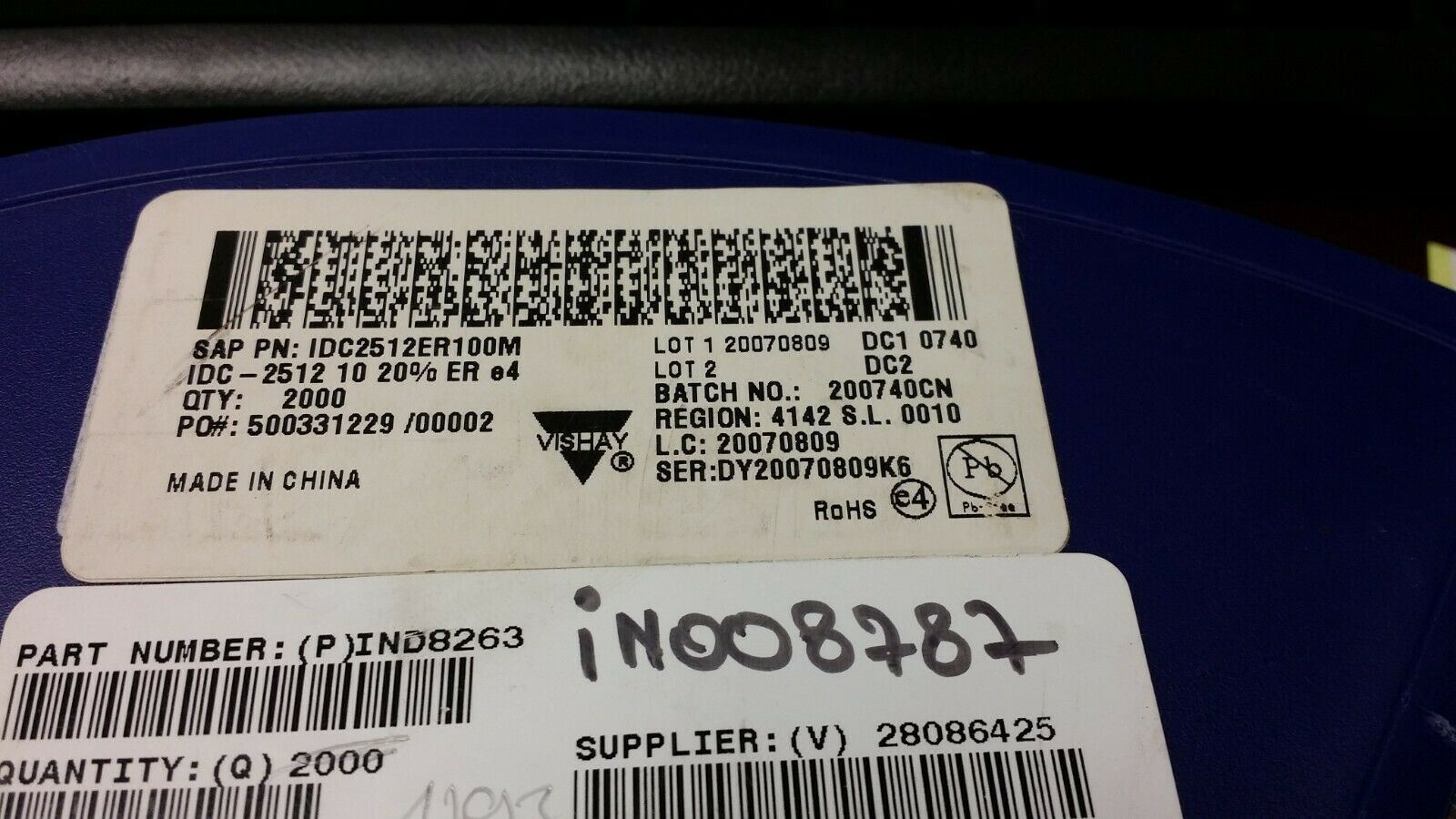

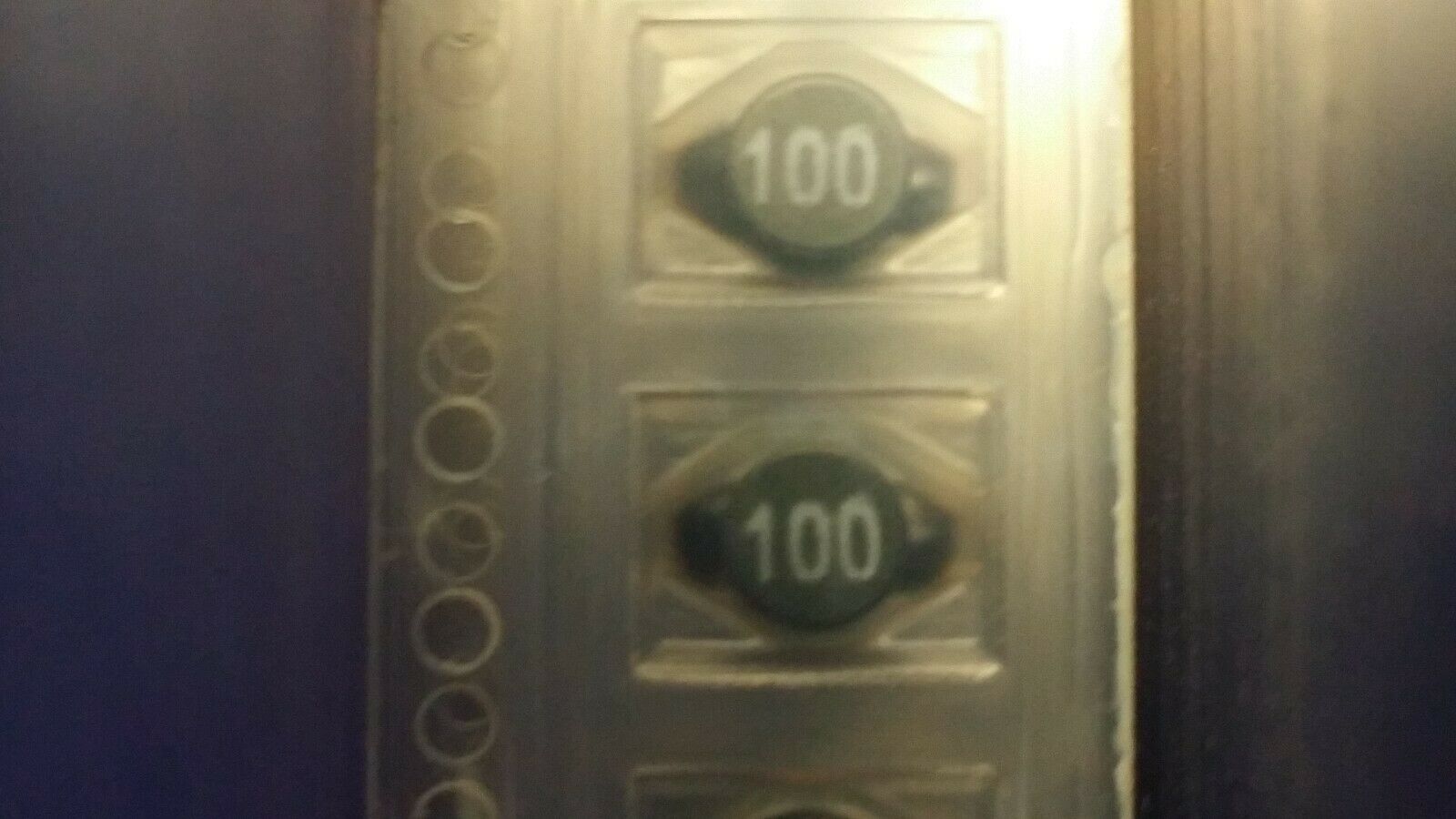

THIS LISTING IS FOR (25 PCS) OF IDC2512ER100M BY VISHAY
FIXED IND 10UH 1.1A 160 MOHM SMD ROHS
Manufacturer Vishay Dale
Series IDC-2512
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10µH
Tolerance ±20%
Current Rating (Amps) 1.1A
Current - Saturation 1.1A
Shielding Unshielded
DC Resistance (DCR) 160mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case 2512 (6432 Metric)
Supplier Device Package -
Size / Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max) 0.115" (2.92mm)
