(25 PCS) HY991101C HanRun RJ45 Network Ethernet Female Socket Connector 8Pin SMT
Tax included.

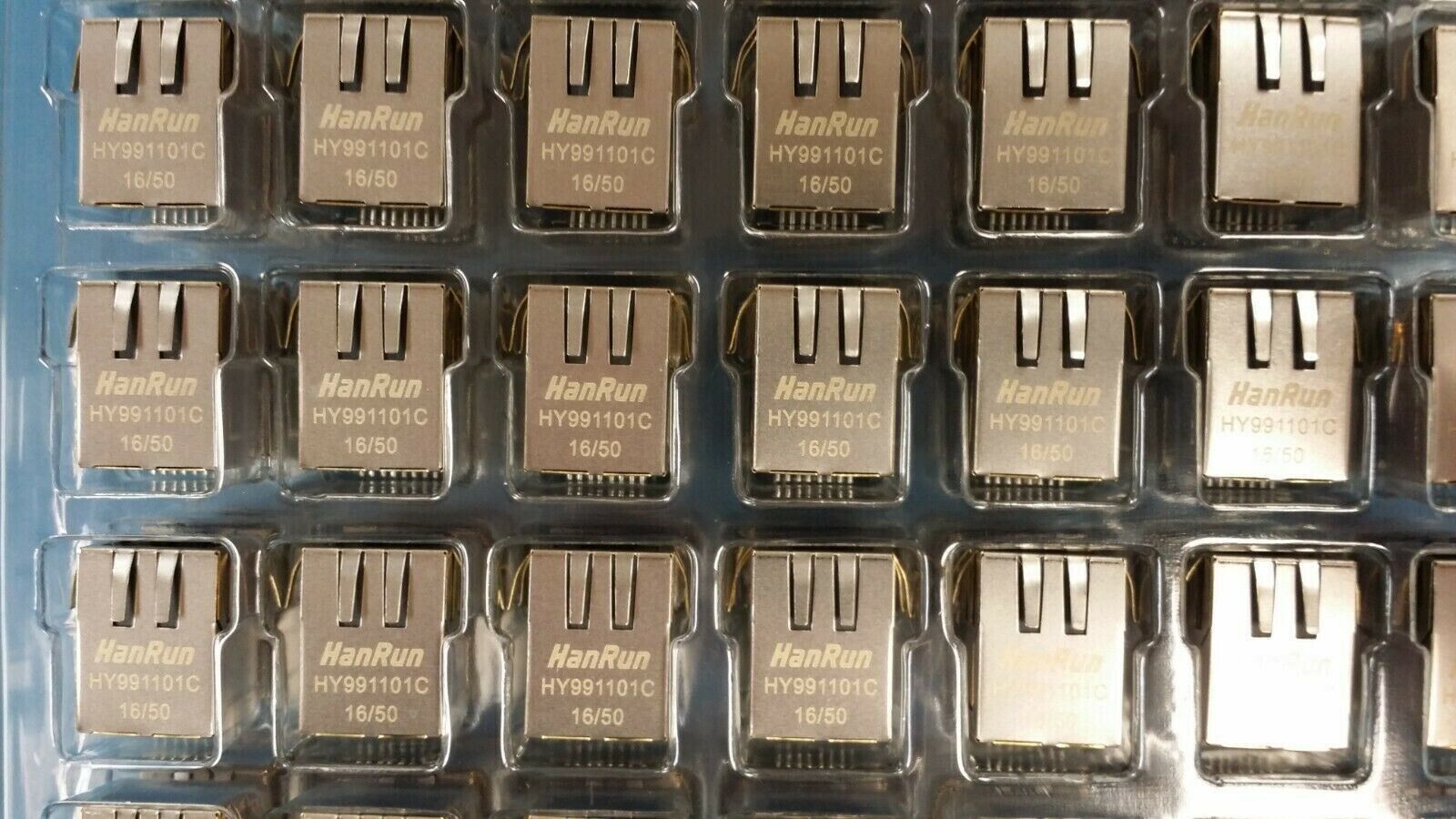

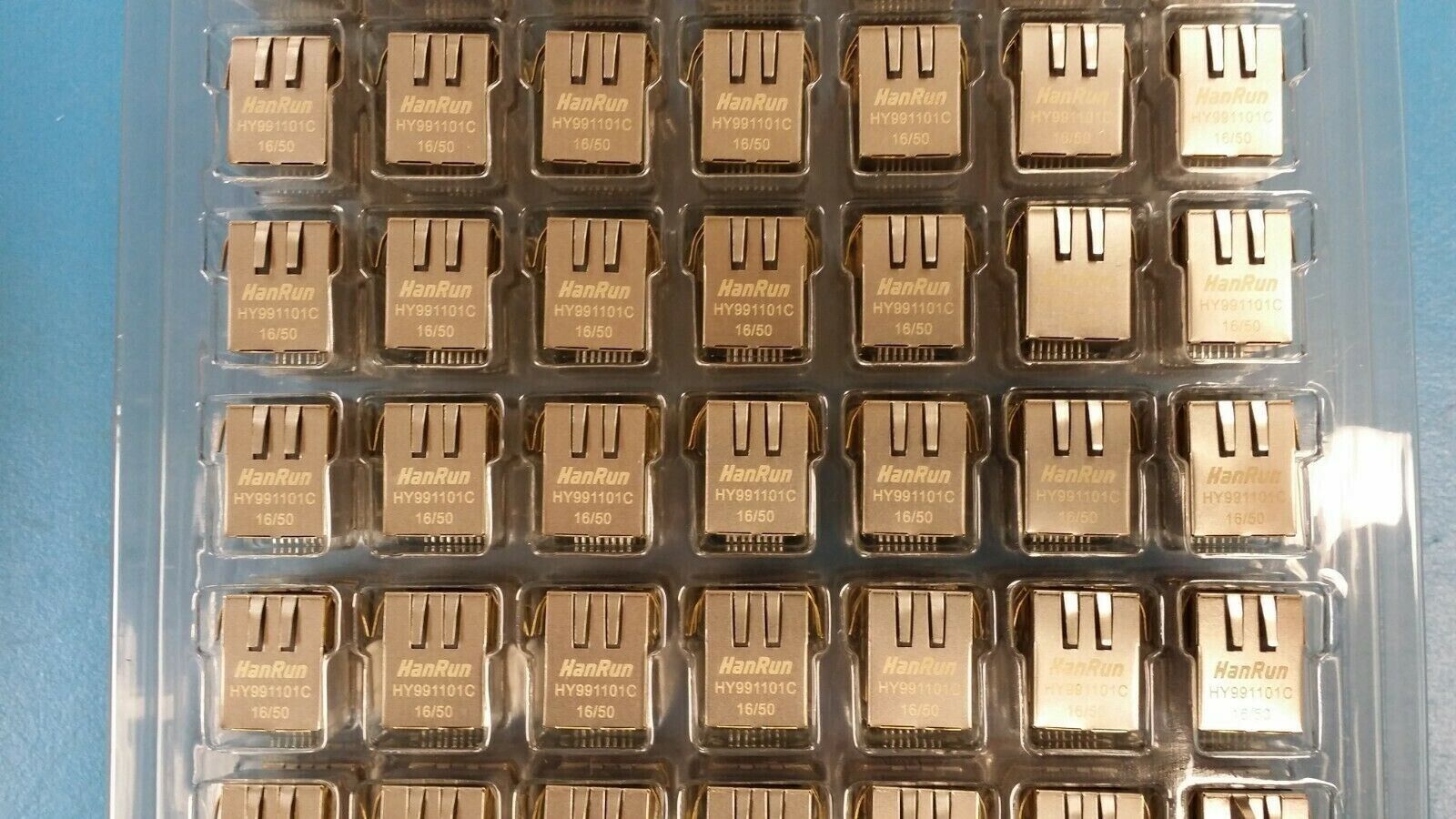

THIS LISTING IS FOR (25 PCS) OF HY991101C BY HanRun
RJ45 Network Ethernet Female Socket Connector 8Pin SMT
HY991101C - RJ-45 surface mount socket with transformer for Ethernet 10/100 BASE-T
RoHS
08/30/2010 Hanrun Electronics Co., Ltd.

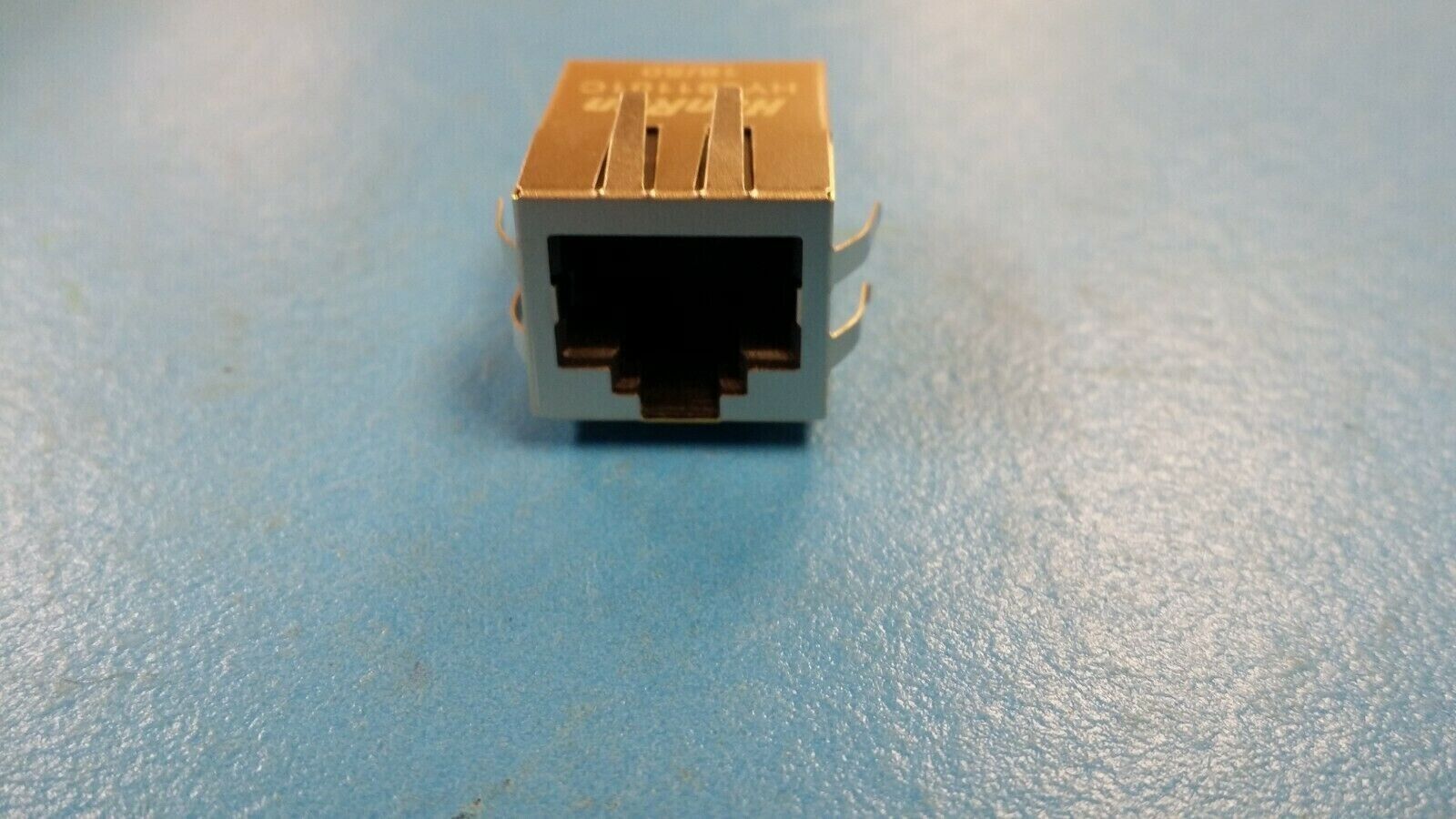

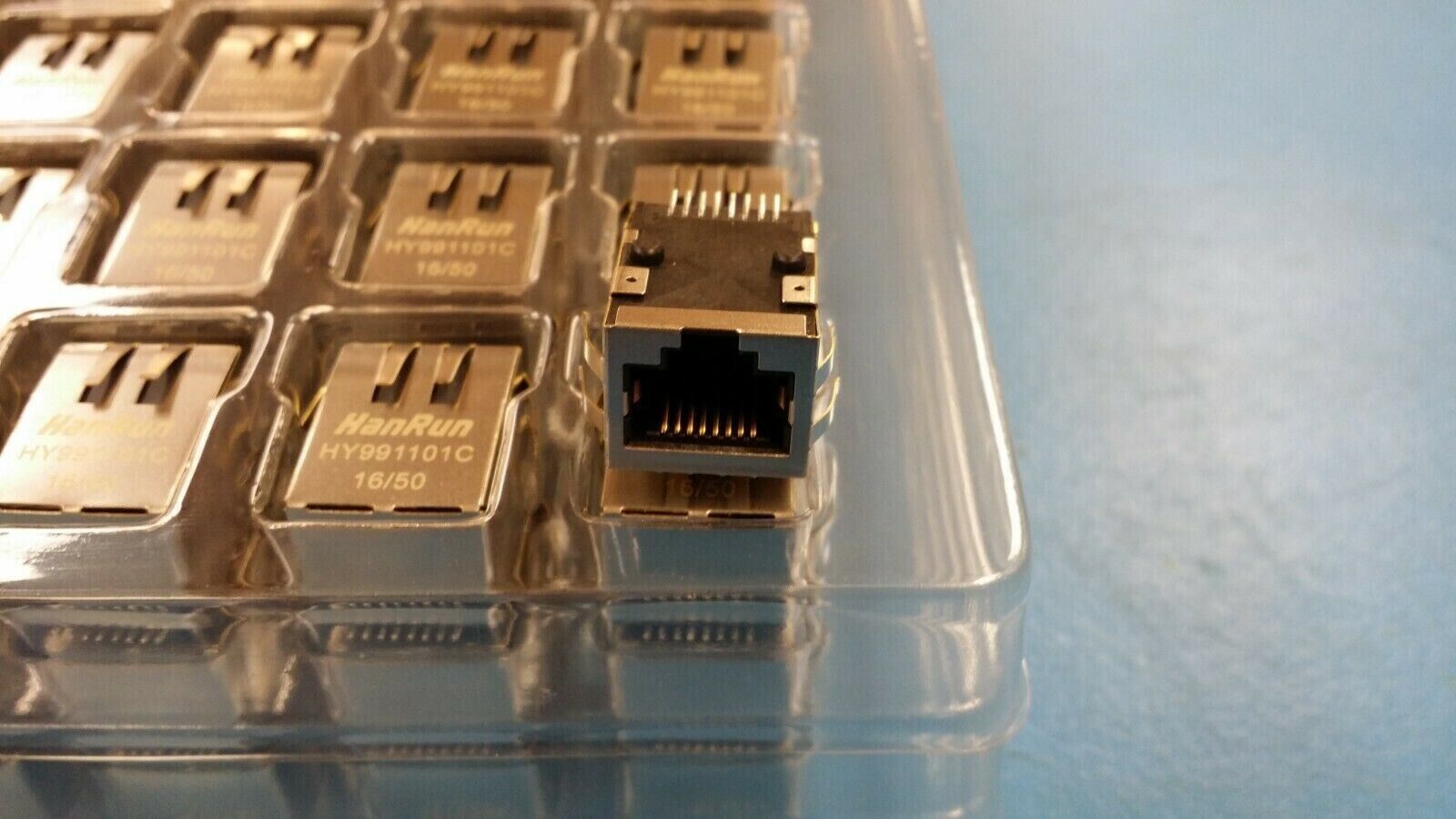

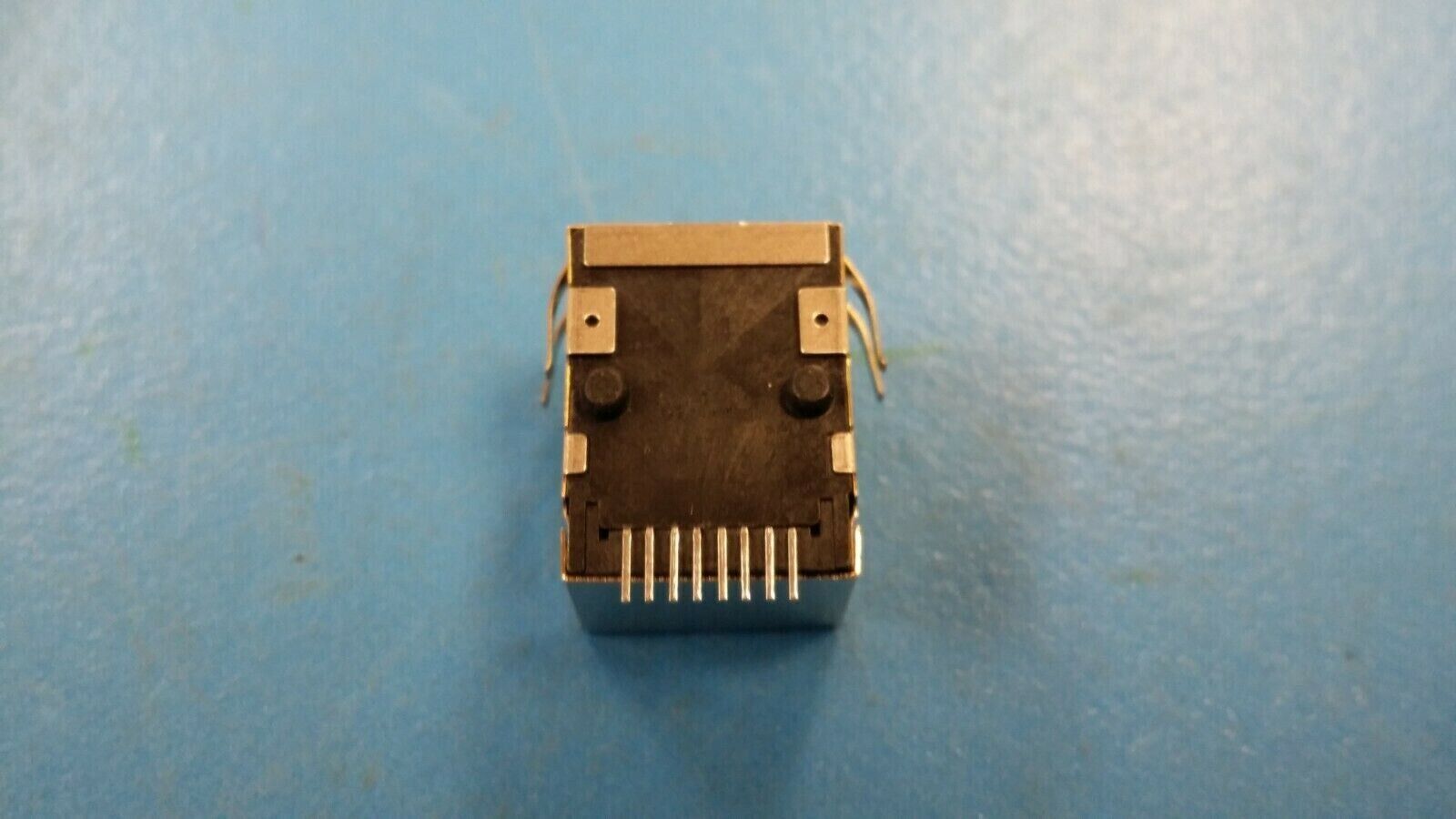

The HY991101C is an RJ-45 surface mount socket with integrated transformer for 10/100 BASE-T Ethernet applications.
The socket meets the requirements of RoHS and the expanded standard IEEE802.3 , has high noise immunity, large transient attenuation between channels, low reflection loss, minimal installation area and ease of wiring of printed connections.
In addition, the socket allows you to reduce the number of magnetic components on the printed circuit board, which further increases the reliability and noise immunity of products.
The socket provides an insulating strength of 1500 V rms between the twisted pair and the rest of the circuit. Contact losses do not exceed -1.0 dB in the frequency range 1 ... 65 MHz . Reflection losses are: -18 dB in the frequency range 1 ... 10 MHz ; -14 dB at a frequency of 30 MHz and -10 dB in the frequency range 60 ... 80 MHz .
The general suppression of interference is - 20 dB in the frequency range 1 ... 130 MHz . The penetration between the channels is -35 dB in the frequency range 1 ... 60 MHz and -30 dB in the frequency range 60 ... 100 MHz .
