(25 PCS) HAT2168H-EL-E RENESAS MOSFET N-CH 30V 30A 5LFPAK ROHS

$29.95
Unit price per

Tax included.

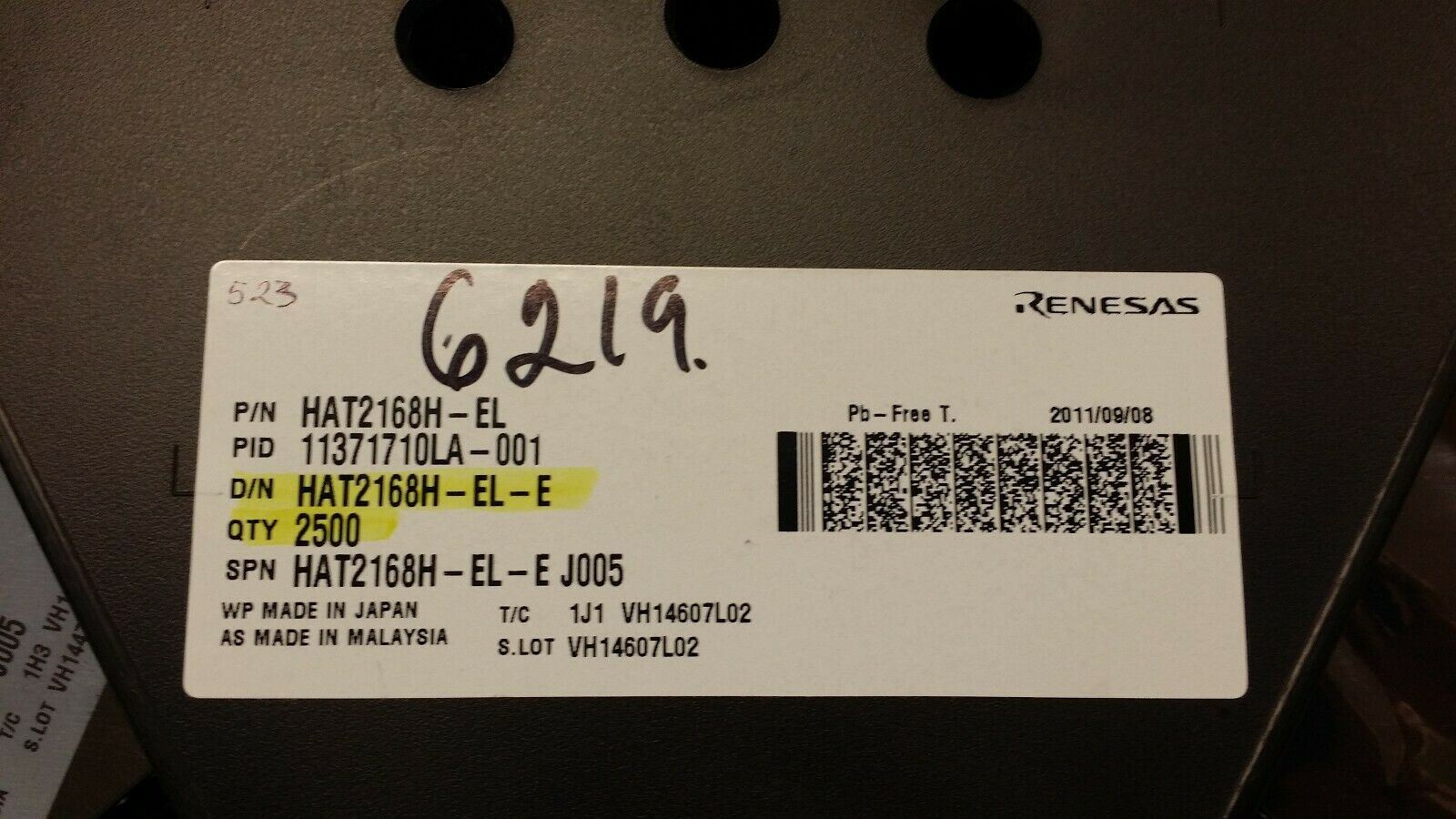

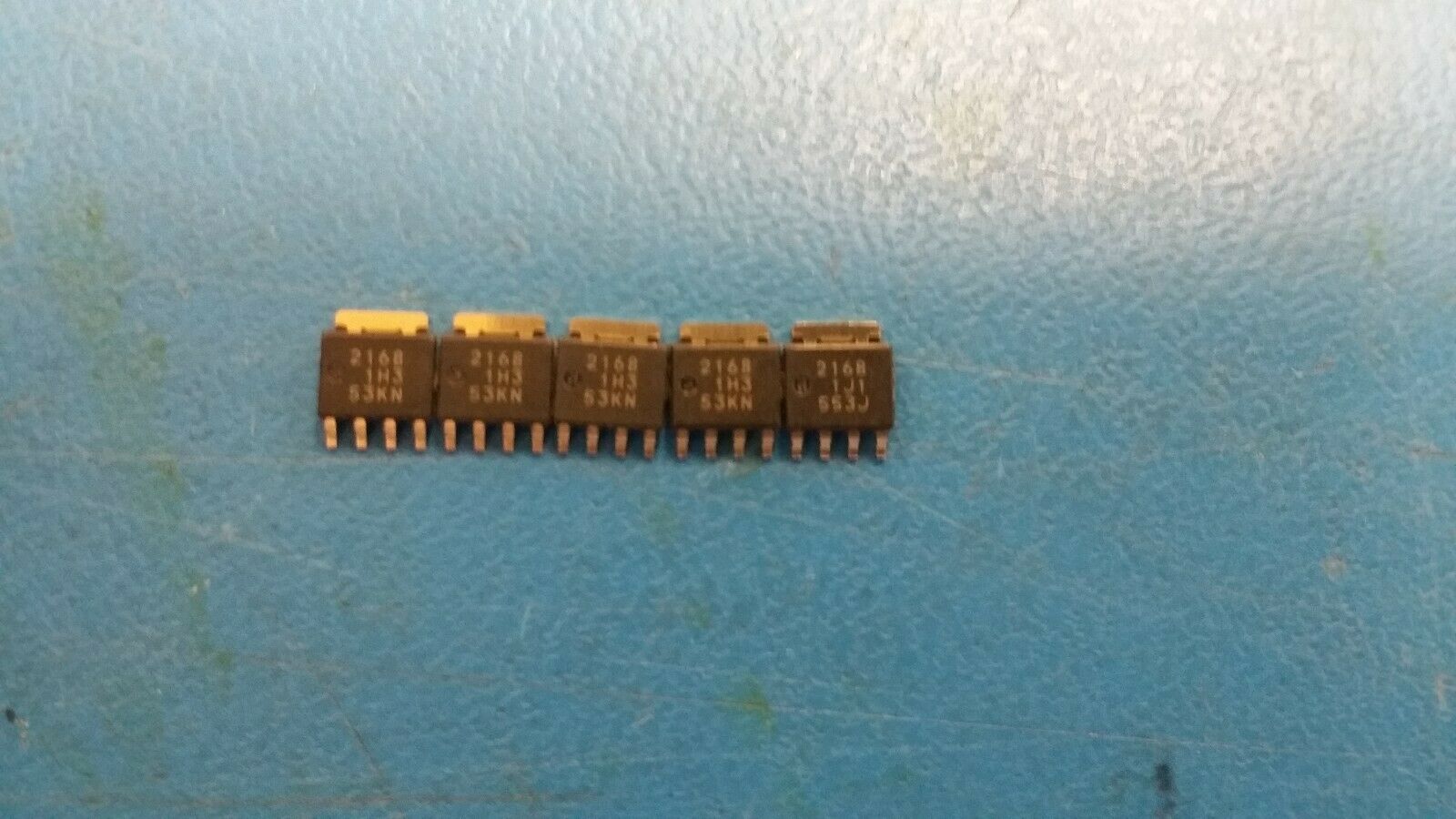

THIS LISTING IS FOR (25 PCS) OF HAT2168H-EL-E BY RENESAS

MOSFET N-CH 30V 30A 5LFPAK ROHS

Manufacturer Renesas Electronics America

Series -

Packaging Cut Tape (CT)

Part Status Not For New Designs

FET Type N-Channel

Technology MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss) 30V

Current - Continuous Drain (Id) @ 25°C 30A (Ta)

Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V

Rds On (Max) @ Id, Vgs 7.9mOhm @ 15A, 10V

Vgs(th) (Max) @ Id -

Gate Charge (Qg) (Max) @ Vgs 11nC @ 4.5V

Vgs (Max) ±20V

Input Capacitance (Ciss) (Max) @ Vds 1730pF @ 10V

FET Feature -

Power Dissipation (Max) 15W (Tc)

Operating Temperature 150°C (TJ)

Mounting Type Surface Mount

Supplier Device Package LFPAK

Package / Case SC-100, SOT-669
