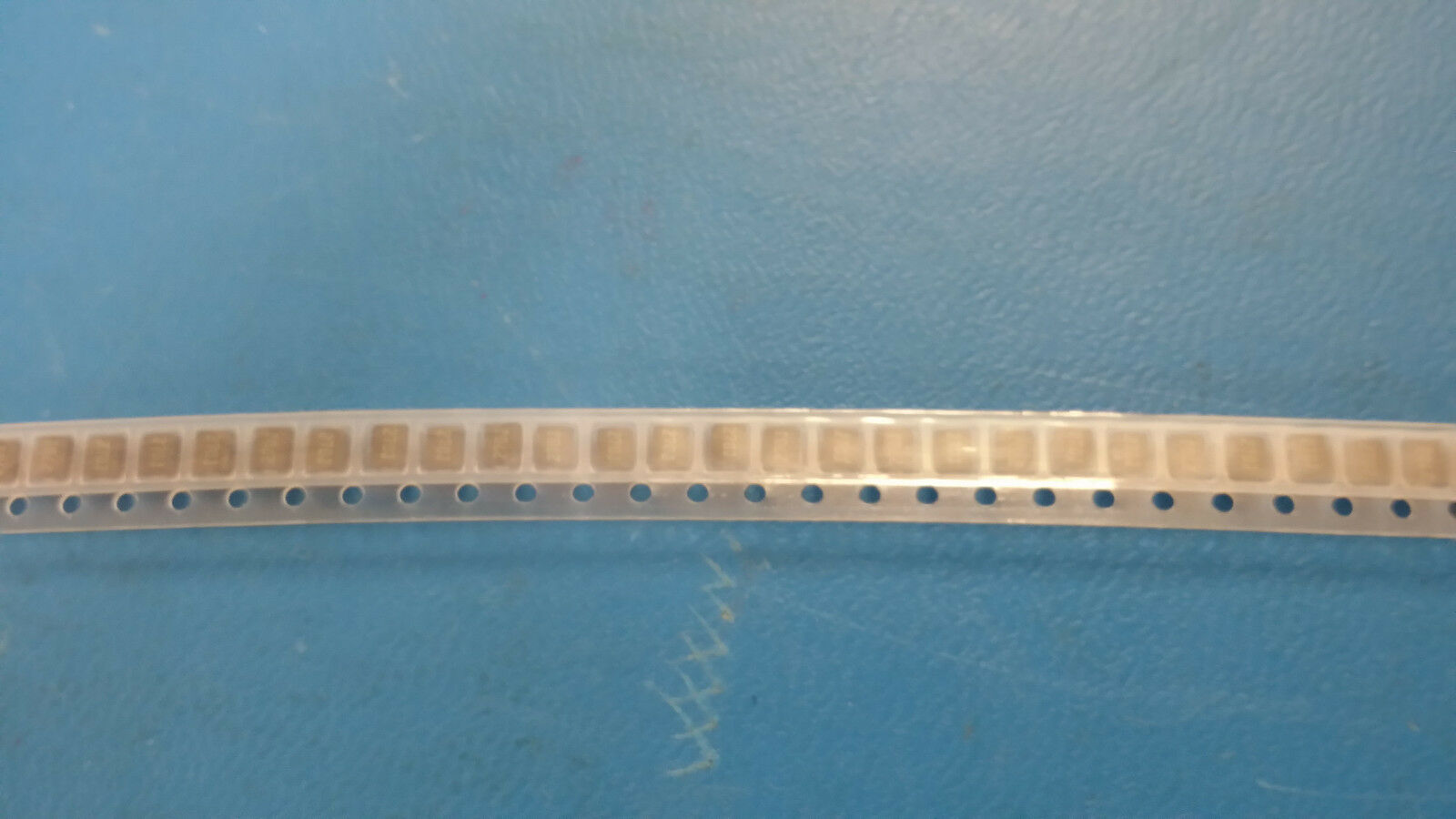

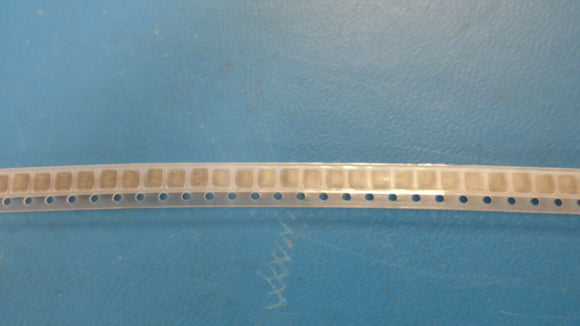

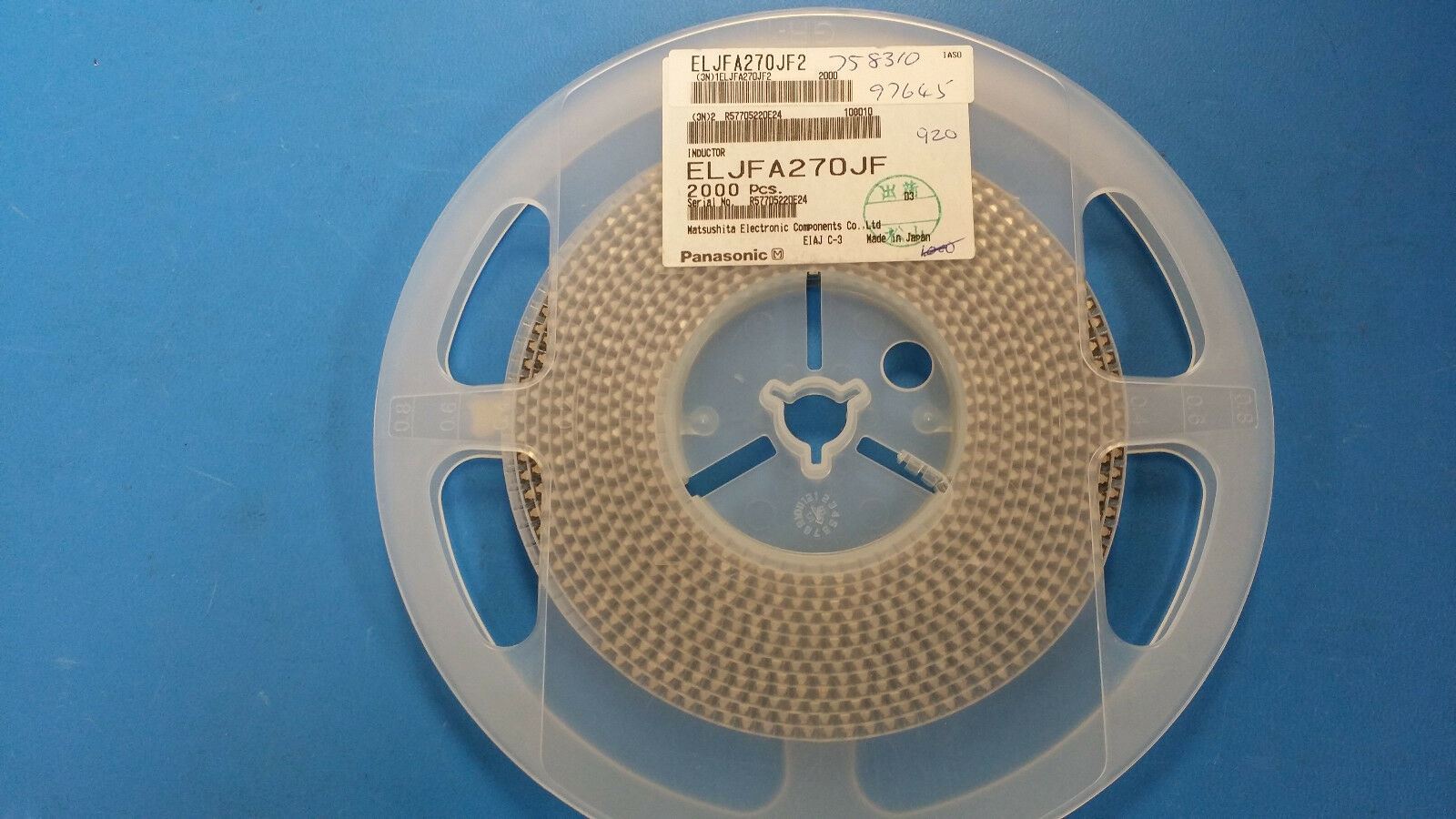

(25 PCS) ELJ-FA270JF PANASONIC FIXED IND 27UH 90MA 5 OHM SMD
Tax included.
THIS LISTING IS FOR (25 PCS) OF ELJ-FA270JF BY PANASONIC
FIXED IND 27UH 90MA 5 OHM SMD
FIXED IND 27UH 90MA 5 OHM SMD
ELJ-FA270JF Part Details & Parametric
| Type | General Purpose Chip |
| Technology | Wirewound |
| Protection Style | Molded |
| Core Material | Ferrite |
| Inductance (H) | 27u |
| Tolerance | 5% |
| Test Frequency (Hz) | 2.52M |
| Maximum DC Current (A) | 90m |
| Maximum DC Resistance (Ohm) | 5 |
| Minimum Quality Factor | 30@2.52MHz |
| Minimum Self Resonant Frequency (Hz) | 22M |
| Case Size | 1210 |
| Product Length (mm) | 3.5 |
| Product Depth (mm) | 2.7 |
| Product Height (mm) | 2.4 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -20 |
| Packaging | Tape and Reel |
