(25 PCS) CTMC1210-5R6K Inductor, 5.6uH, 10%, 1 Element, Ferrite-Core, SMD, 1211
(25 PCS) CTMC1210-5R6K Inductor, 5.6uH, 10%, 1 Element, Ferrite-Core, SMD, 1211
(25 PCS) CTMC1210-5R6K Inductor, 5.6uH, 10%, 1 Element, Ferrite-Core, SMD, 1211
(25 PCS) CTMC1210-5R6K Inductor, 5.6uH, 10%, 1 Element, Ferrite-Core, SMD, 1211

(25 PCS) CTMC1210-5R6K Inductor, 5.6uH, 10%, 1 Element, Ferrite-Core, SMD, 1211

Tax included.
Only 102 left!

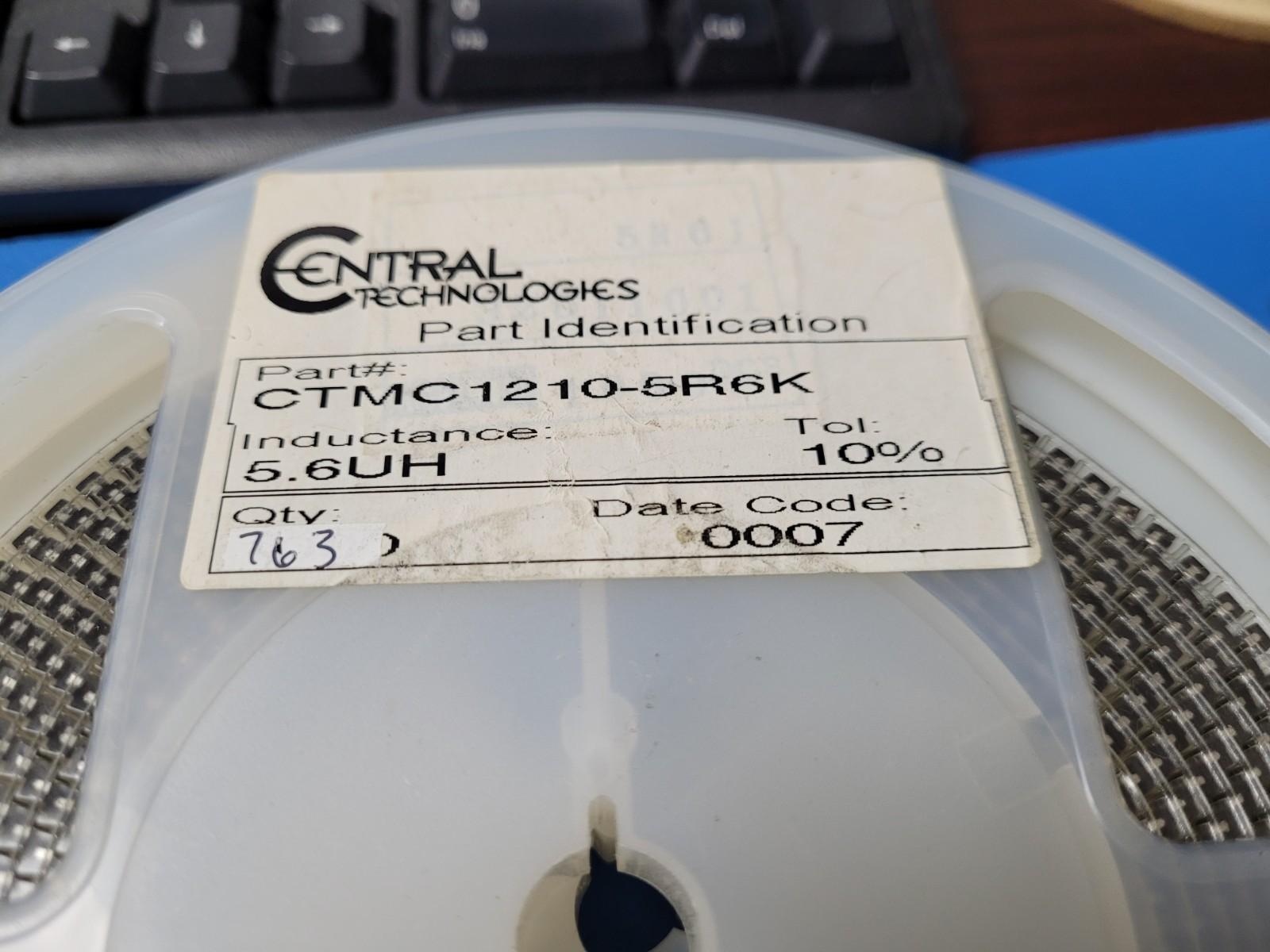

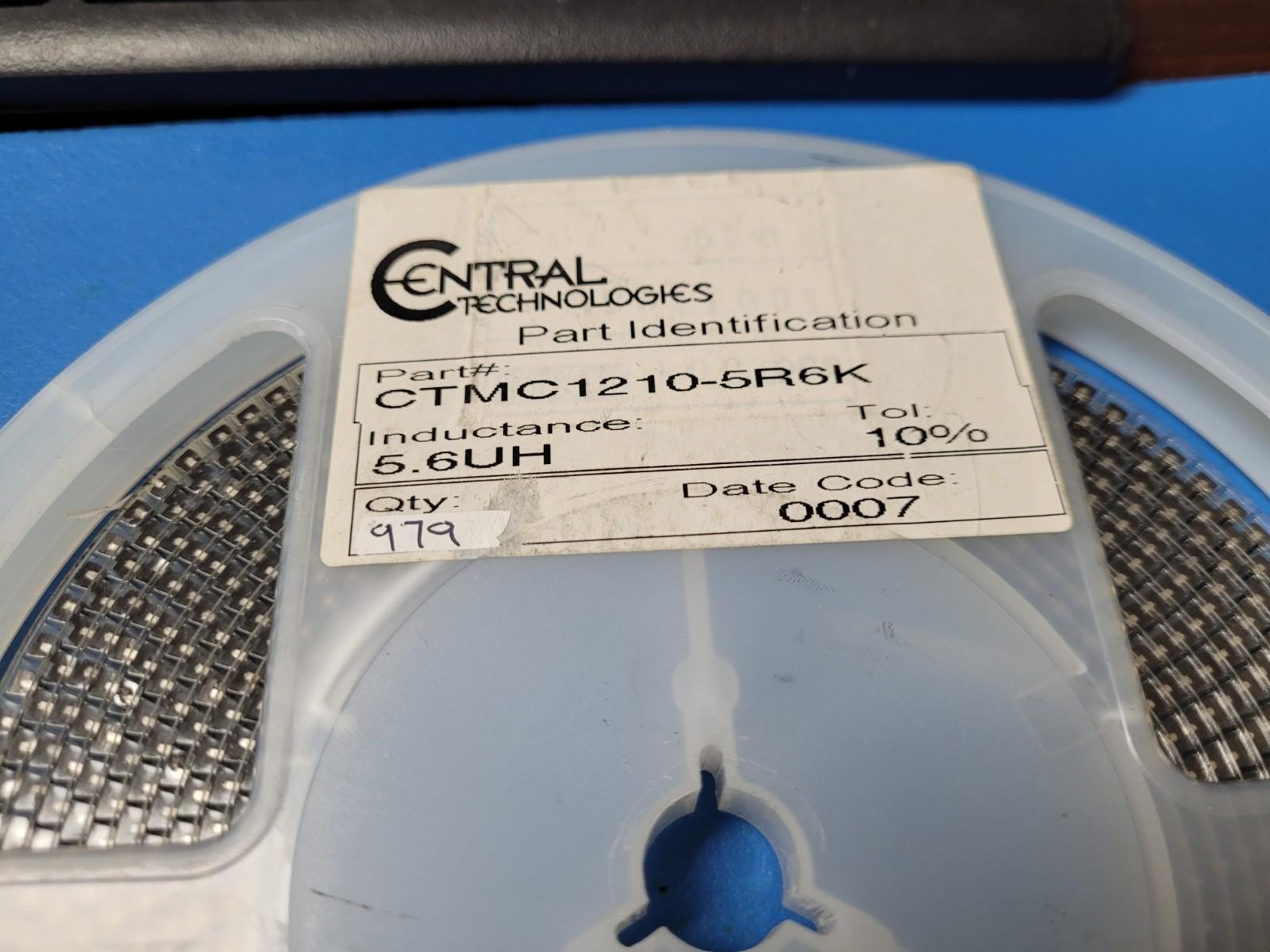

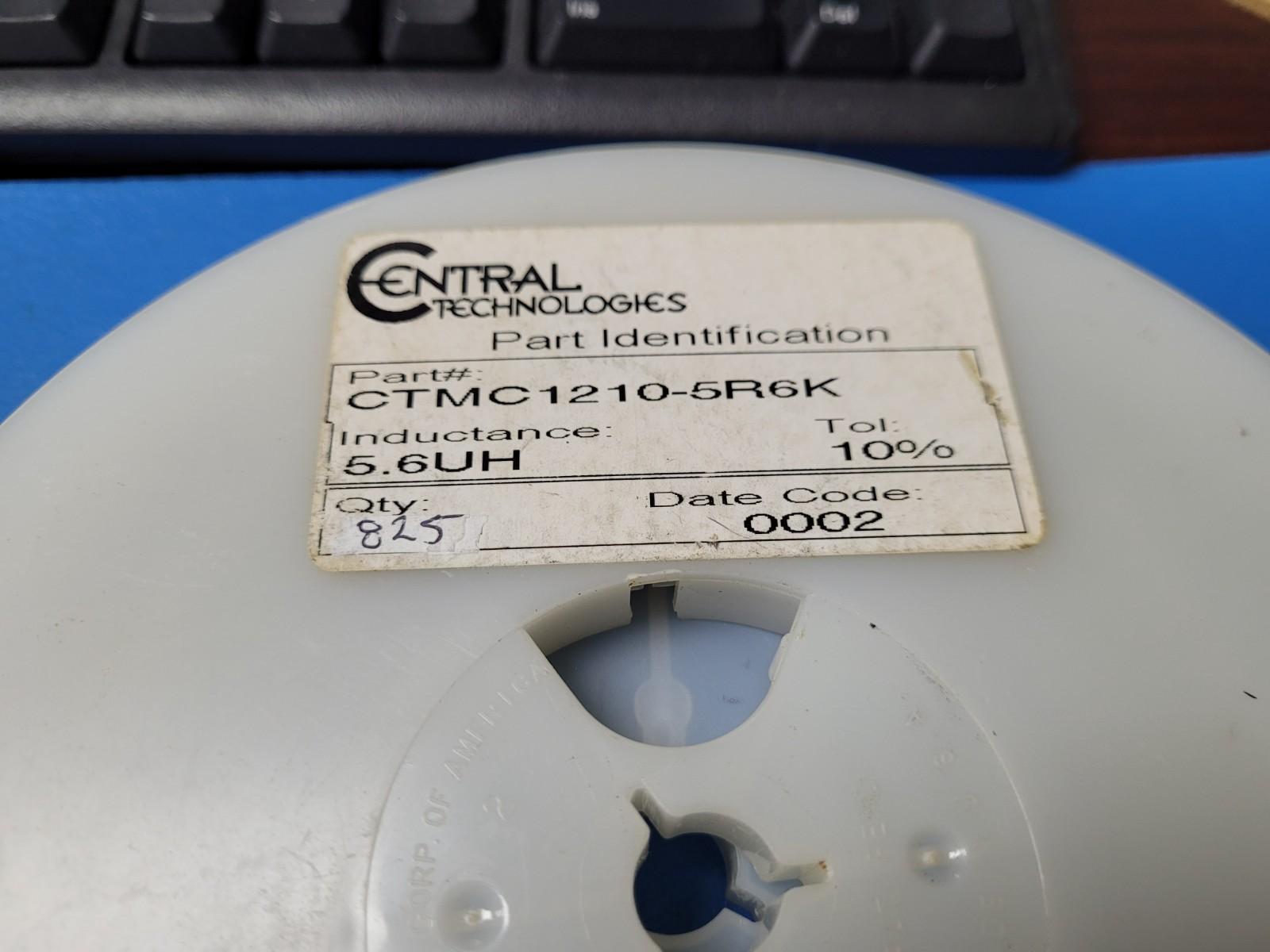

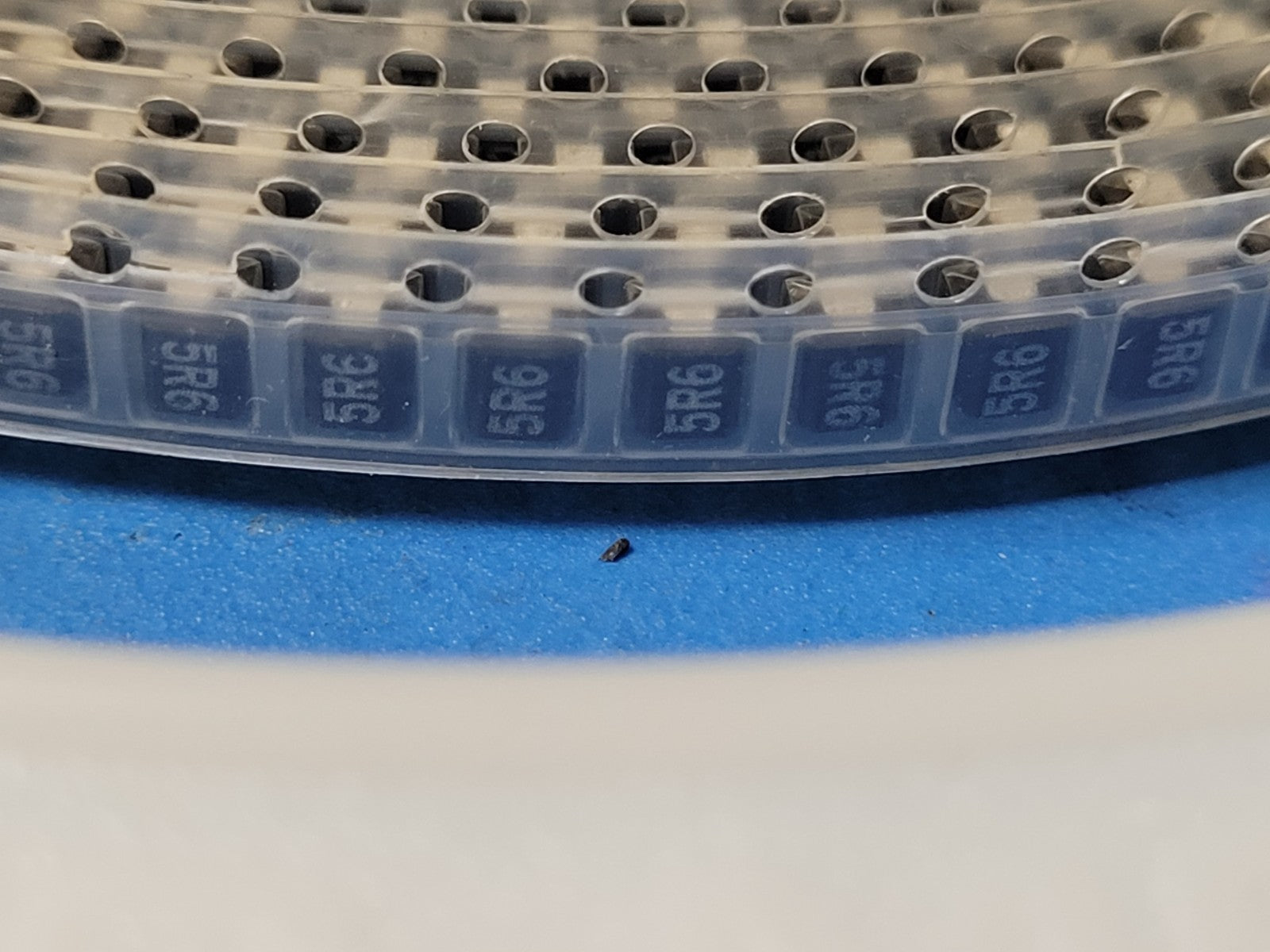

THIS IS FOR (25 PCS) OF CTMC1210-5R6K BY CENTRAL TECHNOLOGIES
Inductor, 5.6uH, 10%, 1 Element, Ferrite-Core, SMD, 1211

Part #: CTMC1210-5R6K
Obsolete
Part Category:Fixed Inductors
Manufacturer:CENTRAL TECHNOLOGIES
Description:
General Purpose Inductor, 5.6uH, 10%, 1 Element, Ferrite-Core, SMD, 1211

Status Discontinued
Case/Size Code 1211
Construction Molded Chip
Core Material FERRITE
DC Resistance (ohm) 1.6000000000000000
Inductance-Nom (L) (uH) 5.6000000000000000
Application RF INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
J-STD-609 Code e0
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max (Cel) 100
Operating Temperature-Min (Cel) -40
Package Height (mm) 2.500000
Package Length (mm) 3.200000
Package Style SMT
Package Width (mm) 2.900000
Packing Method TR
Quality Factor-Min (at L-nom) 30.0000000000000000
Rated Current-Max (A) 0.2000000000000000
Self Resonance Frequency (MHz) 47.0000000000000000
Shape/Size Description RECTANGULAR PACKAGE
Shielded NO
Surface Mount YES
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Placement DUAL ENDED
Terminal Shape J BEND
Test Frequency (MHz) 7.9600000000000000
Tolerance (%) 10.0000
