(25 PCS) CM05RB01 TAIYO YUDEN CHOKE, COILS, COMMON MODE 700 OHMS 2A RADIAL LEAD
(25 PCS) CM05RB01 TAIYO YUDEN CHOKE, COILS, COMMON MODE 700 OHMS 2A RADIAL LEAD
(25 PCS) CM05RB01 TAIYO YUDEN CHOKE, COILS, COMMON MODE 700 OHMS 2A RADIAL LEAD

(25 PCS) CM05RB01 TAIYO YUDEN CHOKE, COILS, COMMON MODE 700 OHMS 2A RADIAL LEAD

Tax included.
Only 68 left!

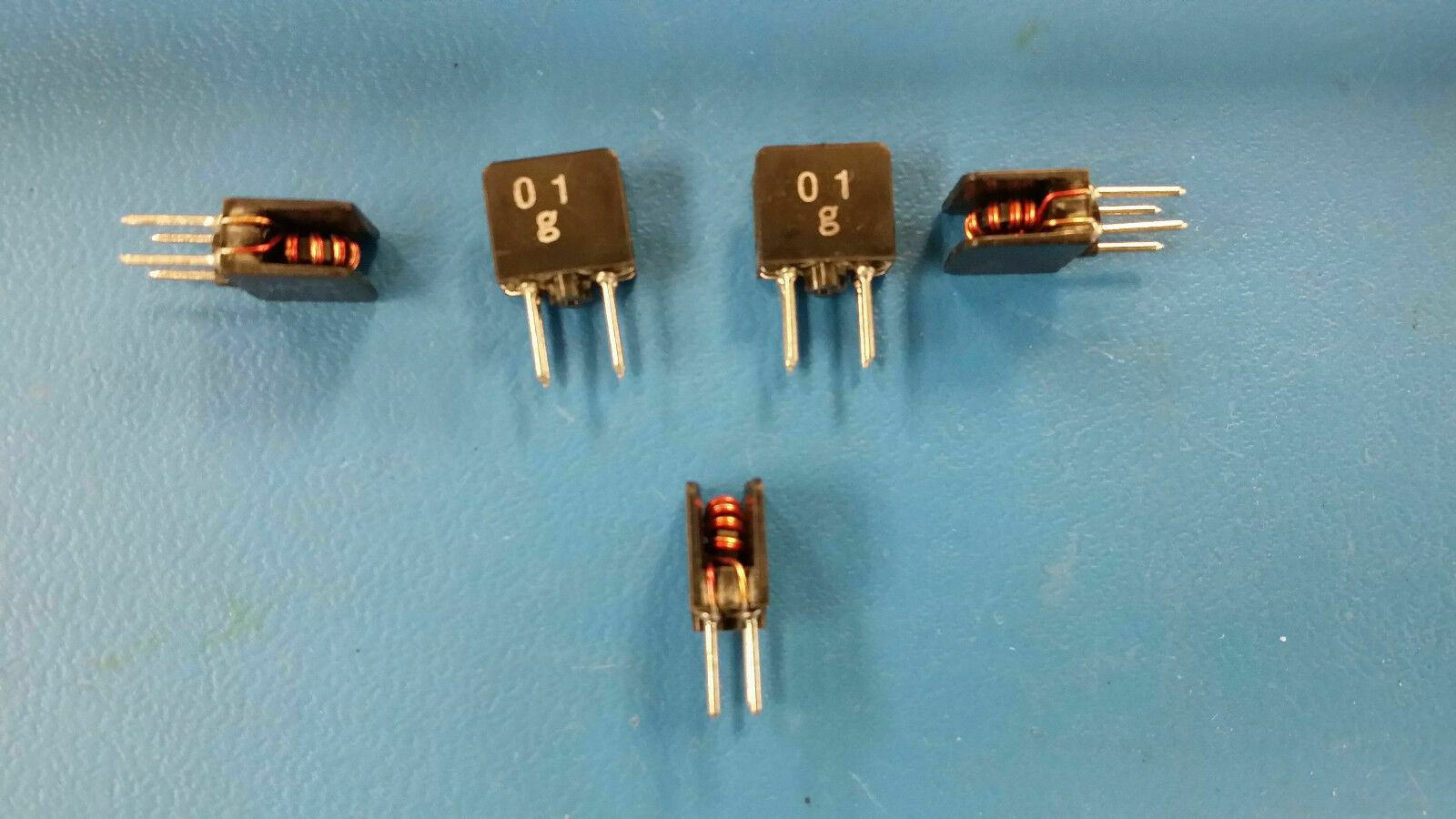

THIS LISTING IS FOR (25 PCS) OF CM05RB01 BY TAIYO YUDEN
CHOKE COMMON MODE 700OHMS RADIAL LEAD
Products characteristics table:
External Dimensions: L 9.5mm(max) x W 10mm(max)mm x T 5.5mm(max)
Impedance: 700Ω
Impedance Measuring Frequency: 70MHz
Inductance: 7.0μH(- to -)
Inductance Measuring Frequency: 1kHz
DC Resistance: (max) 0.05Ω
Rated Current: 2A
Resistance: 100MΩ min
