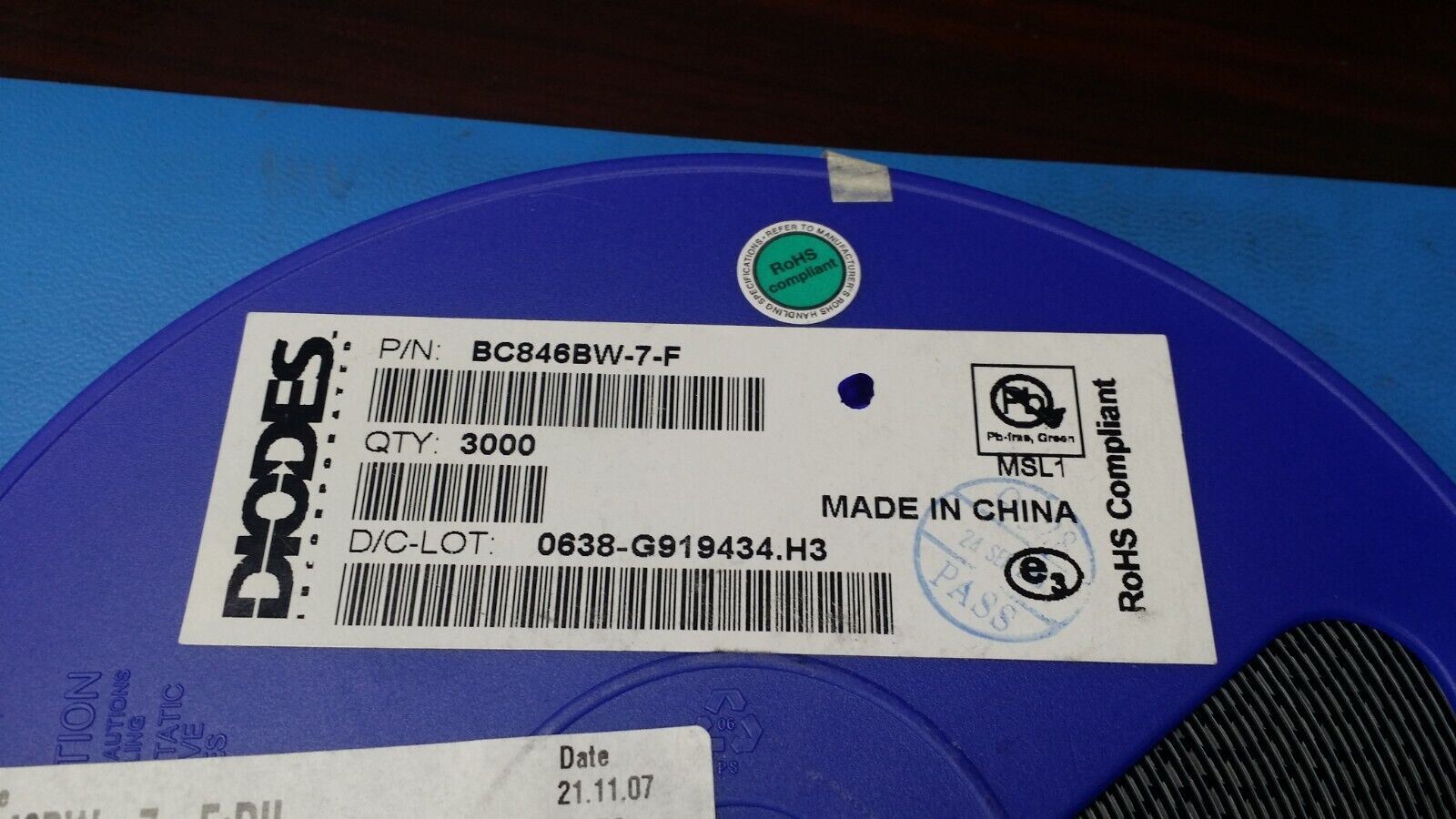

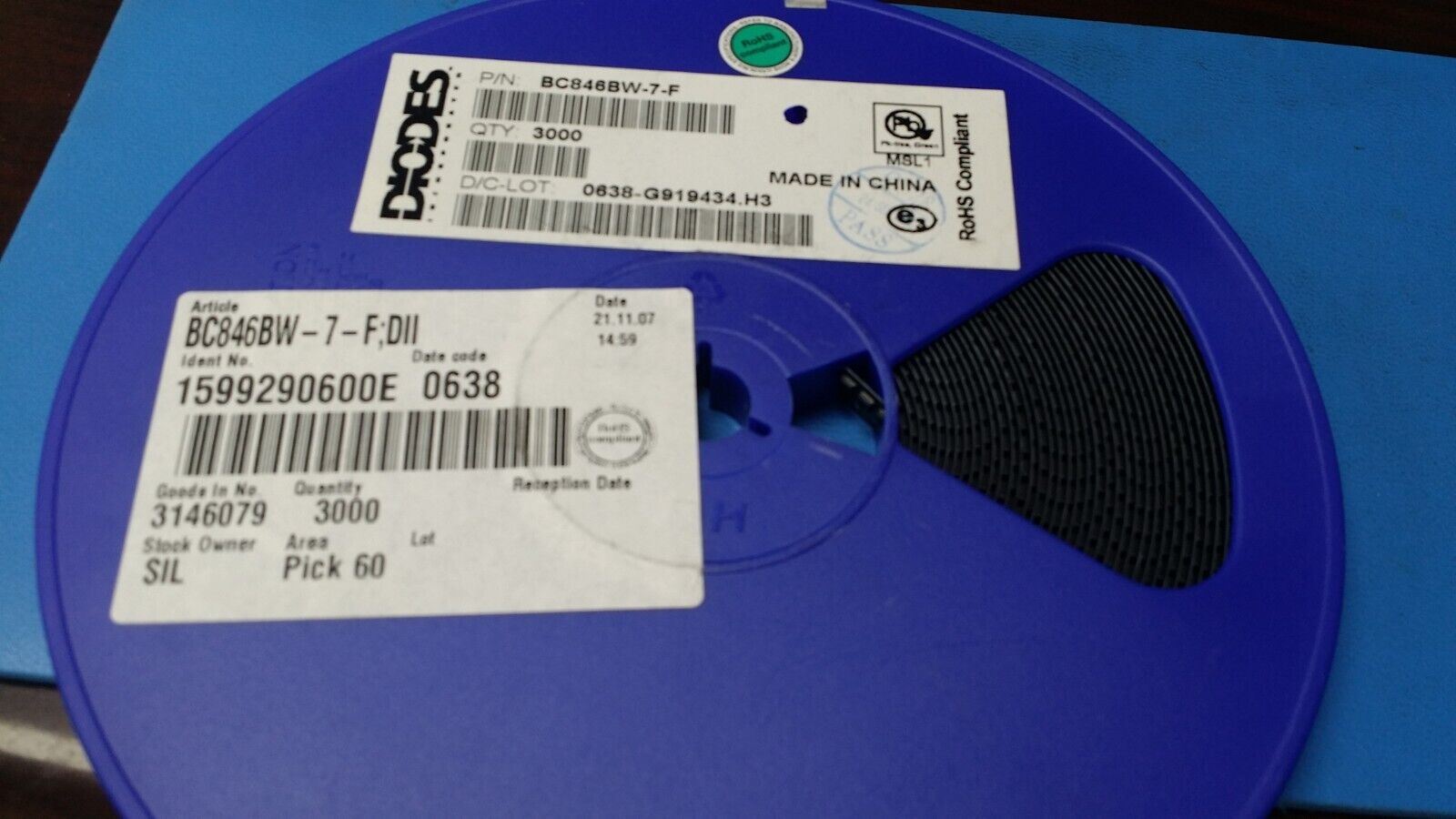

(50 PCS) BC846BW-7-F DIODES INC. TRANS NPN 65V 0.1A SOT323 ROHS
(50 PCS) BC846BW-7-F DIODES INC. TRANS NPN 65V 0.1A SOT323 ROHS

(50 PCS) BC846BW-7-F DIODES INC. TRANS NPN 65V 0.1A SOT323 ROHS

Tax included.
Only 59 left!
THIS IS FOR (25 PCS) OF BC846BW-7-F BY DOIDES INC.
TRANS NPN 65V 0.1A SOT323 ROHS

Manufacturer: Diodes Incorporated
Product Category: Bipolar Transistors - BJT
RoHS: YES
Mounting Style: SMD/SMT
Package / Case: SOT-323-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 65 V
Collector- Base Voltage VCBO: 80 V
Emitter- Base Voltage VEBO: 6 V
Collector-Emitter Saturation Voltage: 200 mV
Maximum DC Collector Current: 100 mA
Pd - Power Dissipation: 200 mW
Gain Bandwidth Product fT: 300 MHz
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 150 C
Series: BC846
Packaging: Reel
Packaging: Cut Tape
Brand: Diodes Incorporated
DC Collector/Base Gain hfe Min: 200
Height: 1 mm
Length: 2.2 mm
Product Type: BJTs - Bipolar Transistors
3000
Subcategory: Transistors
Technology: Si
Width: 1.35 mm
Unit Weight: 0.000176 oz
