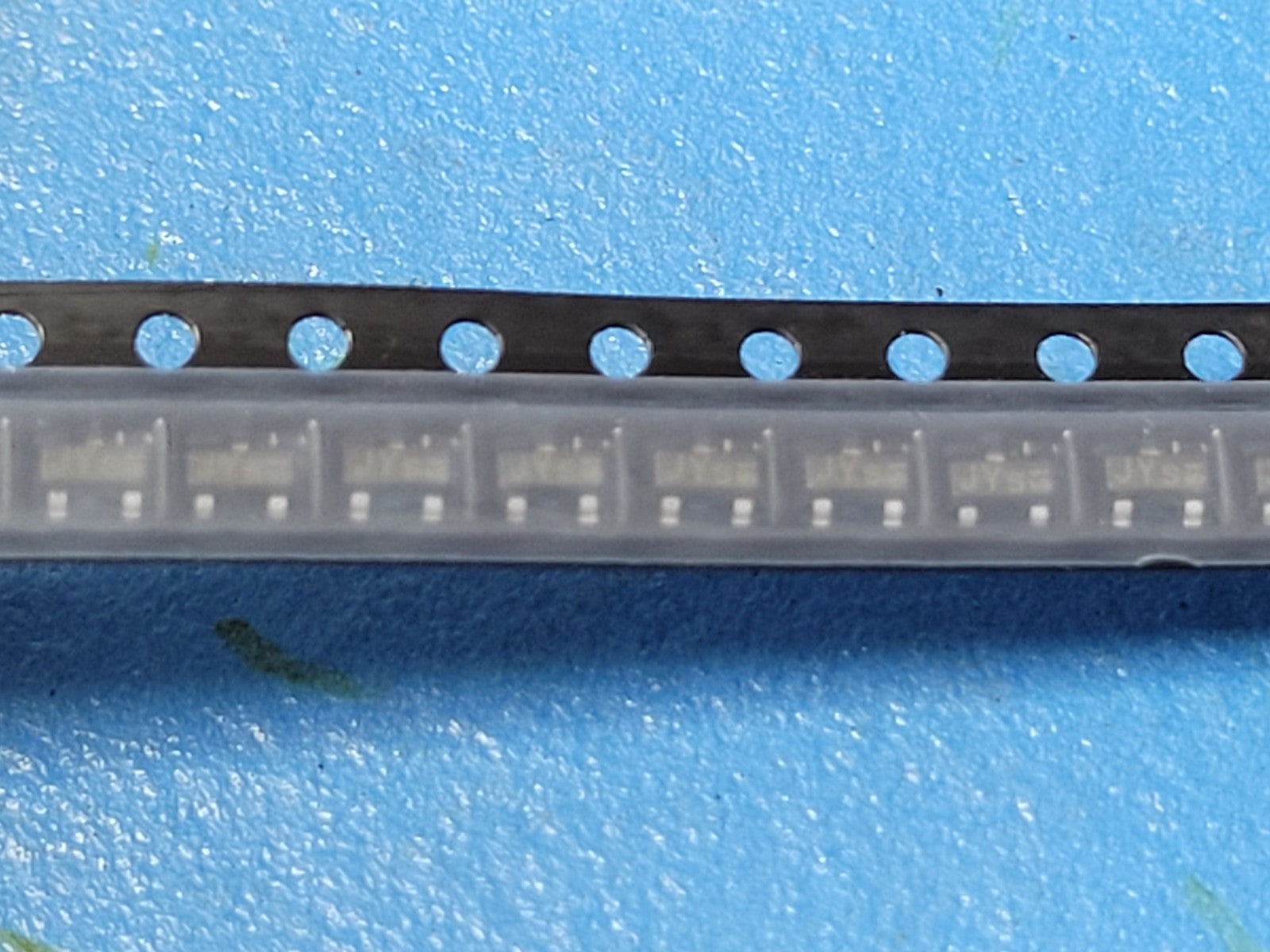

(25 PCS) BAV199E6327 INFINEON Diode Switching 85V 0.16A 3-Pin SOT-23 ROHS
Tax included.

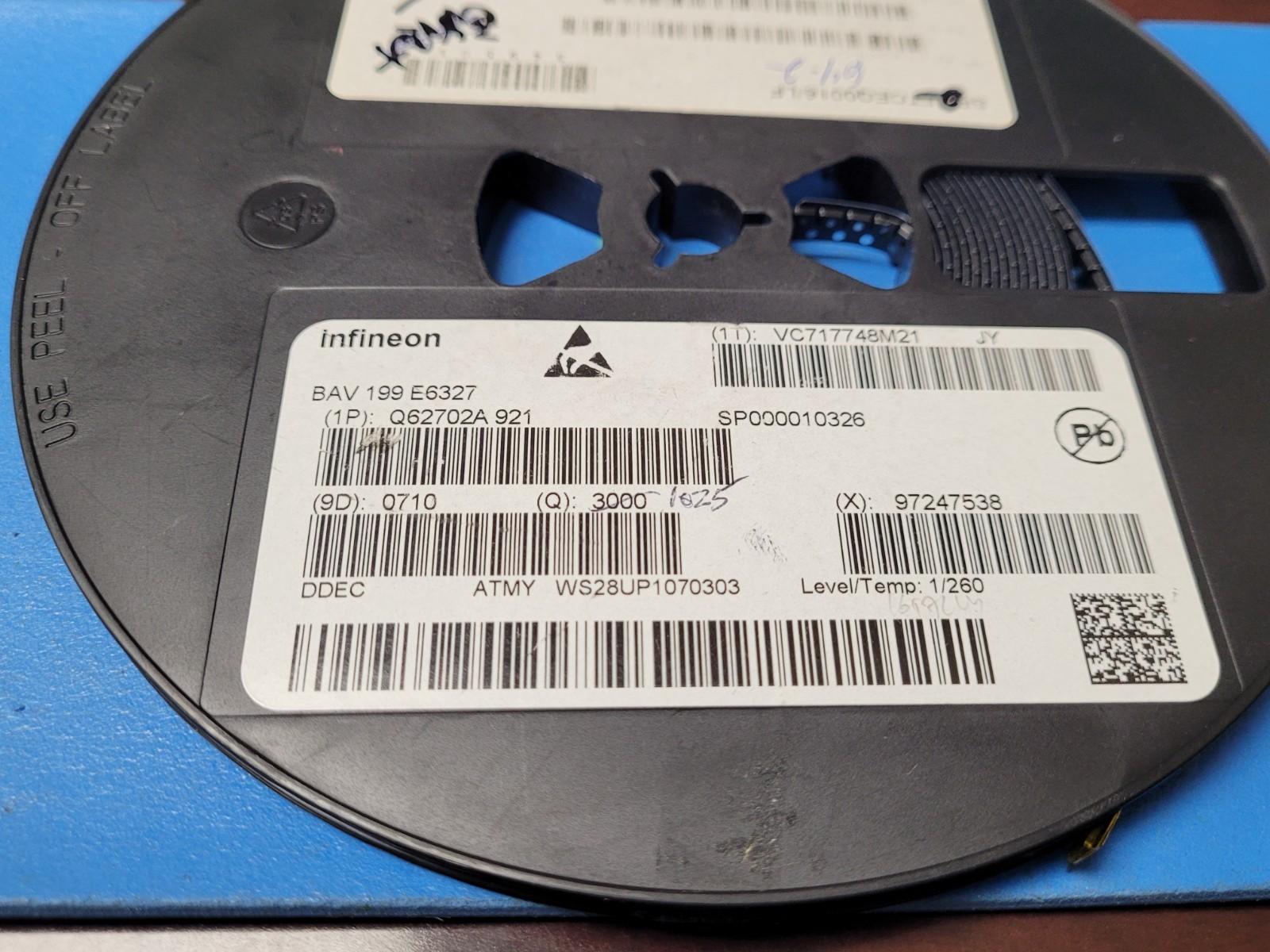

THIS IS FOR (50 PCS) OF BAV199E6327 BY INFINEON
Diode Switching 85V 0.16A 3-Pin SOT-23 ROHS
Part #: BAV199E6327
Part Category: Rectifier Diodes
Manufacturer: INFINEON TECHNOLOGIES AG
Description: Rectifier Diode, 2 Element, 0.2A, 80V V(RRM), Silicon ROHS
Status Unknown
Application GENERAL PURPOSE
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Diode Element Material SILICON
Diode Type RECTIFIER DIODE
Forward Voltage-Max (V) 0.9000000000000000
JESD-30 Code R-PDSO-G3
J-STD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Pk Forward Current-Max (A) 4.5000000000000000
Number of Elements 2
Number of Terminals 3
Operating Temperature-Max (Cel) 150.0000000000000000
Output Current-Max (A) 0.2000000000000000
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Power Dissipation-Max (W) 0.330000000000000
DLA Qualification Not Qualified
Screening Level / Reference Standard AEC-Q101
Rep Pk Reverse Voltage-Max (V) 80.0000000000000000
Reverse Recovery Time-Max (us) 1.5000000000000000
Surface Mount YES
Terminal Finish TIN
Terminal Form GULL WING
Terminal Position DUAL
