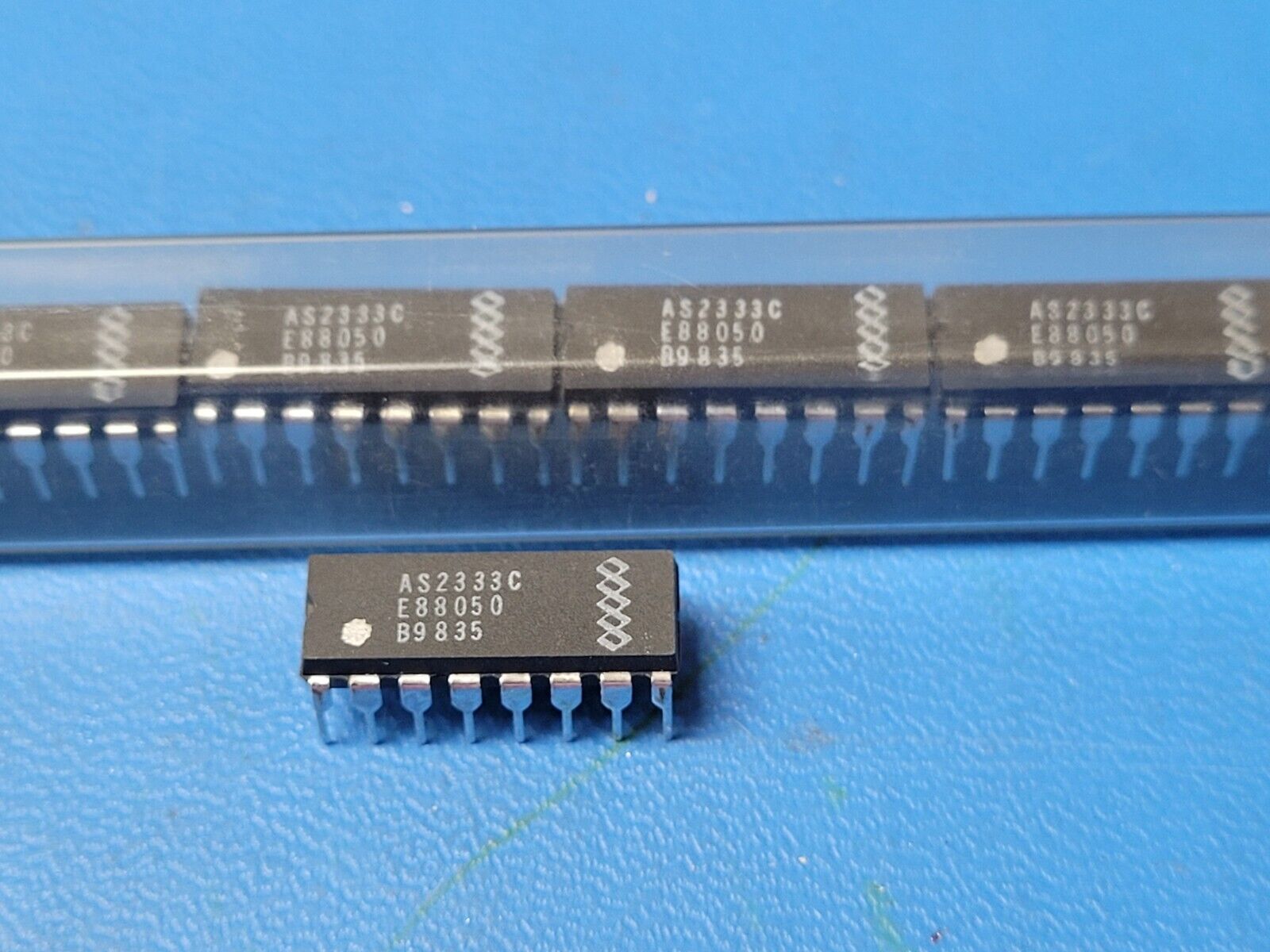

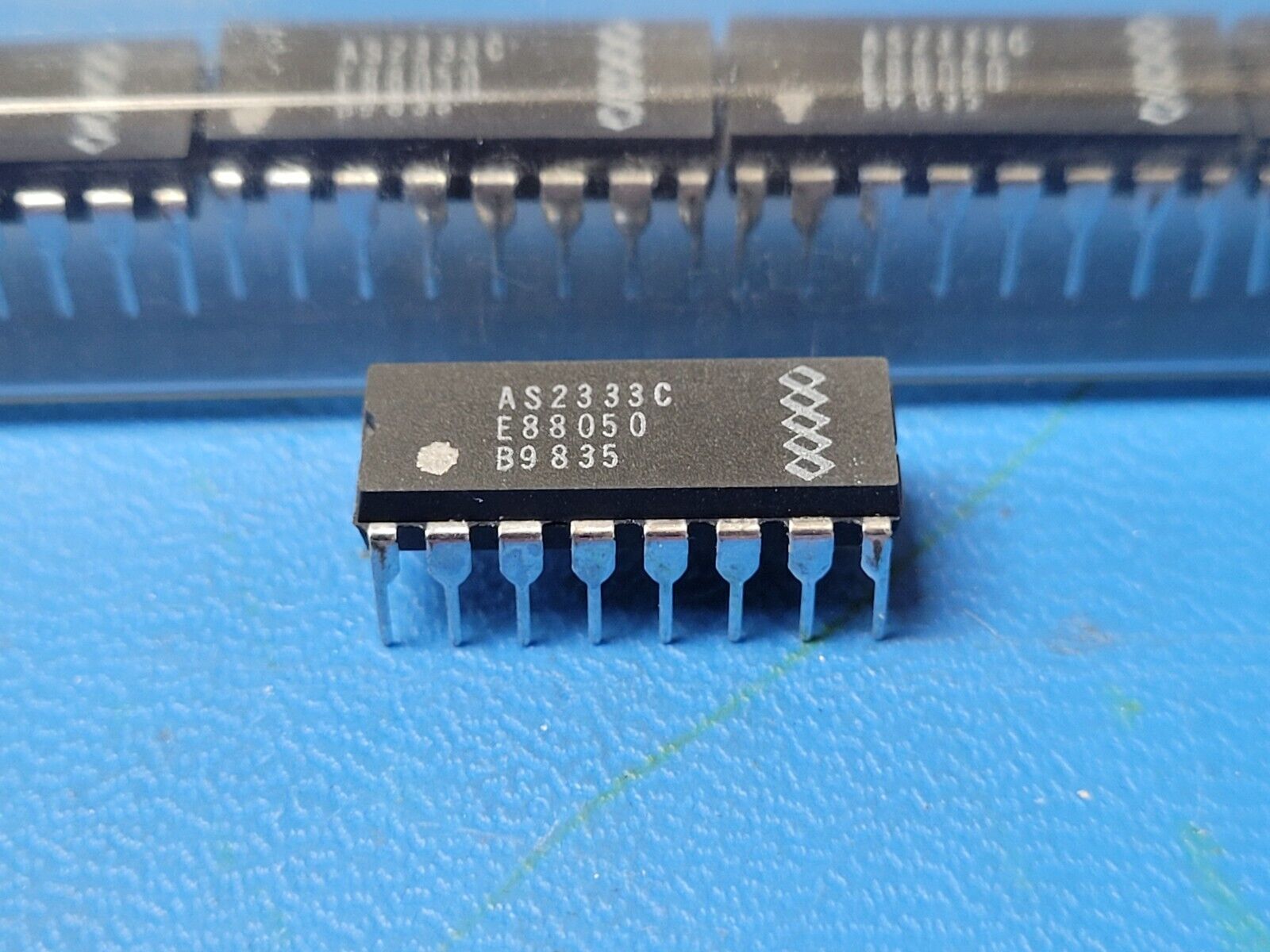

(25 PCS) AS2333C ASTEC Power Supply Support Circuit, Fixed, 4 Channel, PDIP16
Tax included.
THIS IS FOR (25 PCS) OF AS2333C BY ASTEC
Power Supply Support Circuit, Fixed, 4 Channel, PDIP16
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Adjustable Threshold NO
JESD-30 Code R-PDIP-T16
Number of Channels 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 105.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 4.32 mm
Supply Voltage-Nom (Vsup) 12.0 V
Supply Voltage-Min (Vsup) 4.2 V
Supply Voltage-Max (Vsup) 15.0 V
Surface Mount NO
Temperature Grade OTHER
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 19.2 mm
Width 7.62 mm
Additional Feature IT CAN ALSO OPERATE FROM A 5V SUPPLY
