(25 PCS) AO6415 A&O SEMI. Trans MOSFET P-CH 20V 3.3A 6-Pin TSOP T/R ROHS
Tax included.

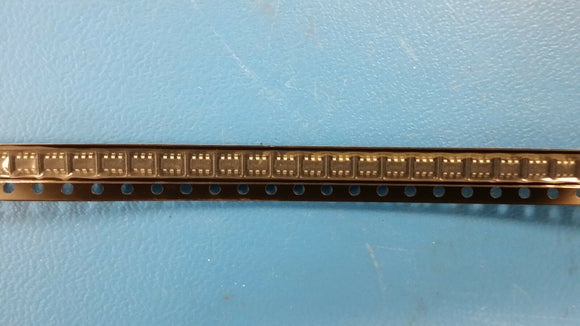

THIS LISTING IS FOR (25 PCS) OF AO6415 BY A&O SEMI.
Trans MOSFET P-CH 20V 3.3A 6-Pin TSOP T/R ROHS
Trans MOSFET P-CH 20V 3.3A 6-Pin TSOP T/R ROHS
AO6415 Part Details & Parametric
| EU RoHS |
Compliant
|
| Maximum Operating Temperature (°C) | 150 |
| Channel Mode | Enhancement |
| Channel Type | P |
| Category | Power MOSFET |
| Maximum Power Dissipation (mW) | 1250 |
| Packaging | Tape and Reel |
| Maximum Drain Source Voltage (V) | 20 |
| Maximum Gate Source Voltage (V) | ±12 |
| Typical Gate Charge @ Vgs (nC) | 3.2@4.5V |
| Typical Input Capacitance @ Vds (pF) | 325@10V |
| Maximum Drain Source Resistance (mOhm) | 82@10V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 3.3 |
| Mounting | Surface Mount |
| Package Height (mm) | 1.1 |
| Package Length (mm) | 2.9 |
| Package Width (mm) | 1.6 |
| PCB | 6 |
| Standard Package Name | TSOP |
| Supplier Package | TSOP |
| Pin Count | 6 |
