(25 PCS) AN48820A-NL PANASONIC Board Mount Hall Effect / Magnetic Sensors
Tax included.

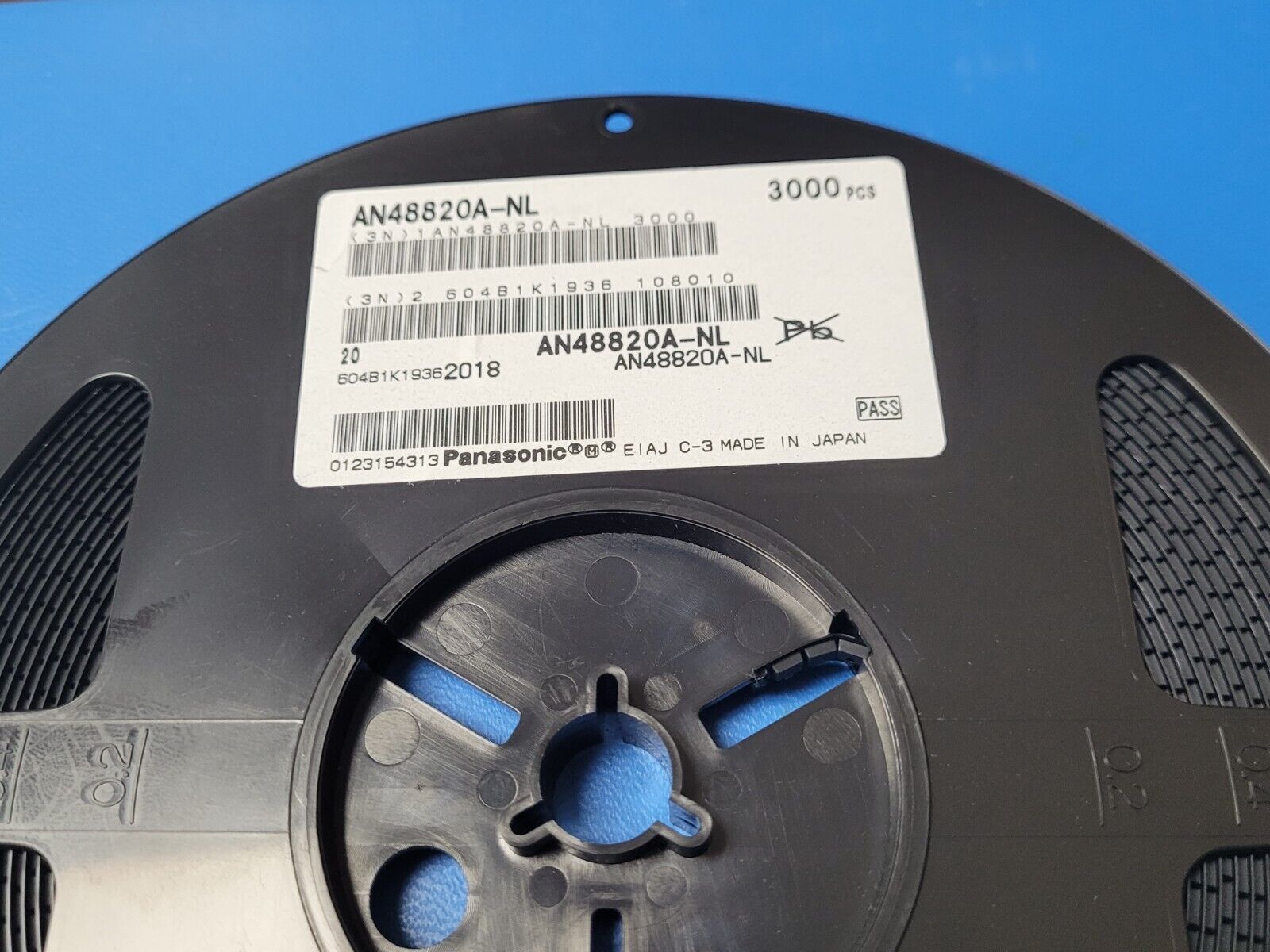

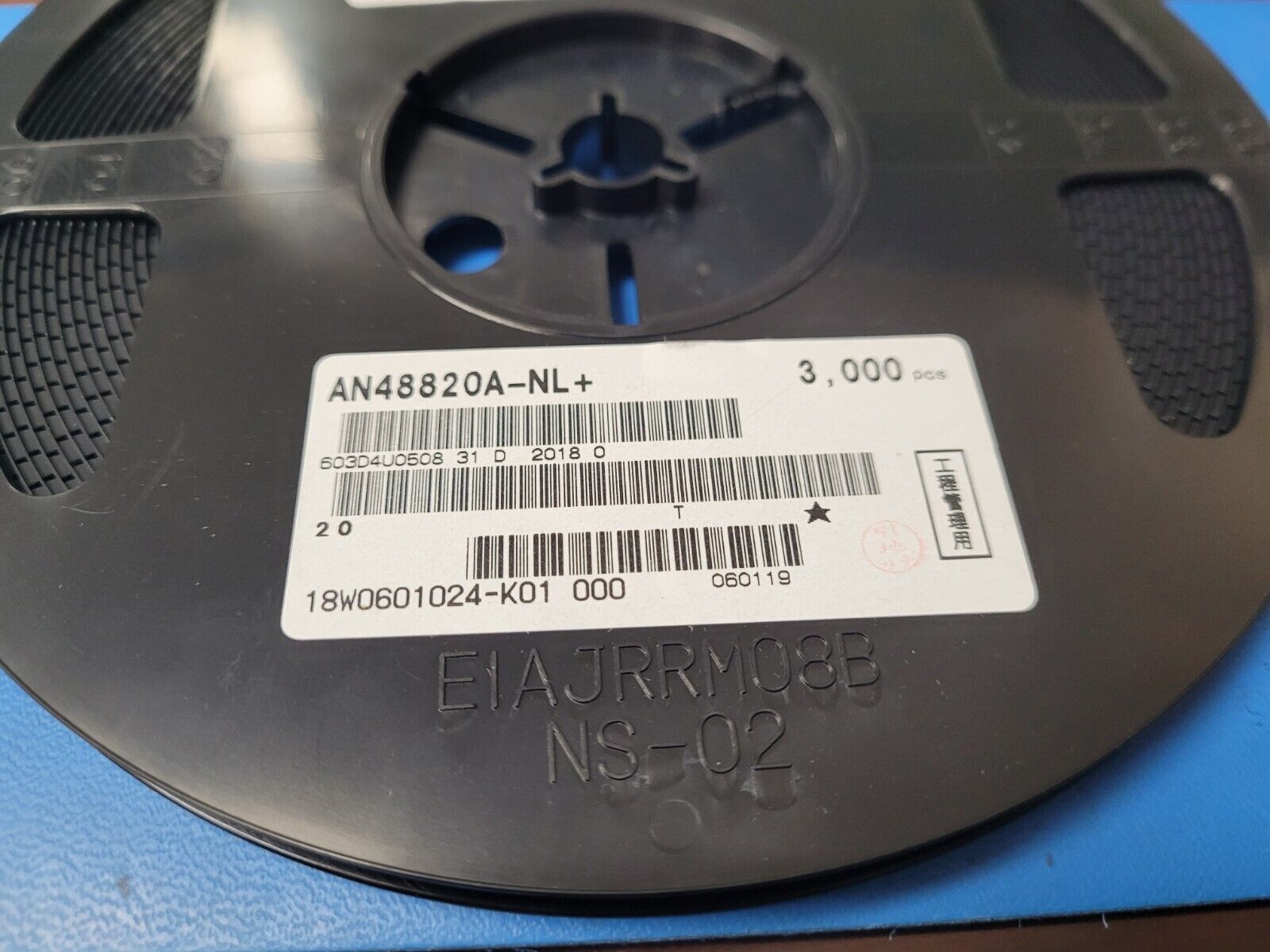

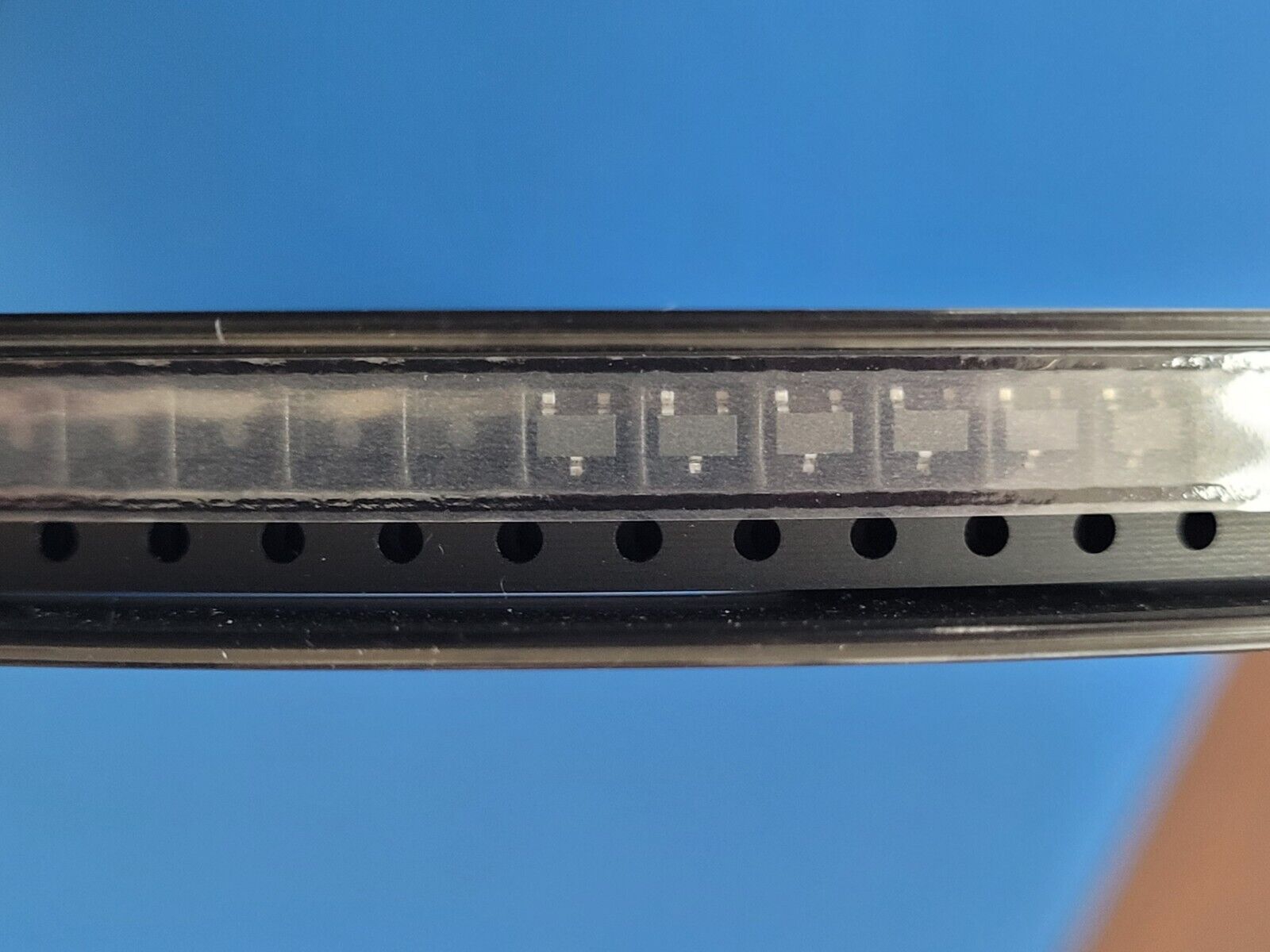

THIS IS FOR (25 PCS) OF AN48820A-NL BY PANASONIC
Board Mount Hall Effect / Magnetic Sensor
Category
Sensors, Transducers
Magnetic Sensors
Switches (Solid State)
Mfr Panasonic Electronic Components
Packaging Tape & Reel (TR)
Part Status Obsolete
Function Omnipolar Switch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range ±6mT Trip, ±0.5mT Release
Test Condition 25°C
Voltage - Supply 2.5V ~ 3.5V
Current - Supply (Max) 3.5µA (Typ)
Current - Output (Max) 15mA
Output Type Open Drain
Operating Temperature -25°C ~ 75°C (TA)
Mounting Type Surface Mount
Supplier Device Package MINI-3DRA
Package / Case TO-236-3, SC-59, SOT-23-3
