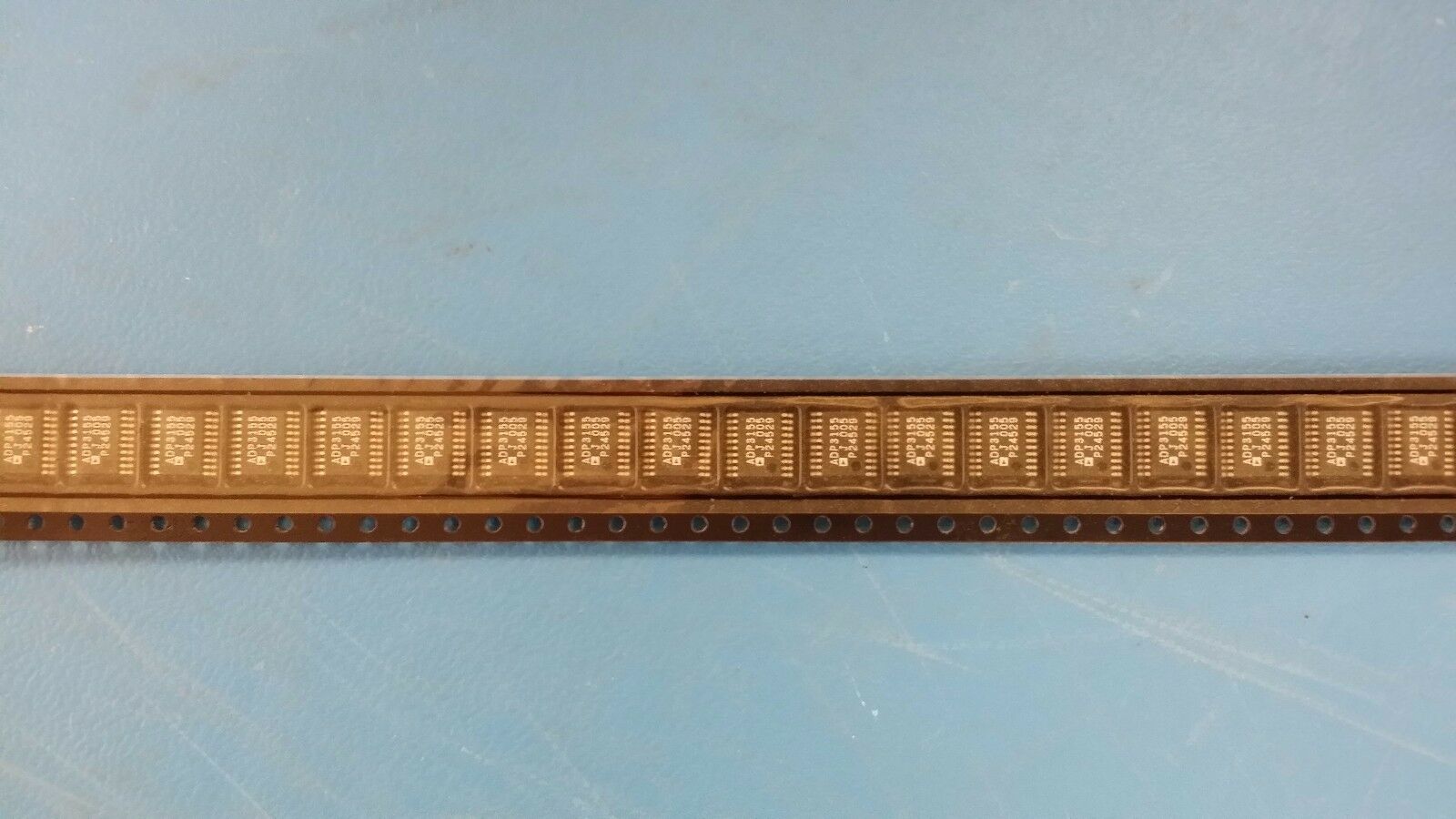

(25 PCS) ADP3155JRU AD TRIPLE POWER SWITCHING CONTROLLER, TSSOP 20IN
Tax included.
THIS LISTING IS FOR (25 PCS) OF ADP3155JRU BY AD
TRIPLE POWER SWITCHING CONTROLLER, TSSOP 20IN
| Mfr Package Description | TSSOP-20 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Control Mode | CURRENT-MODE |
| Control Technique | CONSTANT OFF TIME |
| Input Voltage-Nom | 12.0 V |
| JESD-30 Code | R-PDSO-G20 |
| JESD-609 Code | e0 |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP20,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.2 mm |
| Sub Category | Switching Regulator or Controllers |
| Surface Mount | YES |
| Switcher Configuration | PUSH-PULL |
| Technology | BICMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 6.5 mm |
| Width | 4.4 mm |
