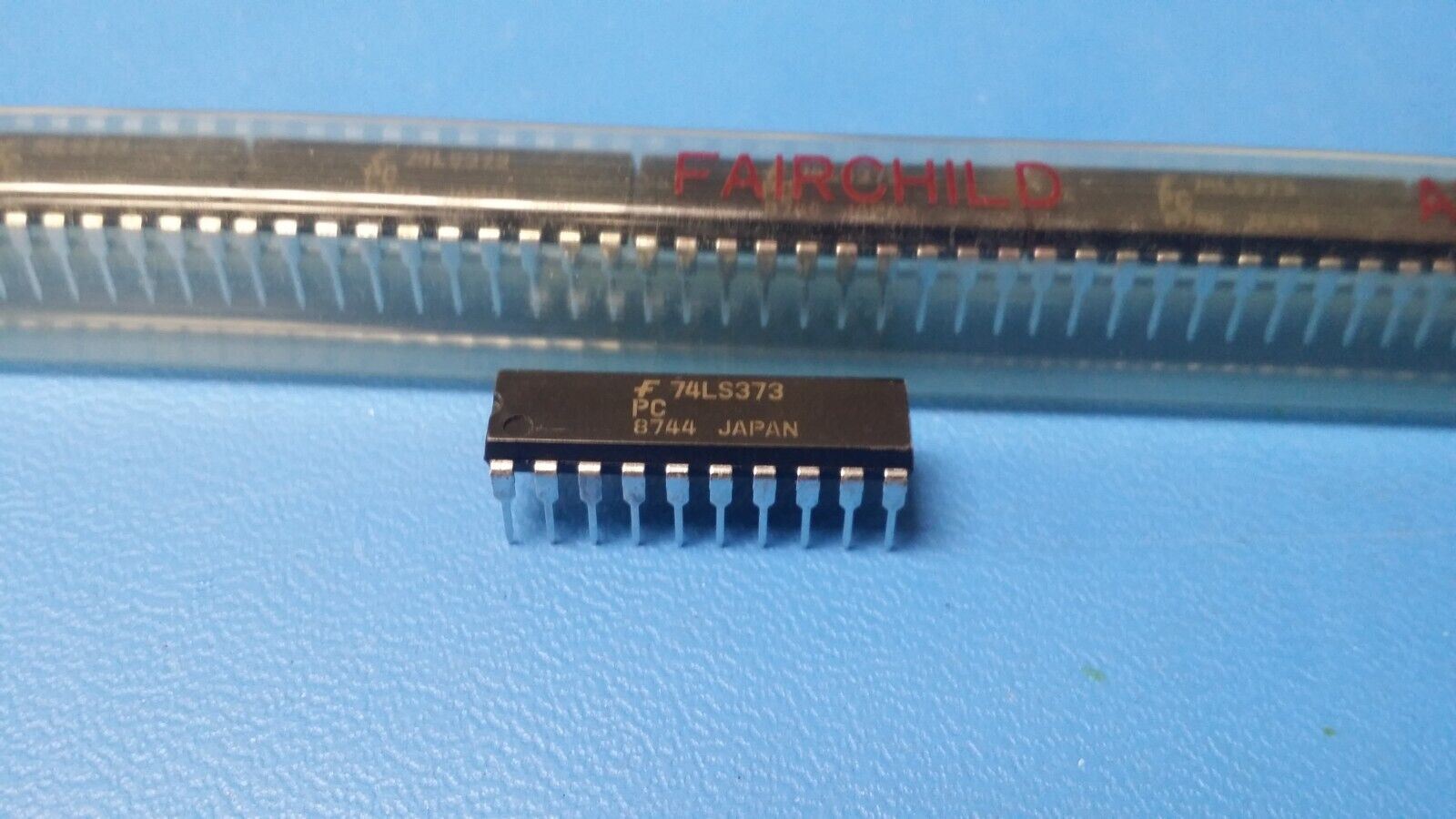

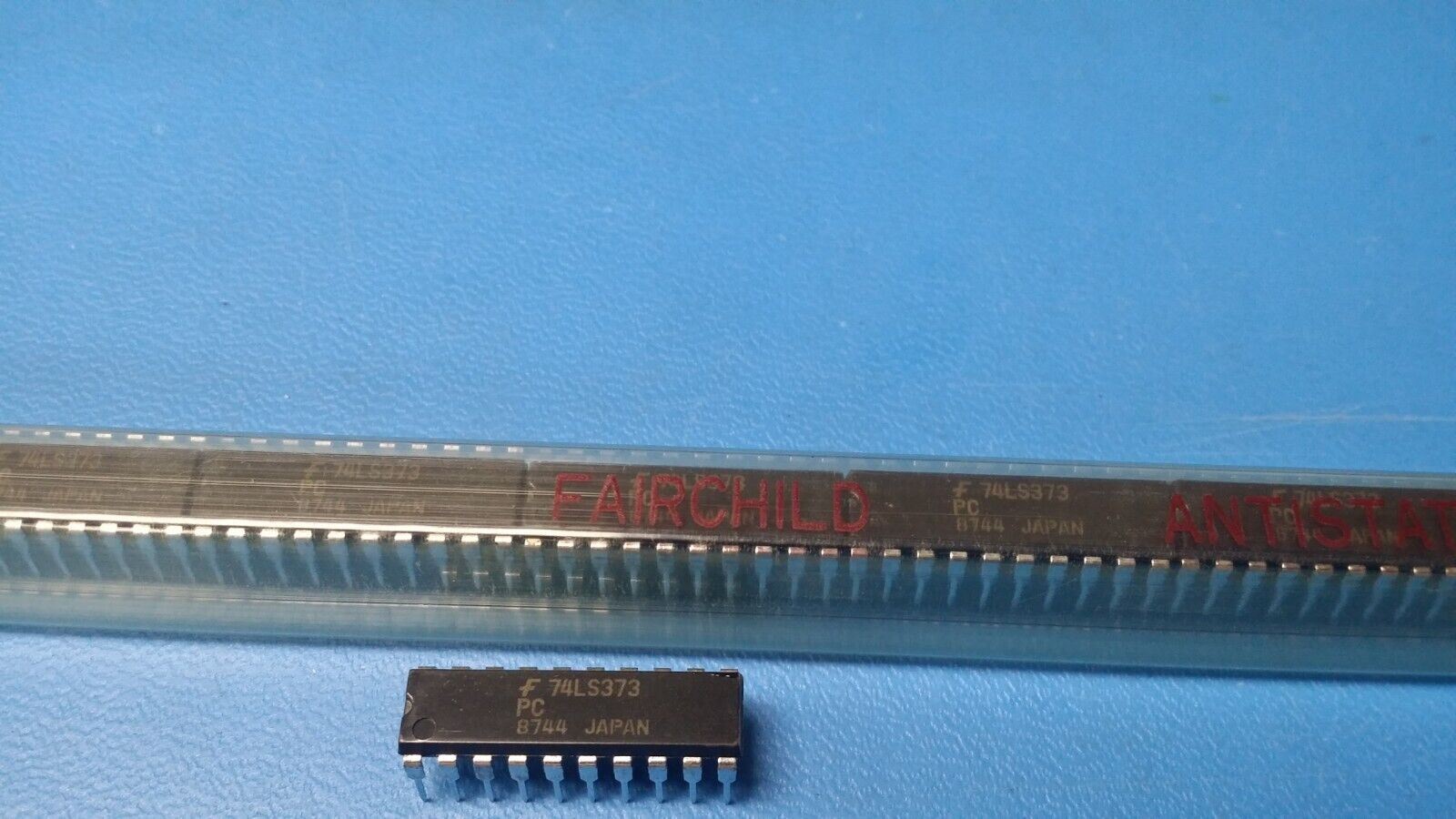

(19 PCS) 74LS373PC FSC D Latch, 8-Func, Negative Edge Triggered, 8-Bit, PDIP20

$28.95
Unit price per

Tax included.

THIS IS FOR (25 PCS) OF 74LS373PC BY FSC

D Latch, 8-Func, Negative Edge Triggered, 8-Bit, PDIP20

Mfr Package Description PLASTIC, DIP-20

Part #: 74LS373PC

Part Category: Logic ICs

Manufacturer: Fairchild Semiconductor

Description: D Latch, LS Series, 8-Func, Negative Edge Triggered, 8-Bit, True Output, TTL, PDIP20

Status Discontinued

Logic IC Type D LATCH

Sub Category FF/Latches

Family LS

JESD-30 Code R-PDIP-T20

JESD-609 Code e0

Number of Bits 8

Number of Functions 8

Number of Terminals 20

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Characteristics 3-STATE

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP20,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Propagation Delay (tpd) 30.0 ns

Qualification Status Not Qualified

Supply Voltage-Nom (Vsup) 5

Supply Voltage-Min (Vsup) 4.75 V

Supply Voltage-Max (Vsup) 5.25 V

Surface Mount NO

Technology TTL

Temperature Grade COMMERCIAL

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Trigger Type NEGATIVE EDGE
