(25 PCS) 2N2713 SPRAGUE Trans GP BJT NPN 30V 0.5A 3-Pin
Tax included.

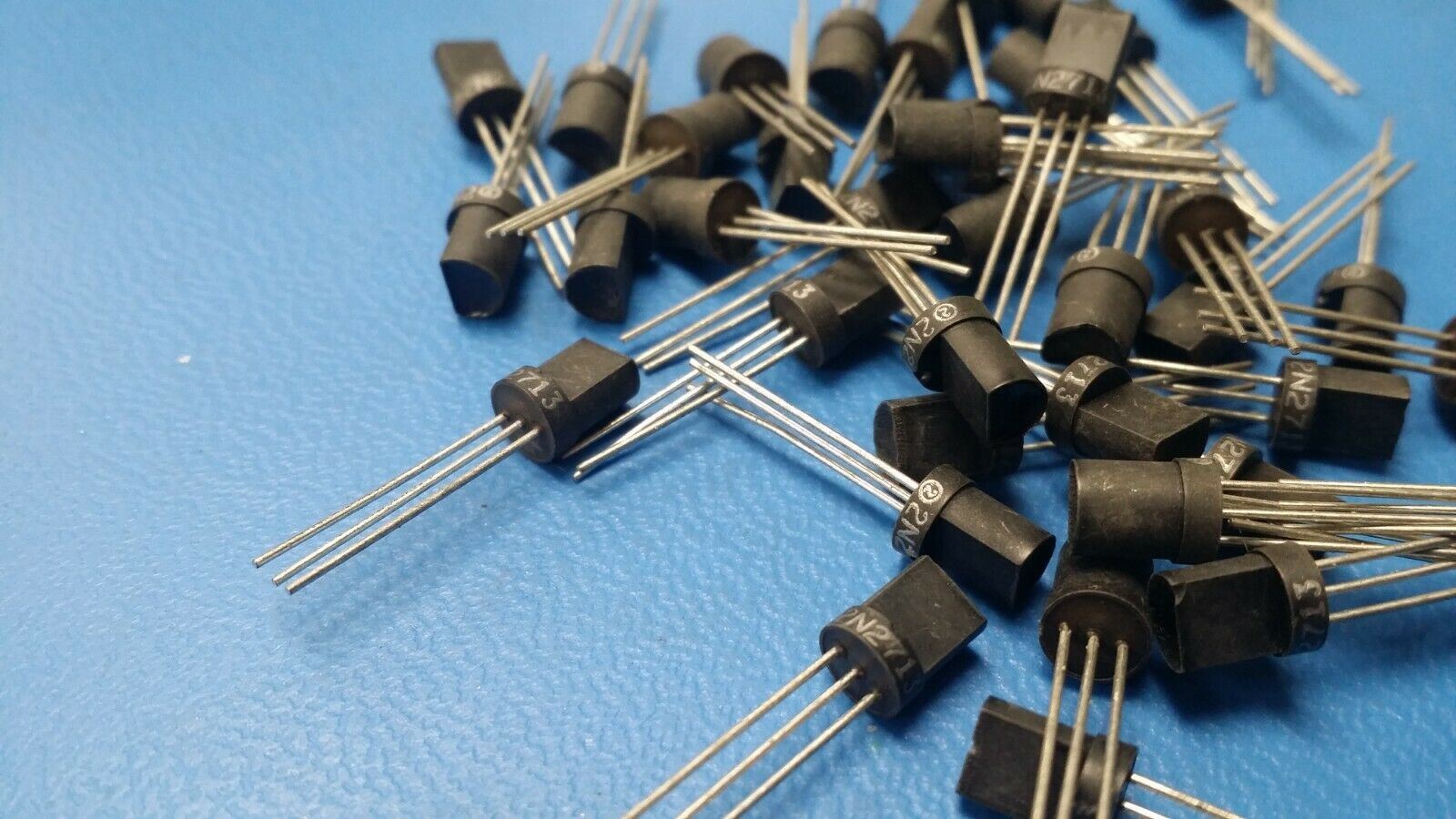

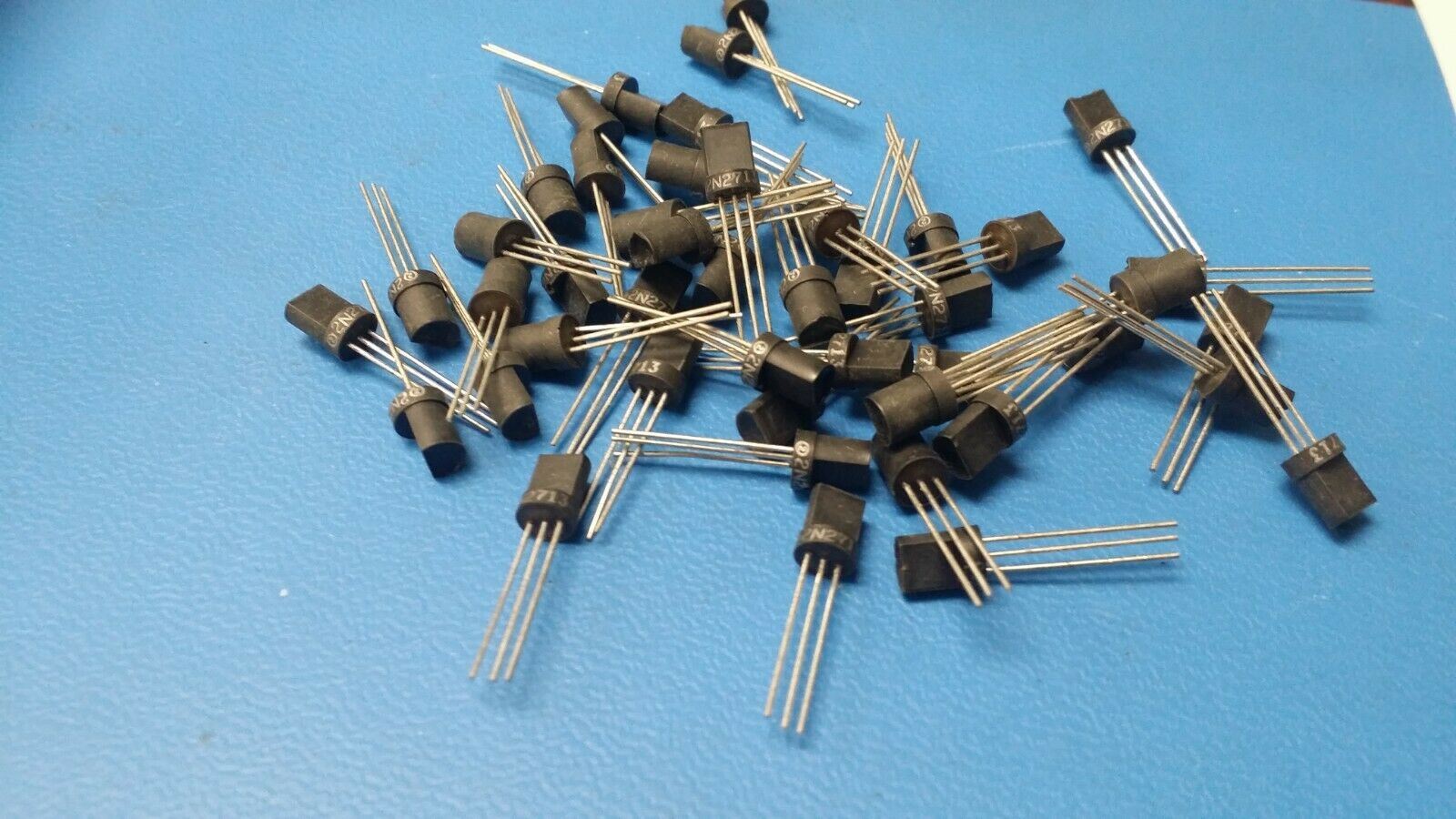

THIS IS FOR (25 PCS) OF 2N2713 BY SPRAGUE
Trans GP BJT NPN 30V 0.5A 3-Pin
Collector Current 500 mA
Collector to Base Voltage 50 V
Collector to Emitter Voltage 30 V
Configuration Common Base
Continuous Collector Current 500 mA
Device Dissipation 0.625 W
Dimensions 5.2 x 4.2 x 5.33 mm
Emitter to Base Voltage 5 V
Junction to Ambient Thermal Resistance 200 °C⁄W
Material Si
Material Type Silicon
Maximum DC Current Gain 300
Maximum Operating Temperature +150 °C
Minimum DC Current Gain 100
Minimum Operating Temperature -55 °C
Mounting Type Through Hole
Number of Elements per Chip 1
Number of Pins 3
Operating Frequency 100 MHz
Package Type TO-92
Polarity NPN
Power Dissipation 625 mW
Primary Type Si
Product Header Silicon NPN Transistor
Resistance, Thermal, Junction to Case 83.3 °C/W
Series Transistor Series
Temperature Operating Range -55 to +150 °C
Temperature Range, Junction, Operating -55 to +150 C
Transistor Polarity NPN
Transistor Type NPN
Type Amplifier, Driver
UPC Code 768249356110
Voltage, Breakdown, Collector to Emitter 30 V
Voltage, Collector to Emitter, Saturation 0.6 V
