(25 PC) PM1008-R47K Ind Chip Wirewound 470nH 10% 25MHz 45Q-Factor Ceramic 470mA
(25 PC) PM1008-R47K Ind Chip Wirewound 470nH 10% 25MHz 45Q-Factor Ceramic 470mA
(25 PC) PM1008-R47K Ind Chip Wirewound 470nH 10% 25MHz 45Q-Factor Ceramic 470mA

(25 PC) PM1008-R47K Ind Chip Wirewound 470nH 10% 25MHz 45Q-Factor Ceramic 470mA

Tax included.
Only 77 left!

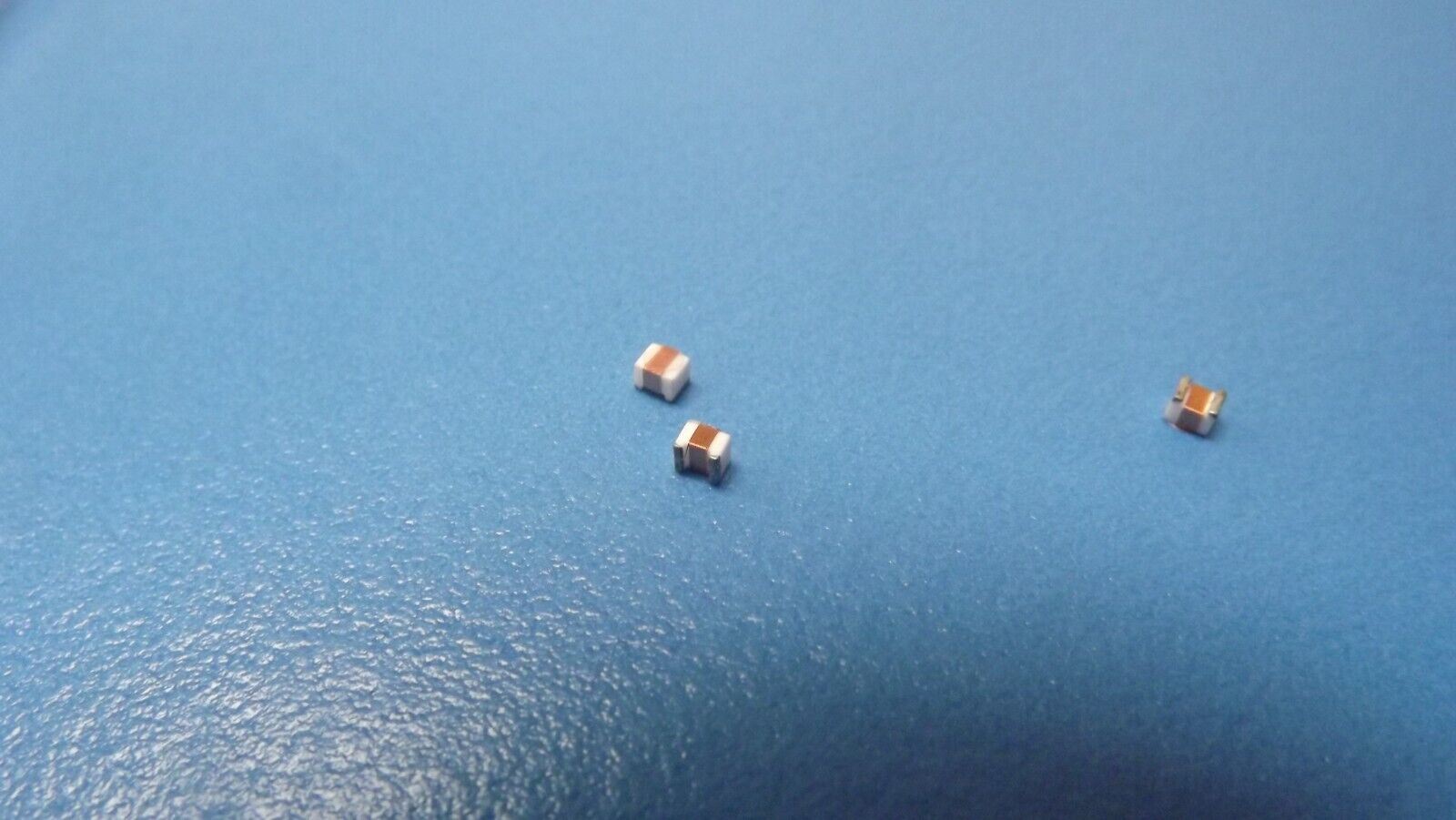

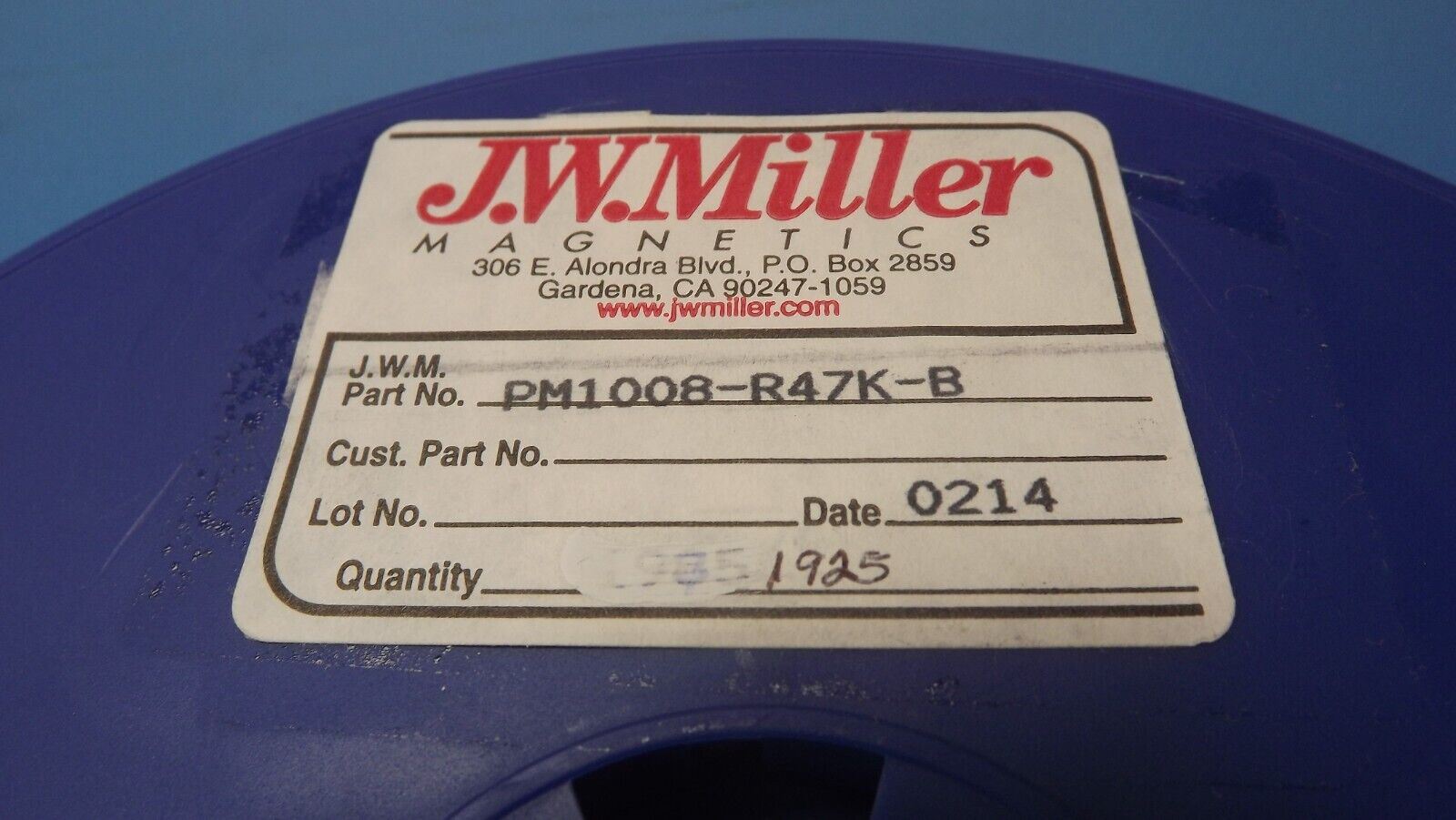

This listing is for (25 PC) PM1008-R47K Ind Chip Wirewound 470nH 10% 25MHz 45Q-Factor Ceramic 470mA

Manufacturer: Bourns
Product Category: RF Inductors - SMD
RoHS: Details
Type: Wirewound
Termination Style: SMD/SMT
Package / Case: 1008 (2520 metric)
Shielding: Unshielded
Inductance: 470 nH
Tolerance: 10 %
Maximum DC Current: 470 mA
Maximum DC Resistance: 1.19 Ohms
Saturation Current: -
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Q Minimum: 45
Mounting Style: PCB Mount
Length: 2.5 mm
Width: 2 mm
Height: 1.6 mm
Diameter: -
Core Material: Ceramic
Series: PM1008

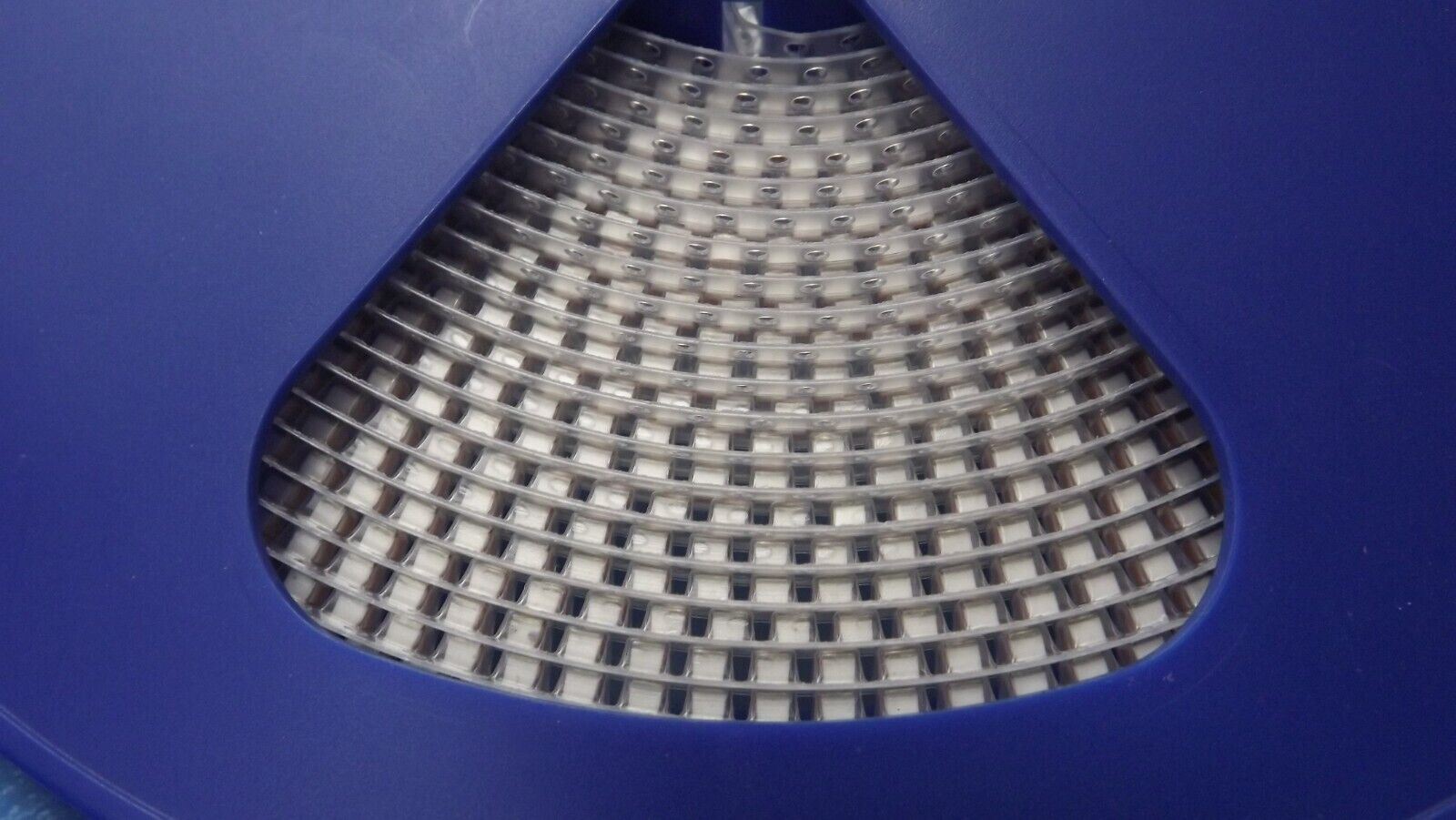

Packaging: Reel
Packaging: Cut Tape
Packaging: MouseReel
Application: RF
Brand: Bourns
Case Code - in: 1008
Case Code - mm: 2520
Core Type: Wirewound
Product: RF Inductors
Product Type: RF Inductors - Leaded
Self Resonant Frequency: 450 MHz
2000
Subcategory: Inductors, Chokes & Coils
Termination: Standard
Test Frequency: 25 MHz
Unit Weight: 0.000988 oz
