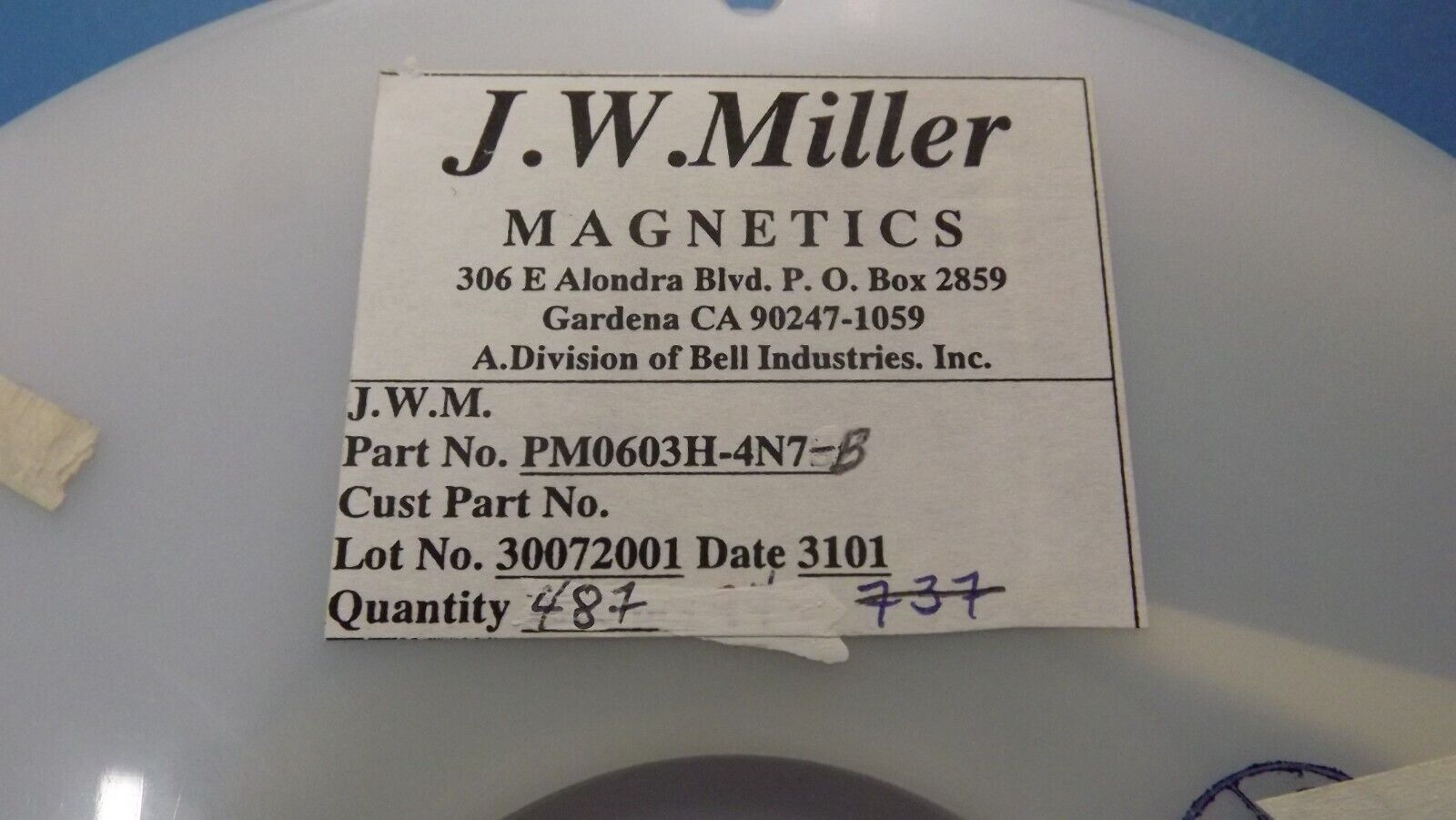

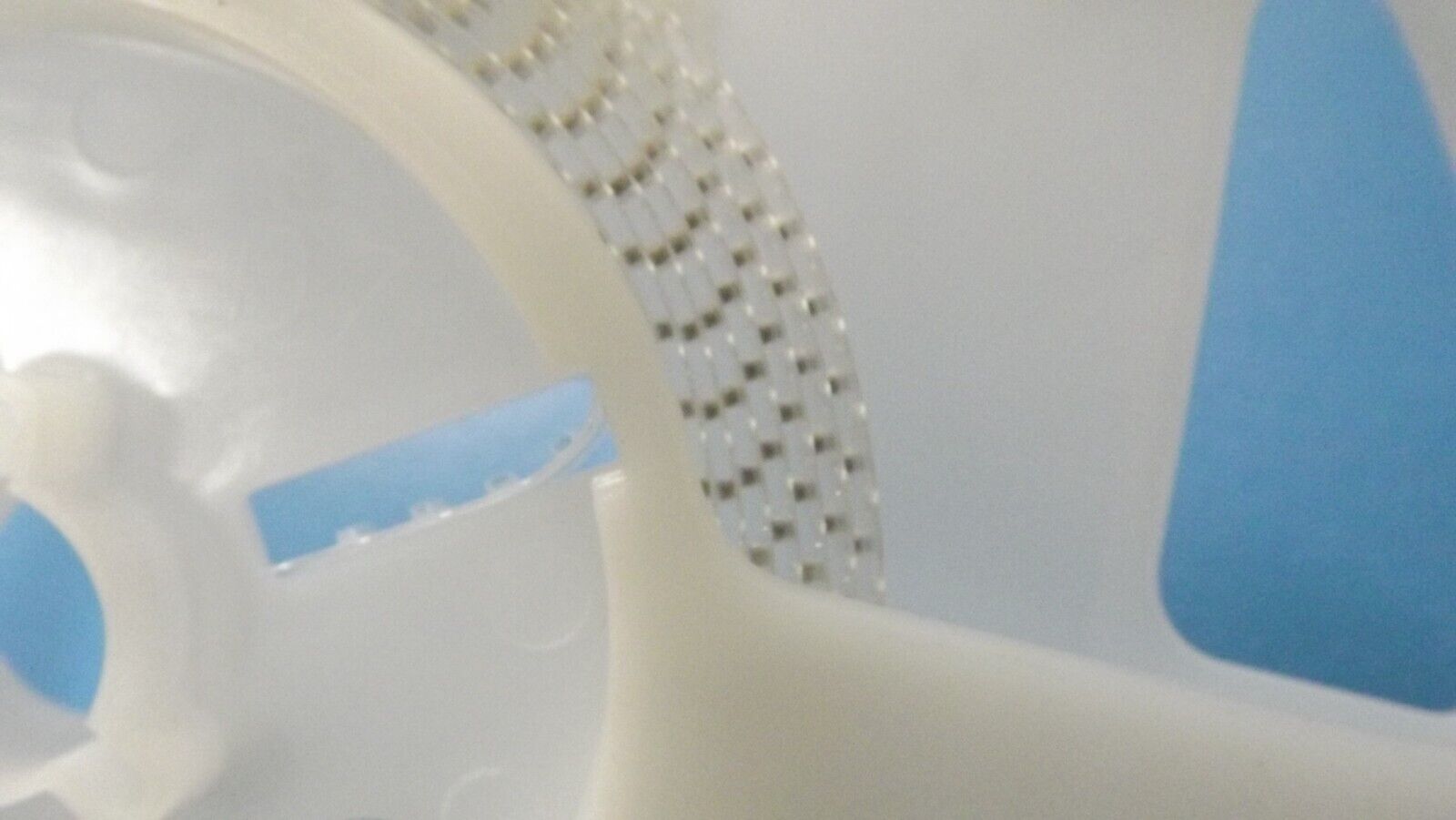

(25 PC) PM0603H-4N7 4.7 nH Unshielded Multilayer Inductor 300 mA 160mOhm

$4.95
Unit price per

Tax included.

SPECIFICATIONS

Mfr Package Description CHIP, 0603

REACH Compliant Yes

Status Discontinued

Inductor Type GENERAL PURPOSE INDUCTOR

Case/Size Code 0603

Construction Monolithic

Core Material FERRITE

DC Resistance 0.16 ohm

Inductance-Nom (L) 0.0047 µH

Inductor Application RF INDUCTOR

Number of Functions 1

Number of Terminals 2

Operating Temperature-Min -25.0 Cel

Operating Temperature-Max 105.0 Cel

Package Height 0.8 mm

Package Length 1.6 mm

Package Width 0.8 mm

Packing Method TR

Quality Factor-Min (at L-nom) 13.0

Rated Current-Max 0.3 A

Self Resonance Frequency 4800.0 MHz

Series PM0603H

Shape/Size Description RECTANGULAR PACKAGE

Shielded NO

Special Feature INDUCTANCE TOLERANCE IS 0.3 NANO HENRY

Surface Mount YES

Terminal Placement DUAL ENDED

Terminal Shape WRAPAROUND

Test Frequency 100.0 MHz

Tolerance 6.383 %
