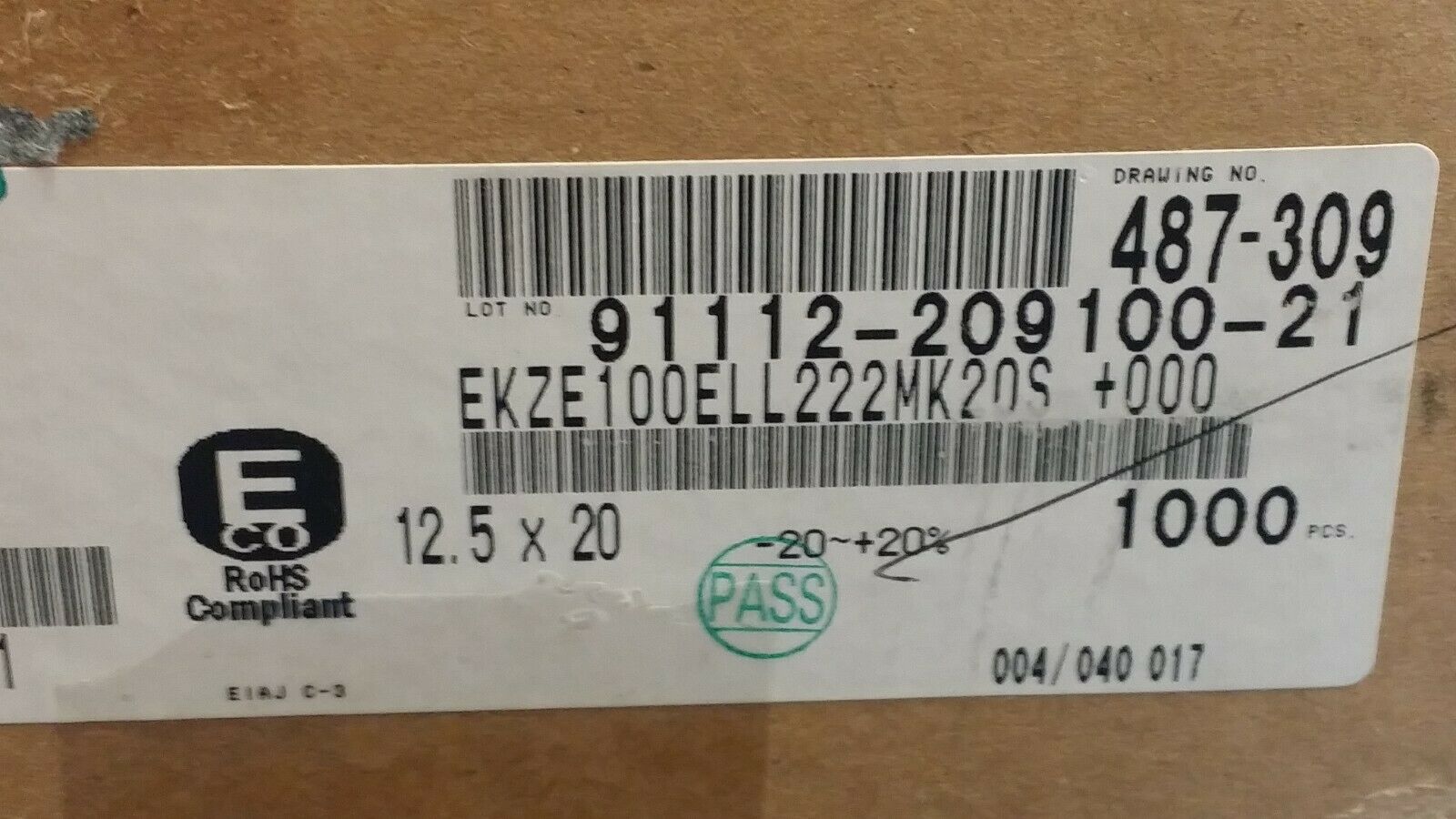

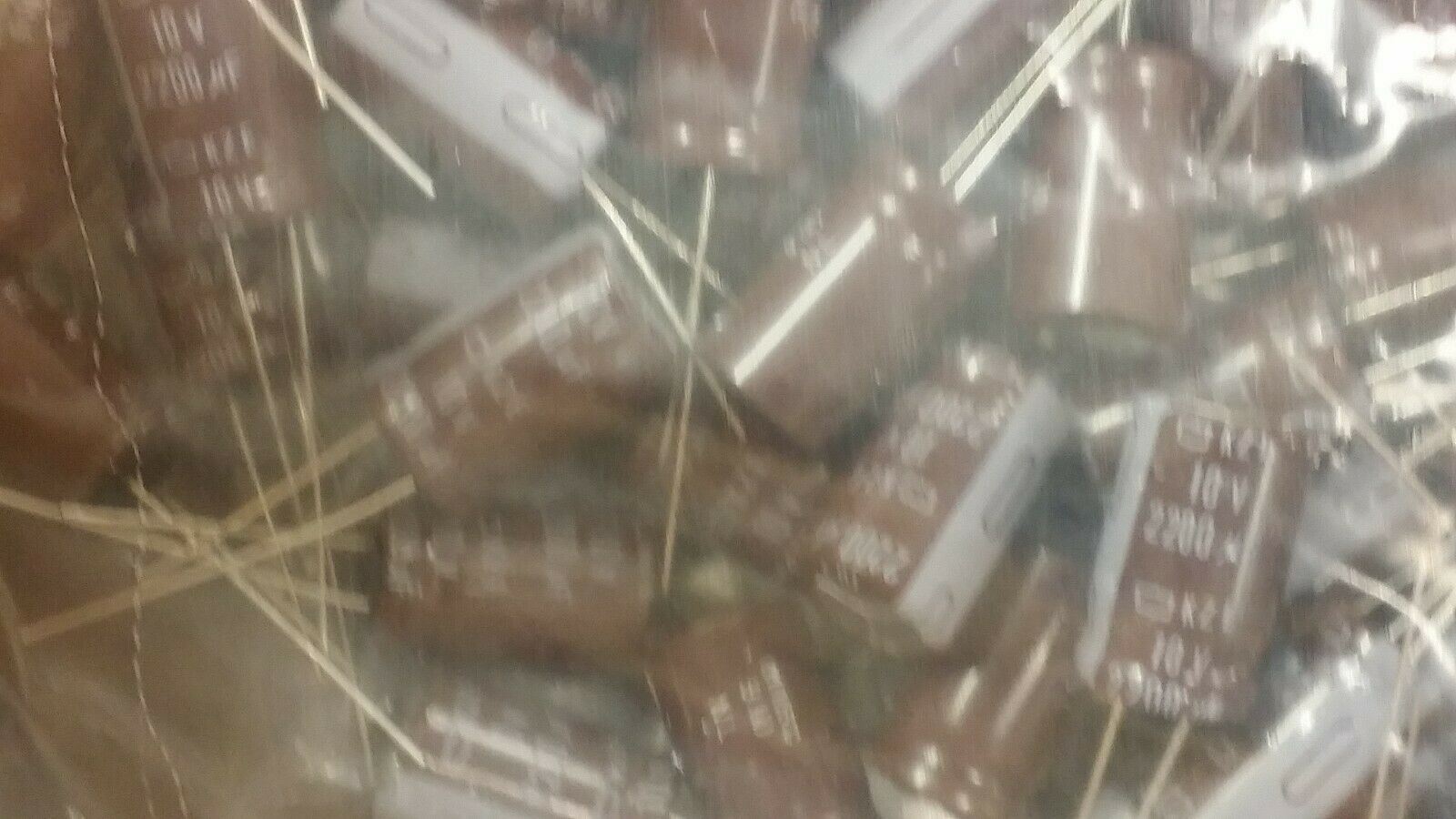

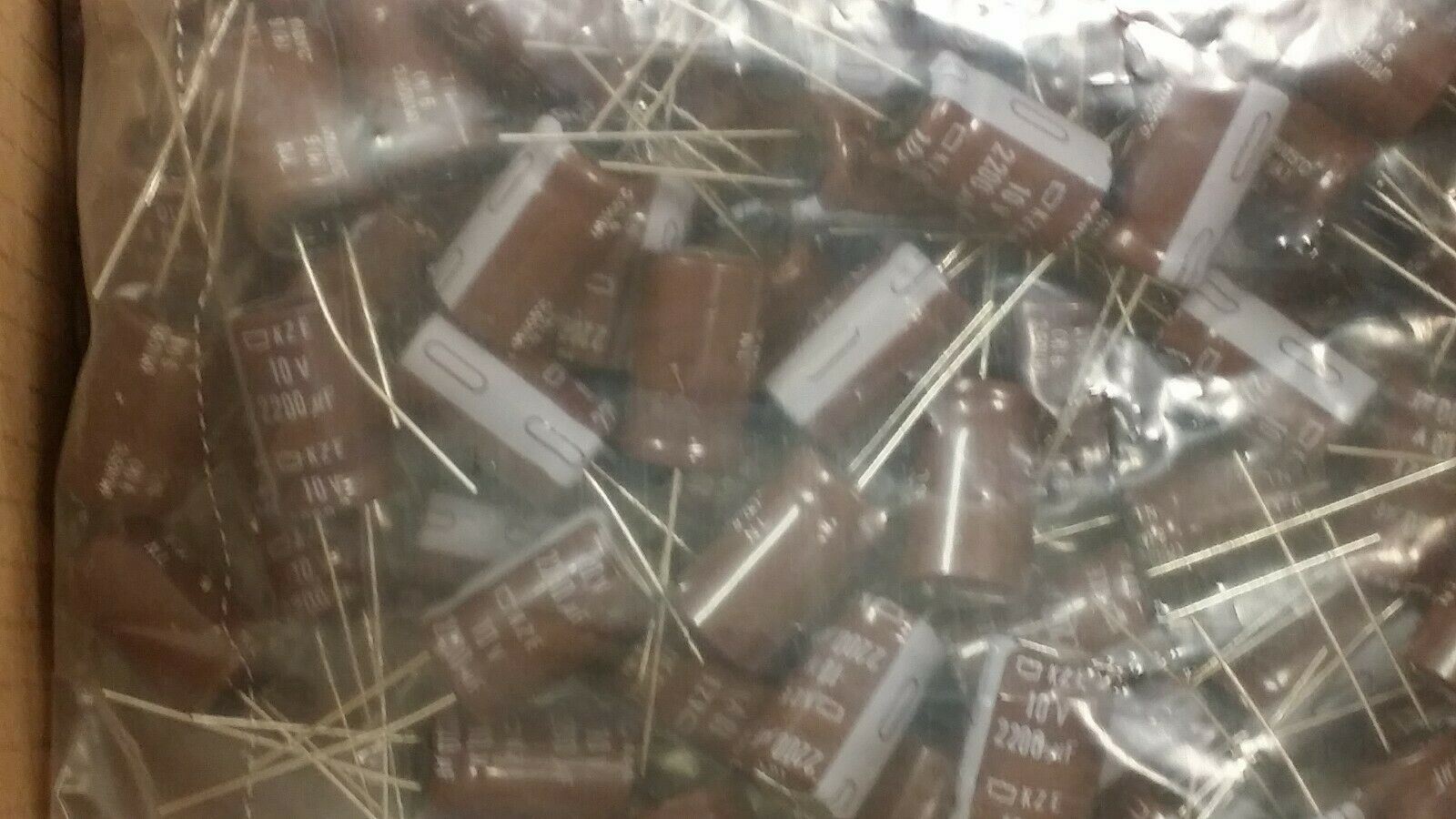

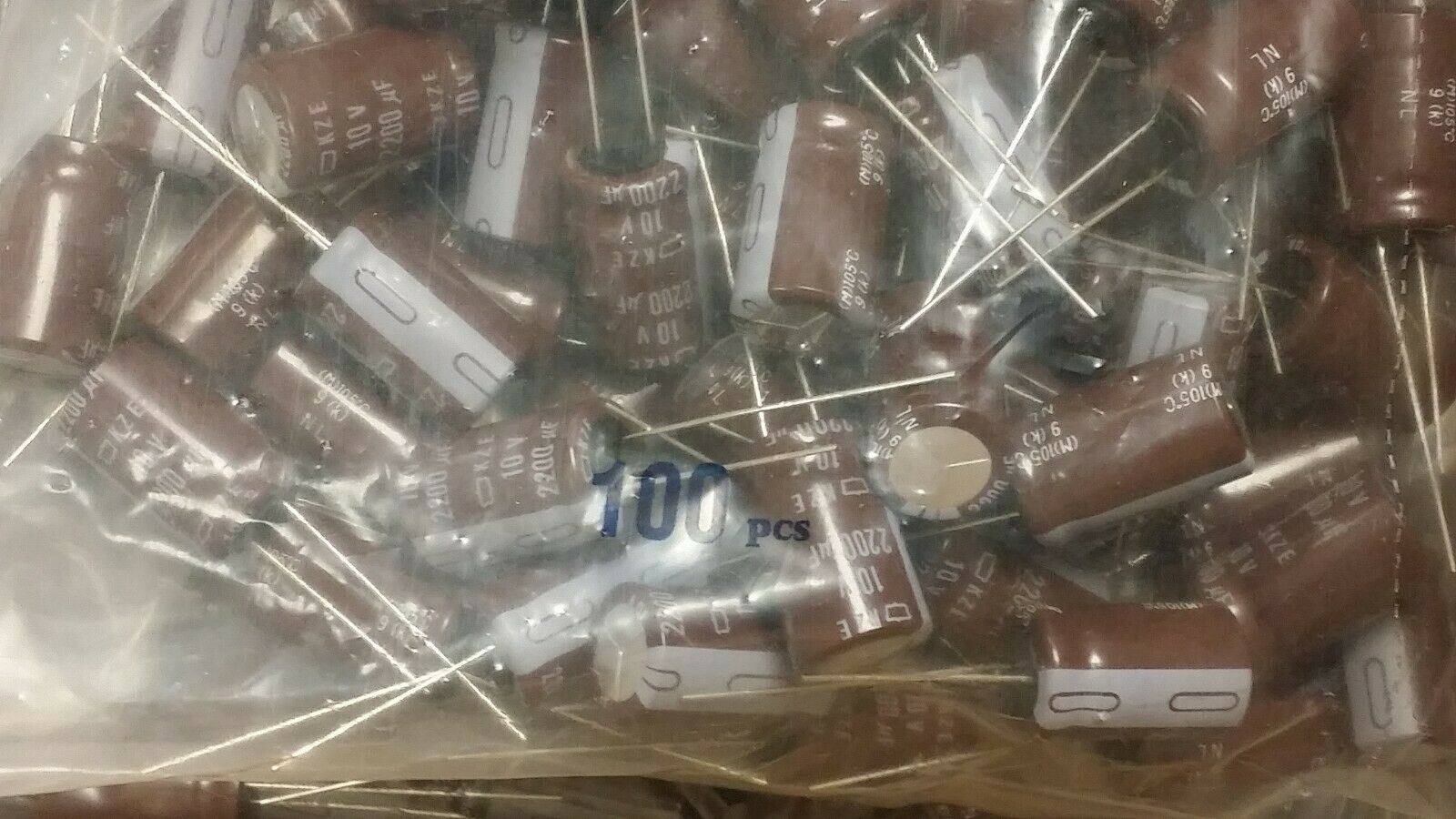

THIS LISTING IS FOR (25 PCS) OF EKZE100ELL222MK20S BY UCC
CAP ALUM 2200uF 10V 20% Radial 2360mA 5000h 105°C

Manufacturer United Chemi-Con
Series KZE
Packaging Bulk
Part Status Active
Capacitance 2200µF
Tolerance ±20%
Voltage - Rated 10V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Operating Temperature -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.77A @ 120Hz
Ripple Current @ High Frequency 2.36A @ 100kHz
Impedance 21 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
