(25 PC) BD675A, BD675AS FSC Trans Darlington NPN 45V 4A 3-Pin(3+Tab) TO-126 ROHS
Tax included.

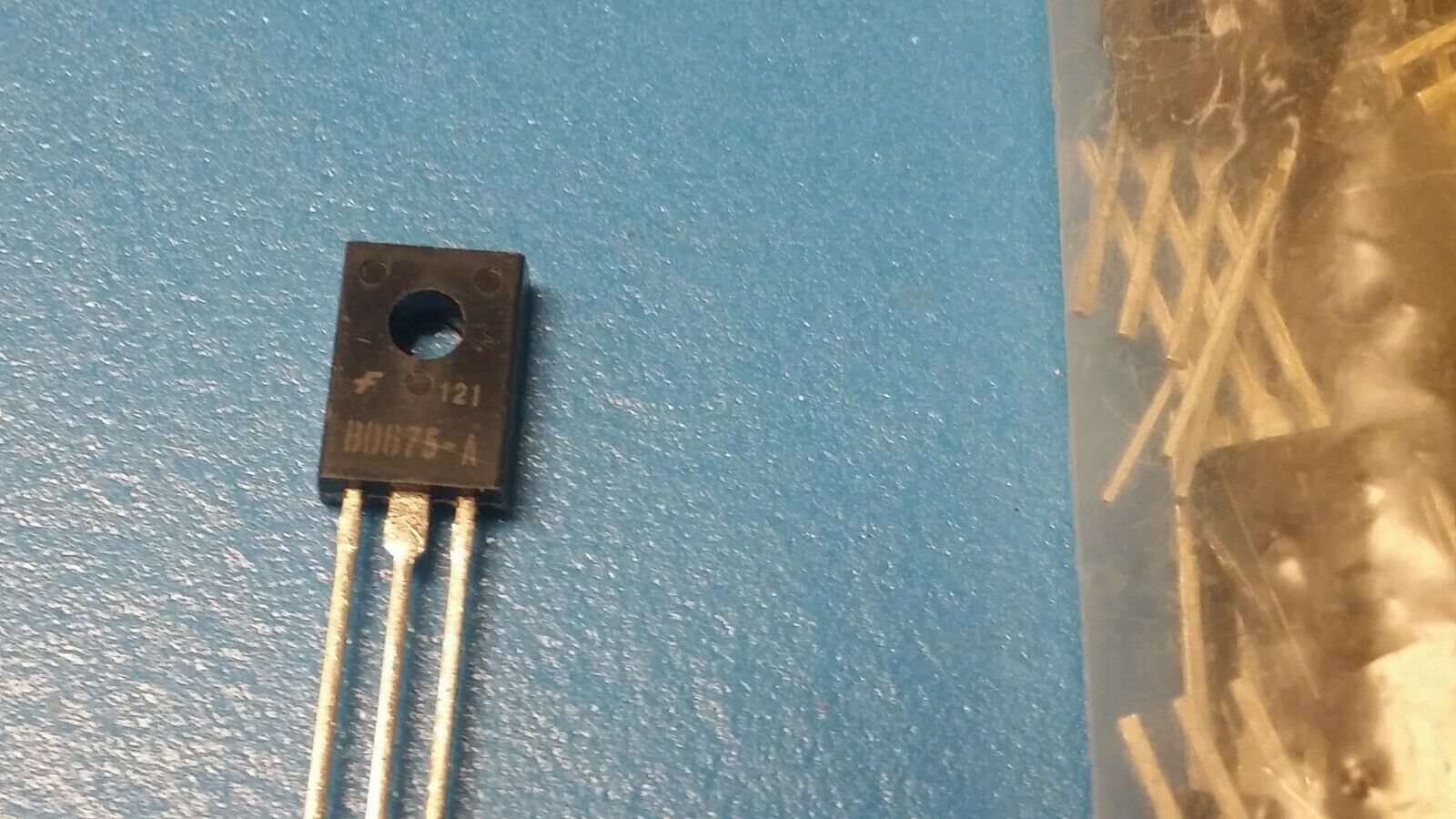

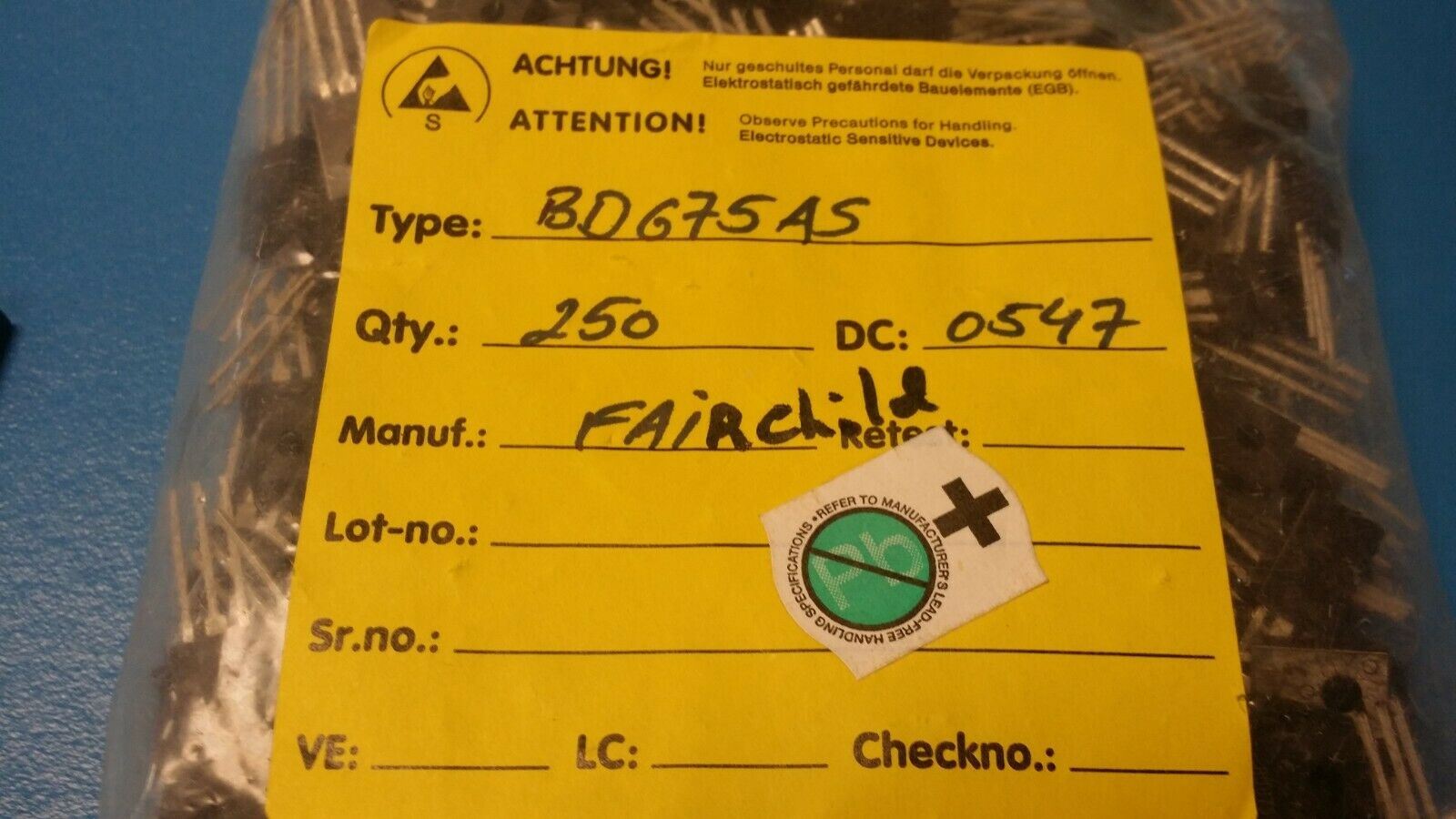

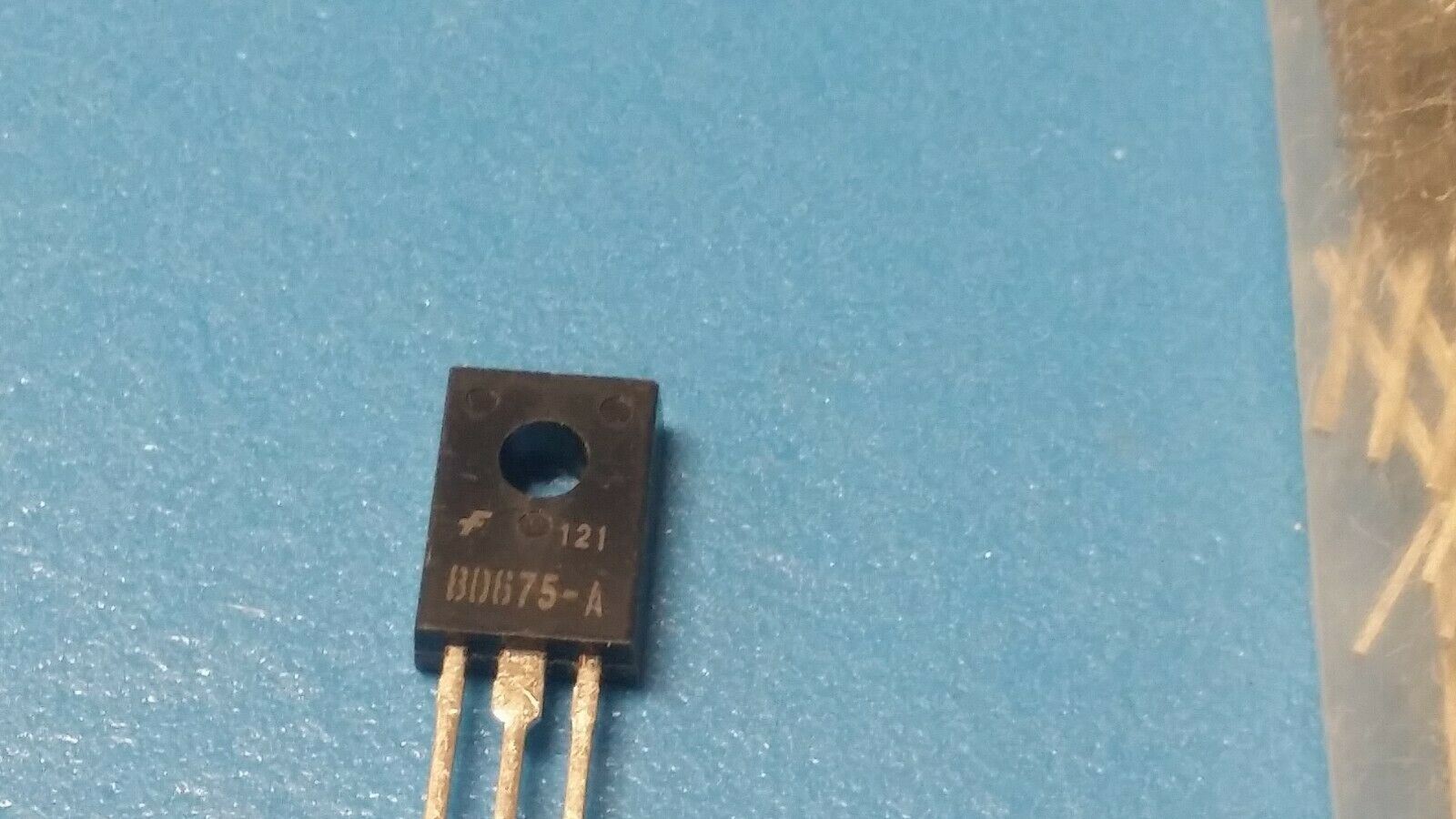

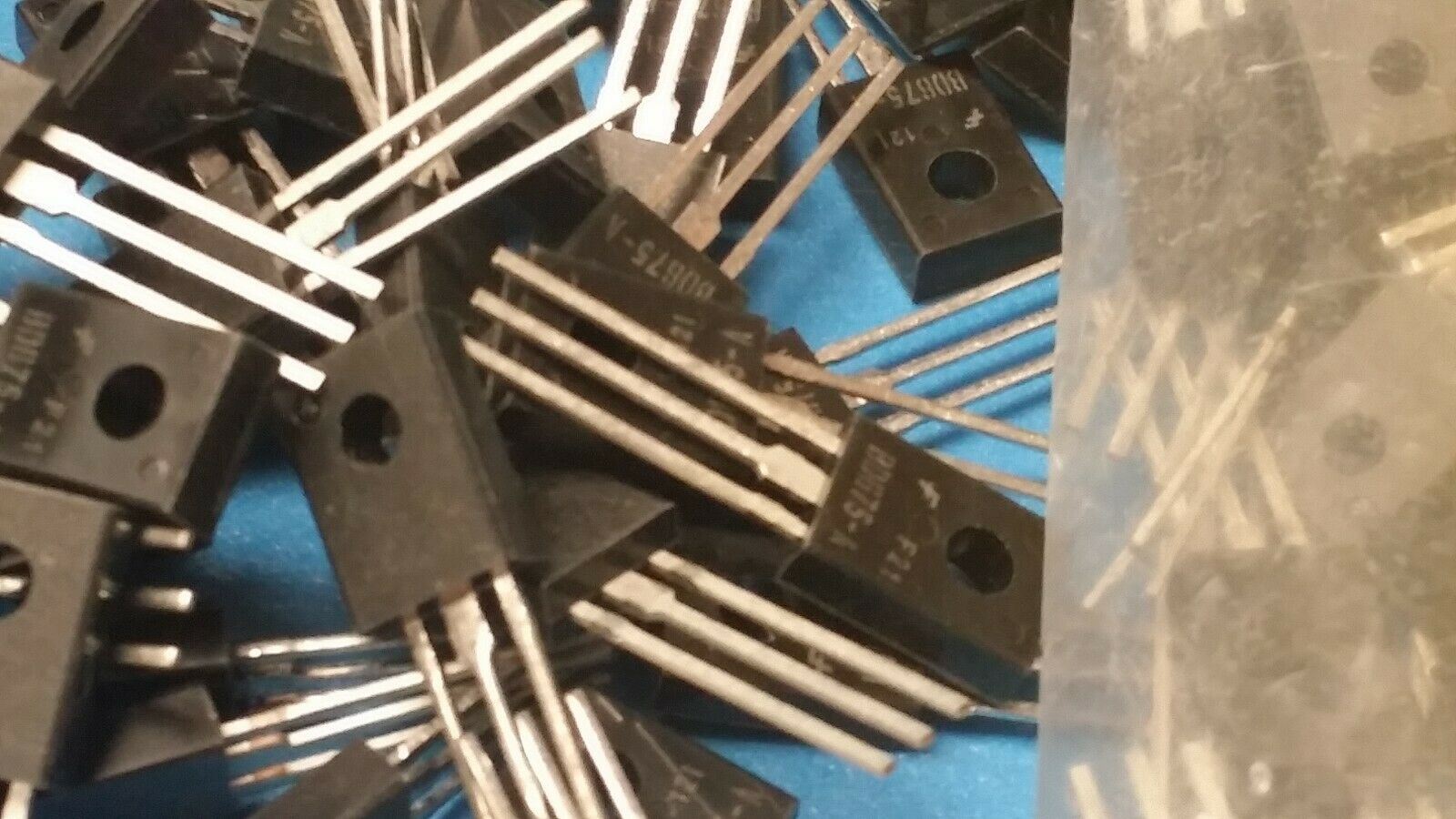

THIS LISTING IS FOR (25 PCS) OF BD675A, BD675AS BY FSC
Trans Darlington NPN 45V 4A 3-Pin(3+Tab) TO-126 ROHS
Part #: BD675AS
Part Category: Transistors
Manufacturer: Fairchild Semiconductor
Description: Power Bipolar Transistor, 4A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon, TO-126, Plastic/Epoxy, 3 Pin
REACH Compliant Yes
EU RoHS Compliant Yes
Status Transferred
Collector Current-Max (IC) 4.0 A
Collector-emitter Voltage-Max 45.0 V
Configuration DARLINGTON
DC Current Gain-Min (hFE) 750.0
JEDEC-95 Code TO-126
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 40.0 W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 10.0 MHz
