(25 PC) AT90S8515-4AC ATMEL 8-bit Microcontrollers - MCU 8K Flash 3V 44TQFP

$221.95
Unit price per

Tax included.

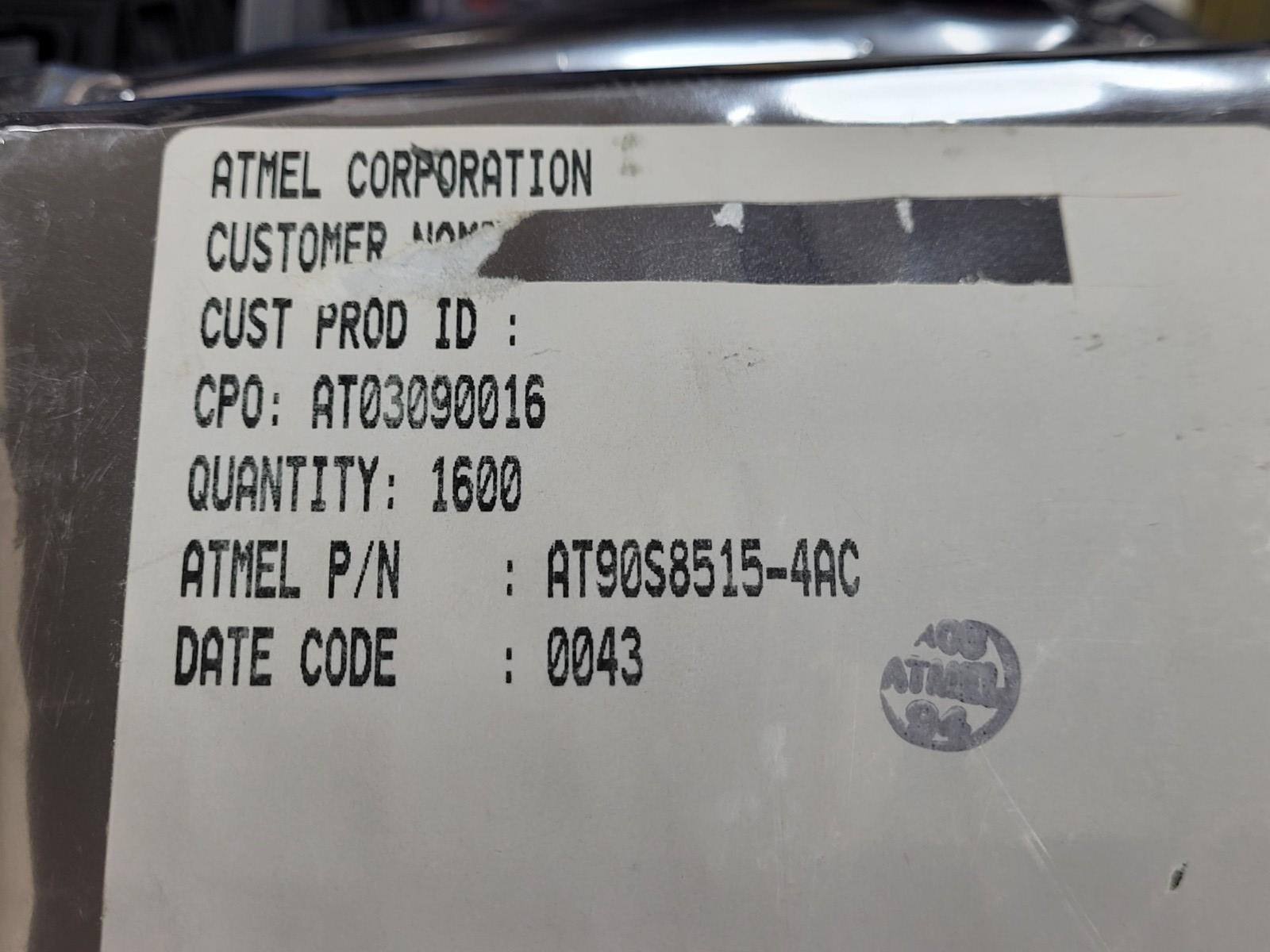

THIS IS FOR (1 PC) OF AT90S8515-4AC BY ATMEL

8-bit Microcontrollers - MCU 8K Flash 3V 44TQFP

Part #: AT90S8515-4AC

Obsolete

Part Category: Microcontrollers

Manufacturer: ATMEL CORP

Description: Microcontroller, 8-Bit, FLASH, AVR RISC CPU, 4MHz, CMOS, PQFP44

Status Discontinued

ADC Channels NO

Additional Feature 512 BYTES SRAM; 512 BYTES EEPROM; ANALOG COMPARATOR; PRESCALER

Address Bus Width 16

Bit Size 8

Boundary Scan NO

CPU Family AVR RISC

Clock Frequency-Max (MHz) 4.0000000000000000

DAC Channels NO

DMA Channels NO

External Data Bus Width 8

JESD-30 Code S-PQFP-G44

J-STD-609 Code e0

Length (mm) 10.0000

Number of I/O Lines 32

Number of Terminals 44

Program Memory Width (bits) 8

Operating Temperature-Max (Cel) 70.0000

Operating Temperature-Min (Cel) 0.0000

PWM Channels YES

Package Body Material PLASTIC/EPOXY

Package Code TQFP

Package Equivalence Code TQFP44,.47SQ,32

Package Shape SQUARE

Package Style FLATPACK, THIN PROFILE

DLA Qualification Not Qualified

Data RAM Size (bytes) 512

Program Memory Size (words) 4096

Program Memory Type FLASH

Seated Height-Max (mm) 1.2000

Speed (MHz) 4.00000000

Supply Voltage-Max (V) 6.0000

Supply Voltage-Min (V) 3.0000

Supply Voltage-Nom (V) 3.0000

Surface Mount YES

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch (mm) 0.800

Terminal Position QUAD

Width (mm) 10.0000

uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
