(25) MDC3105LT1G ONSEMI Power Switch/Driver 1:1 Bipolar 500mA SOT-23-3 ROHS
Tax included.

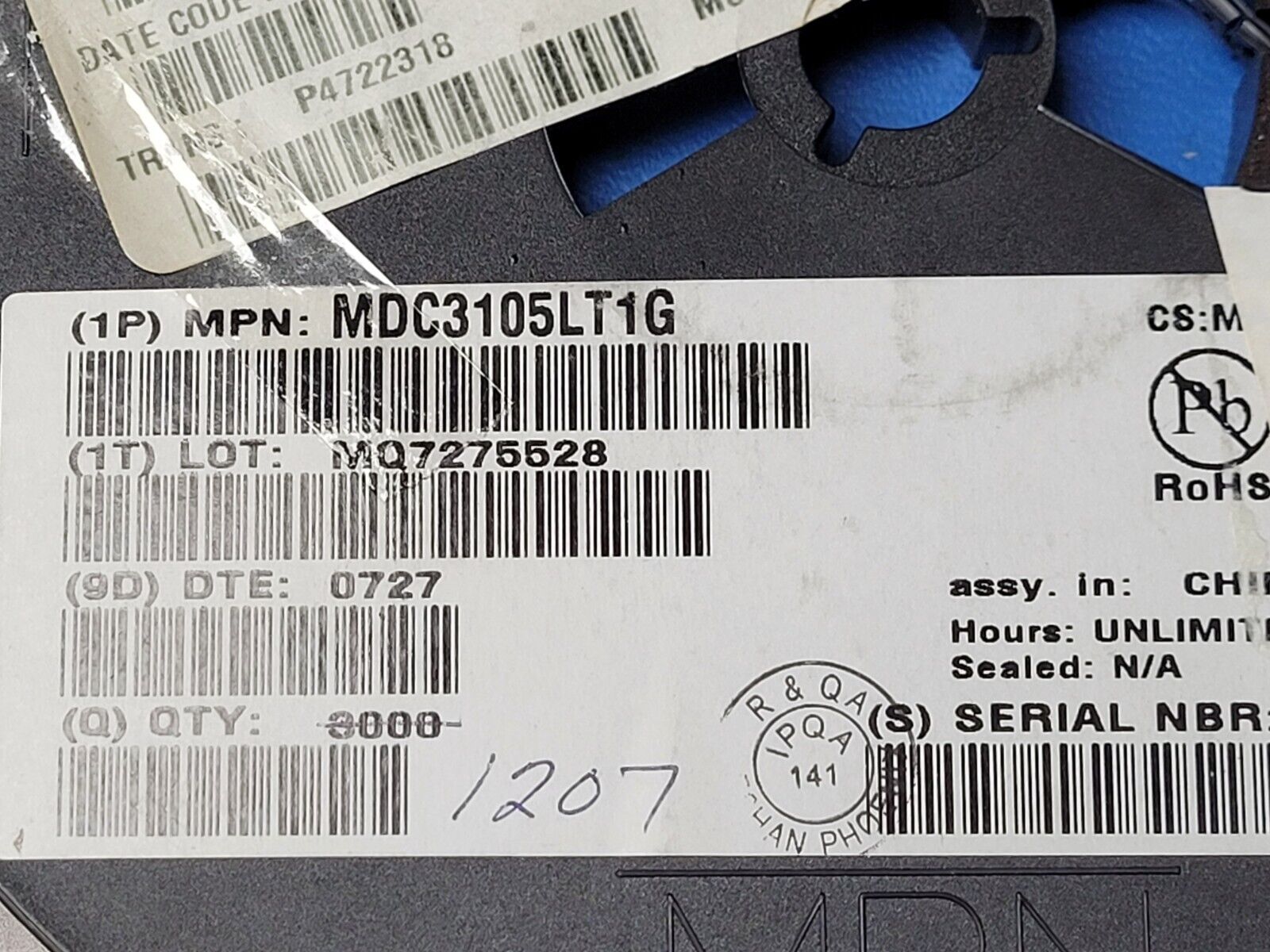

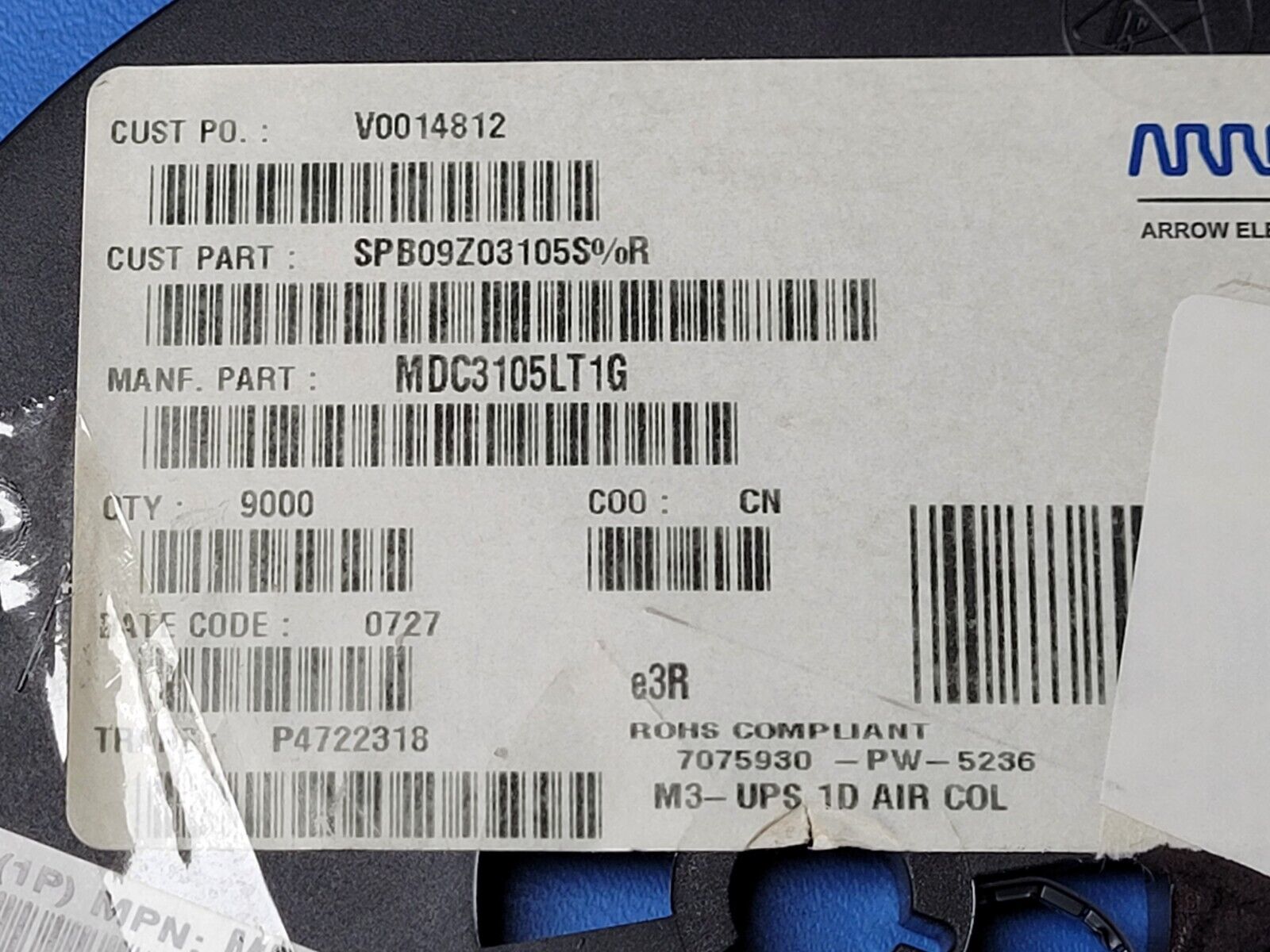

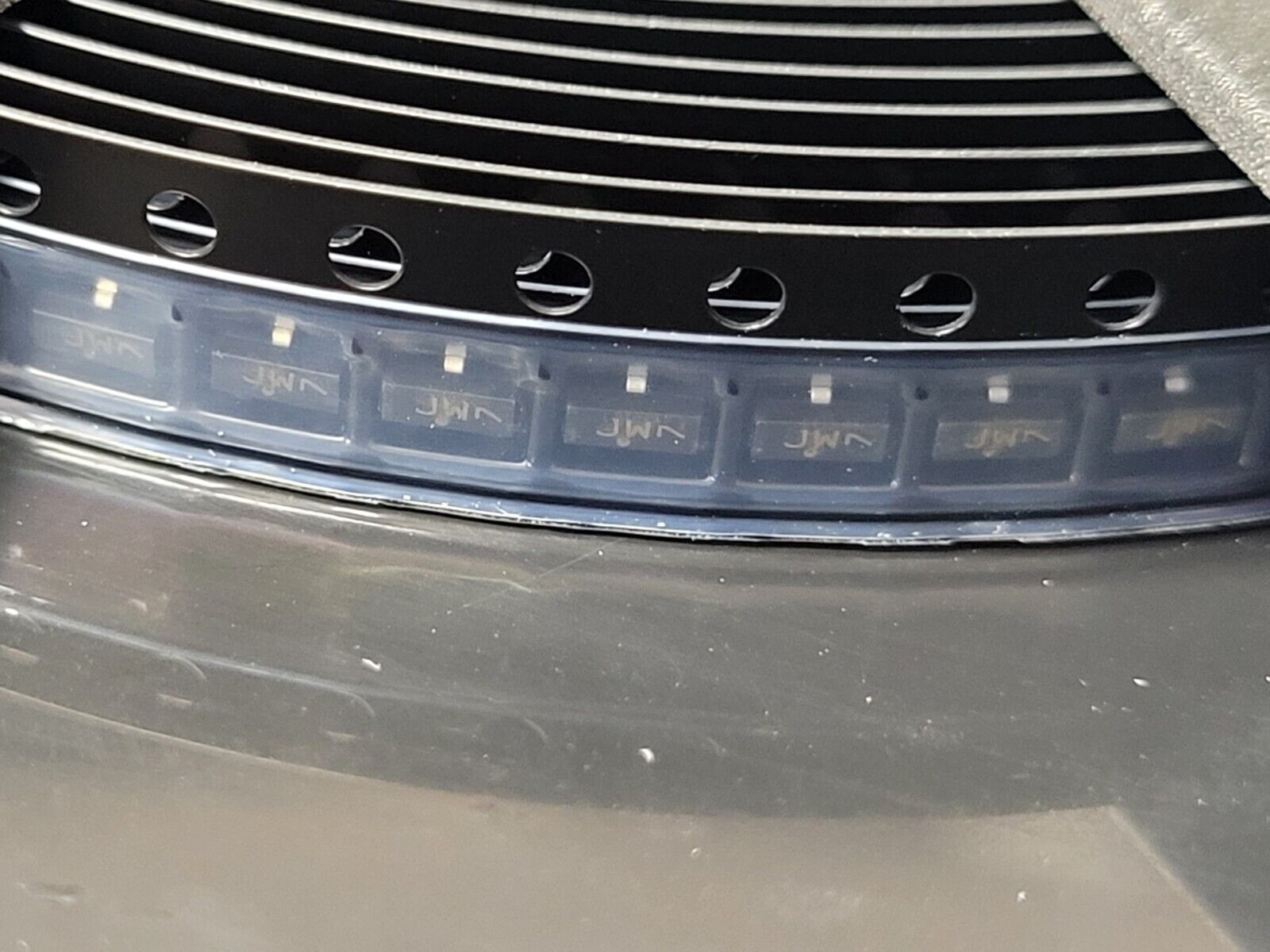

THIS IS FOR (25 PCS) OF MDC3105LT1G BY ONSEMI
Power Switch/Driver 1:1 Bipolar 500mA SOT-23-3 ROHS
Part #: MIC5255-3.3BM5
Part Category: Regulators
Manufacturer: Micrel, Inc.
Description: Fixed Positive LDO Regulator, 3.3V, 0.25V Dropout, CMOS, PDSO5
Mfr Package Description SOT-23, 5 PIN
Status Discontinued
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Adjustability FIXED
Dropout Voltage1-Nom 0.135 V
Dropout Voltage1-Max 0.25 V
Input Voltage Absolute-Max 7.0 V
Input Voltage-Min 2.7 V
Input Voltage-Max 6.0 V
JESD-30 Code R-PDSO-G5
JESD-609 Code e0
Line Regulation-Max 0.0028 V
Load Regulation-Max 0.0825 V
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 5
Operating Temperature, TJ-Min -40.0 Cel
Operating Temperature, TJ-Max 125.0 Cel
Output Current1-Max 0.15 A
Output Voltage1-Nom 3.3 V
Output Voltage1-Min 3.234 V
Output Voltage1-Max 3.366 V
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSOP5/6,.11,37
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 1.45 mm
Sub Category Other Regulators
Surface Mount YES
Technology CMOS
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tolerance-Max 2.0 %
Length 2.9 mm
Width 1.6 mm
