(25) MA7160A Panasonic Zener Diode 16.2V V(Z) 5.56% 0.8W Silicon Unidirectional

$6.95
Unit price per

Tax included.

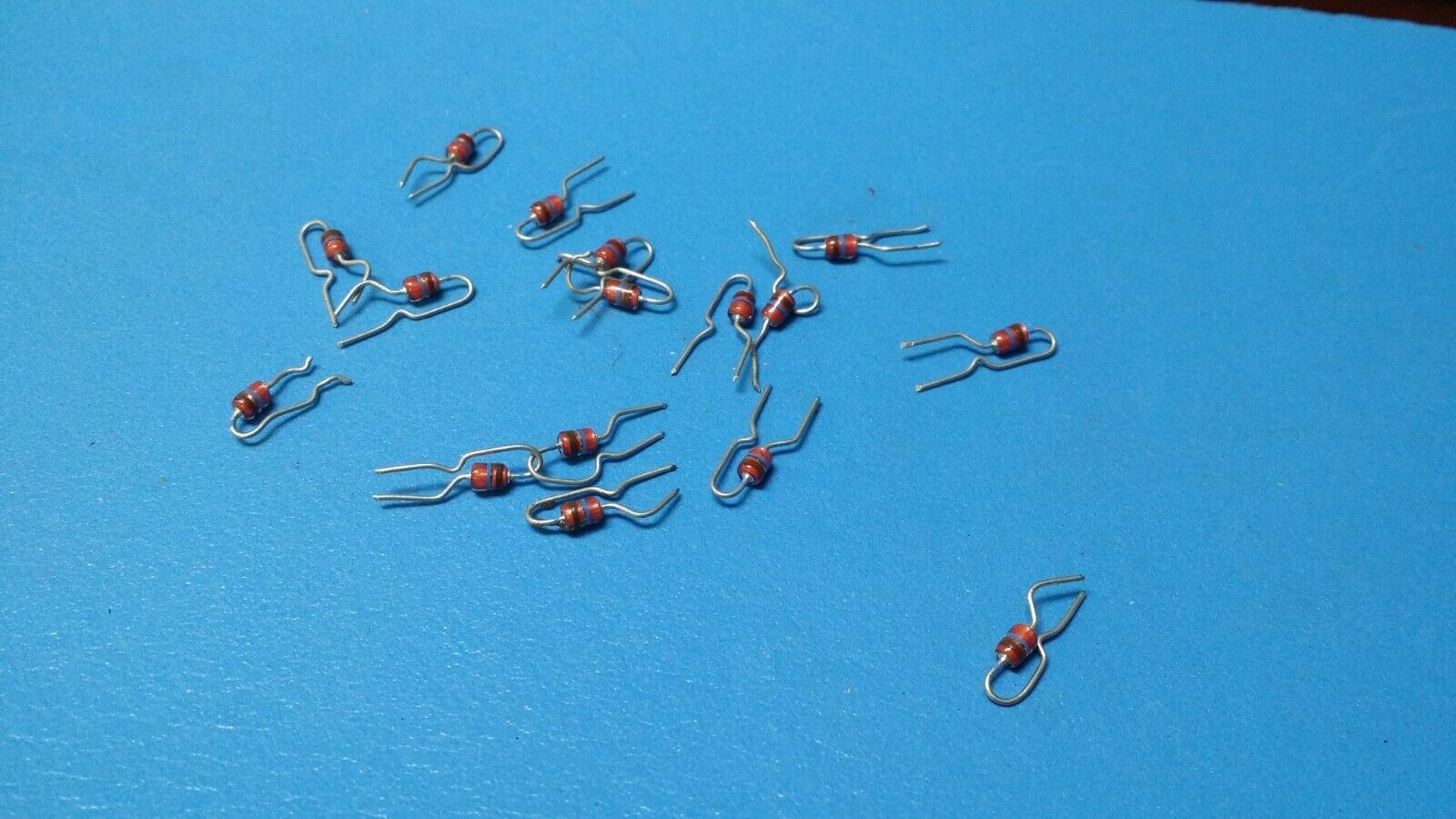

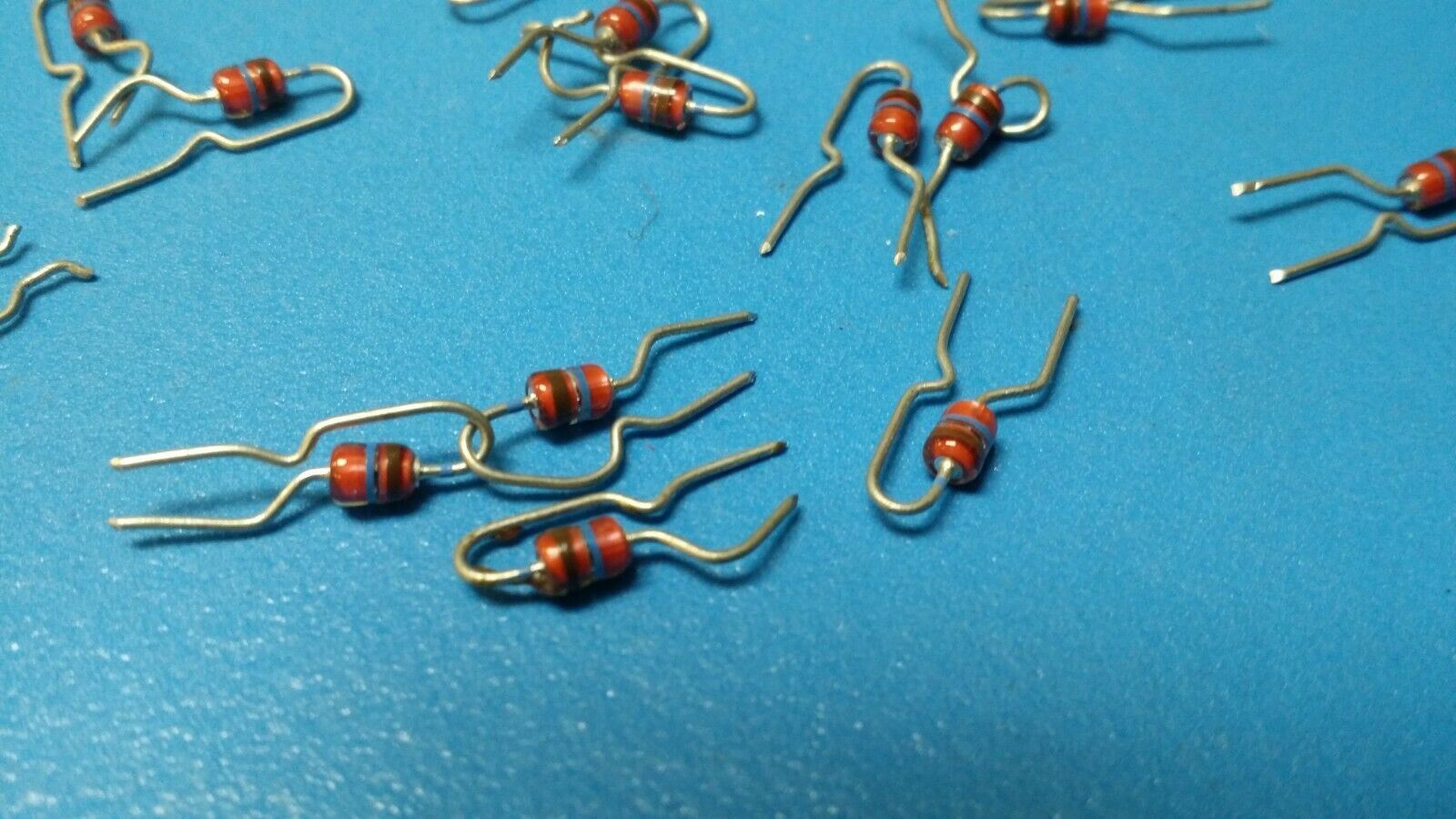

THIS LISTING IS FOR (25 PCS) OF MA7160A BY Panasonic

Zener Diode 16.2V V(Z) 5.56% 0.8W Silicon Unidirectional

Part #: MA7160

Part Category: Diodes

Manufacturer: Panasonic

Description: Zener Diode, 16.2V V(Z), 5.56%, 0.8W, Silicon, Unidirectional, DO-41

Mfr Package Description ROHS COMPLIANT, DO-41-A2, 2 PIN

EU RoHS Compliant Yes

Status Discontinued

Diode Type ZENER DIODE

Case Connection ISOLATED

Configuration SINGLE

Diode Element Material SILICON

JEDEC-95 Code DO-41

JESD-30 Code O-LALF-W2

Number of Elements 1.0

Number of Terminals 2

Package Body Material GLASS

Package Shape ROUND

Package Style LONG FORM

Peak Reflow Temperature (Cel) 260

Polarity UNIDIRECTIONAL

Power Dissipation-Max 0.8 W

Qualification Status Not Qualified

Reference Voltage-Nom 16.2 V

Surface Mount NO

Technology ZENER

Terminal Form WIRE

Terminal Position AXIAL

Time@Peak Reflow Temperature-Max (s) 10

Voltage Tol-Max 5.56 %

Working Test Current 20.0 mA
