(25) AT25F1024N-10SI-2.7 ATMEL FLASH Memory IC 1Mb (128K x 8) SPI 20 MHz 8-SOIC
Tax included.

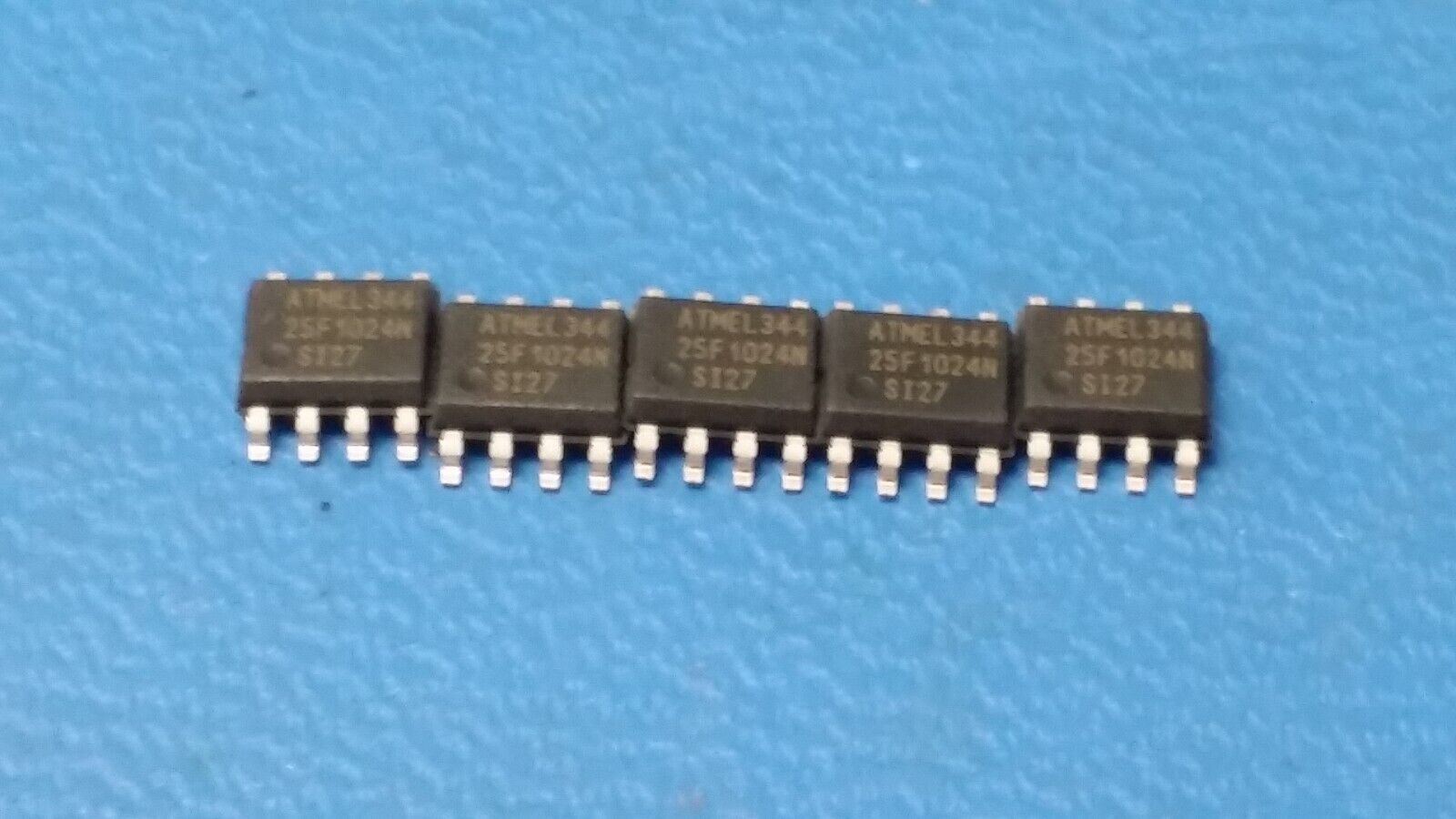

THIS IS FOR (25 PCS) OF AT25F1024N-10SI-2.7 BY ATMEL
FLASH Memory IC 1Mb (128K x 8) SPI 20 MHz 8-SOIC
Part #: AT25F1024N-10SI-2.7
Part Category: Memory ICs
Manufacturer: Atmel Corporation
Description: Flash, 128KX8, PDSO8
Mfr Package Description 0.150 INCH, PLASTIC, MS-012AA, SOIC-8
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Clock Frequency-Max (fCLK) 20.0 MHz
Endurance 10000.0 Write/Erase Cycles
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Memory Density 1048576.0 bit
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Number of Words 131072.0 words
Number of Words Code 128K
Operating Mode SYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 128KX8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial SERIAL
Peak Reflow Temperature (Cel) 240
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Serial Bus Type SPI
Standby Current-Max 1.0E-5 Amp
Supply Current-Max 0.03 Amp
Supply Voltage-Nom (Vsup) 3.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Write Cycle Time-Max (tWC) 10.0 ms
Write Protection HARDWARE/SOFTWARE
Length 4.9 mm
Width 3.9 mm
