(234PCS) M27V512-120N1 EPROM OTP 512K-Bit 64K x 8 120ns 28-Pin TSOP
Tax included.

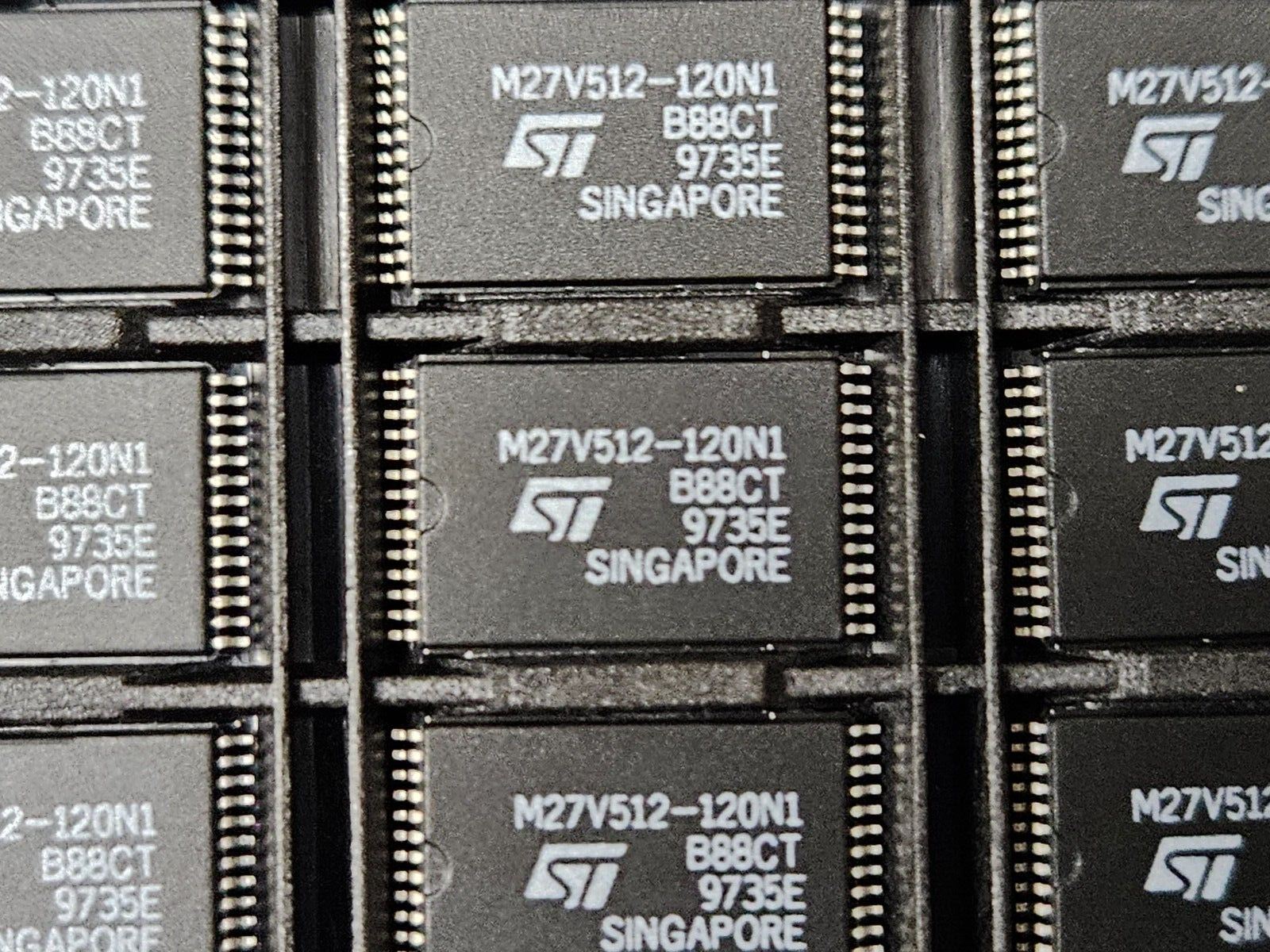

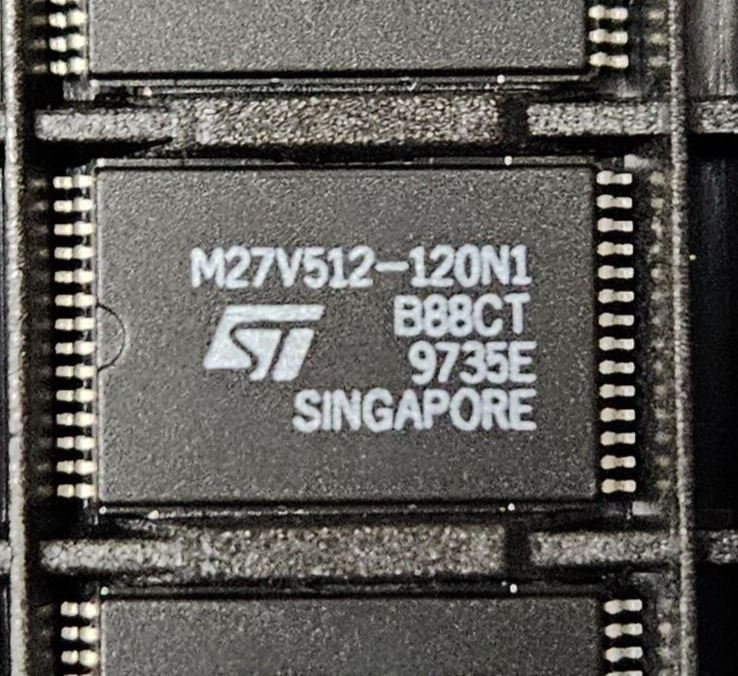

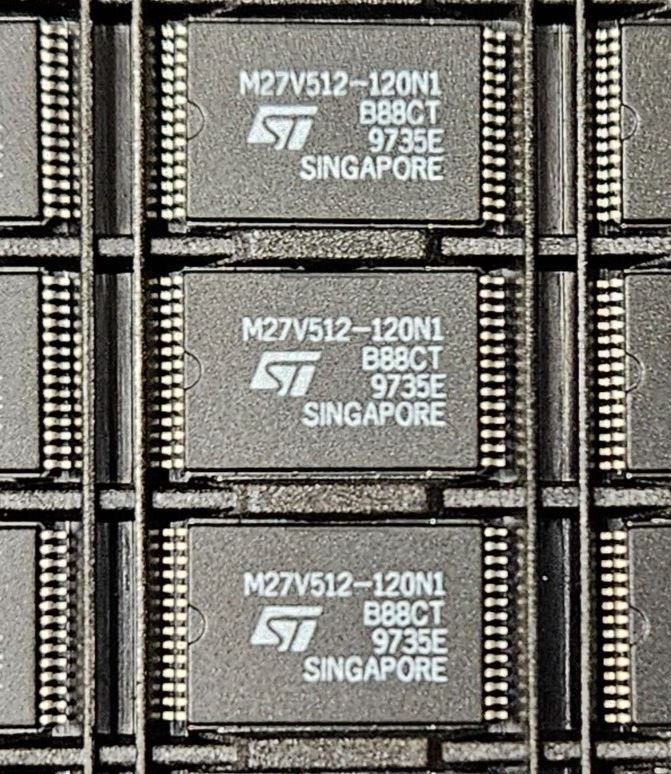

THIS LISTING IS FOR (234PCS) OF M27V512-120N1 BY ST MICROELECTRONICS

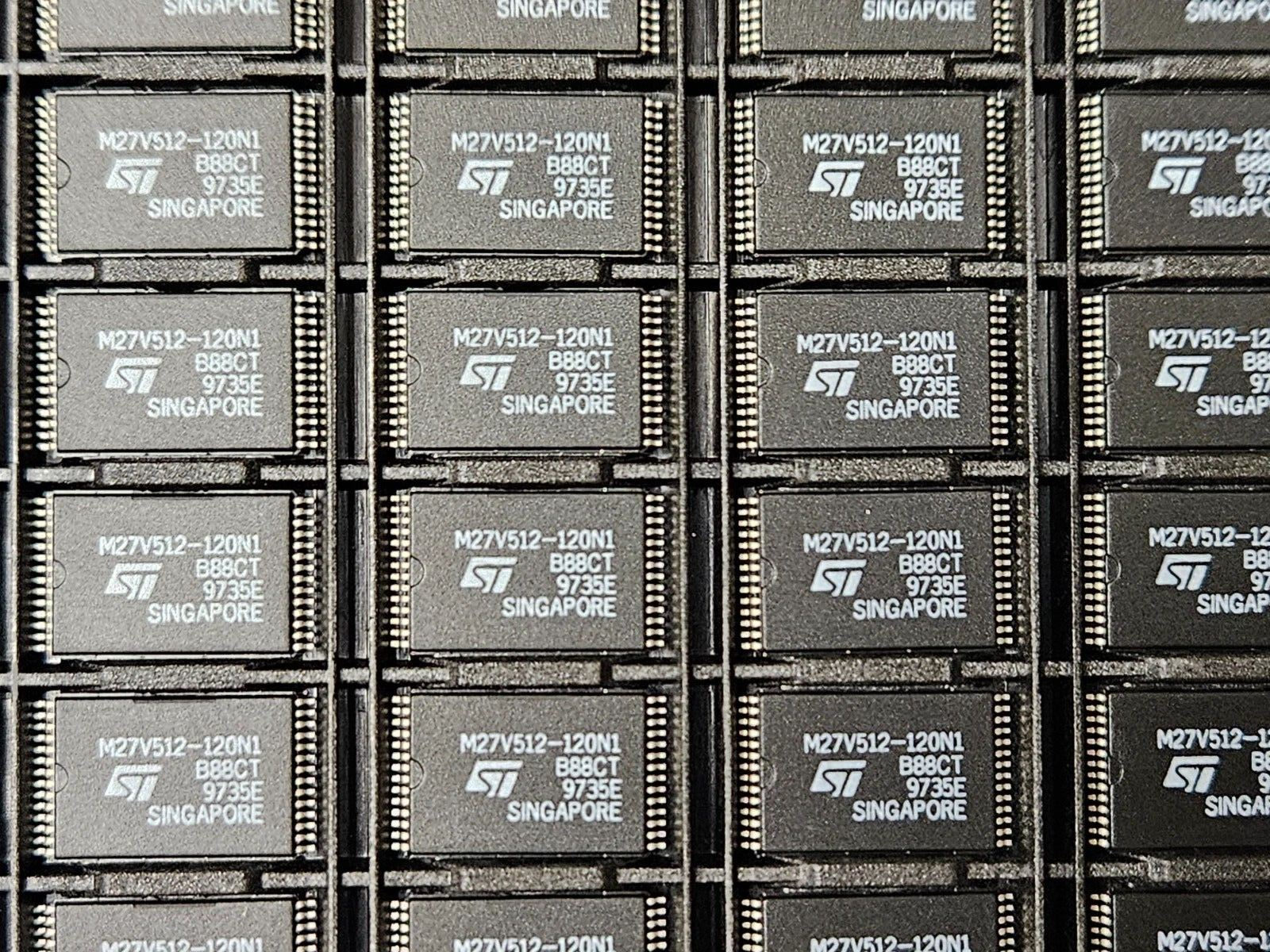

1 FULL TRAY 234 PIECES TOTAL
Mfr Package Description 8 X 13.40 MM, PLASTIC, TSOP-28
Status Discontinued
Sub Category OTP ROMs
Access Time-Max 120.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Memory Density 524288.0 bit
Memory IC Type OTP ROM
Memory Width 8
Number of Functions 1
Number of Terminals 28
Number of Words 65536.0 words
Number of Words Code 64K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 64KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Equivalence Code TSSOP28,.53,22
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.25 mm
Standby Current-Max 1.0E-5 Amp
Supply Current-Max 0.01 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.55 mm
Terminal Position DUAL
Length 11.8 mm
Width 8.0 mm
