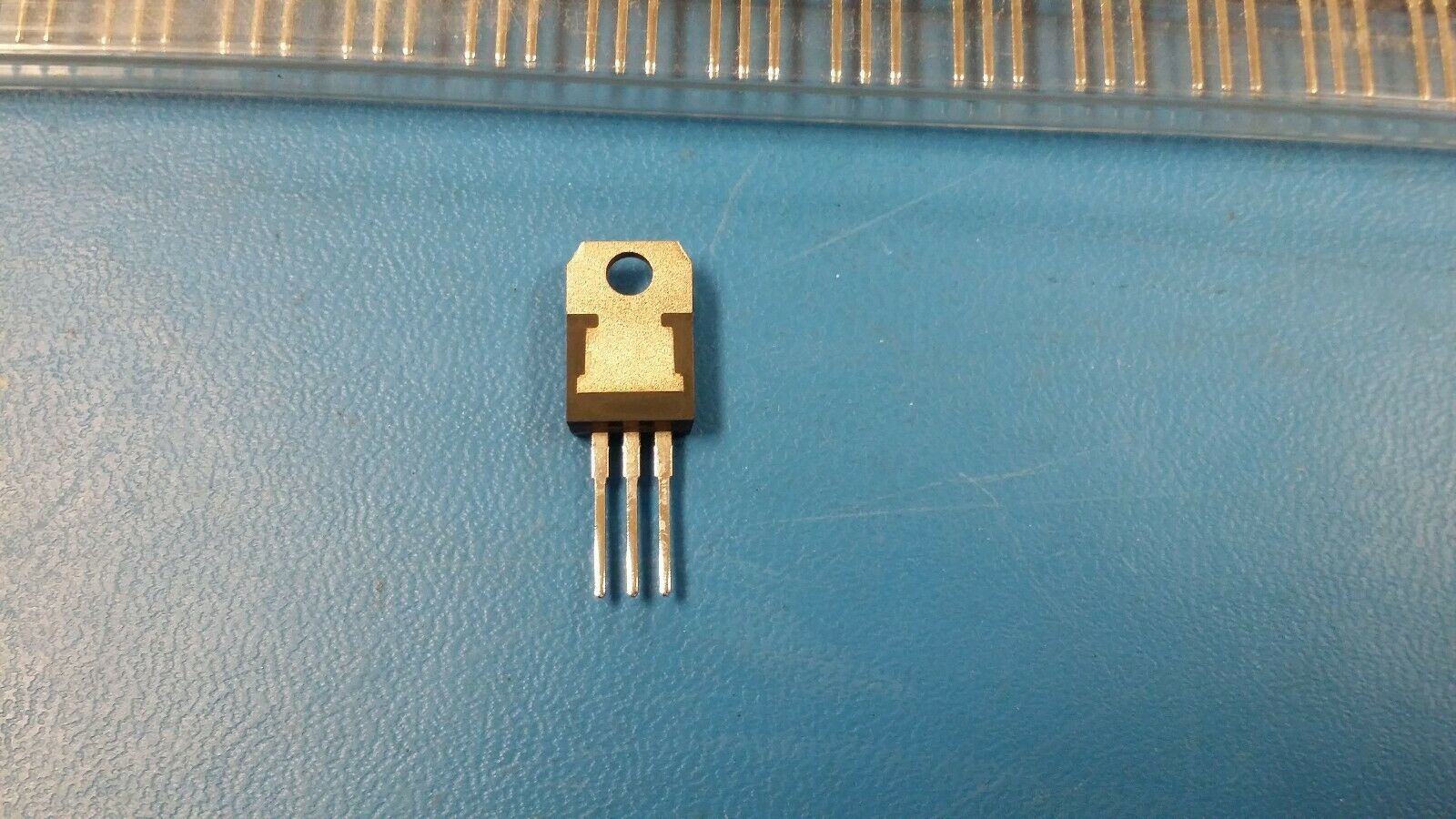

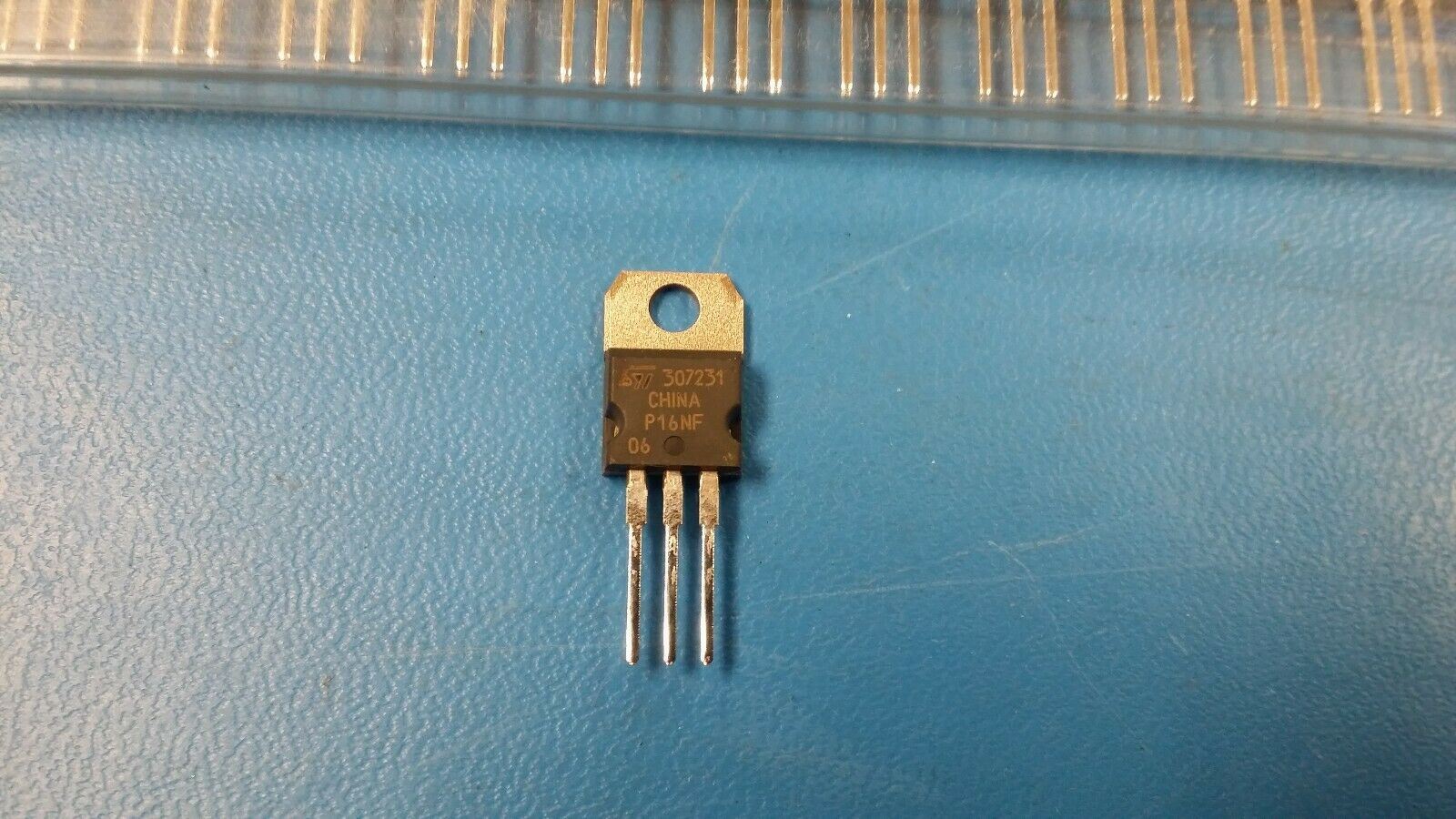

(20PCS) STP16NF06 STMicroelectronics MOSFET N-CH 60V 16A TO-220
Tax included.

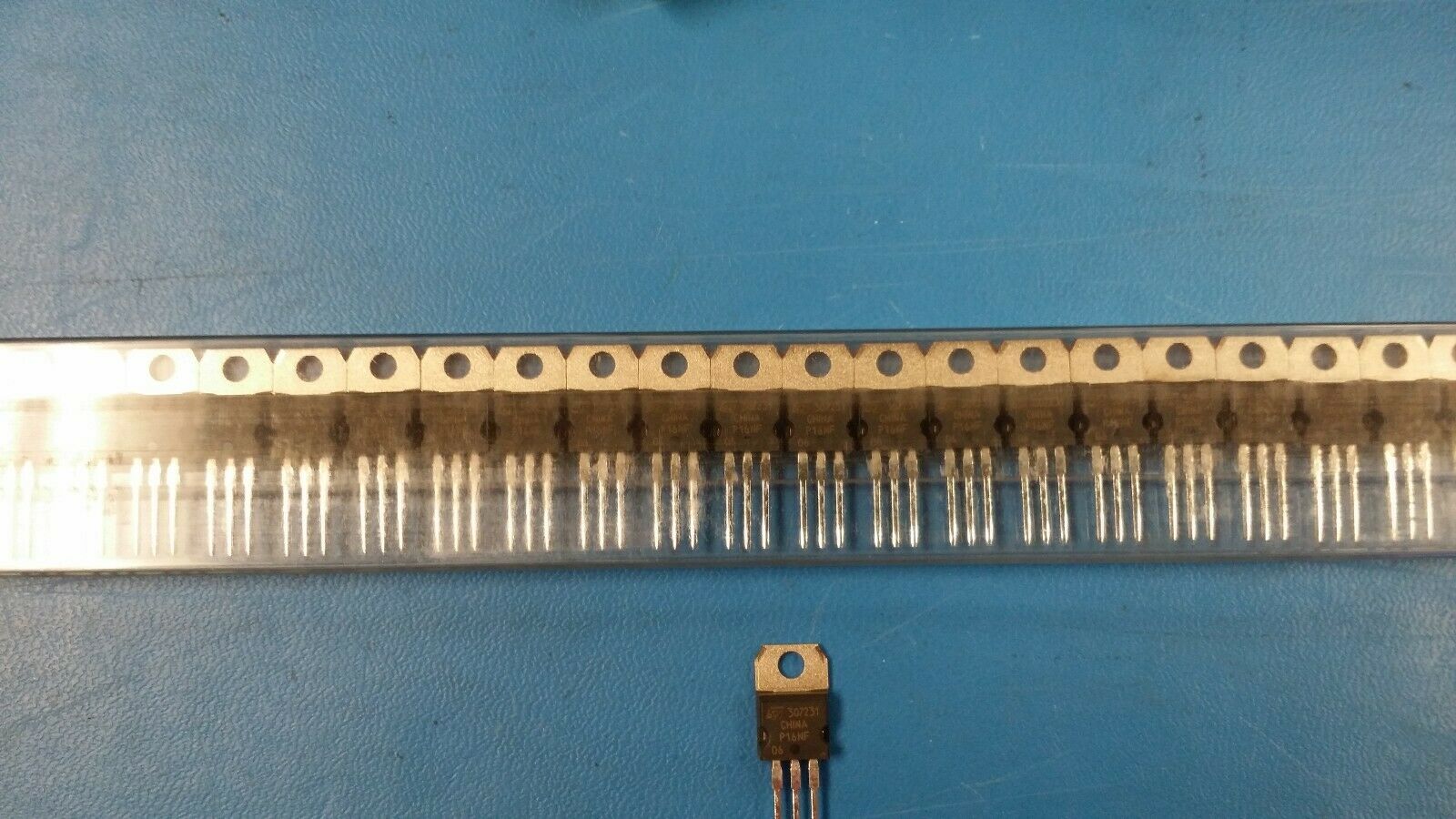

THIS LISTING IS FOR (20PCS) OF STP16NF06 BY STMicroelectronics
MOSFET N-CH 60V 16A TO-220
Categories Discrete Semiconductor Products
Transistors - FETs, MOSFETs - Single
Manufacturer STMicroelectronics
Series STripFET™ II
Packaging Tube
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 100mOhm @ 8A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 13nC @ 10V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 315pF @ 25V
FET Feature -
Power Dissipation (Max) 45W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-220AB
Package / Case TO-220-3
Base Part Number STP16N
