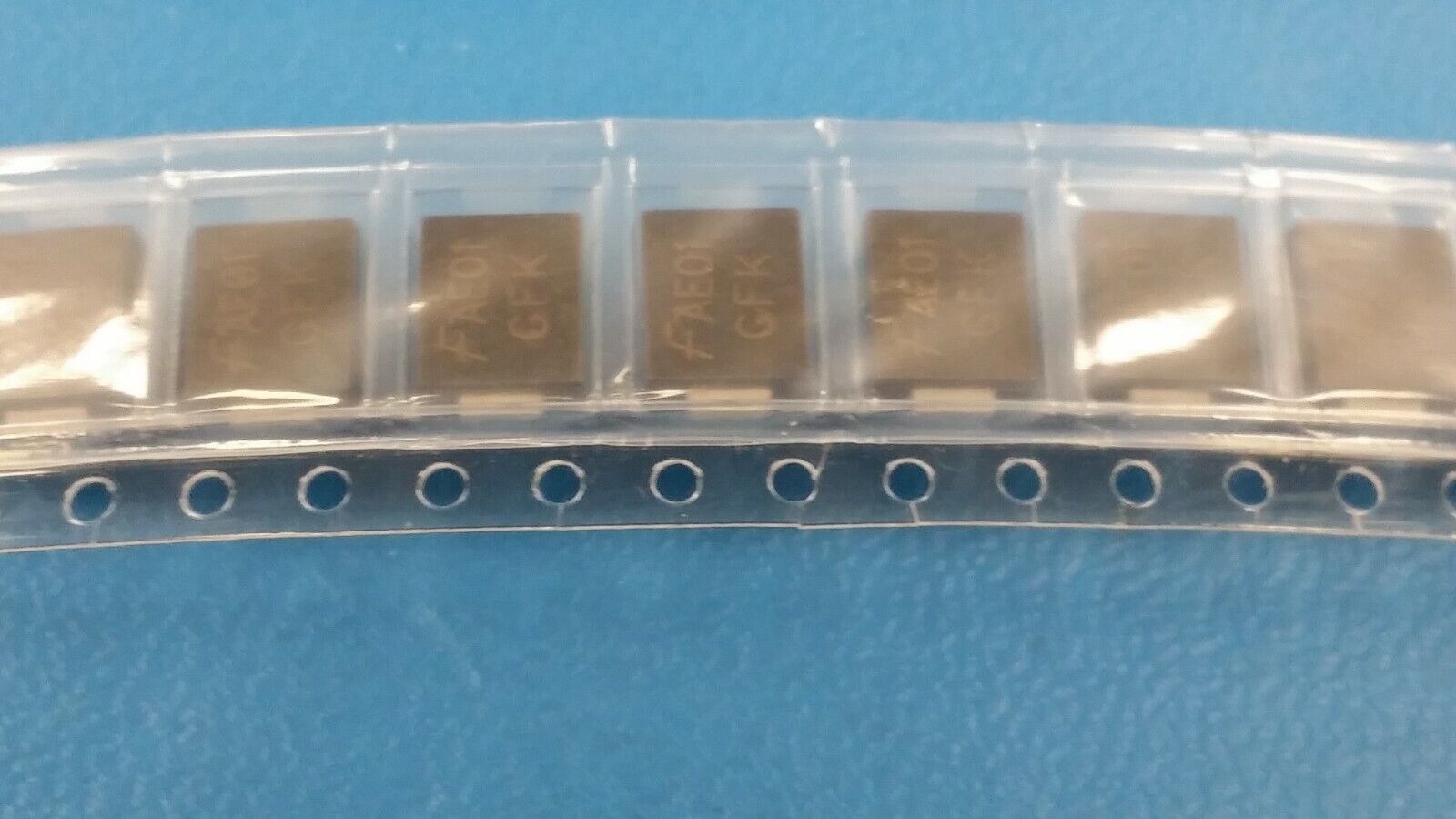

(20pcs) SMCJ30A Uni-Directional TVS Diode, 1500W, 2-Pin DO-214AB
Tax included.

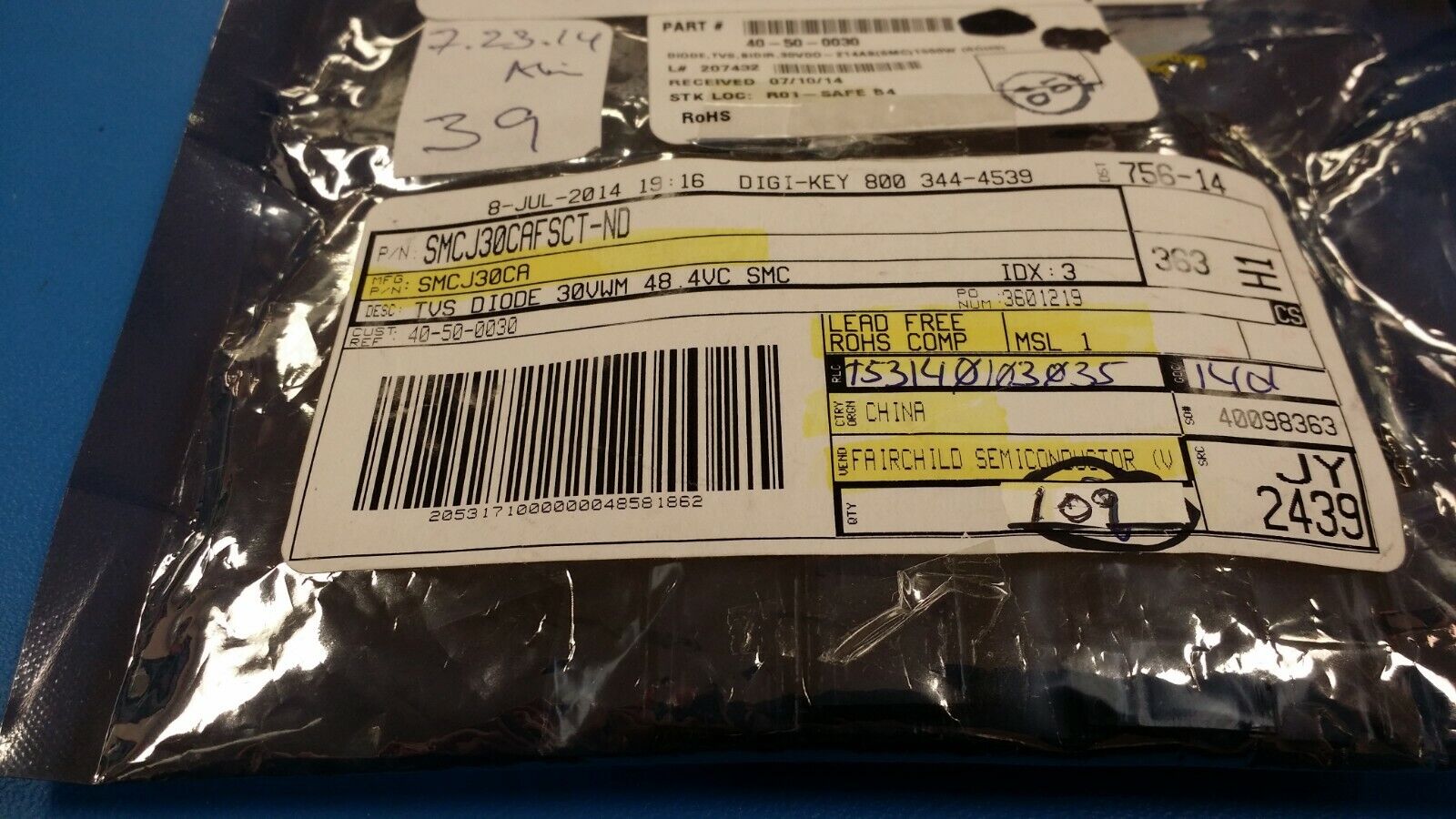

THIS LISTING IS FOR (20PCS) OF SMCJ30A BY FSC
Mfr Package Description SMC, 2 PIN
EU RoHS Compliant Yes
Status Transferred
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Nom 35.1 V
Breakdown Voltage-Min 33.3 V
Breakdown Voltage-Max 36.8 V
Clamping Voltage-Max 48.4 V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500.0 W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Qualification Status Not Qualified
Reference Standard UL RECOGNIZED
Rep Pk Reverse Voltage-Max 30.0 V
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish MATTE TIN
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
