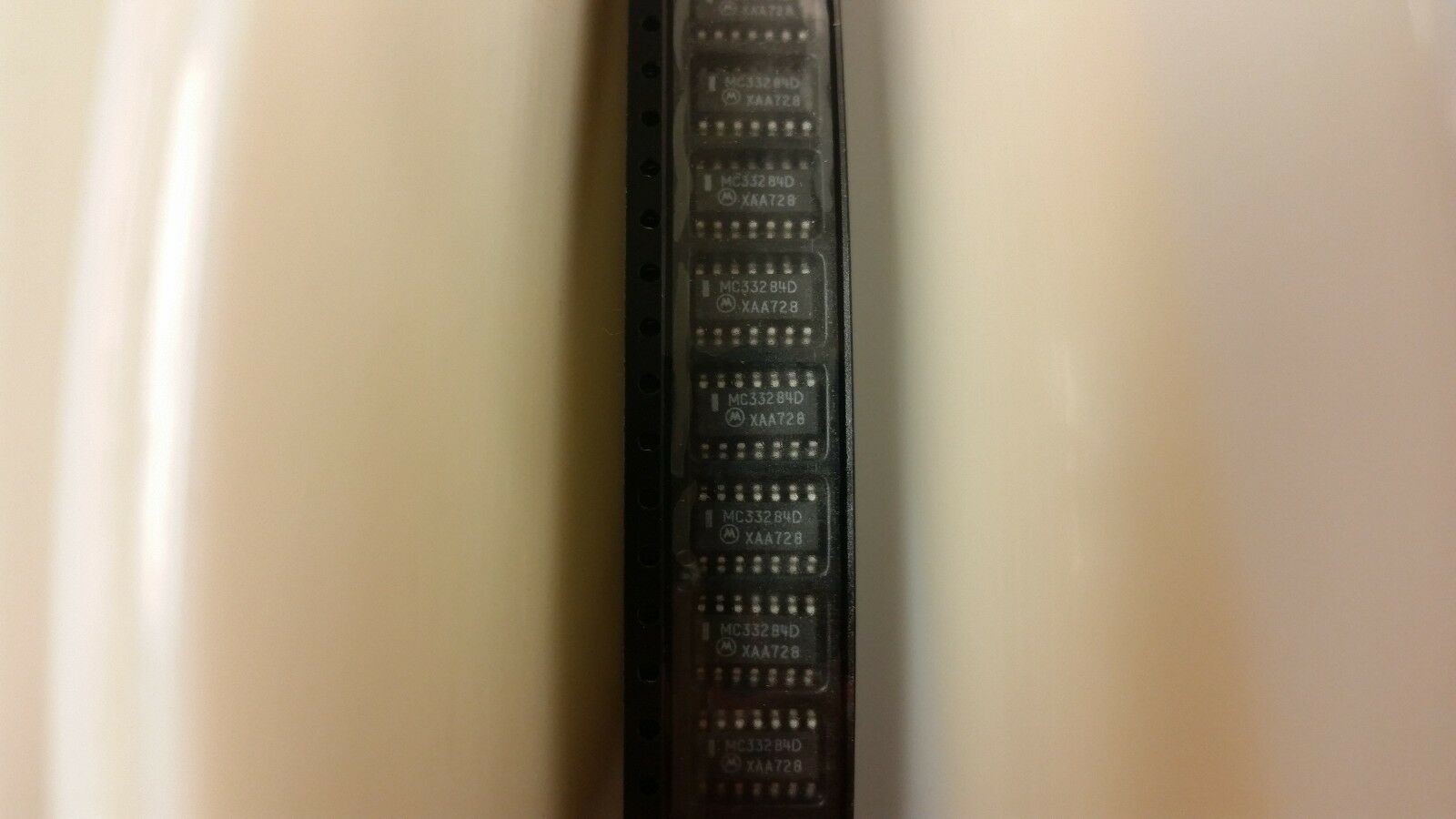

(20pcs) MC33284D OP Amp Quad GP ±18V 14-Pin SOIC

The MC33282/284 series of high performance operational amplifiers are quality fabricated with innovative bipolar and JFET design concepts. This dual and quad amplifier series incorporates JFET inputs along with a patented ZIP R TRIM element for input offset voltage reduction. These devices exhibit low input offset voltage, low input bias current, high gain bandwidth and high slew rate. Dual–doublet frequency compensation is incorporated to produce high quality phase/gain performance. In addition, the MC33282/284 series exhibit low input noise characteristics for JFET input amplifiers. Its all NPN output stage exhibits no deadband crossover distortion and a large output voltage swing. They also provide a low open loop high frequency output impedance with symmetrical source and sink AC frequency performance.

The MC33282/284 series are specified over –40° to +85°C and are available in plastic DIP and SOIC surface mount packages. • Low Input Offset Voltage: Trimmed to 200 µV • Low Input Bias Current: 30 pA • Low Input Offset Current: 6.0 pA • High Input Resistance: 1012 Ω • Low Noise: 18 nV Hz √ @ 1.0 kHz • High Gain Bandwidth Products: 35 MHz @ 100 kHz • High Slew Rate: 15 V/µs • Power Bandwidth: 175 kHz • Unity Gain Stable: w/Capacitance Loads to 300 pF • Large Output Voltage Swing: +14.1 V/–14.6 V • Low Total Harmonic Distortion: 0.003% • Power Supply Drain Current: 2.15 mA per Amplifier • Dual Supply Operation: ±2.5 V to ±18 V (Max)
