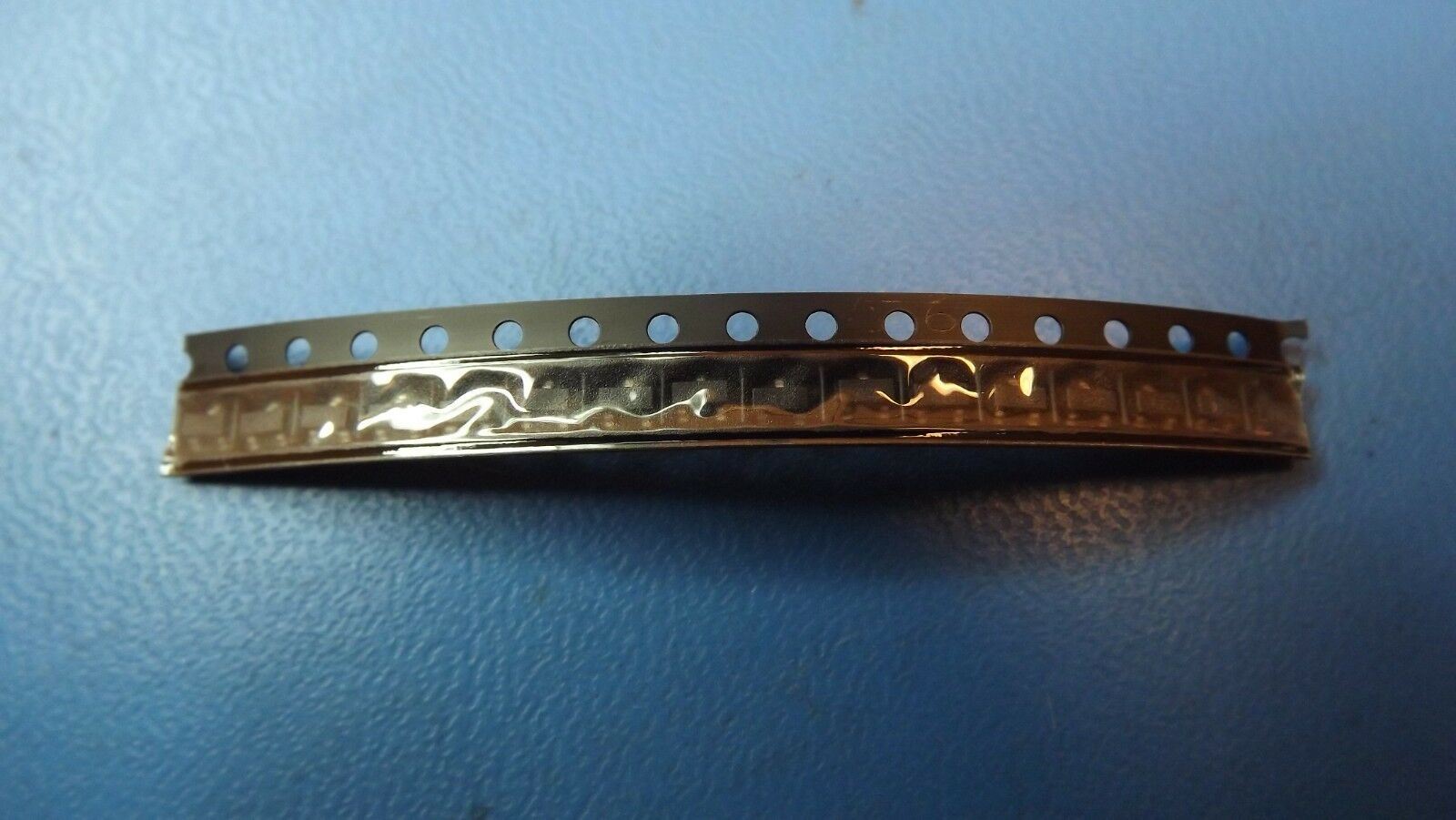

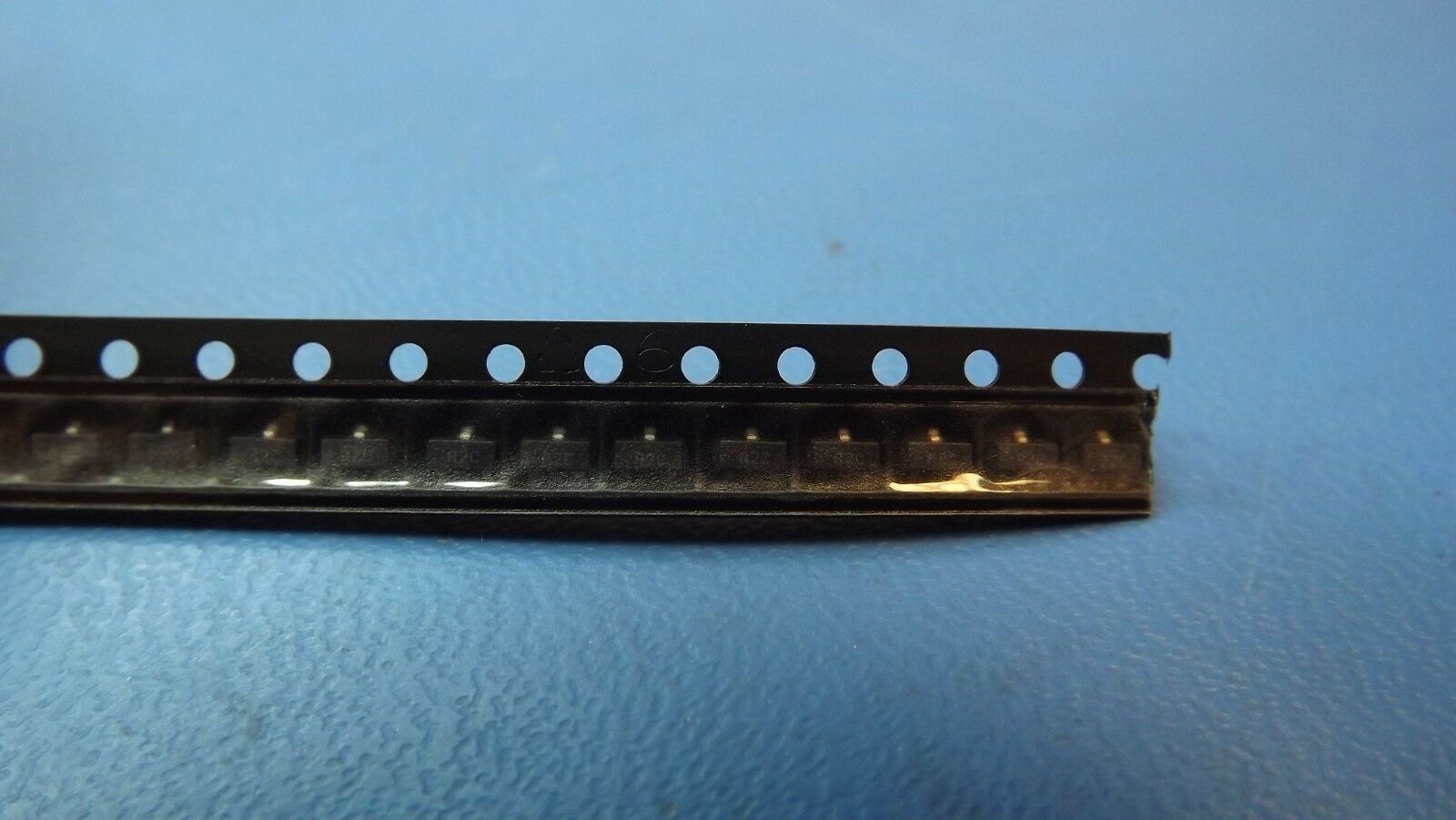

(20PCS) LM4040CIM3-2.5 TEXAS INSTRUMENTS IC VREF SHUNT 2.5V SOT23-3
Tax included.
THIS LISTING IS FOR (20PCS) OF LM4040CIM3-2.5 BY TEXAS INSTRUMENTS
SPECIFICATIONS
| Mfr Package Description | PLASTIC, TO-236AB, SOT-23, 3 PIN |
| REACH Compliant | Yes |
| Status | Transferred |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Voltage-Nom | 2.5 V |
| Output Voltage-Min | 2.471 V |
| Output Voltage-Max | 2.529 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TO-236 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.12 mm |
| Sub Category | Voltage References |
| Supply Current-Max (Isup) | 15.0 mA |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temp Coef of Voltage-Max | 100.0 ppm/Cel |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.95 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Trim/Adjustable Output (V) | NO |
| Voltage Tolerance-Max | 0.5 % |
| Length | 2.92 mm |
| Width | 1.3 mm |
