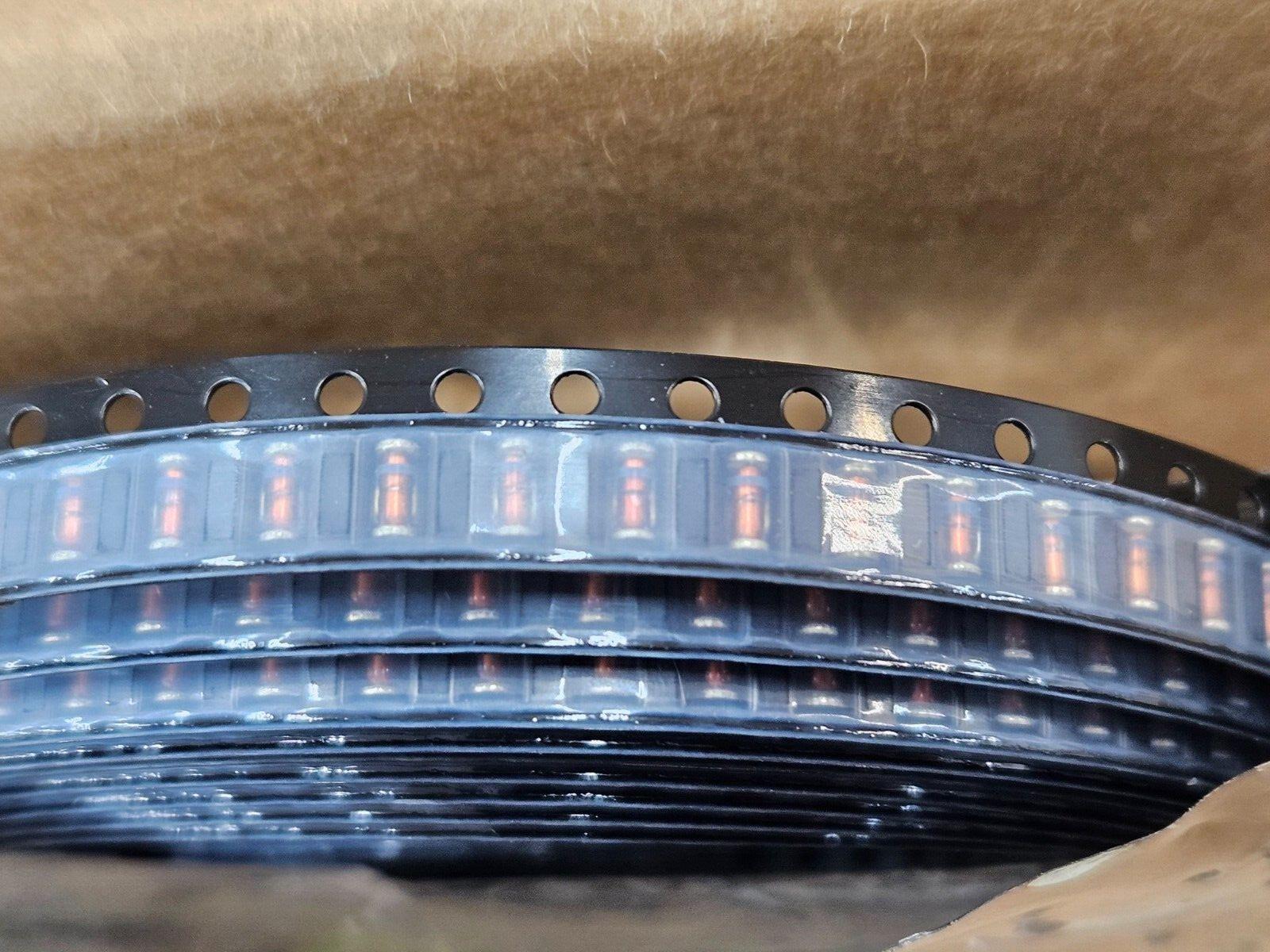

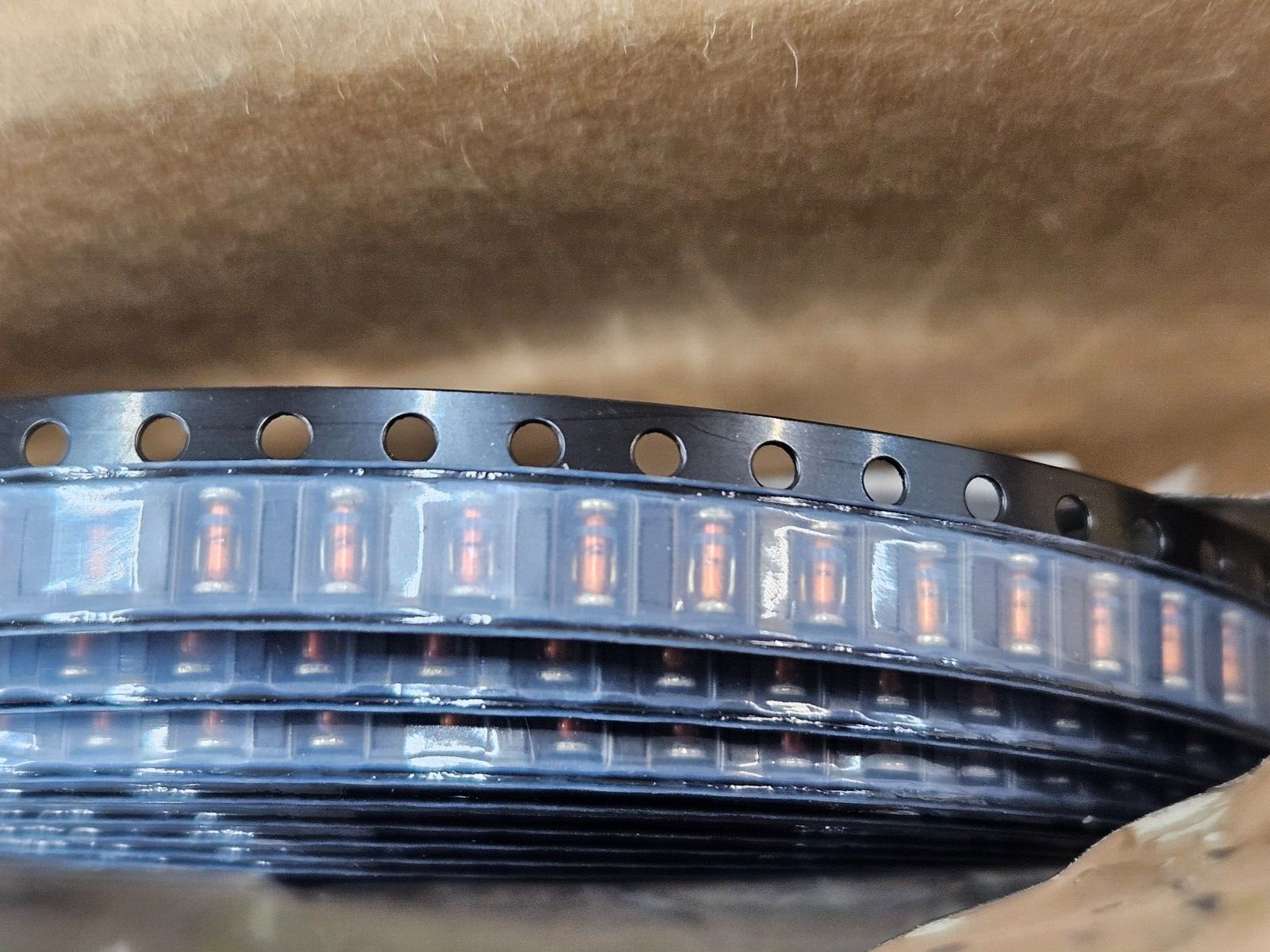

(20PCS) BZV55-C18 Diode Zener Single 18V 5% 500mW 2-Pin Mini-MELF
(20PCS) BZV55-C18 Diode Zener Single 18V 5% 500mW 2-Pin Mini-MELF
(20PCS) BZV55-C18 Diode Zener Single 18V 5% 500mW 2-Pin Mini-MELF
(20PCS) BZV55-C18 Diode Zener Single 18V 5% 500mW 2-Pin Mini-MELF

(20PCS) BZV55-C18 Diode Zener Single 18V 5% 500mW 2-Pin Mini-MELF

Tax included.
Only 27 left!
THIS LISTING IS FOR (20PCS) OF BZV55-C18 BY NXP

Status Active
Diode Type ZENER DIODE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
JESD-30 Code O-LELF-R2
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -65.0  Cel
Operating Temperature-Max 200.0  Cel
Package Body Material GLASS
Package Shape ROUND
Package Style LONG FORM
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.4  W
Reference Standard IEC-60134
Reference Voltage-Nom 18.0  V
Surface Mount YES
Technology ZENER
Terminal Finish TIN
Terminal Form WRAP AROUND
Terminal Position END
Time@Peak Reflow Temperature-Max (s) 30
Voltage Tol-Max 5.0  %
Working Test Current 5.0  mA
