(20PCS) SNJ54LS245J 54LS245/BRBJC Bus XCVR Single 8-CH 3-ST 20-Pin CDIP
Tax included.

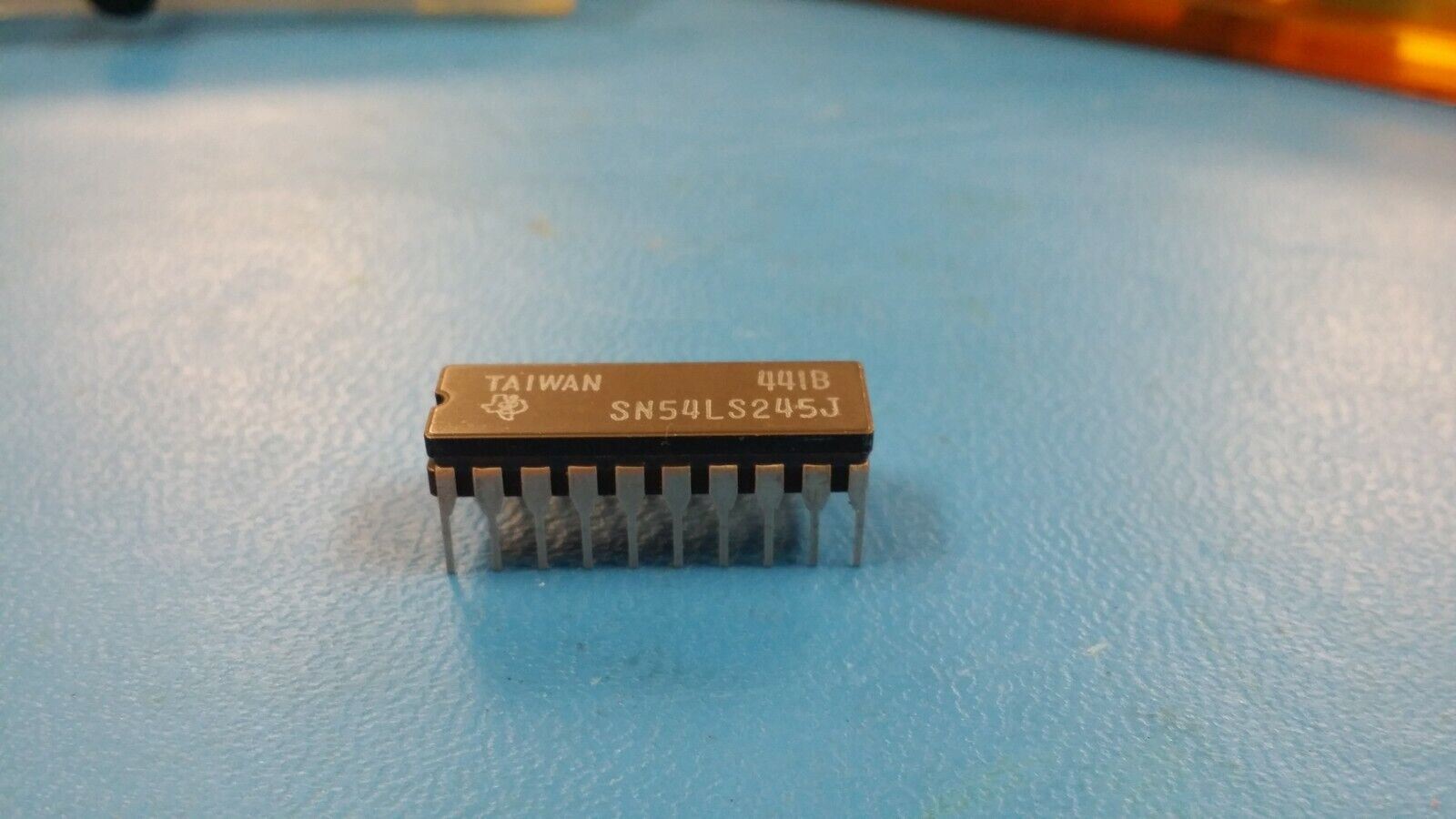

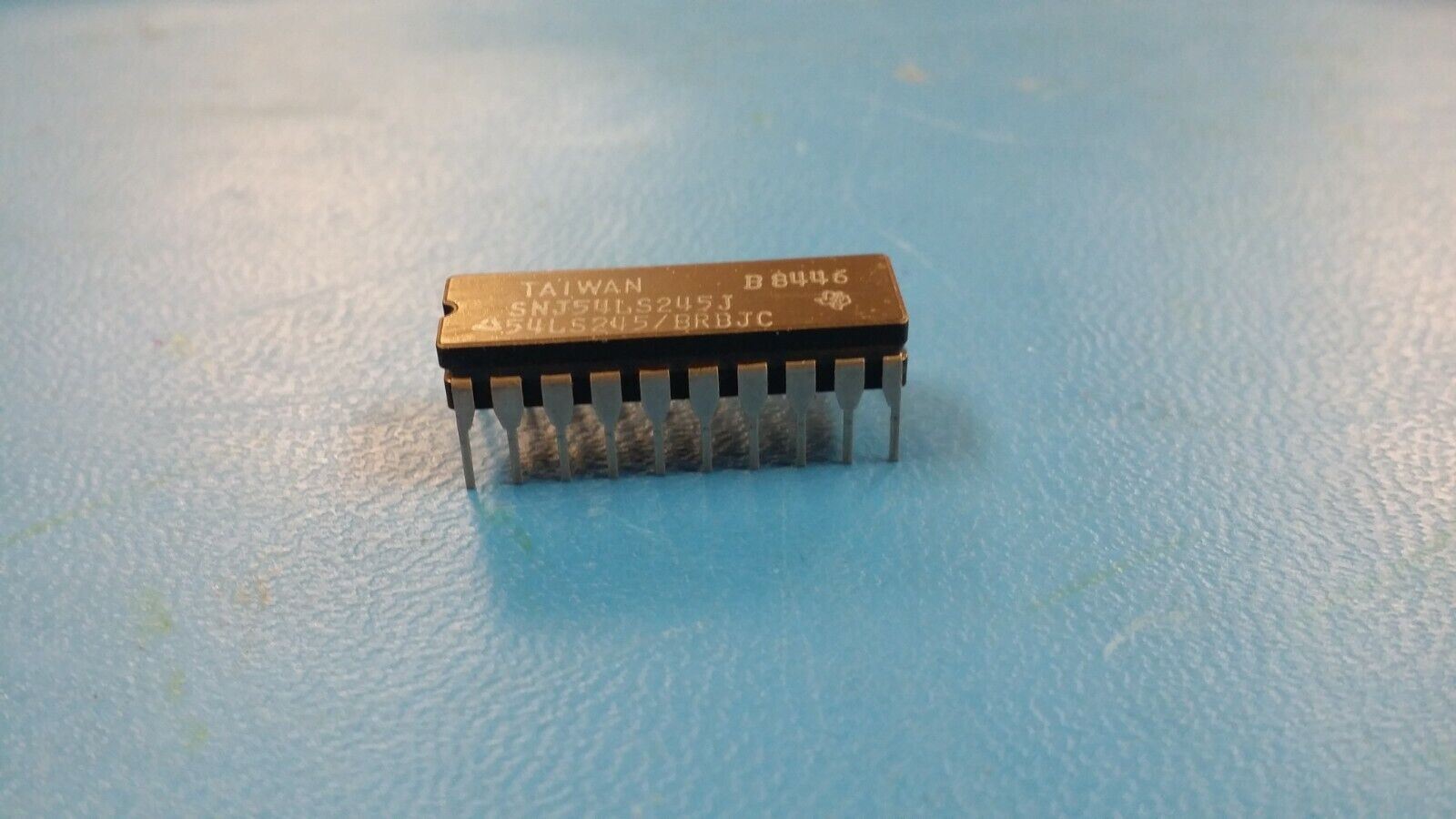

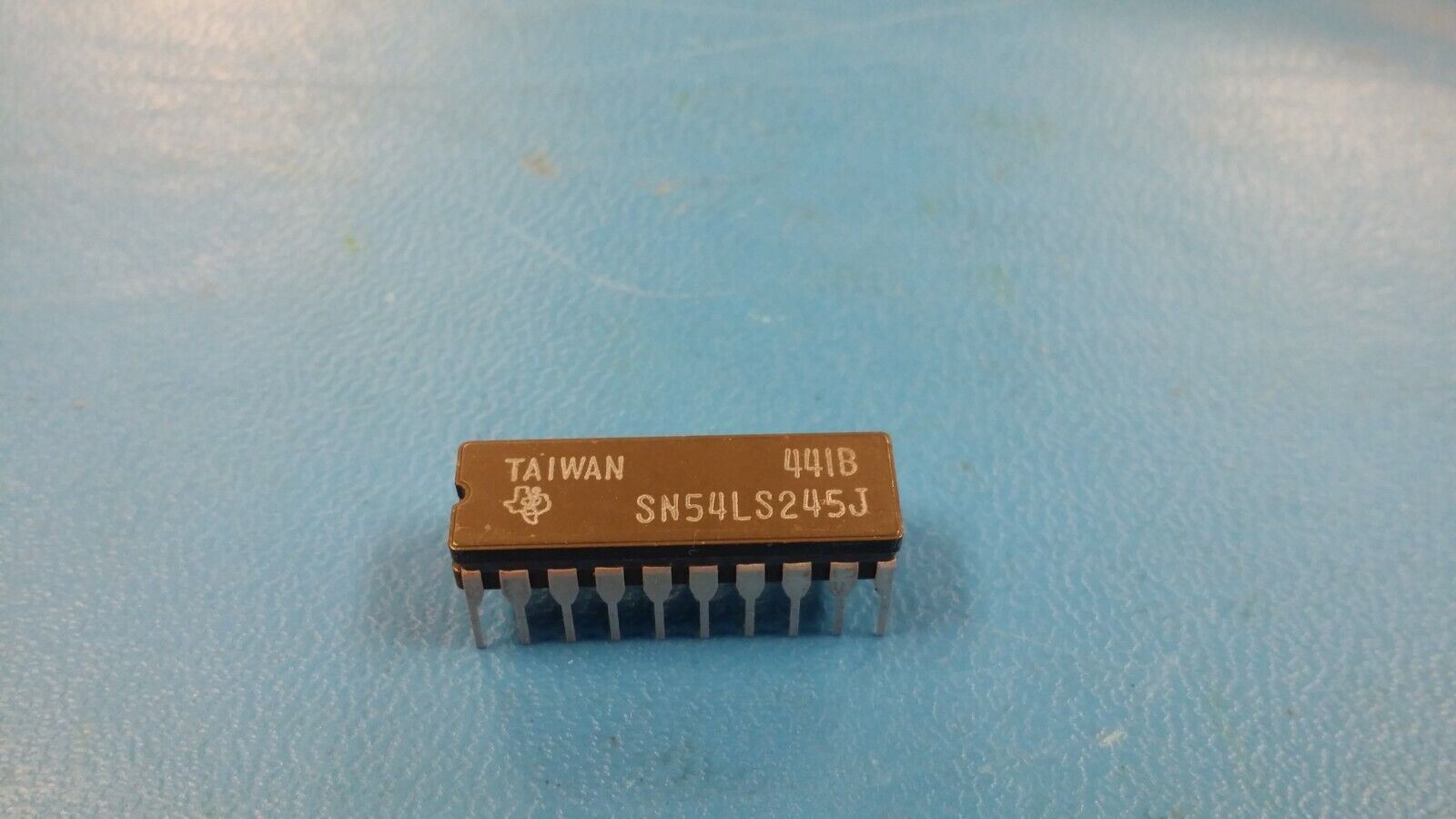

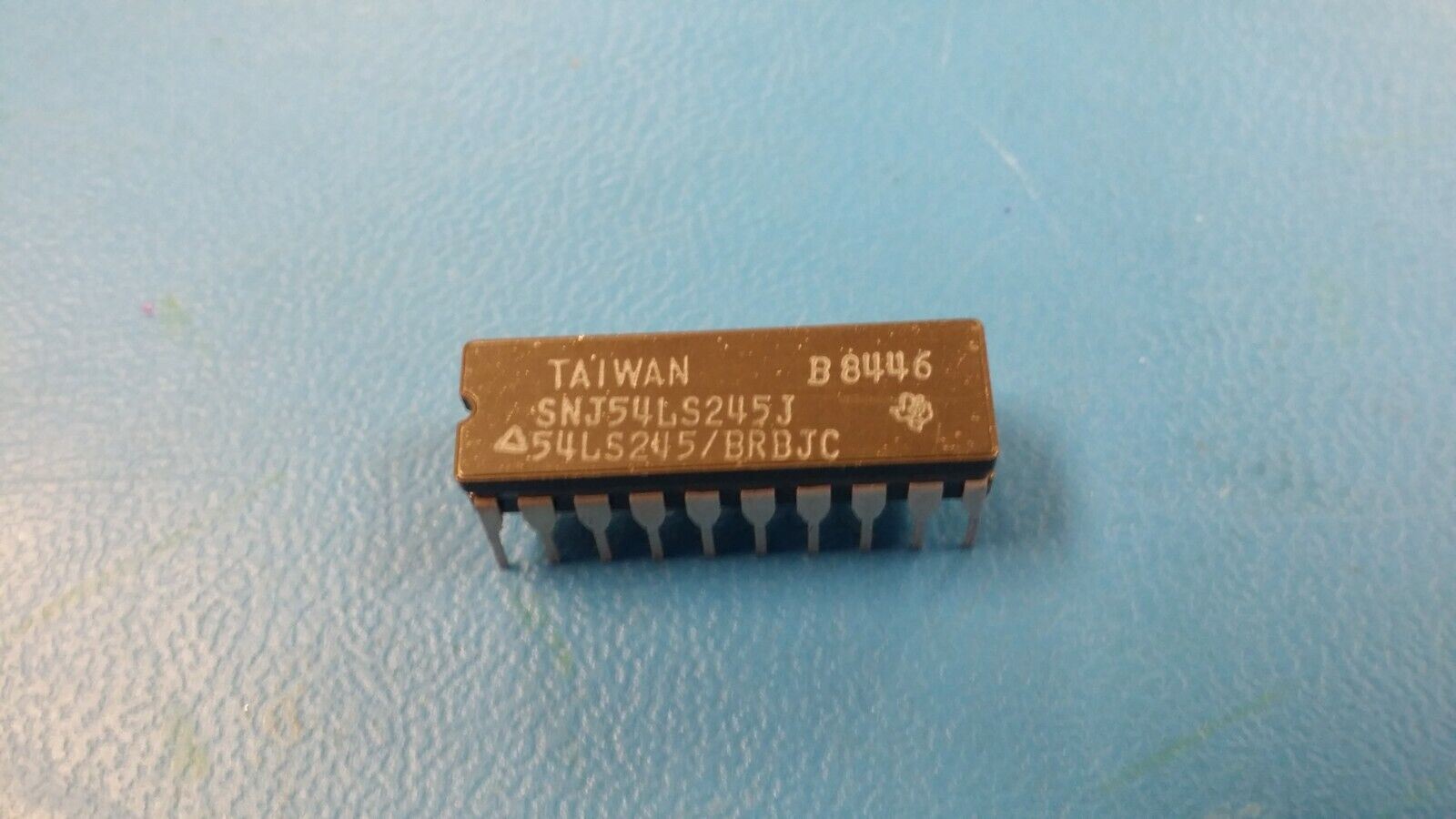

This listing is for (20PCS) of SNJ54LS245J(54LS245/BRBJC) by Texas Instruments
Status Discontinued
Sub Category Bus Driver/Transceivers
Control Type COMMON CONTROL
Count Direction BIDIRECTIONAL
Family LS
JESD-30 Code R-XDIP-T20
Number of Bits 8
Number of Functions 1
Number of Terminals 20
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Screening Level MIL-STD-883 Class B (Modified)
Supply Voltage-Nom (Vsup) 5
Surface Mount NO
Technology TTL
Temperature Grade MILITARY
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
