(2000PCS) LQN21A8N2D04M00 MURATA Inductor 0.0082uH 6.098% 1 Element Air-Core SMD
Tax included.

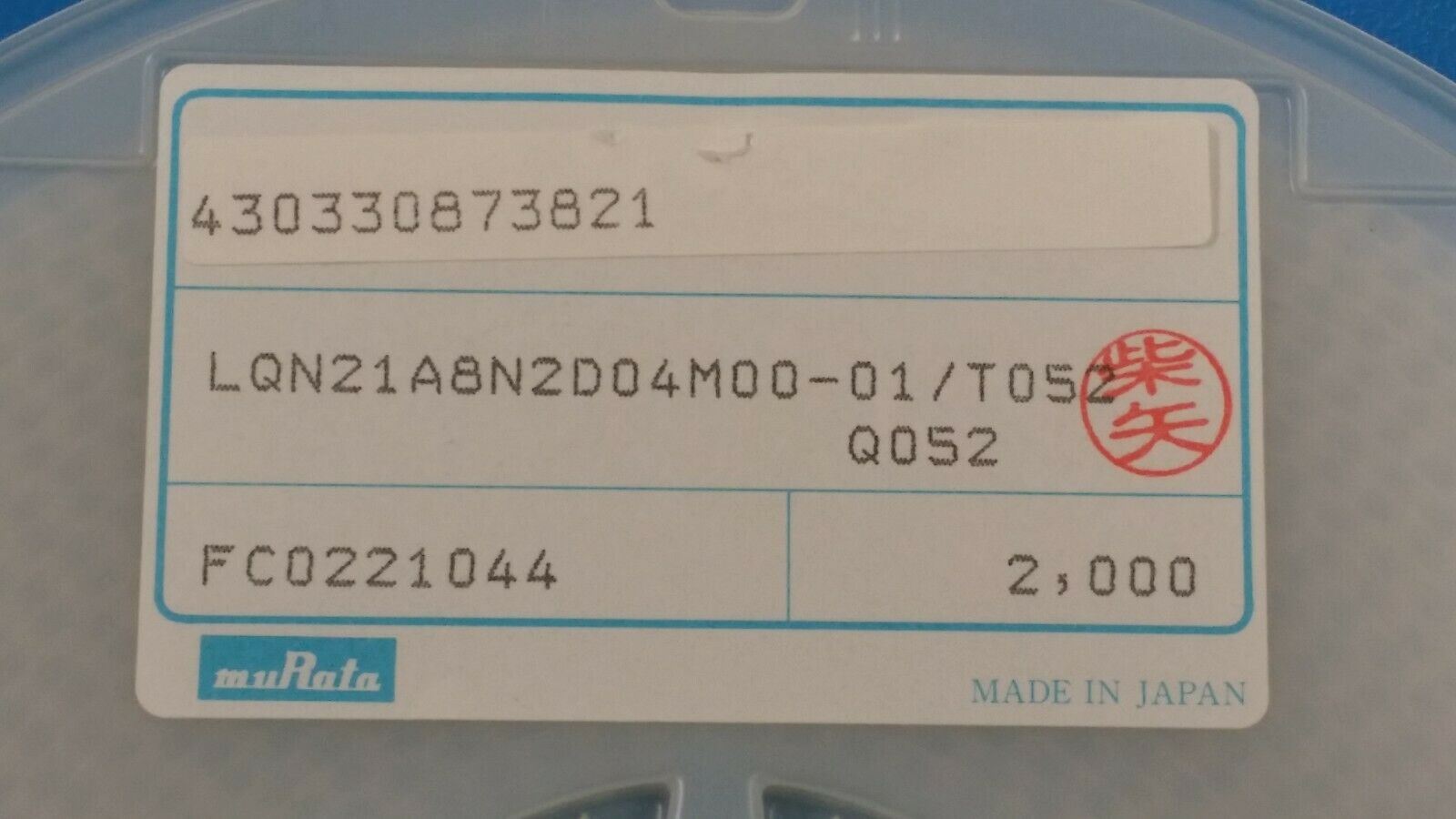

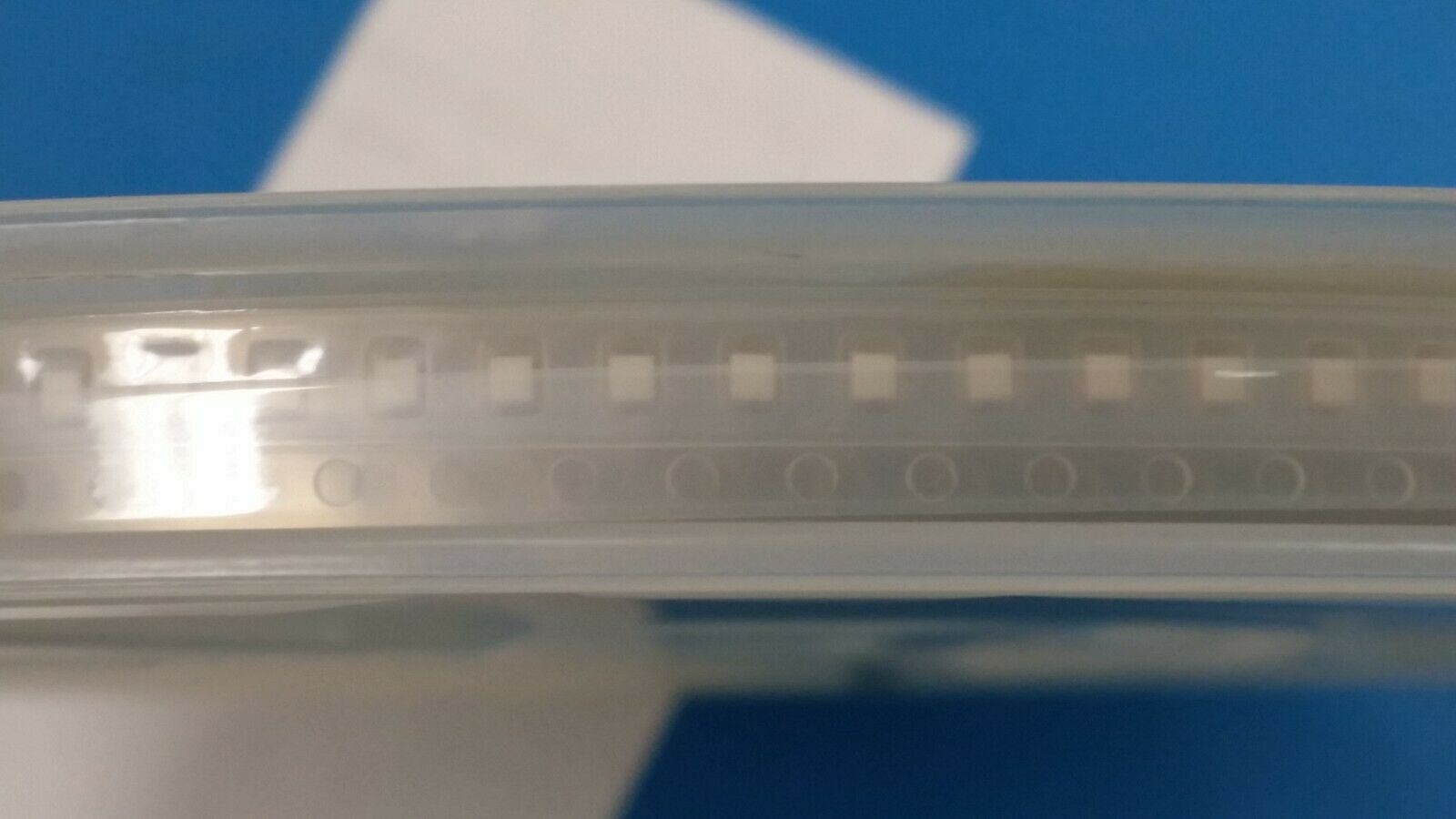

THIS LISTING IS FOR (2000 PCS) OF LQN21A8N2D04M00 BY MURATA
Inductor 0.0082uH 6.098% 1 Element Air-Core SMD
Part #: LQN21A8N2D04M00
Part Category: Inductors
Manufacturer: Murata Manufacturing Co., Ltd.
Description: General Purpose Inductor, 0.0082uH, 6.098%, 1 Element, Air-Core, SMD
REACH Compliant Yes
Status Active-Unconfirmed
Inductor Type GENERAL PURPOSE INDUCTOR
Core Material AIR
DC Resistance 0.12 ohm
Inductance-Nom (L) 0.0082 µH
Inductor Application RF INDUCTOR
Number of Functions 1
Number of Terminals 2
Operating Temperature-Min -25.0 Cel
Operating Temperature-Max 85.0 Cel
Quality Factor-Min (at L-nom) 20.0
Rated Current-Max 0.63 A
Self Resonance Frequency 3900.0 MHz
Shape/Size Description CYLINDRICAL PACKAGE
Shielded NO
Special Feature INDUCTANCE TOLERANCE IS 0.5 NANO HENRY; Q MEASURED AT 250 MHZ
Surface Mount YES
Terminal Placement DUAL ENDED
Terminal Shape J BEND
Test Frequency 100.0 MHz
Tolerance 6.098 %
