(2000) MKT1826-333-255-W VISHAY Film Capacitor Polyester 250V 10% 0.033uF Radial
Tax included.

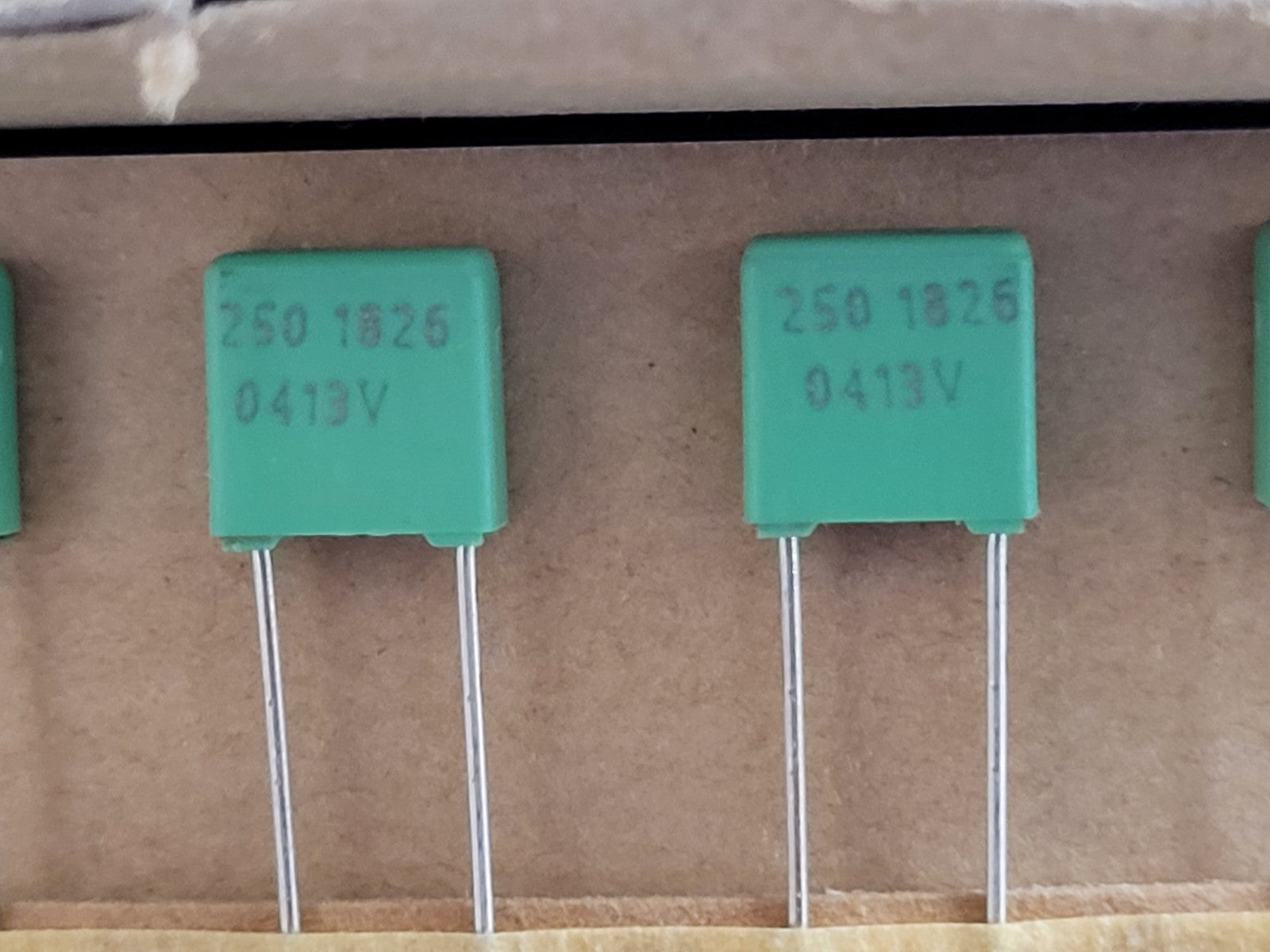

THIS IS FOR (2000 PCS) OF MKT1826-333-255-W BY VISHAY
Film Capacitor Polyester 250V 10% 0.033uF Radial
Part #: MKT1826-333-255-W
Obsolete
Part Category: Fixed Capacitors
Manufacturer: VISHAY INTERTECHNOLOGY INC
Description: Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 0.033uF, Through Hole Mount, 2812
Status Discontinued
Capacitance (uF) 0.0330000000000000
Capacitor Type FILM CAPACITOR
Dielectric Material POLYESTER
Height (mm) 7.500000
J-STD-609 Code e3
Length (mm) 7.2000
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance (%) 10.0000
Number of Terminals 2
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Package Style Radial
Packing Method TR
Positive Tolerance (%) 10.0000
Rated AC Voltage (URac) (V) 160.0000
Rated DC Voltage (URdc) (V) 250.0000
Size Code 2812
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Pitch (mm) 5.0000
Terminal Shape WIRE
Width (mm) 3.0000
