(2000) 1812L110PR LITTELFUSE PTC Resettable Fuse 100A 6VDC T/R ROHS
Tax included.

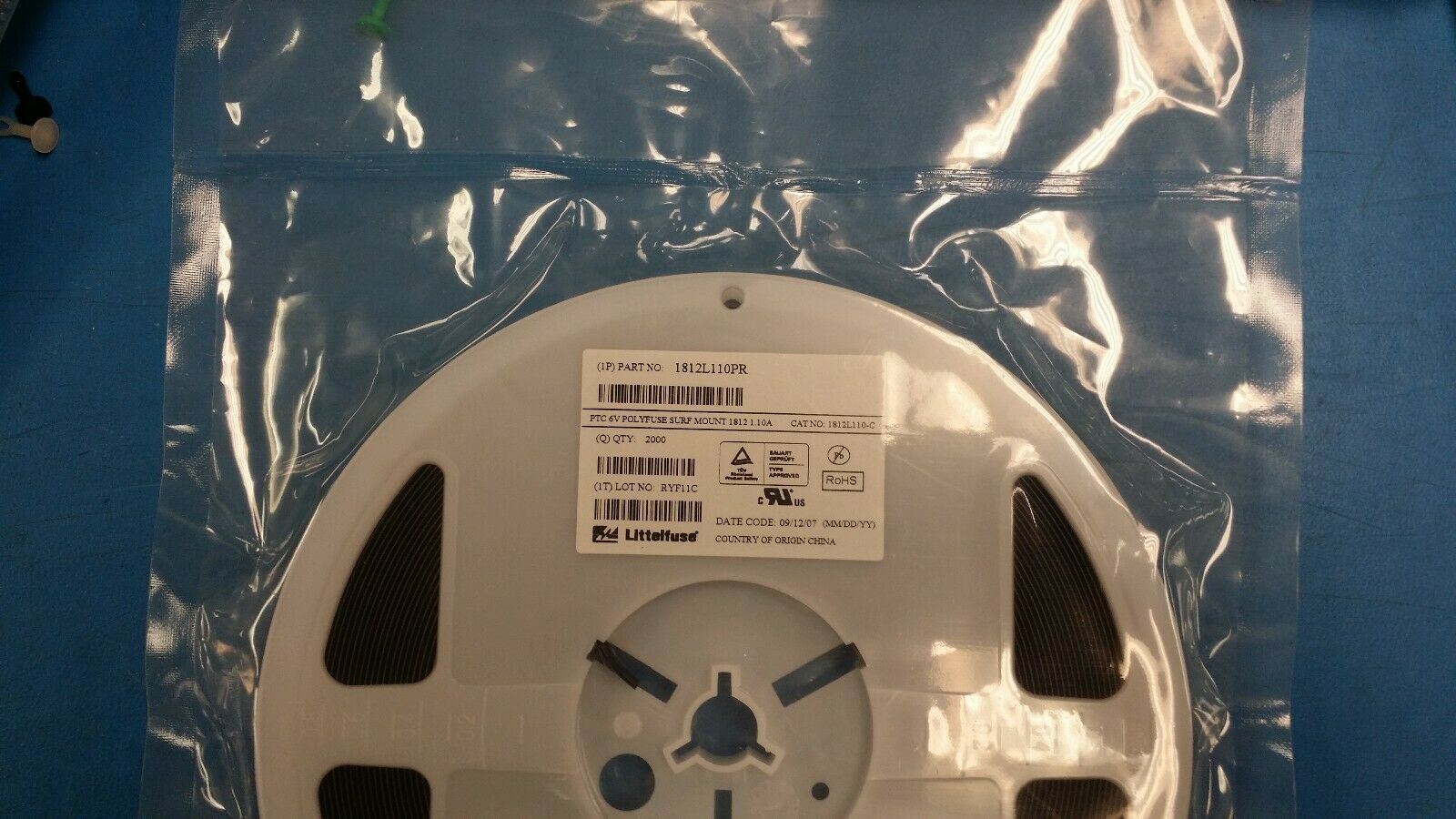

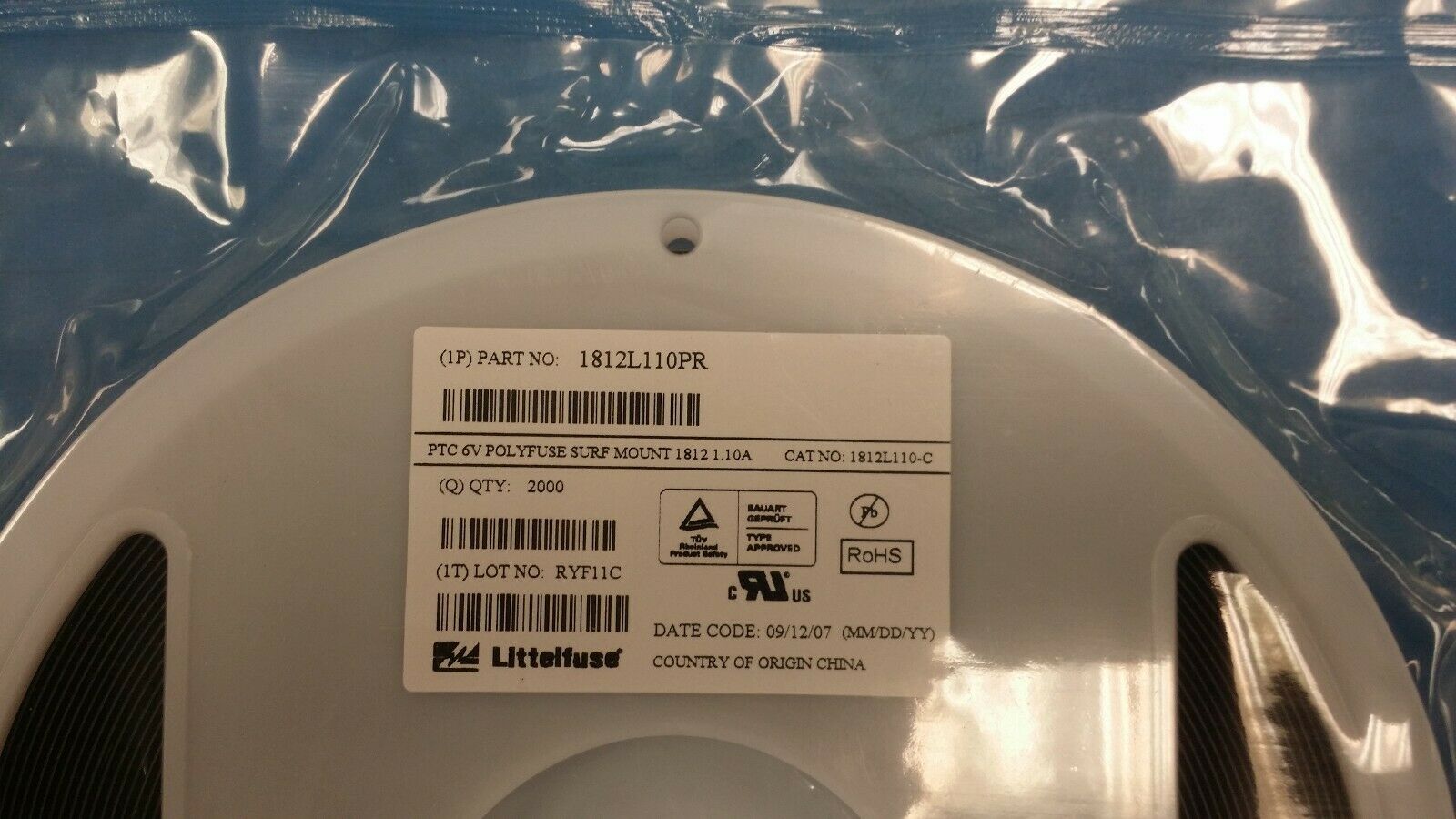

THIS LISTING IS FOR (2000 PCS) OF 1812L110PR BY LITTELFUSE
PTC Resettable Fuse 100A 6VDC T/R ROHS
Manufacturer Littelfuse Inc.
Series POLY-FUSE®, 1812L
Packaging 2000 PC REEL
Part Status Active
Type Polymeric
Voltage - Max 8V
Current - Max 100A
Current - Hold (Ih) (Max) 1.1A
Current - Trip (It) 2.2A
Time to Trip 300ms
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Max) 210 mOhms
Operating Temperature -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric), Concave
Size / Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Height - Seated (Max) -
Thickness (Max) 0.028" (0.71mm)
Lead Spacing -
Approval Agency cURus, TUV
