(200 PCS) SB140-T DIODES INC / Zetex Diode Schottky 40V 1A 2-Pin DO-41
Tax included.

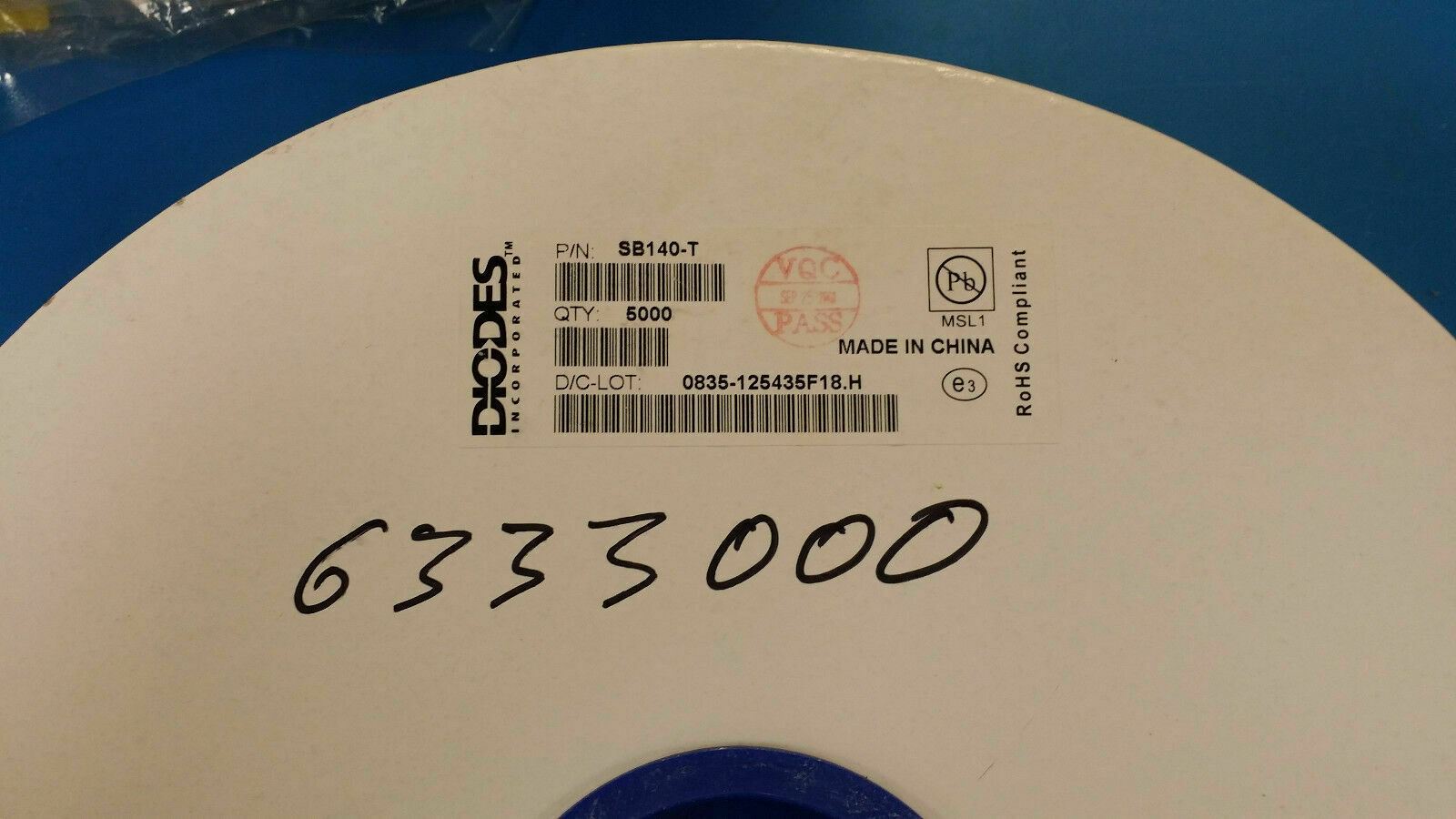

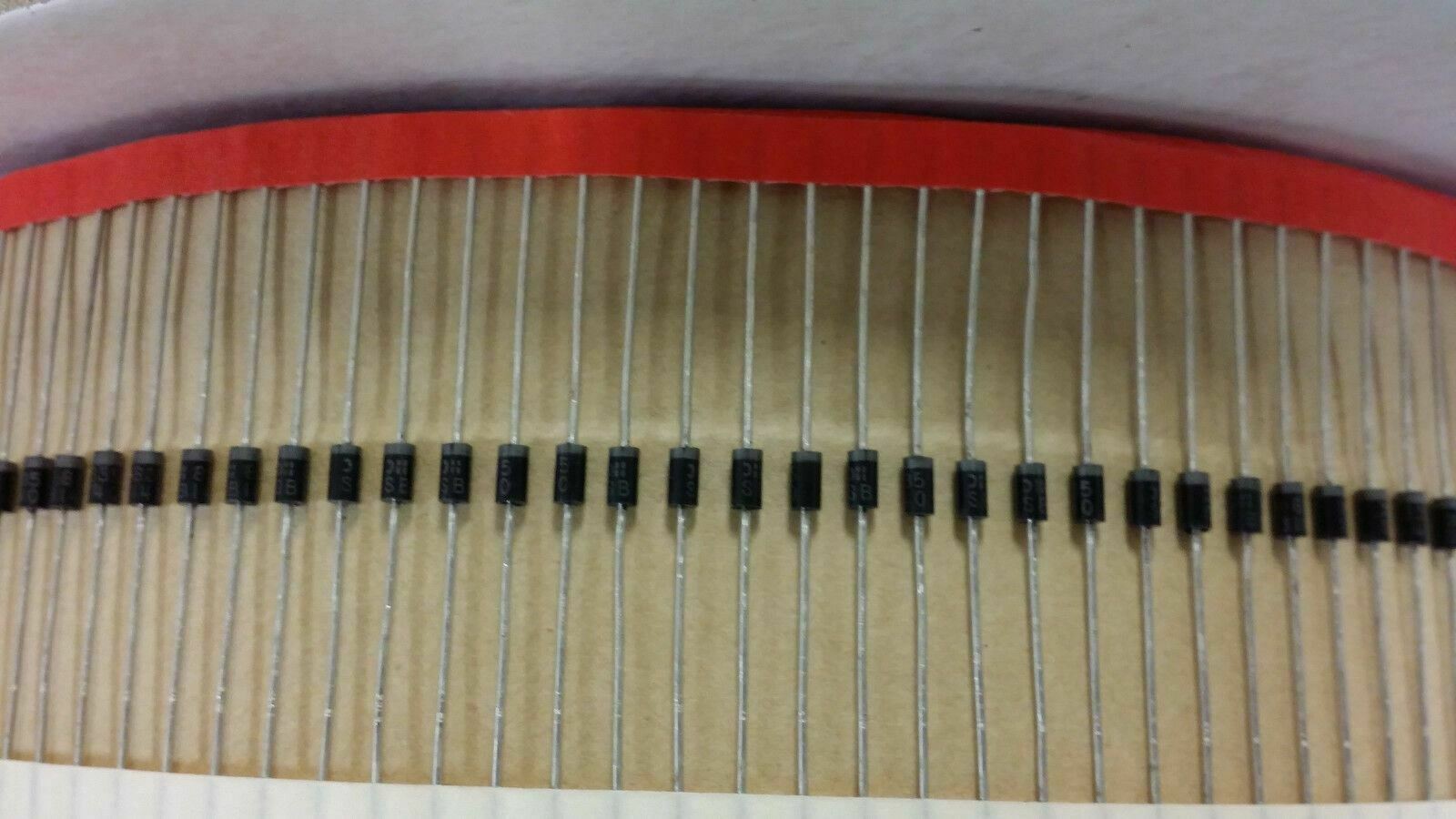

THIS LISTING IS FOR (200 PCS) OF SB140-T BY DIODES INC or Zetex
Diode Schottky 40V 1A 2-Pin DO-41
Diode Schottky 40V 1A 2-Pin DO-41
SB140-T Part Details & Parametric
| EU RoHS |
Compliant
|
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 125 |
| Type | Schottky Diode |
| Peak Reverse Current (uA) | 500 |
| Configuration | Single |
| Packaging | Tape and Reel |
| Peak Reverse Repetitive Voltage (V) | 40 |
| Maximum Continuous Forward Current (A) | 1 |
| Peak Forward Voltage (V) | 0.5 |
| Peak Non-Repetitive Surge Current (A) | 40 |
| Operating Junction Temperature (°C) | -65 to 125 |
| Package Diameter (mm) | 2.72(Max) |
| Mounting | Through Hole |
| Package Length (mm) | 5.21(Max) |
| PCB | 2 |
| Standard Package Name | DO-204-AL |
| Supplier Package | DO-41 |
| Pin Count | 2 |
| Lead Shape | Through Hole |
