(200 PCS) PQ070XZ02ZPH SHARP LDO Regulator Pos 1.5V to 7V 2A 6-Pin(5+Tab) SC-63
Tax included.

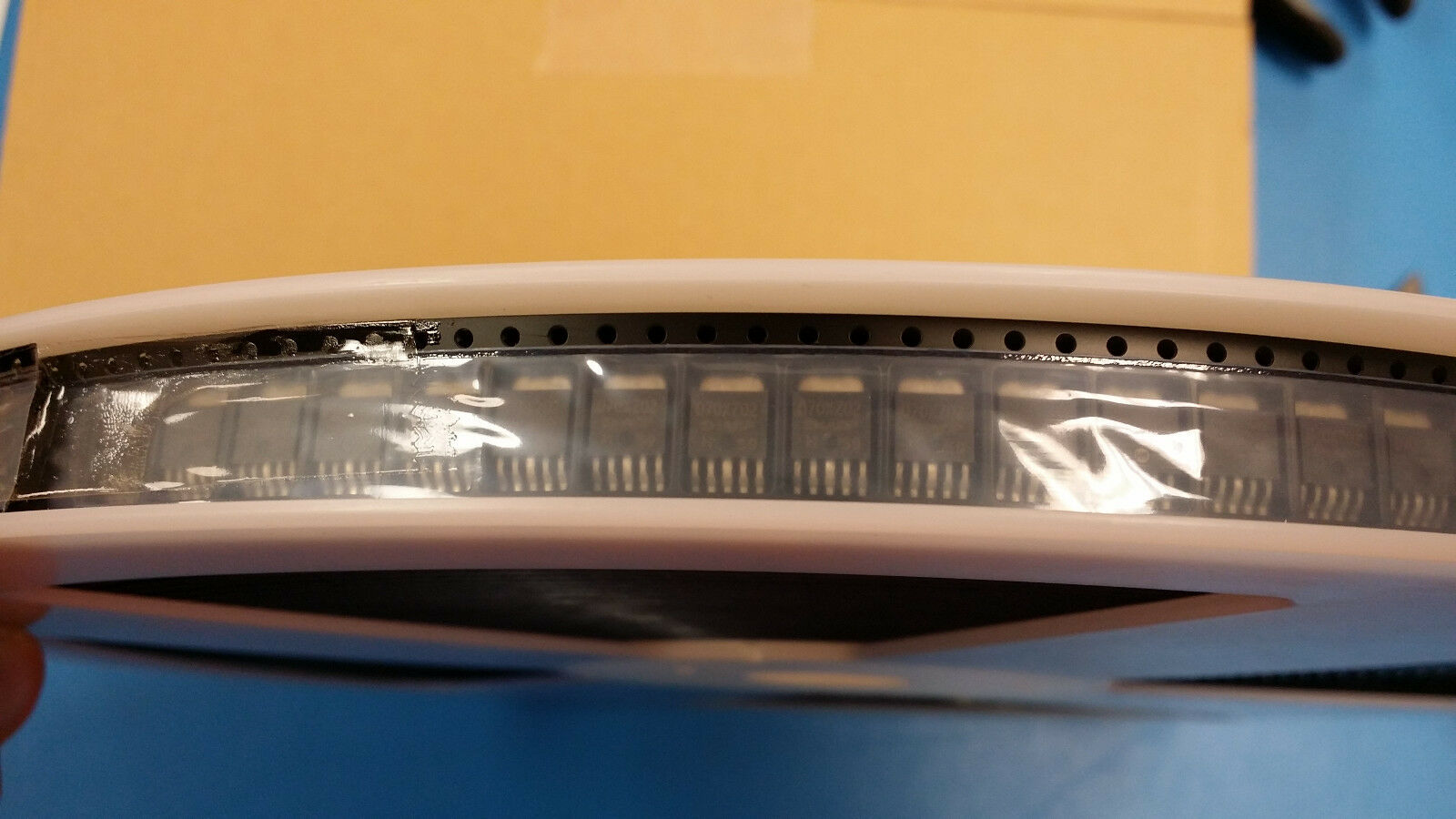

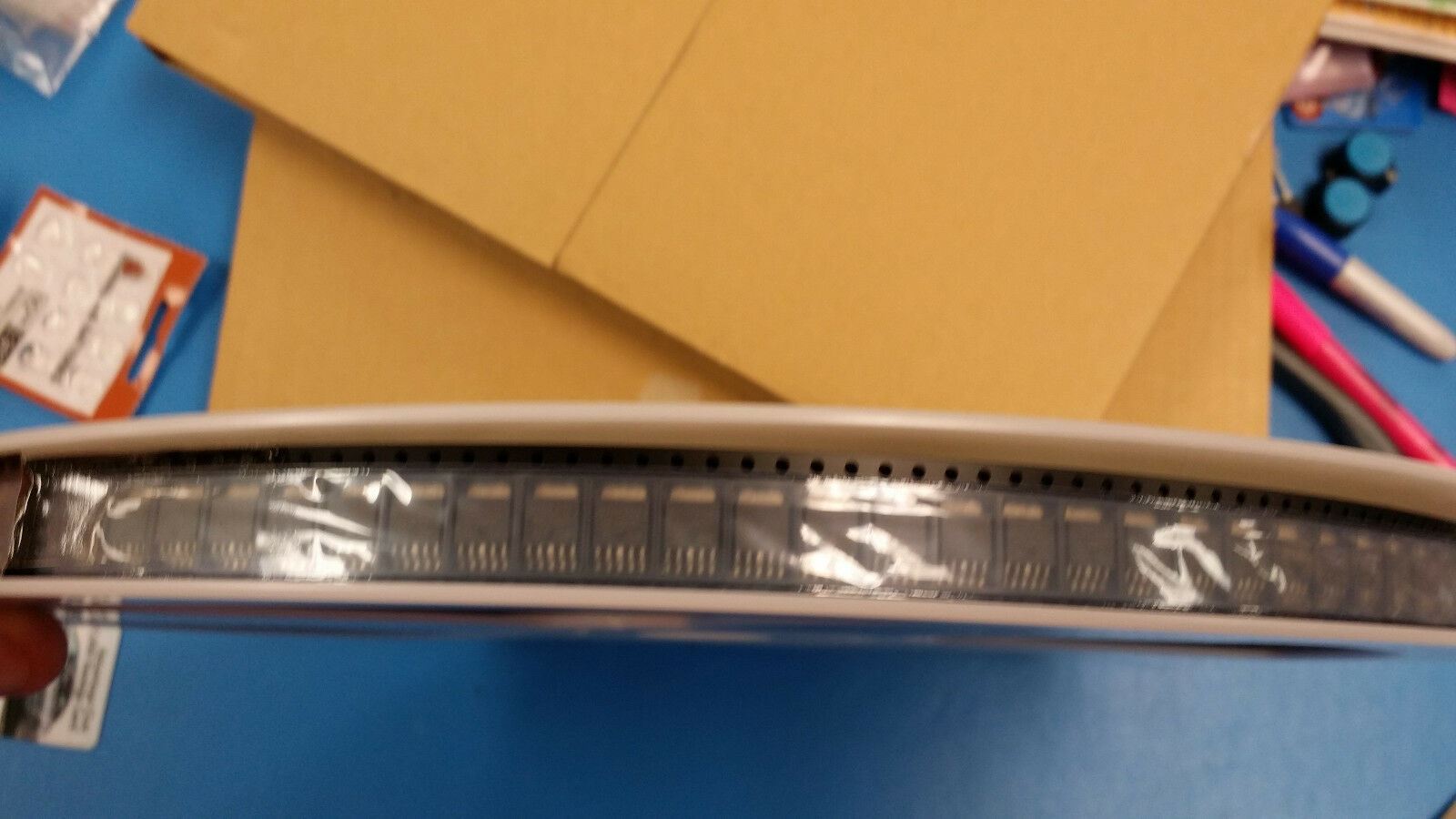

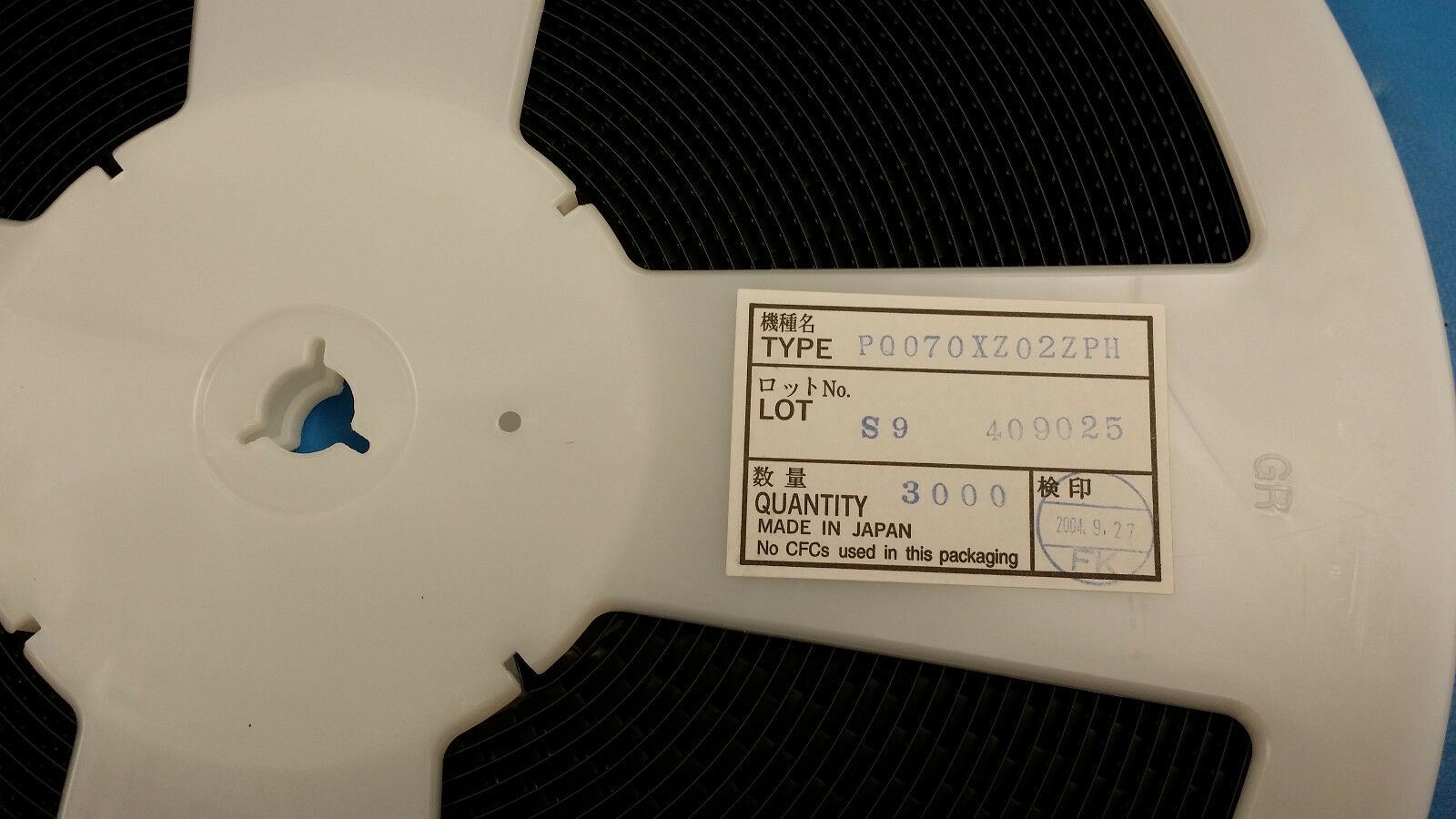

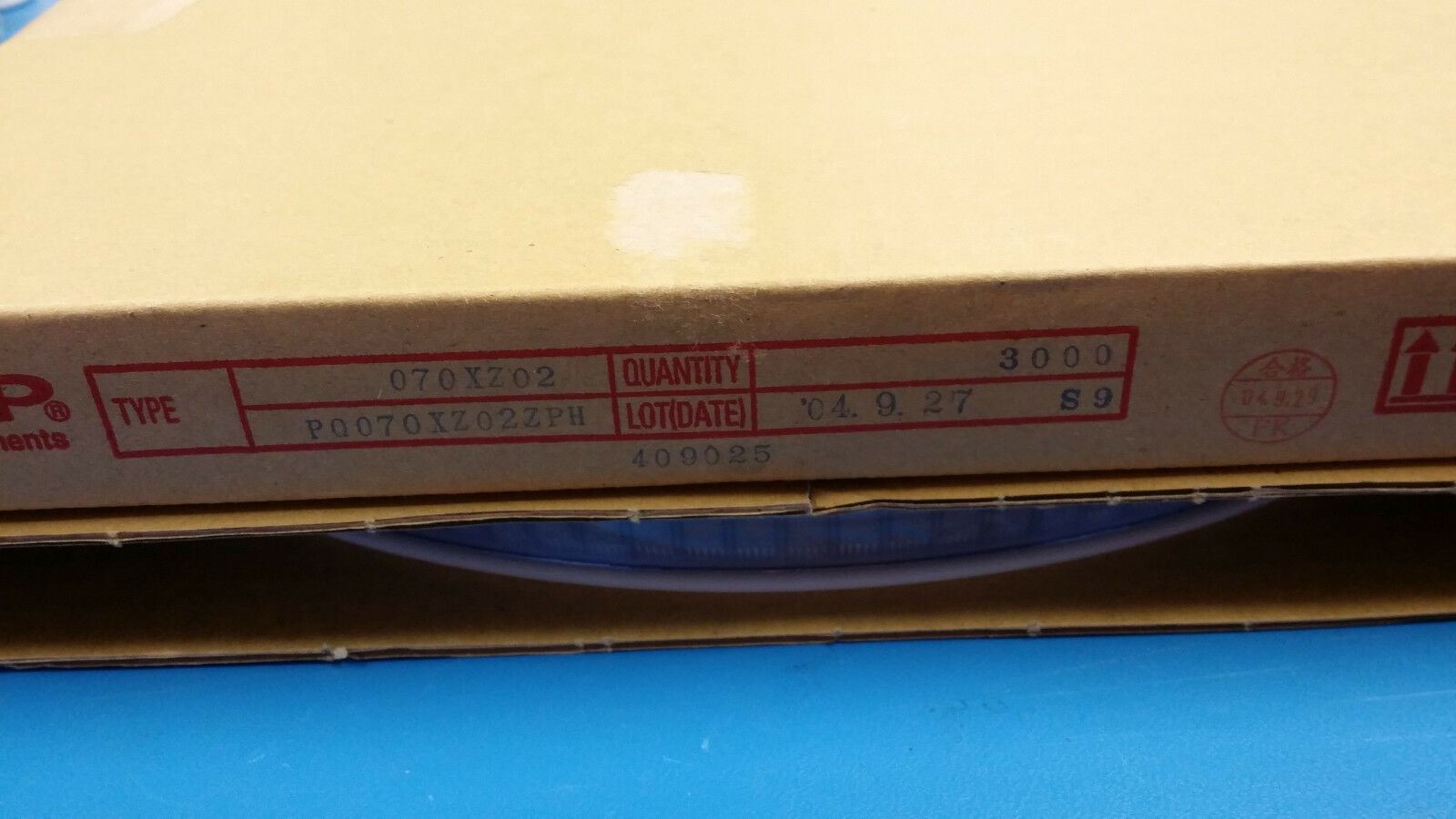

THIS LISTING IS FOR (200 PCS) OF PQ070XZ02ZPH BY SHARP
LDO Regulator Pos 1.5V to 7V 2A 6-Pin(5+Tab) SC-63
Manufacturer:
LDO Regulator Pos 1.5V to 7V 2A 6-Pin(5+Tab) SC-63
Manufacturer:
Sharp Microelectronics | ||
Product Category: | LDO Voltage Regulators | |
RoHS: | YES | |
Mounting Style: | SMD/SMT | |
Package / Case: | SC-63-5 | |
Output Voltage: | 1.5 V to 7 V | |
Output Current: | 2 A | |
Quiescent Current: | 2 mA | |
Number of Outputs: | 1 Output | |
Input Voltage MAX: | 10 V | |
Output Type: | Adjustable | |
Maximum Operating Temperature: | + 85 C | |
Load Regulation: | 2 % | |
Brand: | Sharp Microelectronics |
|
Dropout Voltage - Max: | 500 mV at 2 A |
|
Height: | 2.3 mm |
|
Ib - Input Bias Current: | 1 mA |
|
Input Voltage MIN: | + 2.35 V |
|
Length: | 6.6 mm (Max) |
|
Line Regulation: | 1 % |
|
Minimum Operating Temperature: | - 40 C |
|
Packaging: | Reel |
|
Pd - Power Dissipation: | 8 W |
|
Polarity: | Positive |
|
Reference Voltage: | 1.275 V |
