(200 PCS) PQ05TZ1UJ00H SHARP LDO Regulator Pos 5V 1A 6-Pin(5+Tab) TO-252
Tax included.

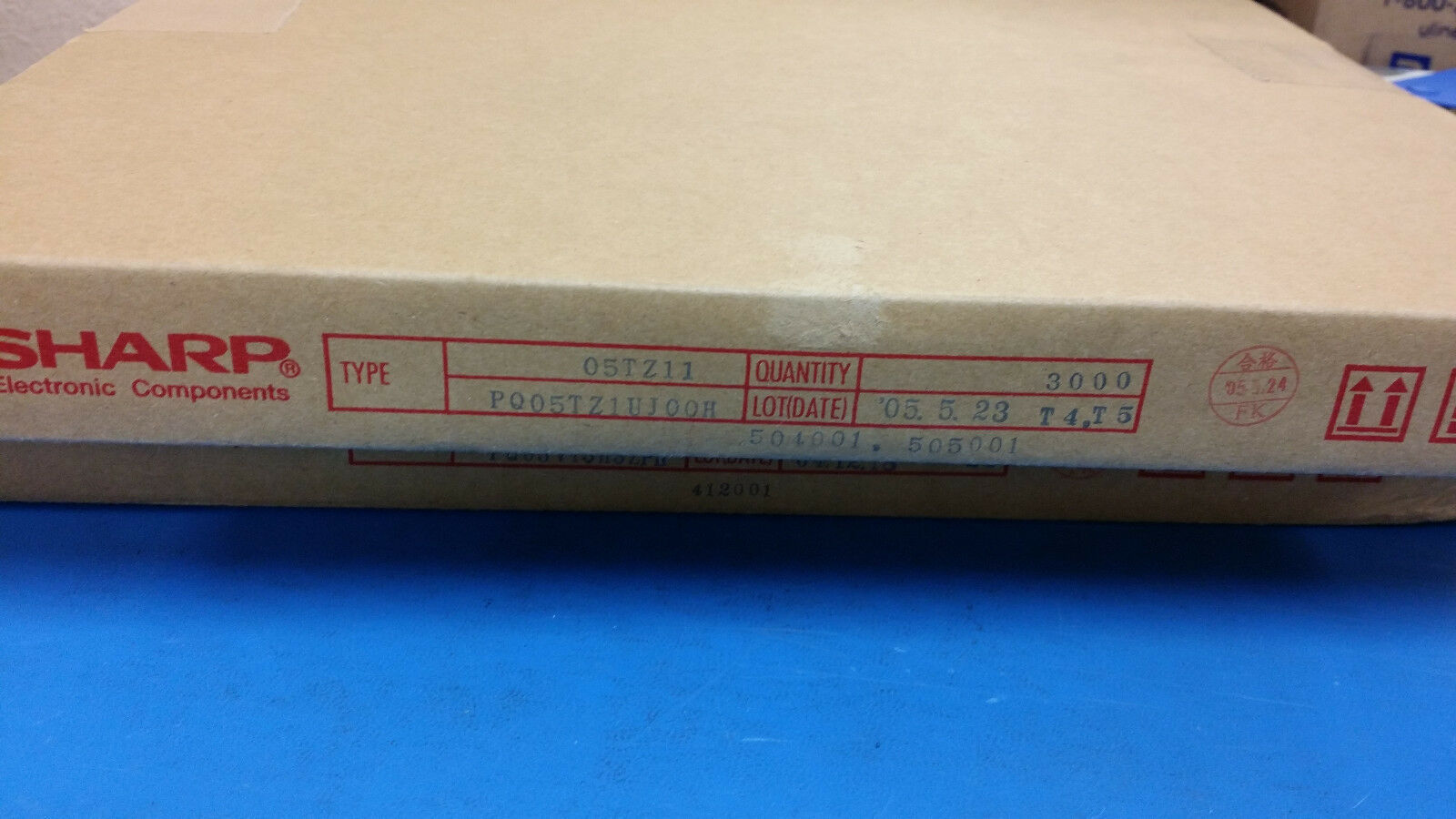

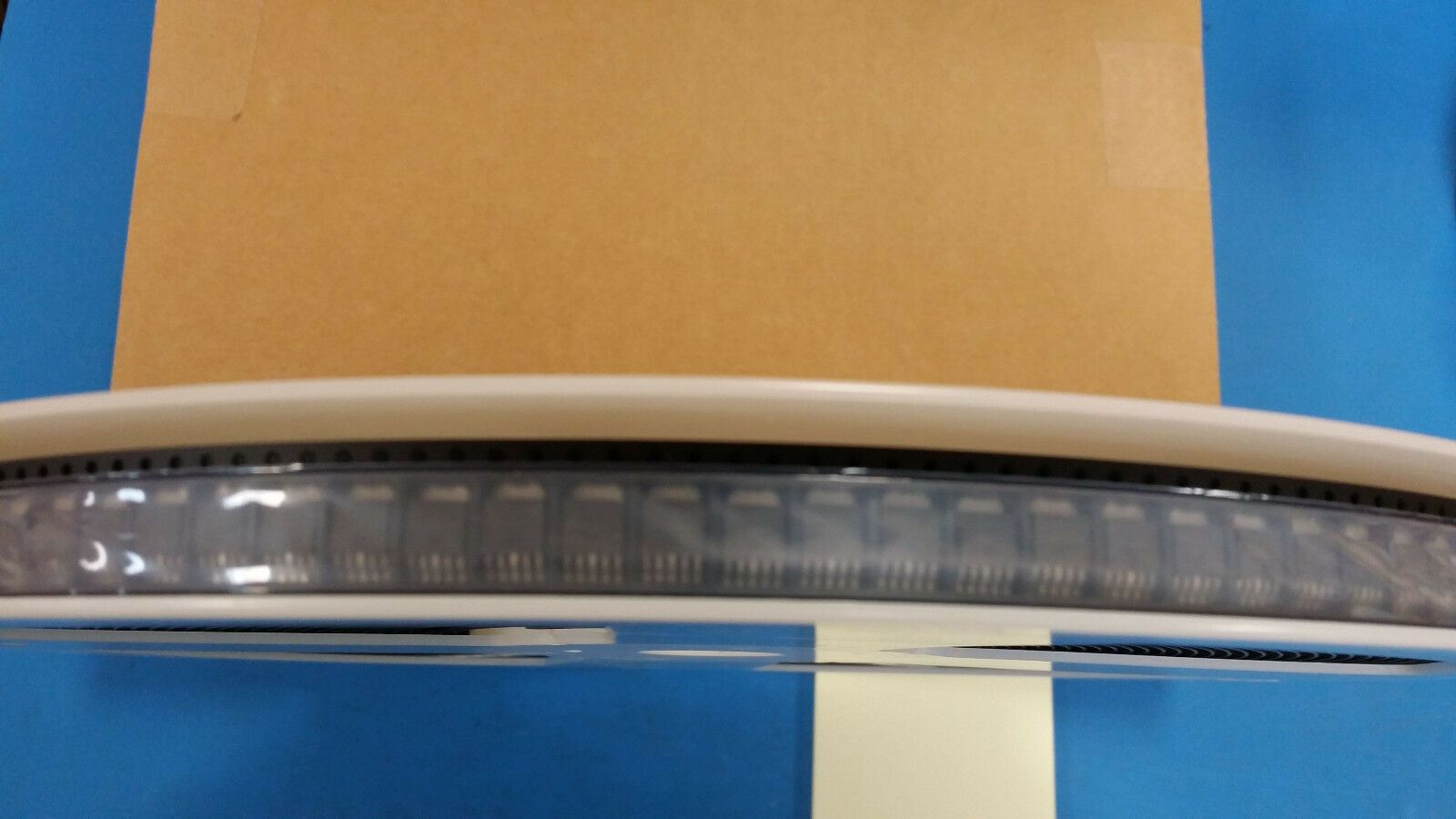

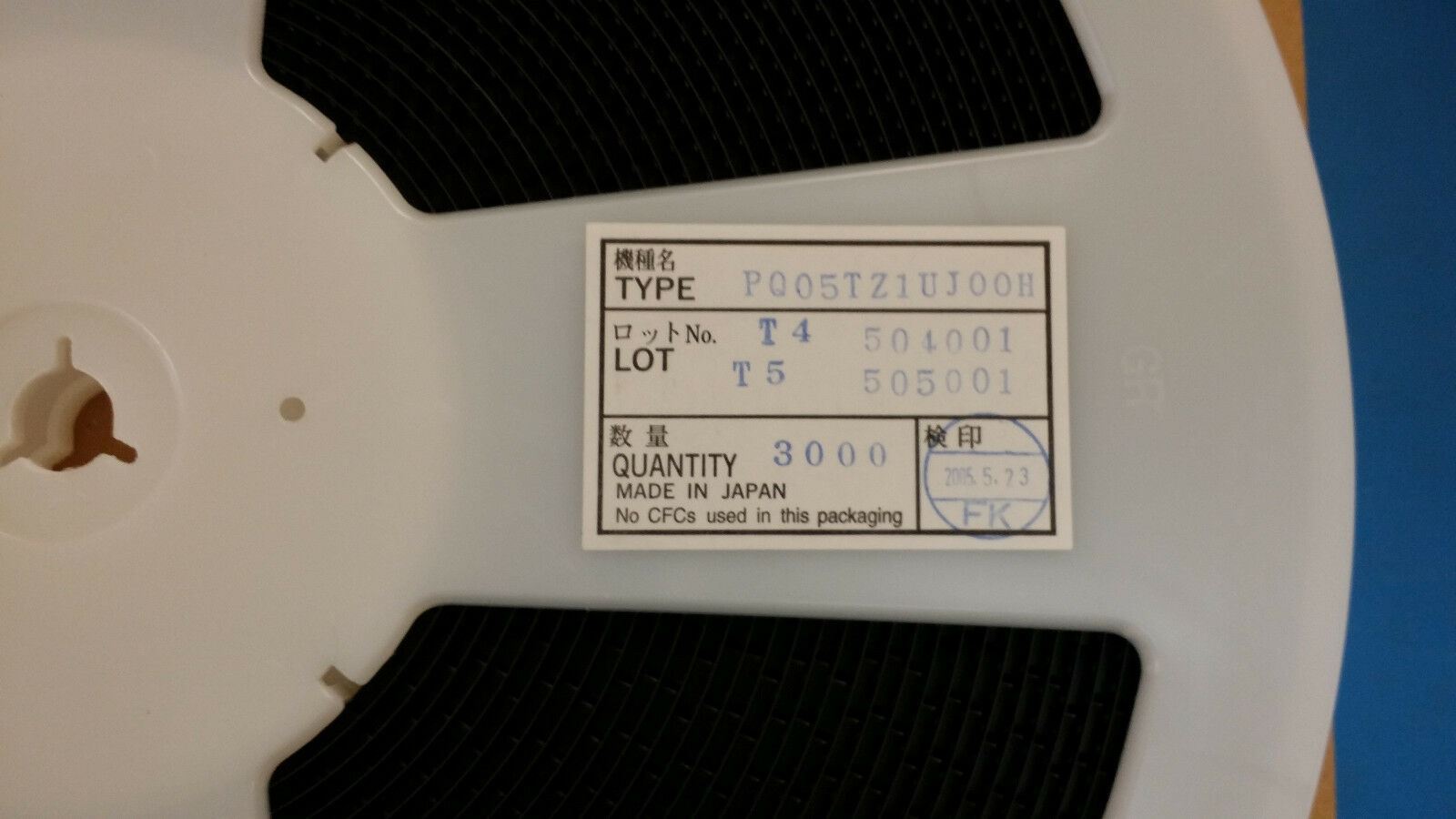

THIS LISTING IS FOR (200 PCS) OF PQ05TZ1UJ00H BY SHARP
LDO Regulator Pos 5V 1A 6-Pin(5+Tab) TO-252
Manufacturer: Sharp Corporation
Description: 5V FIXED POSITIVE REGULATOR, PSSO5
Mfr Package Description
LDO Regulator Pos 5V 1A 6-Pin(5+Tab) TO-252
Part #: PQ05TZ1UJ00H
Part Category: RegulatorsManufacturer: Sharp Corporation
Description: 5V FIXED POSITIVE REGULATOR, PSSO5
Mfr Package Description
| SMT-5 | |
| EU RoHS Compliant | Yes |
| Status | Discontinued |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR |
| Input Voltage-Min | 6.0 V |
| Input Voltage-Max | 16.0 V |
| JESD-30 Code | R-PSSO-G5 |
| Number of Functions | 1 |
| Number of Terminals | 5 |
| Operating Temperature, TJ-Min | 0.0 Cel |
| Operating Temperature, TJ-Max | 125.0 Cel |
| Output Current1-Max | 0.5 A |
| Output Voltage1-Nom | 5.0 V |
| Output Voltage1-Min | 4.88 V |
| Output Voltage1-Max | 5.12 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TO-263 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.05 mm |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | SINGLE |
| Length | 6.6 mm |
| Width | 5.5 mm |
