(200 PCS) N74F133D SIGNETICS Logic Gates 13-INPUT NAND GATE SOIC-16
Tax included.

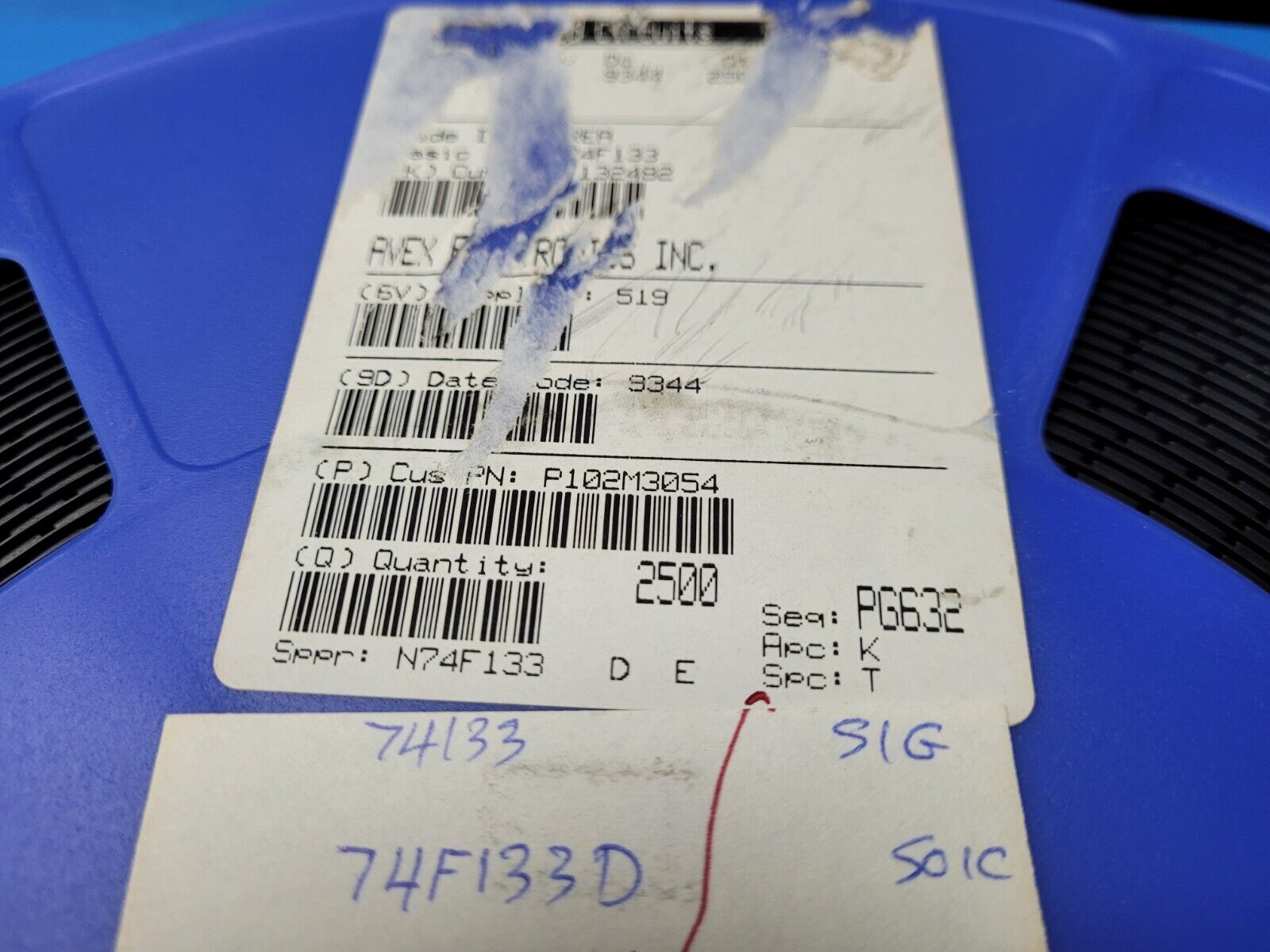

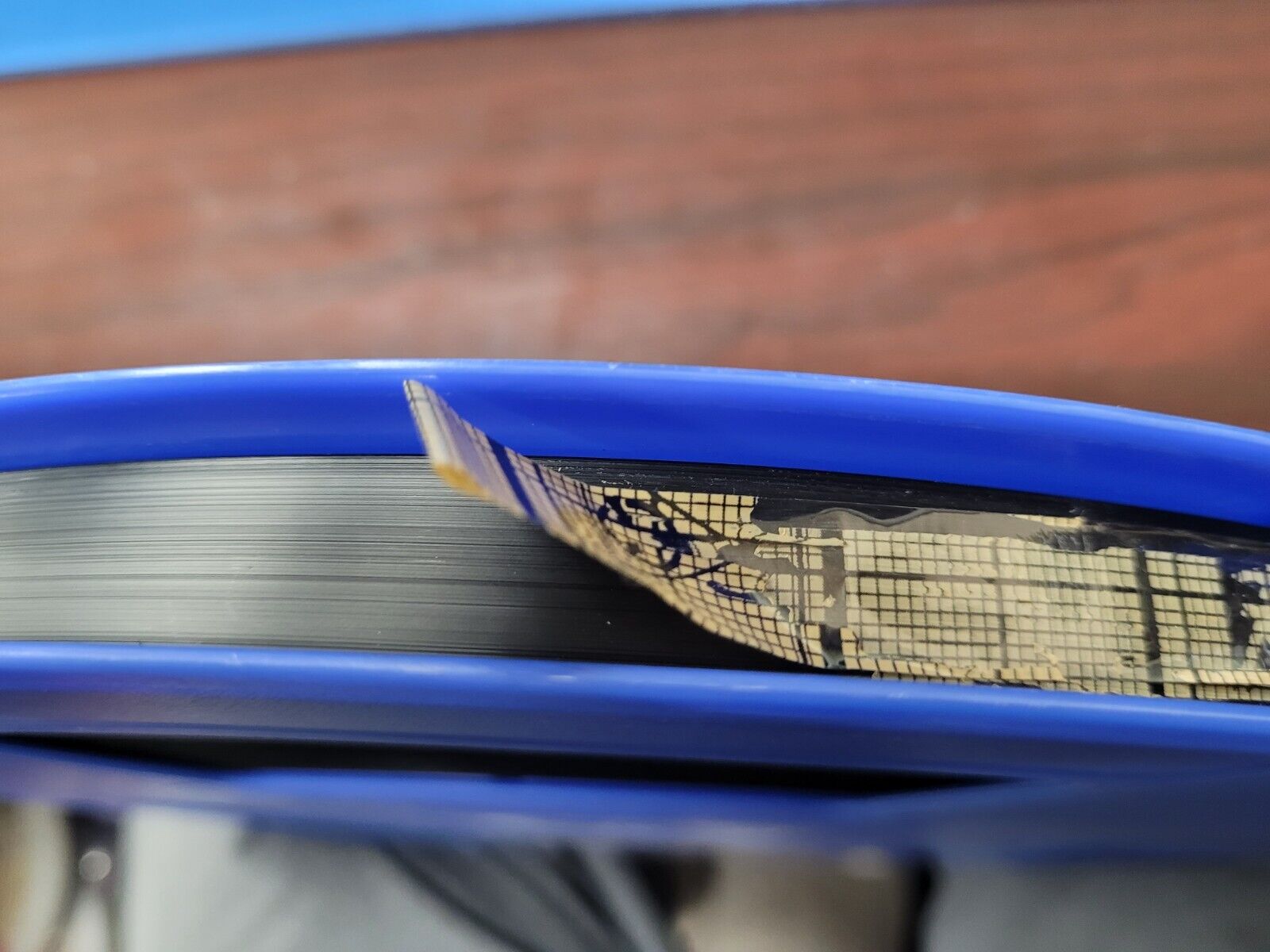

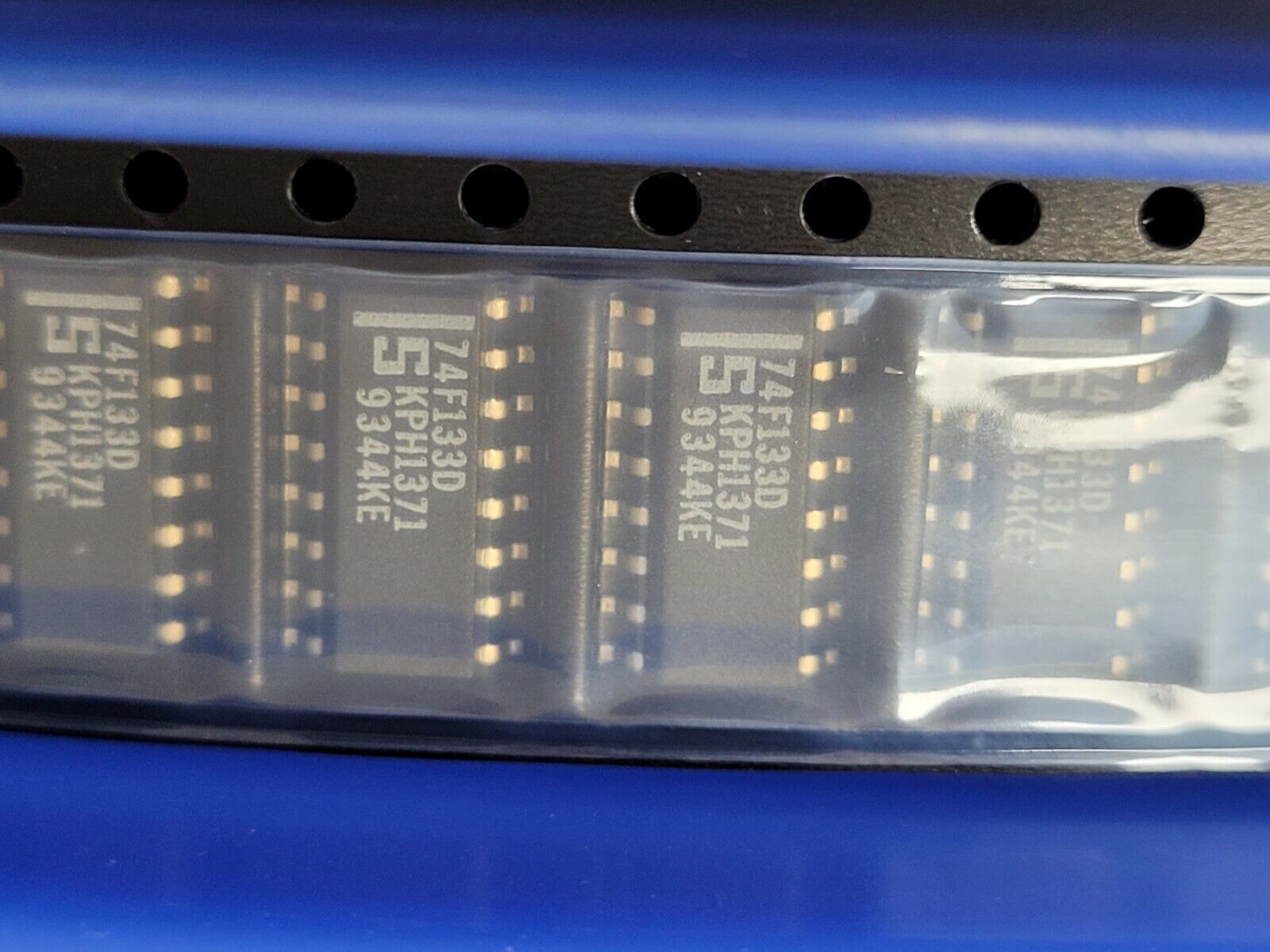

THIS IS FOR (200 PCS) OF N74F133D BY SIGNETICS
Logic Gates 13-INPUT NAND GATE SOIC-16
Product Category: Logic Gates
RoHS: NO
Product: Single-Function Gates
Logic Function: NAND
Logic Family: F
Number of Gates: 1 Gate
Number of Input Lines: 13 Input
Number of Output Lines: 1 Output
High Level Output Current: - 1 mA
Low Level Output Current: 20 mA
Propagation Delay Time: 4 ns
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Mounting Style: SMD/SMT
Package / Case: SOIC-16
Function: NAND
Height: 1.45 mm
Length: 10 mm
Logic Type: 3-Input NAND
Operating Supply Voltage: 5 V
Product Type: Logic Gates
2500
Subcategory: Logic ICs
Width: 4 mm
Part # Aliases: N74F133D,602
Unit Weight: 0.008536 oz
