(20 PCS) SN74ALS280DR TI IC PARITY GEN/CHKER 9-BIT 14SOIC
Tax included.

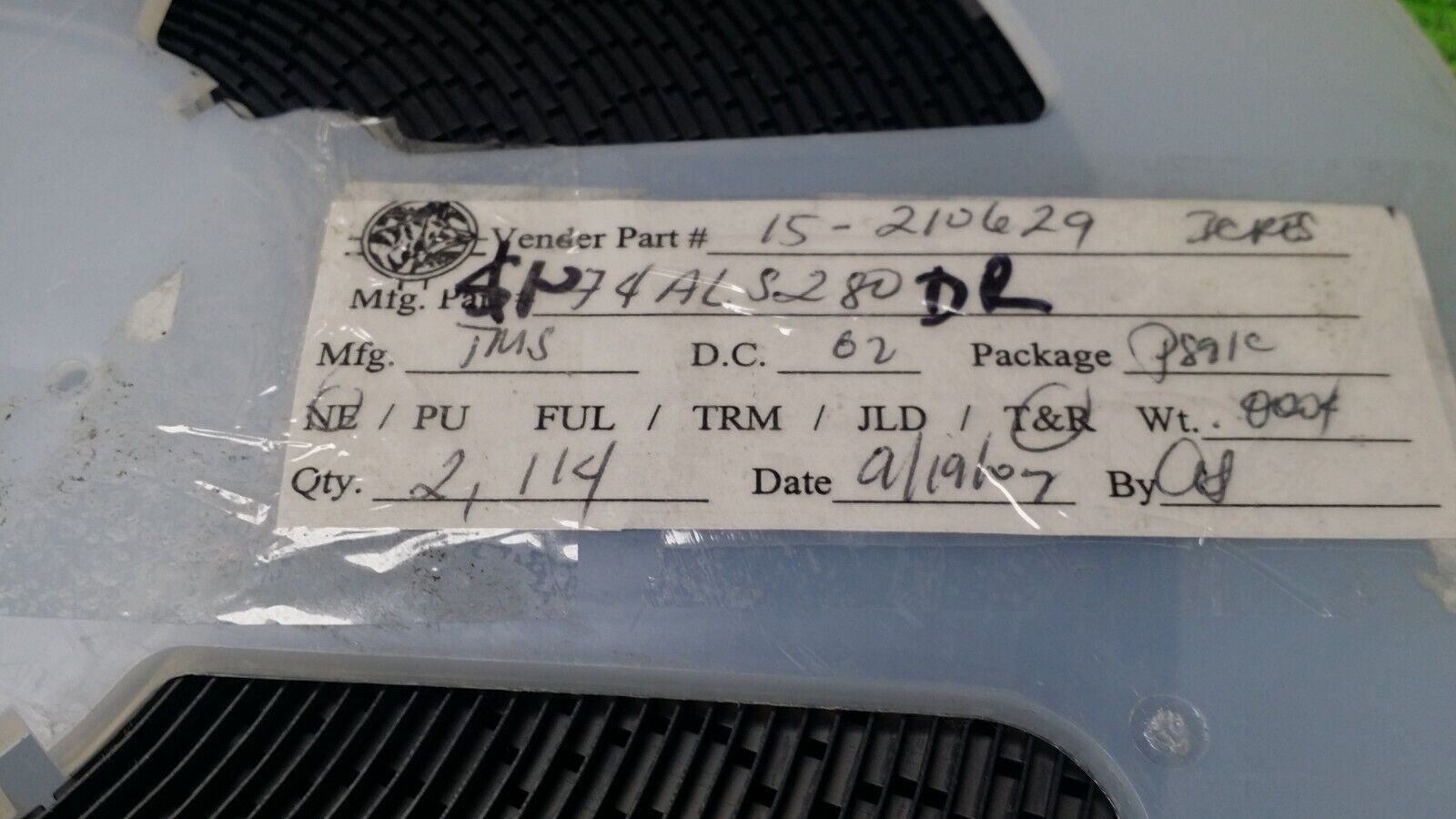

THIS IS FOR (20 PCS) OF SN74ALS280DR BY TI
IC PARITY GEN/CHKER 9-BIT 14SOIC
Part #: SN74ALS280DR
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: Parity Generator/Checker, ALS Series, 9-Bit, Complementary Output, TTL, PDSO14
Mfr Package Description PLASTIC, SO-14
Logic IC Type PARITY GENERATOR/CHECKER
Sub Category Arithmetic Circuits
Family ALS
JESD-30 Code R-PDSO-G14
Load Capacitance (CL) 50.0 pF
Number of Bits 9
Number of Functions 1
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics 3-STATE
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supply Current-Max (ICC) 16.0 mA
Propagation Delay (tpd) 20.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 8.65 mm
Width 3.9 mm
Additional Feature ODD/EVEN PARITY GENERATOR
