(20 PCS) H1012 PULSE Telecom Transformer 1:1 1500Vrms -1dB Surface Mount
Tax included.

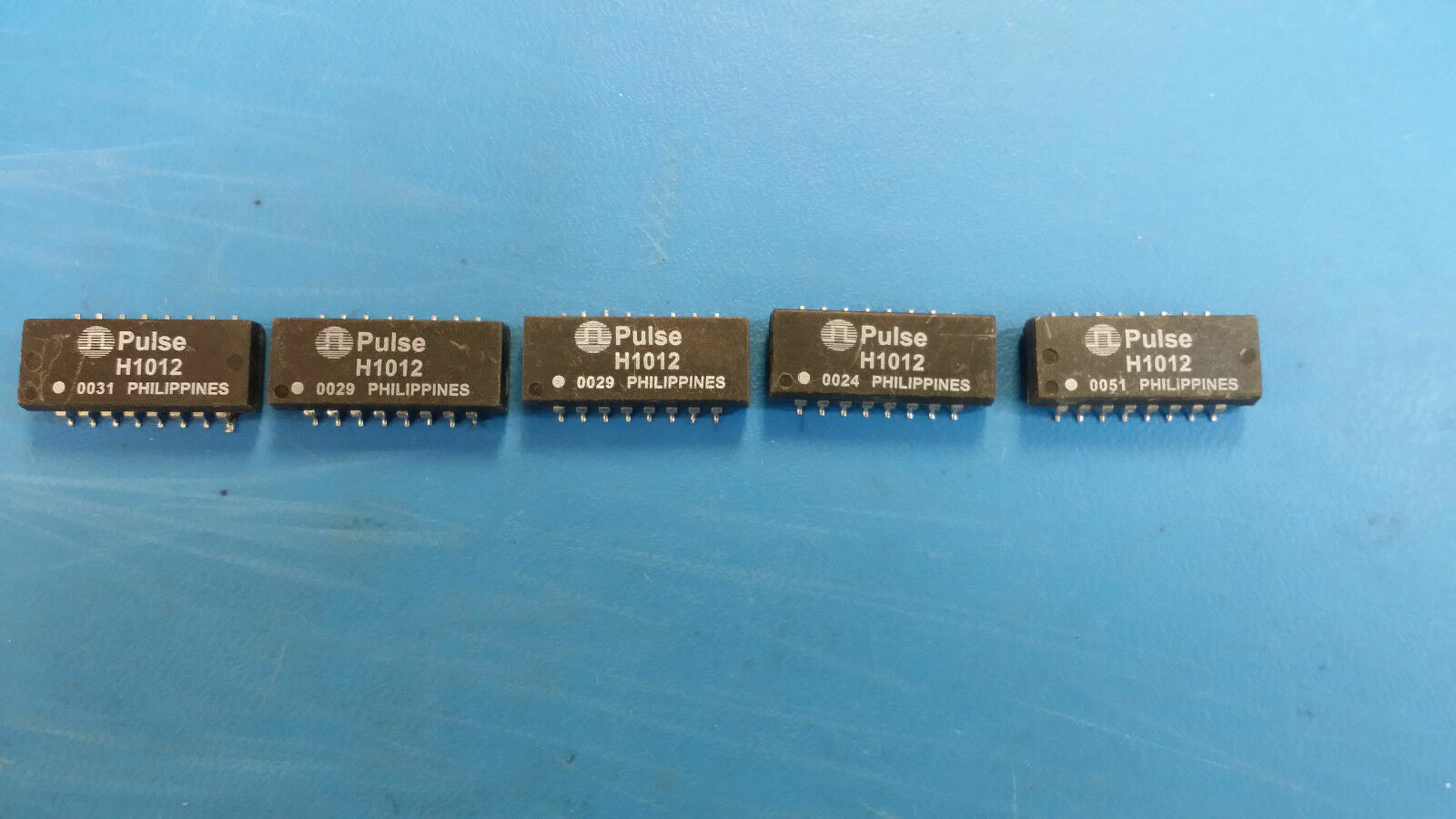

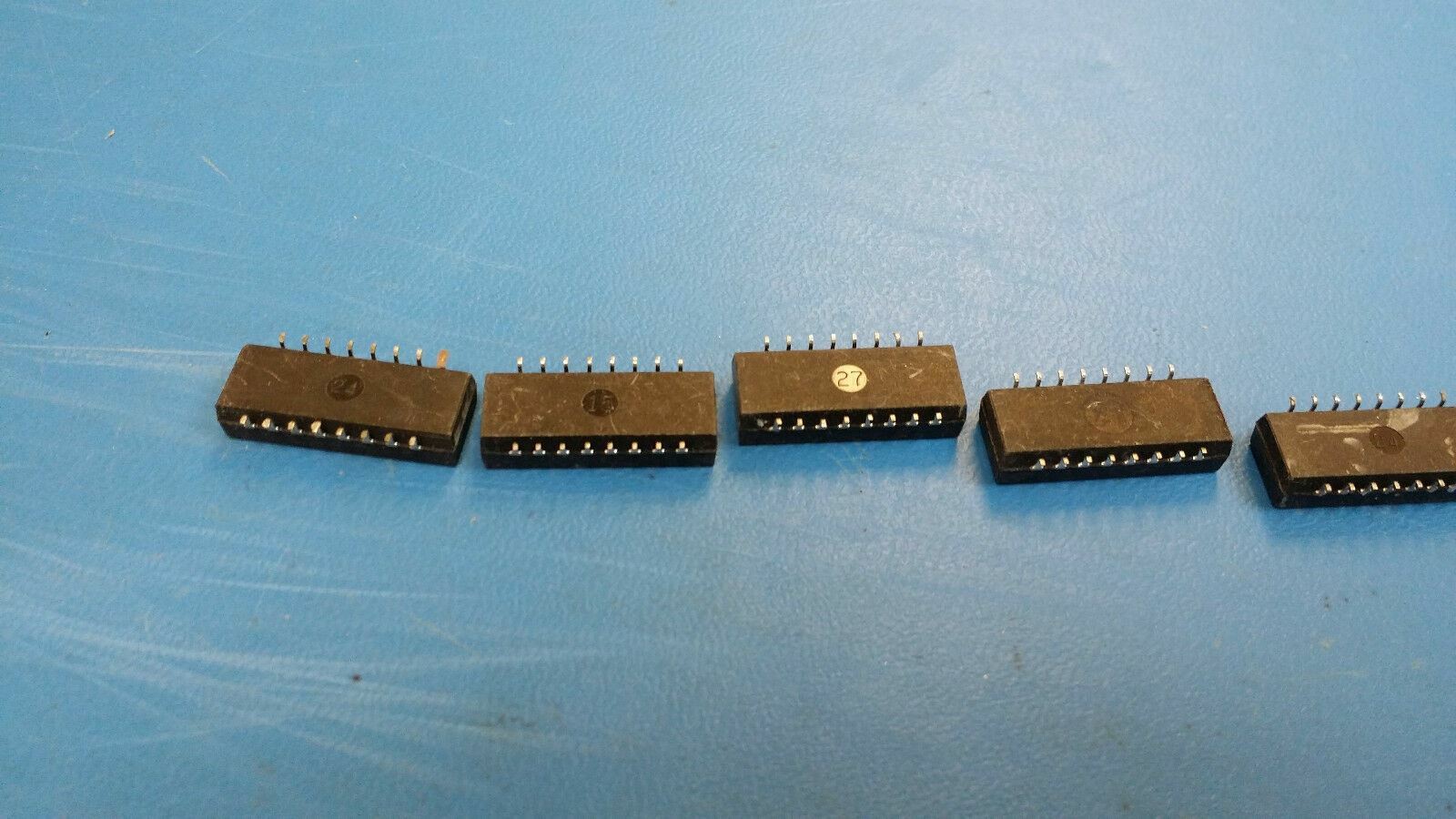

THIS LISTING IS FOR (20 PCS) OF H1012 BY PULSE
Transformer 1:1 1500Vrms -1dB Surface Mount

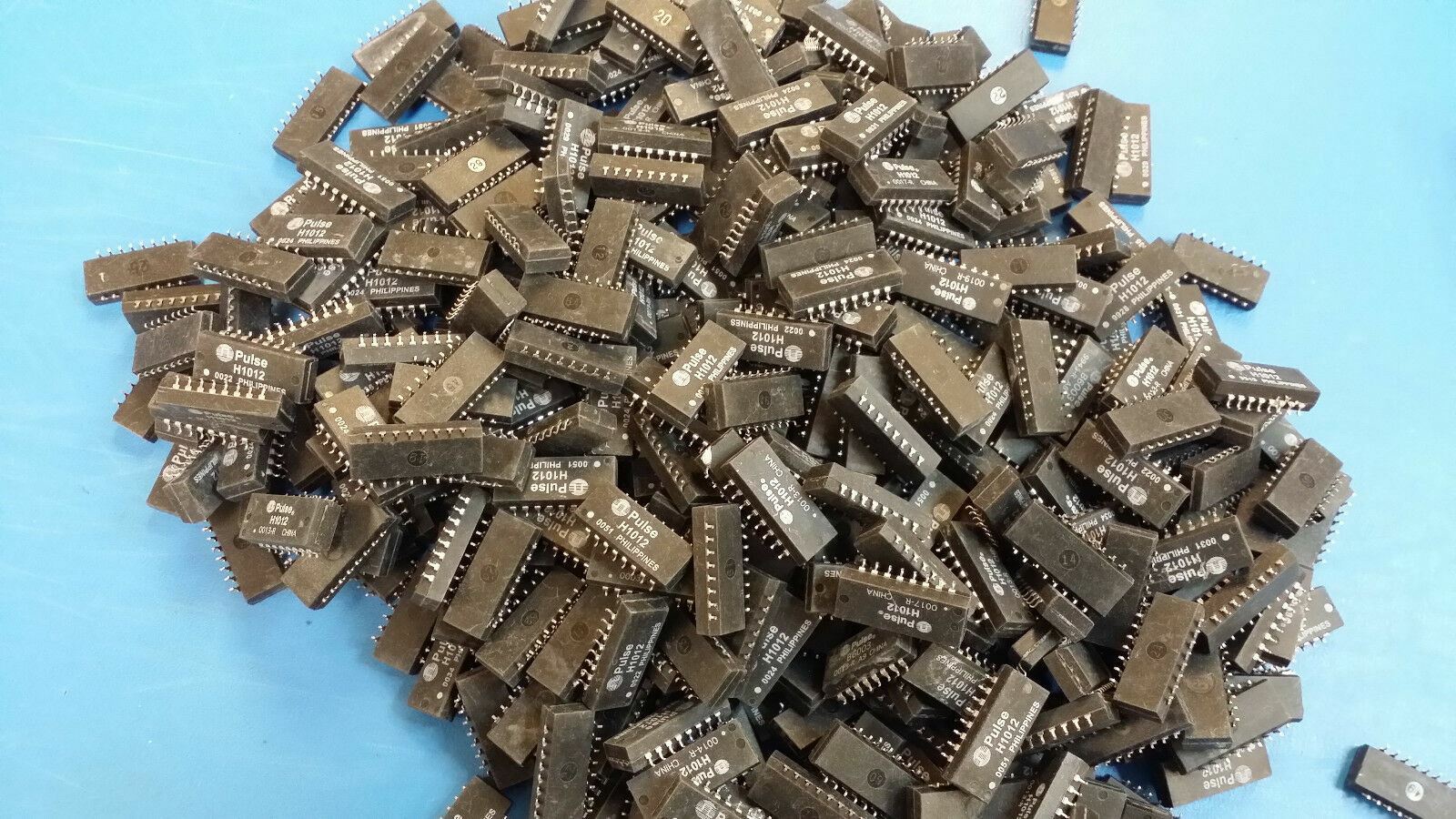

(THESE PARTS WERE PULLED OFF WORKING BOARDS)
(ALL PARTS WILL BE REFURBISHED BY SPEC PRIOR TO SHIPPING)
Transformer 1:1 1500Vrms -1dB Surface Mount
(THESE PARTS WERE PULLED OFF WORKING BOARDS)
(ALL PARTS WILL BE REFURBISHED BY SPEC PRIOR TO SHIPPING)
H1012 Part Details & Parametric
| Maximum Insertion Loss (dB) | -1@0.1MHz to 100MHz |
| Minimum Return Loss (dB) | -14@60MHz to 80MHz |
| Number of Terminals | 16 |
| High Potential | 1500Vrms |
| Transformer Type | 10/100Base-T Single Port Transformer |
| Turns Ratio | 1:1 |
| Mounting | Surface Mount |
| Lead Style | Gull Wing |
| Packaging | Tube |
| Product Length (mm) | 25.4 |
| Product Height (mm) | 6.22 |
| Product Depth (mm) | 12.83 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
