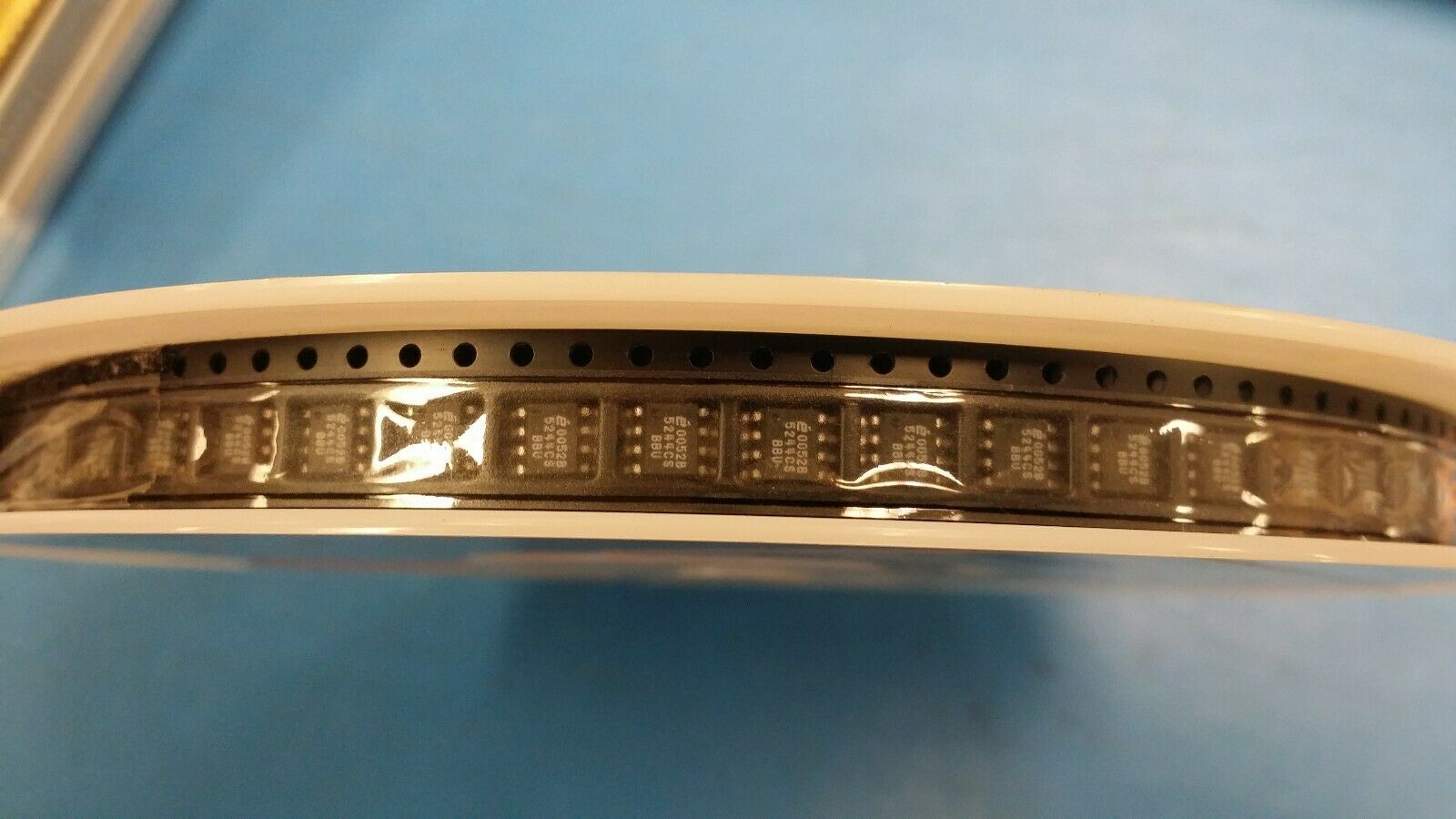

(20 PCS) EL5244CS EL5244CS-T7 ELANTEC Video Amplifier 1 Channel(s) 2 Func SOIC-8
Tax included.

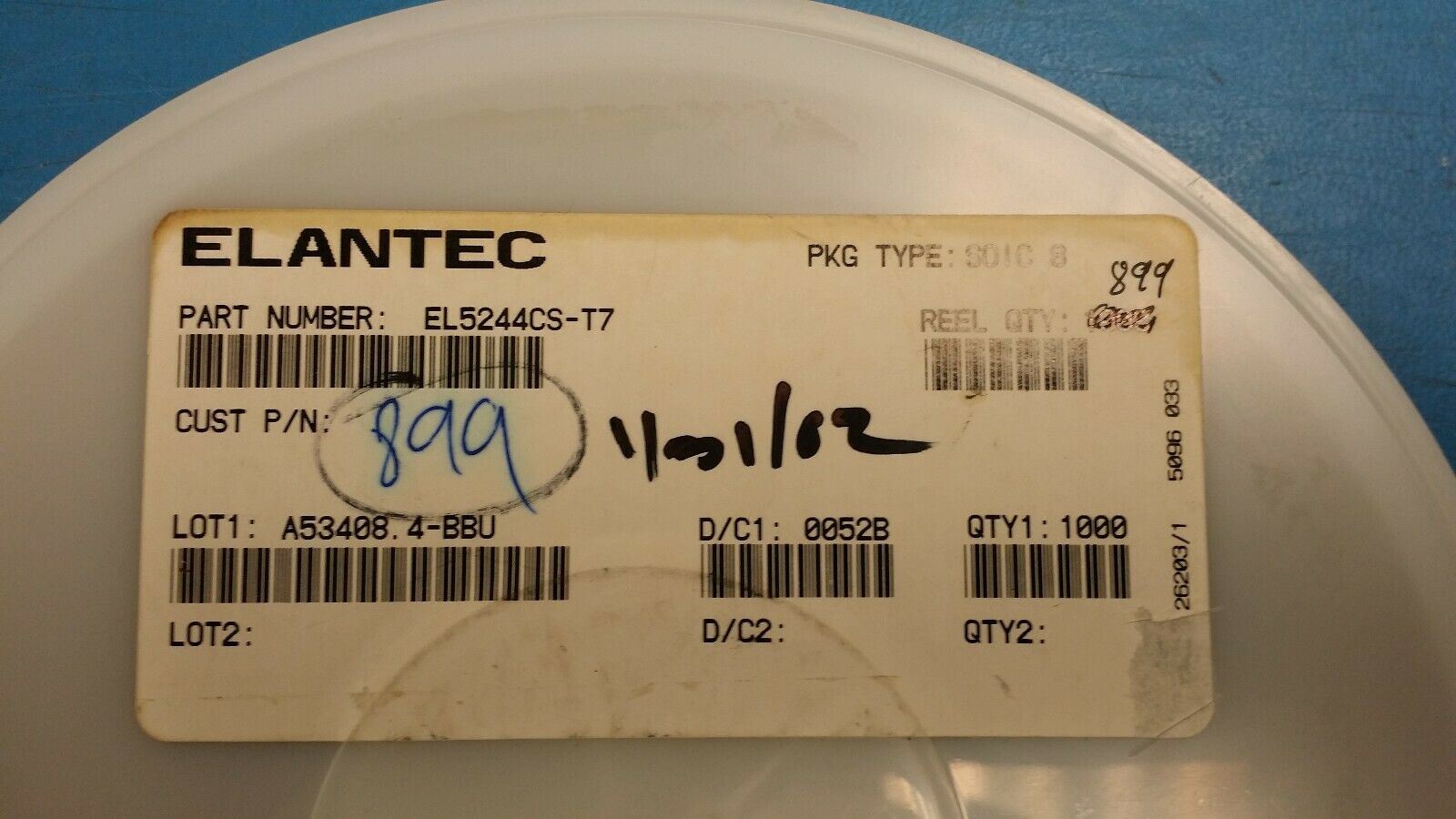

THIS LISTING IS FOR (20 PCS) OF EL5244CS, EL5244CS-T7 BY ELANTEC
Video Amplifier 1 Channel(s) 2 Func SOIC-8
| Mfr Package Description | SOIC-8 |
| Status | Discontinued |
| Consumer IC Type | VIDEO AMPLIFIER |
| Bandwidth-Nom | 100000.0 kHz |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Channels | 1 |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 240 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.7272 mm |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Surface Mount | YES |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 4.9022 mm |
| Width | 3.9116 mm |
