(20 PCS) CY7C1049-20VC CYPRESS Standard SRAM, 512KX8, 20ns, CMOS, SOJ-36
(20 PCS) CY7C1049-20VC CYPRESS Standard SRAM, 512KX8, 20ns, CMOS, SOJ-36

(20 PCS) CY7C1049-20VC CYPRESS Standard SRAM, 512KX8, 20ns, CMOS, SOJ-36

Tax included.
Only 30 left!

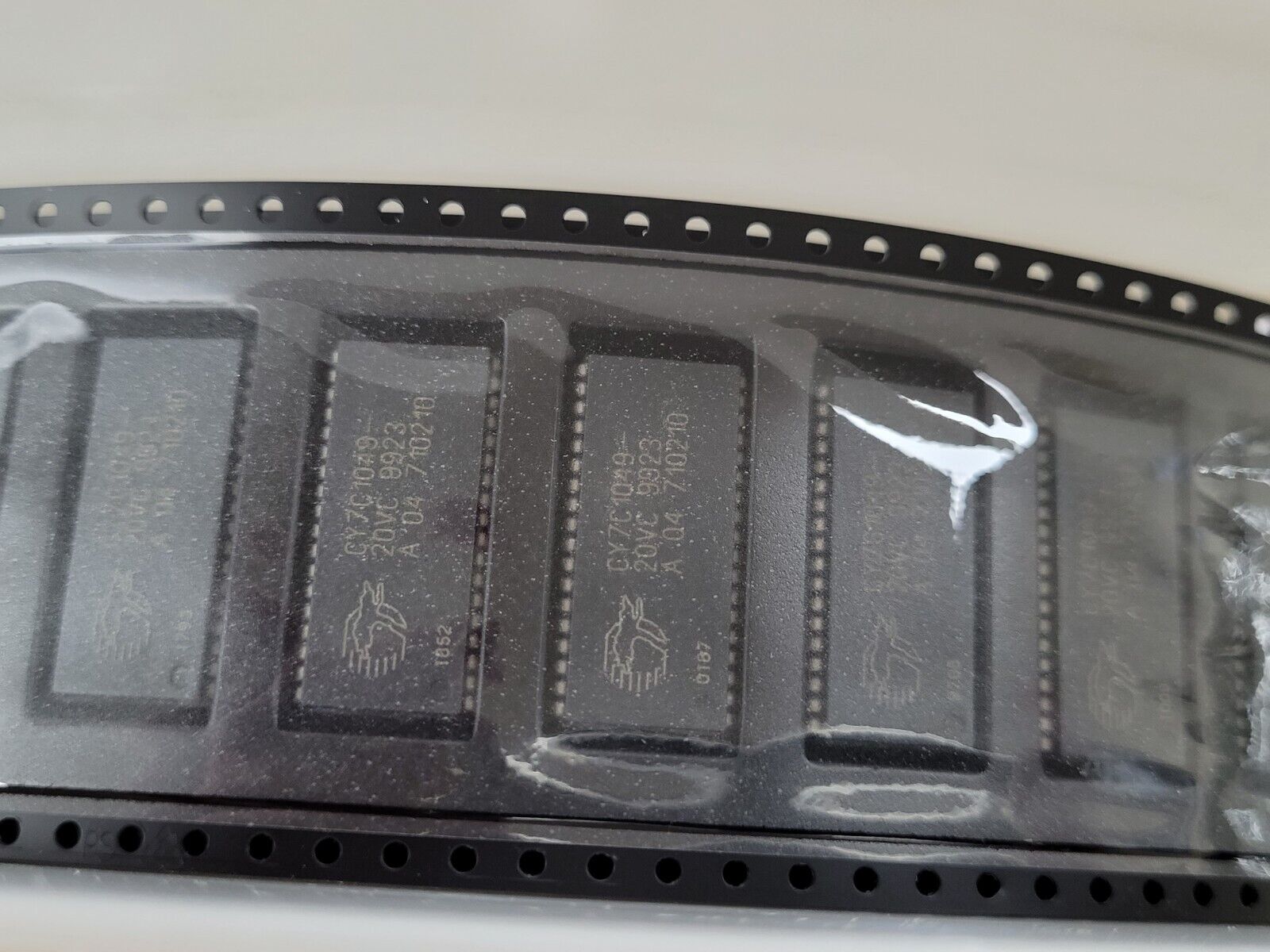

THIS IS FOR (20 PCS) OF CY7C1049-20VC BY CYPRESS
Standard SRAM, 512KX8, 20ns, CMOS, SOJ-36

Part #: CY7C1049-20VC
Part Category: Memory ICs
Manufacturer: Cypress Semiconductor Corp.
Description: Standard SRAM, 512KX8, 20ns, CMOS, PDSO36

Mfr Package Description 0.400 INCH, PLASTIC, SOJ-36
Status Discontinued
Sub Category SRAMs
Access Time-Max 20.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-J36
JESD-609 Code e0
Memory Density 4194304.0 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 36
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ36,.44
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.683 mm
Standby Current-Max 0.008 Amp
Standby Voltage-Min 2.0 V
Supply Current-Max 0.185 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 23.495 mm
Width 10.16 mm
