(20 PC) S-80722AN-DK-T1 SII Power Supply Support CKT Fixed 1 Channel CMOS SOT-89
Tax included.

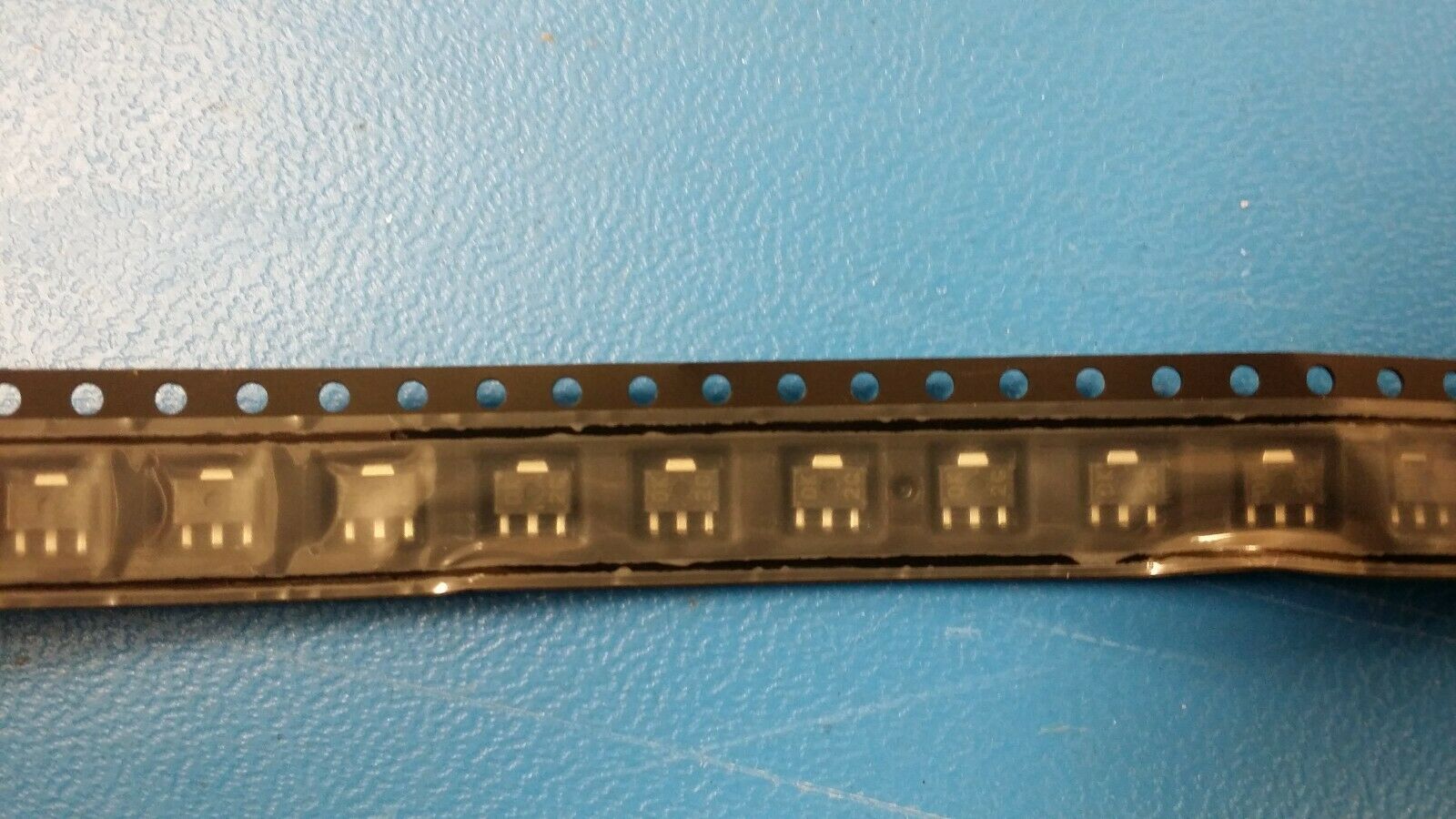

THIS LISTING IS FOR (20 PCS) OF S-80722AN-DK-T1 BY SII
Power Supply Support CKT Fixed 1 Channel CMOS SOT-89

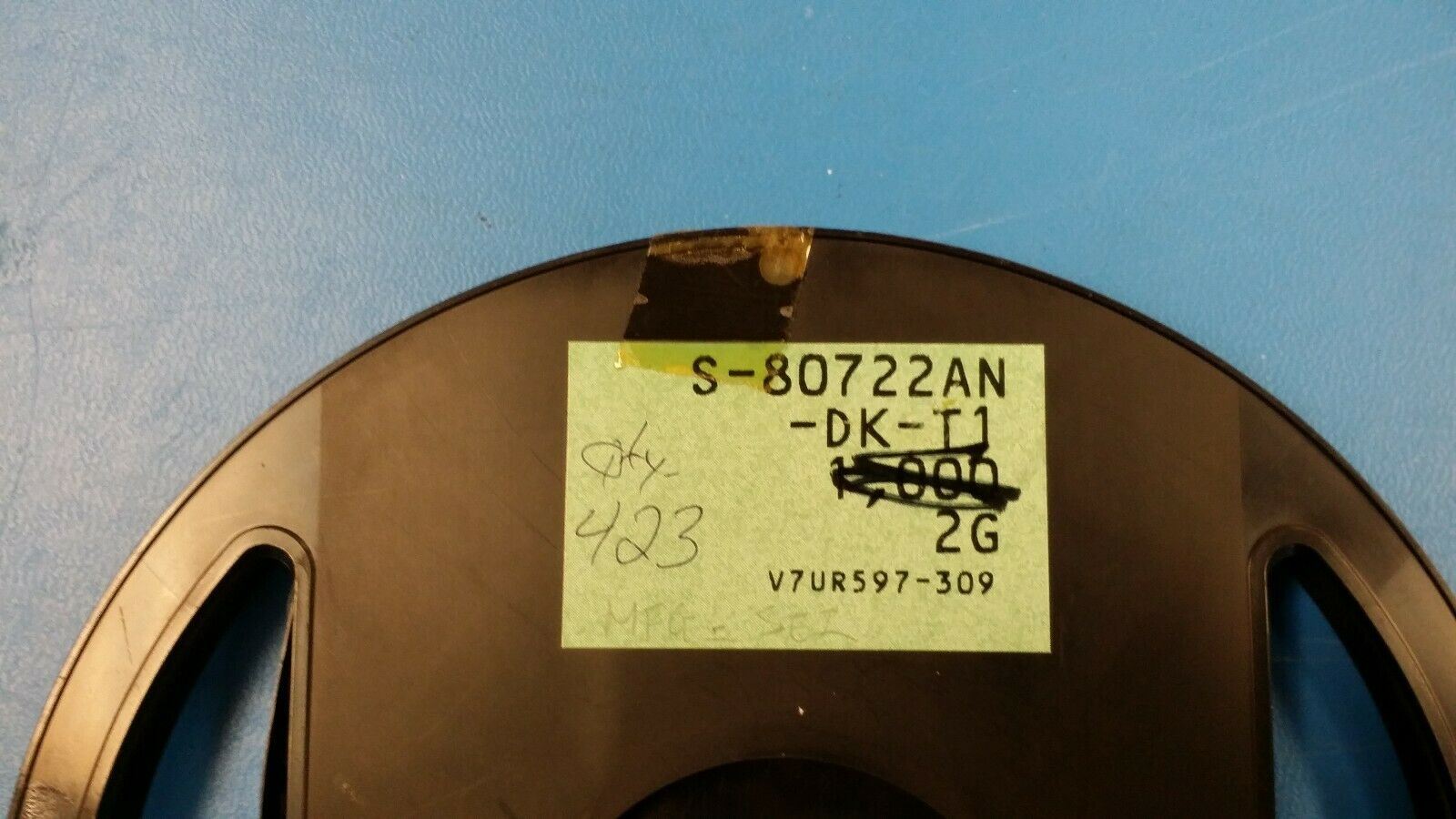

Part #: S-80722AN-DK-T1
Part Category: Other Semiconductors
Manufacturer: Seiko Instruments USA, Inc.
Description: Power Supply Support Circuit, Fixed, 1 Channel, CMOS, PSSO3
Mfr Package Description SOT-89, 3 PIN
Status Discontinued
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Adjustable Threshold NO
JESD-30 Code R-PSSO-F3
Number of Channels 1
Number of Functions 1
Number of Terminals 3
Operating Temperature-Min -30.0 Cel
Operating Temperature-Max 80.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Supply Current-Max (Isup) 0.0035 mA
Supply Voltage-Nom (Vsup) 1.2 V
Supply Voltage-Min (Vsup) 1.0 V
Supply Voltage-Max (Vsup) 15.0 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL EXTENDED
Terminal Form FLAT
Terminal Pitch 1.5 mm
Terminal Position SINGLE
Length 4.5 mm
Width 2.5 mm
Additional Feature DETECTION THRESHOLD VOLTAGE IS 2.1
